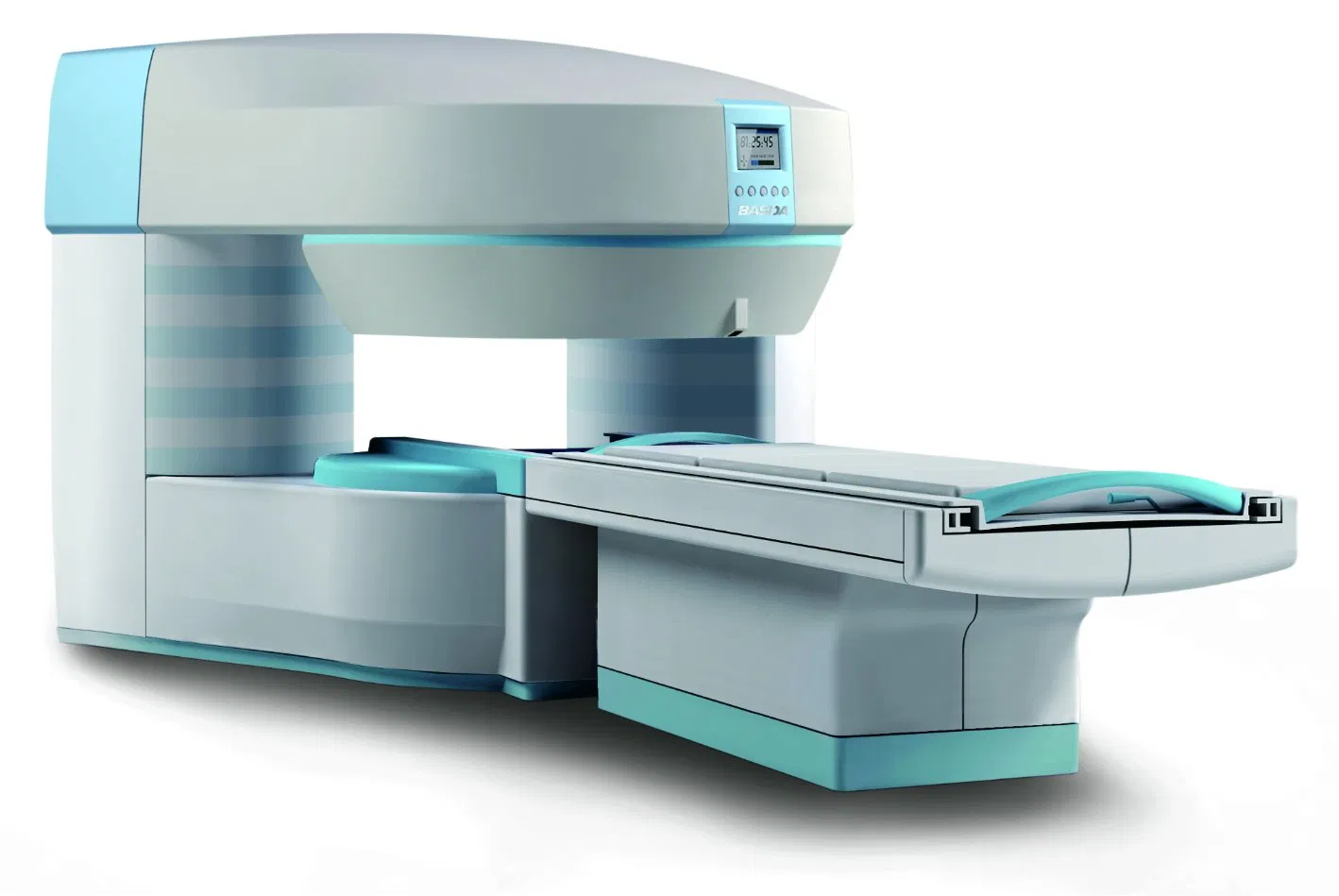

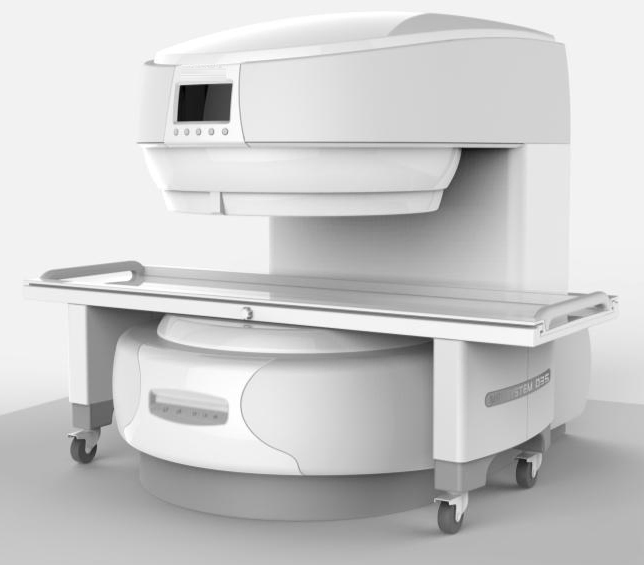

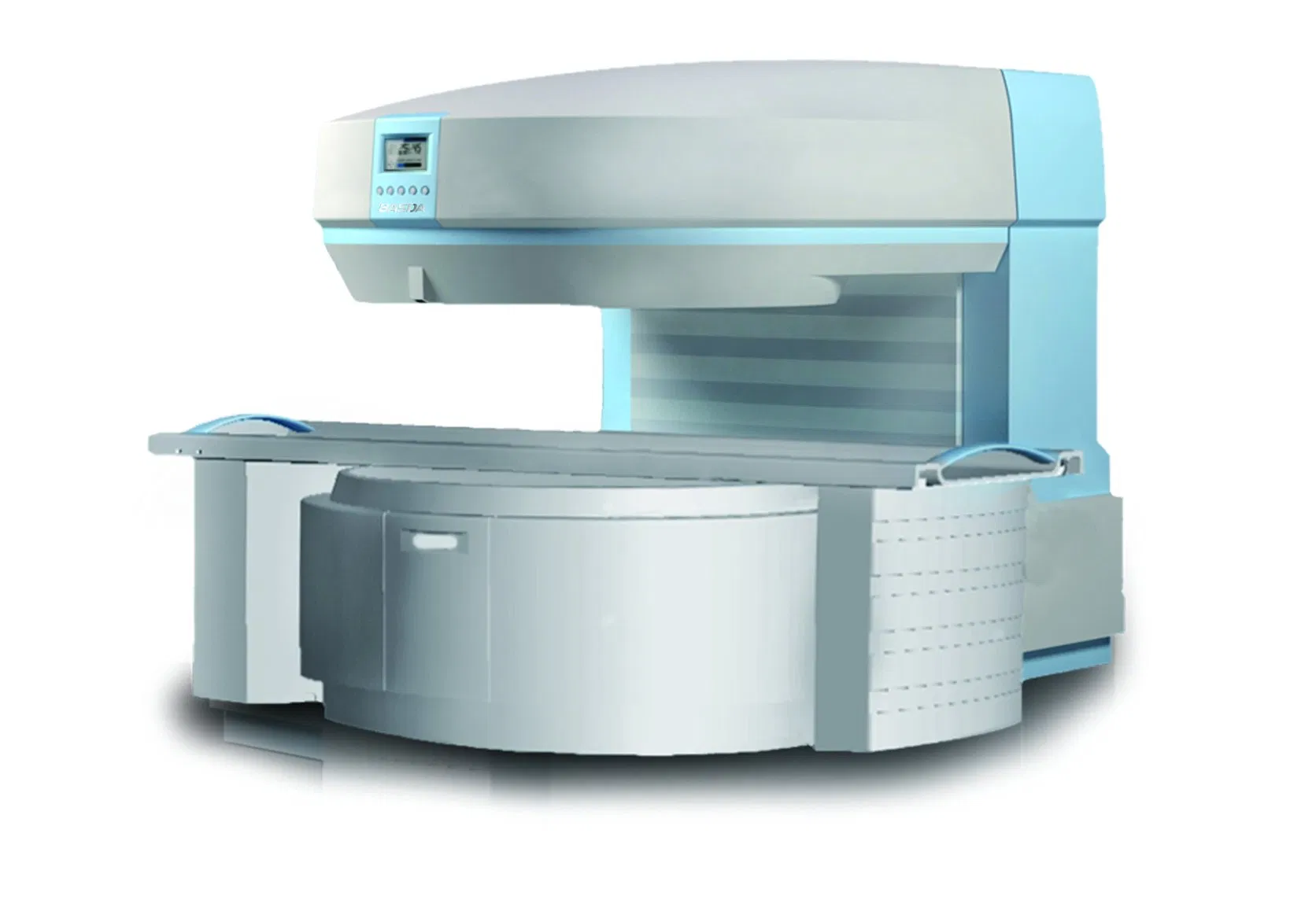

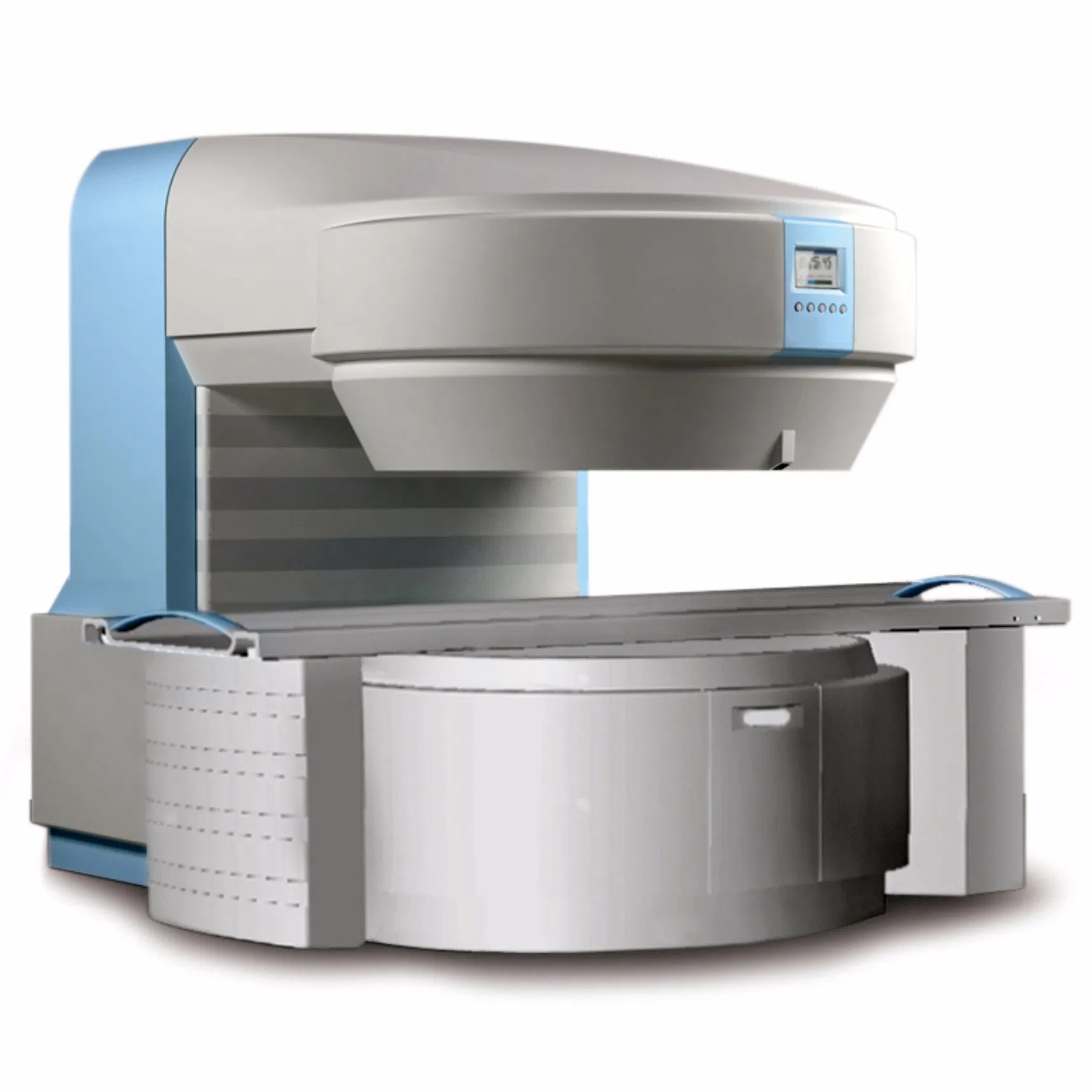

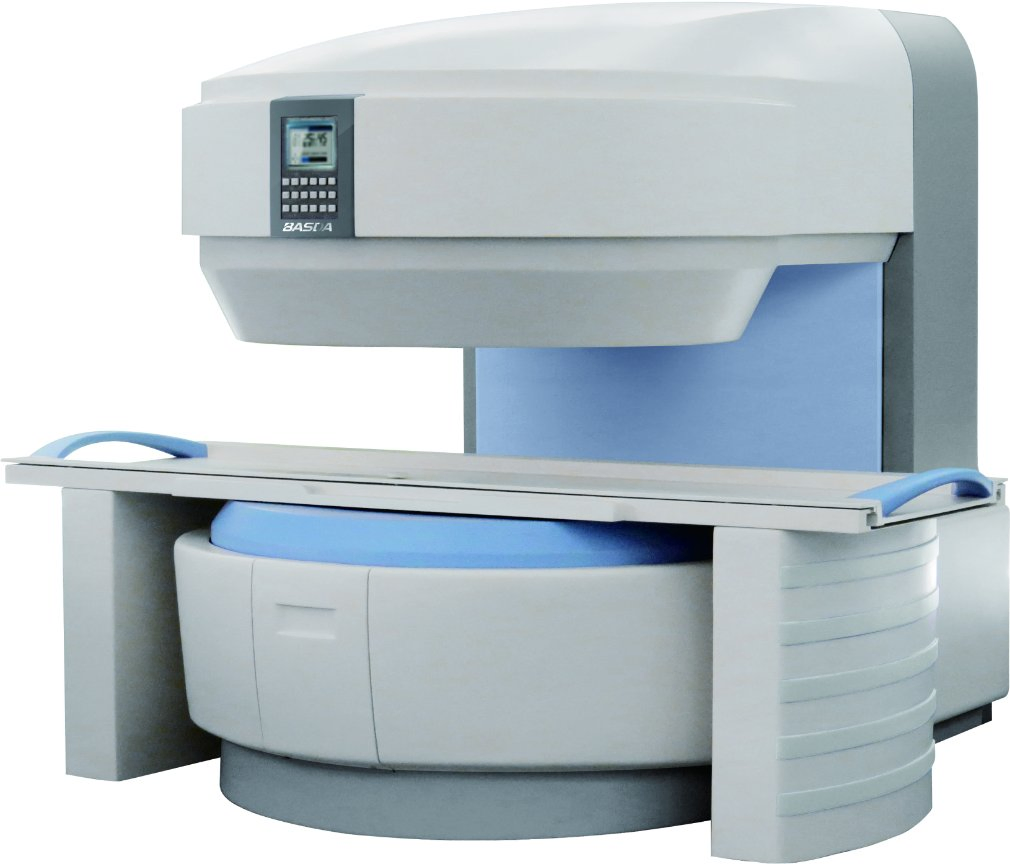

Magnet type: C-shape, open, self-acting permanent Ne-Fe-B magnet, eddy current technique
Magnetic field strength: 0.35T
Magnetic field homogeneity: 40cm DSV ≤5ppm(Vrms)
Gap-to-gap distance: 400mm
Gradient strength: max. 25mT/m (Gx/Gy/Gz)
Gradient slew rate: 75mT/m/ms
Gradient Nonlinearity: 40cm*40cm*38cm ellipsoid < 5%
Cooling system: air-cooling
Central frequency: DC~22MHz
Spectrometer: Full Digital (Four channels)
Transmitting coil: Flat planar coil
Receiving coils: Phase array coil (Neck, Head, Large body, Small body, Knee, Wrist, Shoulder)
Optional coils: spine coil, breast coil, ankle coil, etc.
Power of transmitter amplifier: 6KW
Operation system: WINDOW2000/NT/XP
CPU: 2.8GHz (Dual Core Processor)
Storage: Hard disc ≥250G, RAM ≥2G
Monitor: High resolution, size ≥22", TFT screen
Interface: DICOM 3.0 Network & laser printer
Post-processing: Intensify, zoom/pan, cut, window width/level adjustment, text mark, distance measurement, signal value distribution.
Standard Sequences: SE 2D/3D, MSME, GRE 2D/3D, SSPGRE, FSE, SSFSE, MSFSE, IR, IRFSE, STIR, FLAIR
Advanced Imaging: MRM, MRU, MRCP, TOF 2D/3D MRA, DWI, EPI
Acquisition matrix: 64/128/256/512
Resolution: Up to 0.5mm (head) / 0.75mm (body)
Slice Orientation: Sagittal, coronal, transversal, any angle any oblique
Max. Patient load: 240kg
Positioning: Laser light localizer
Longitudinal travel range: ≥1650mm
Communication: Intercommunication between patient and operator available
Power Supply: 3N---380V 50Hz 15KVA
