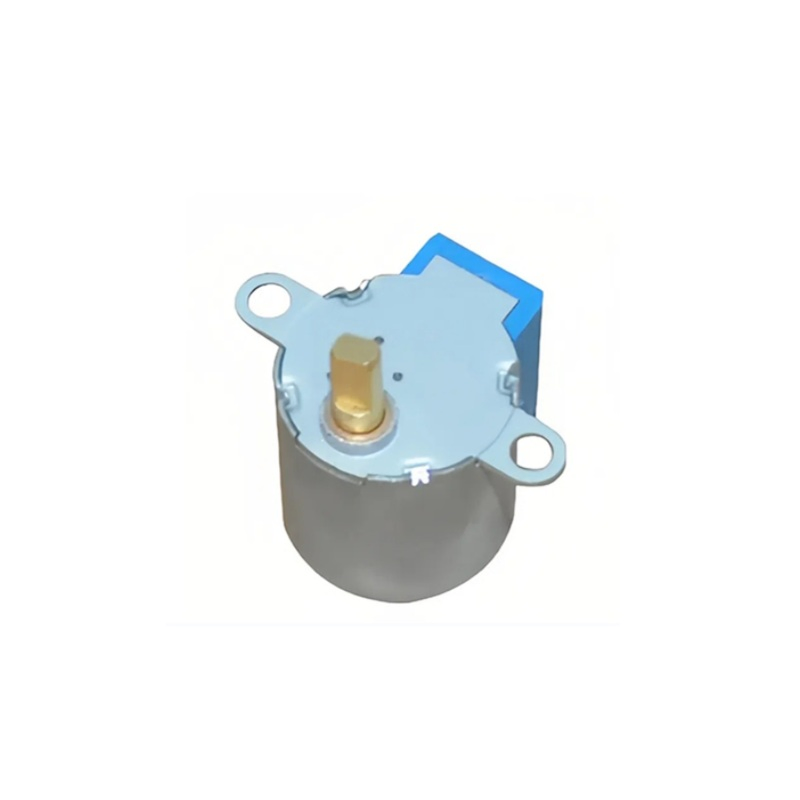

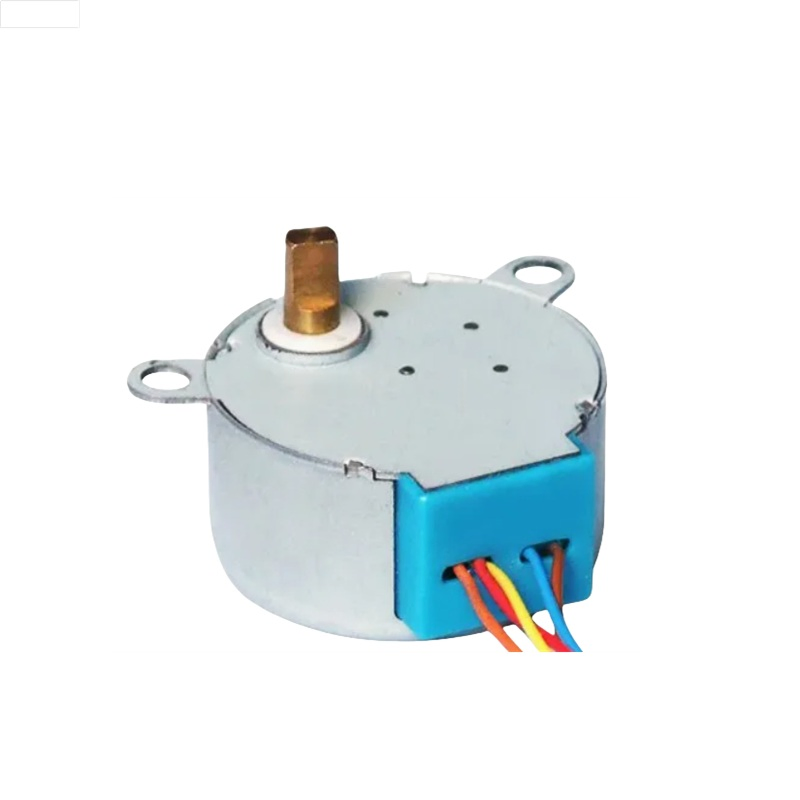

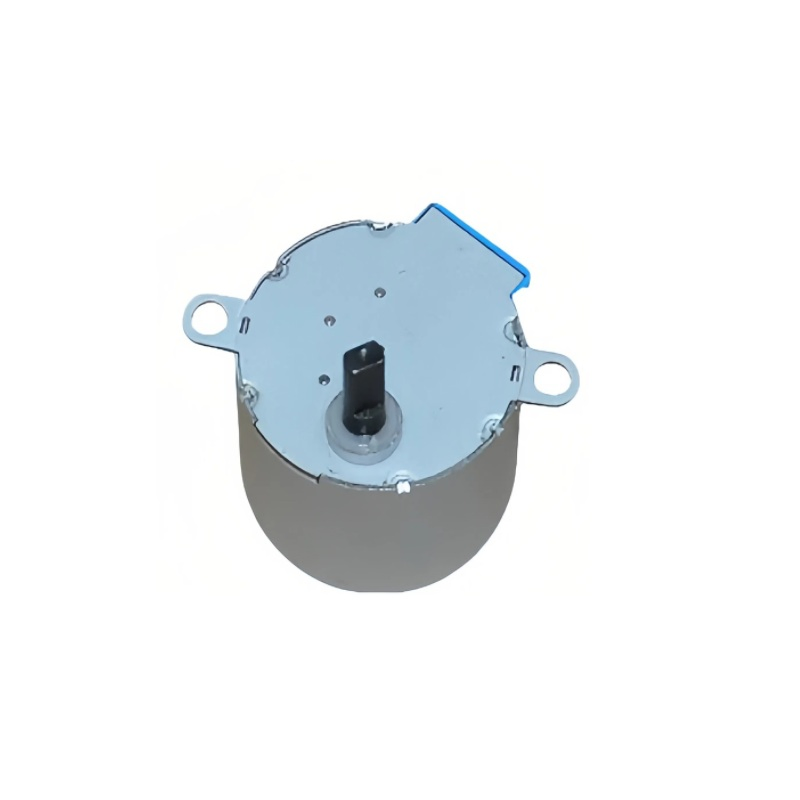

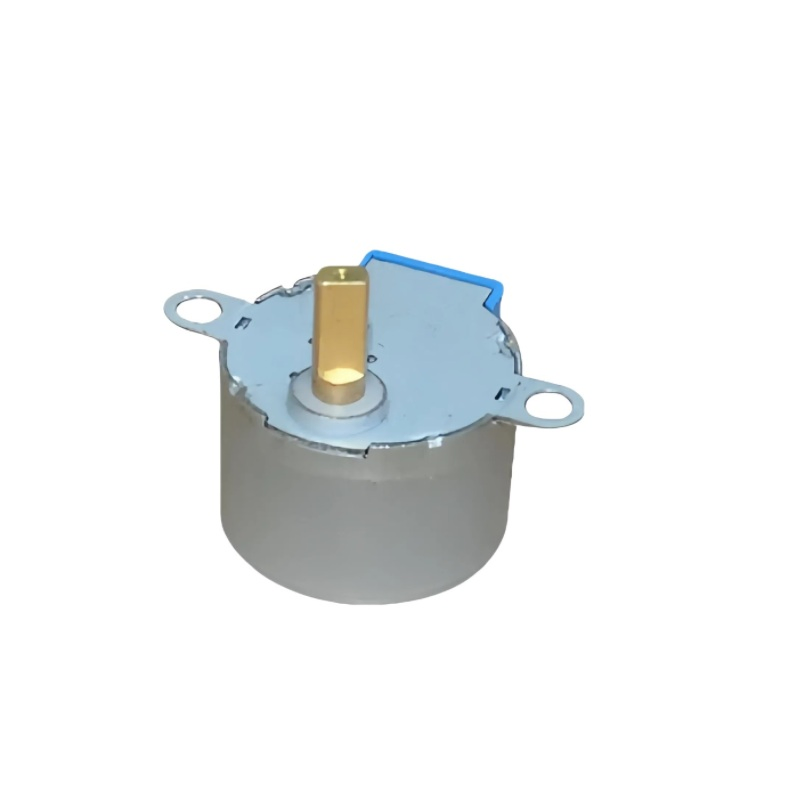

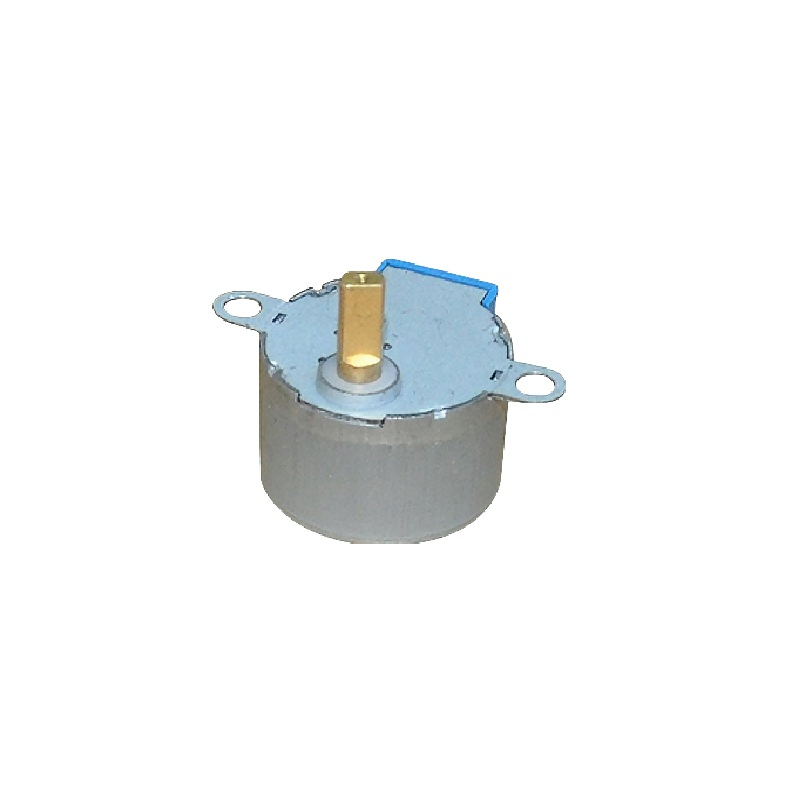

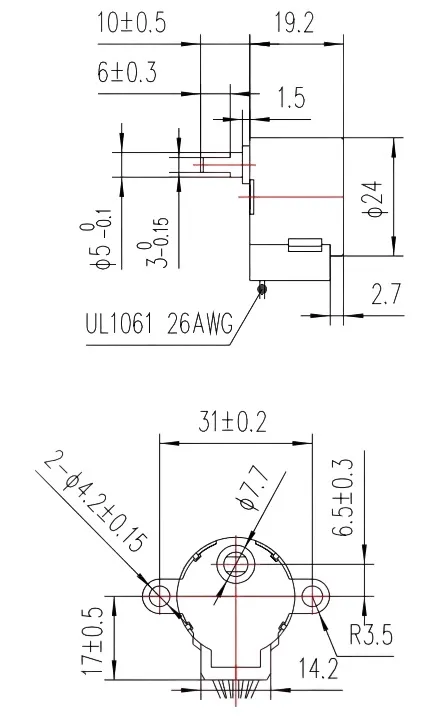

The 24mm 24PM permanent magnet gearbox stepping motor offers powerful holding torque in a variety of sizes, designed for precision control and durability in industrial and commercial applications.
| Item | Specification |
|---|---|
| Resistance Accuracy | ±10% |
| Temperature Rise | 60ºC (rated current, 2 phase on) |
| Ambient Temperature | -40ºC ~ +50ºC |
| Insulation Resistance | 100MΩ Min., 500VDC |
| Dielectric Resistance | 600VAC, 1s, 1mA |
| Shaft Radial Play | 0.1mm Max |
| Shaft Axial Play | 0.55mm Max |
| Model NO. | Rated Voltage (VDC) | No. of Phase | Resistance/Phase (Ω) | Step Angle (DEG) | Rating Ratio | Starting Freq (pps) | Torque (mN.m) | Detent Torque (mN.m) |
|---|---|---|---|---|---|---|---|---|
| W24BYJ4801 | 12 | 4 | 120 | 5.625/64 | 1:64 | ≥500 | ≥49 | ≥34.3 |
| W24BYJ4802 | 12 | 4 | 200 | 5.625/64 | 1:64 | ≥500 | ≥49 | ≥39.2 |
| W24BYJ4803 | 12 | 4 | 300 | 5.625/64 | 1:64 | ≥500 | ≥29.4 | ≥29.4 |
| W24BYJ4803W | 12 | 4 | 300 | 5.625/25 | 1:25 | ≥500 | ≥11.7 | ≥14.7 |
| W24BYJ24N05U | 8 | 2 | 50 | 11.25/16 | 1:16 | ≥600 | ≥24.5 | ≥14.7 |
