Product Description

i

Basic Information

Model NO.
25PM
Operation Mode
Electric Motor
Magnetic Structure
Permanent Magnet
Function
Driving, Control
Structure
Rotating Pole Type
Number of Poles
2
Ventilation
Open Type
Certification
CCC, ISO9001, CE
Transport Package
Carton
Specification
41x27x25cm
Origin
China
HS Code
850131000
Production Capacity
100,000/Year
D

Product Description

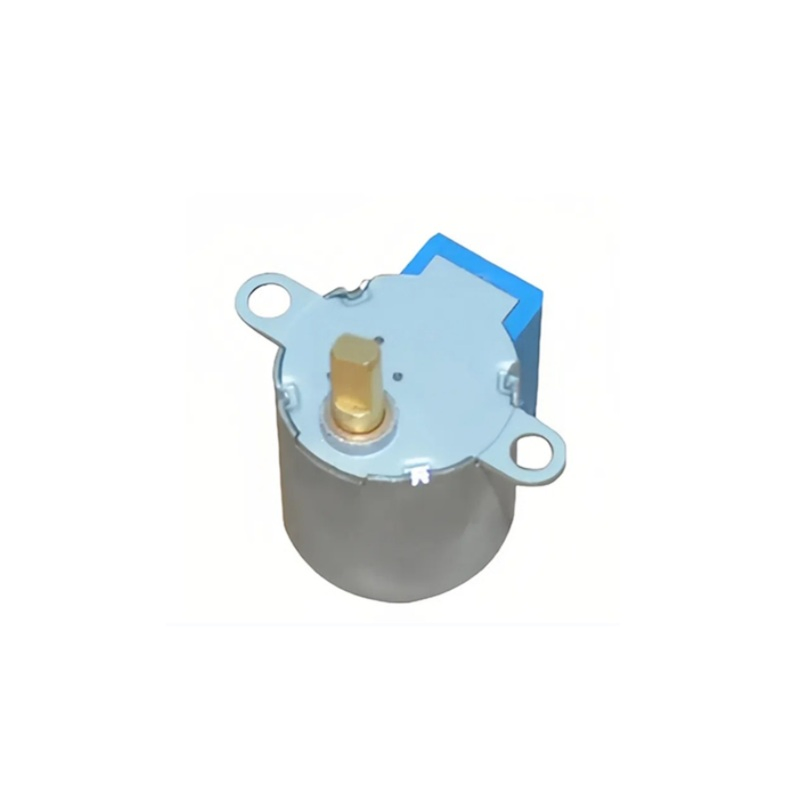

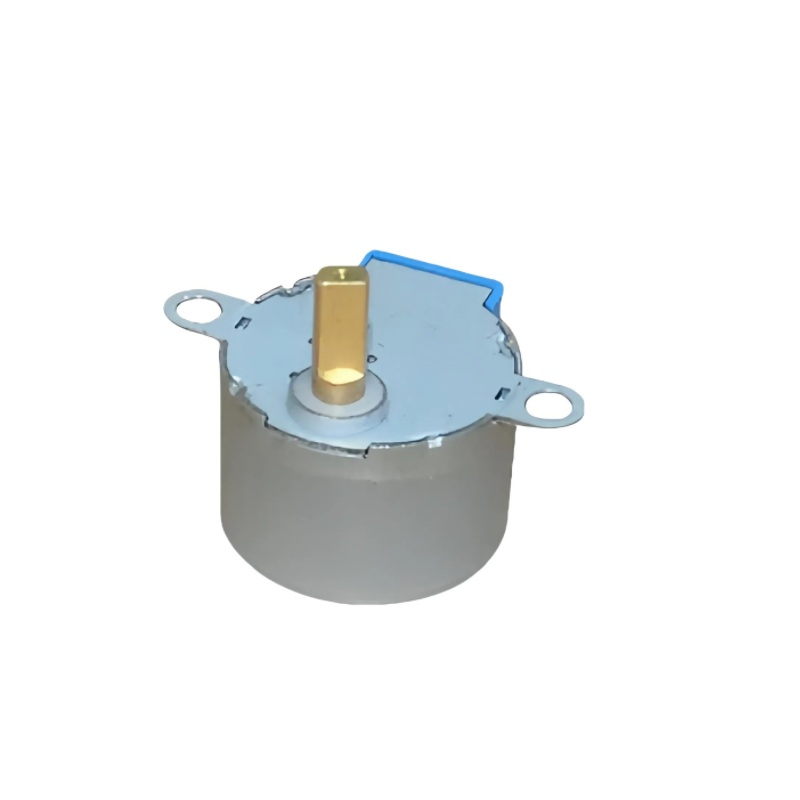

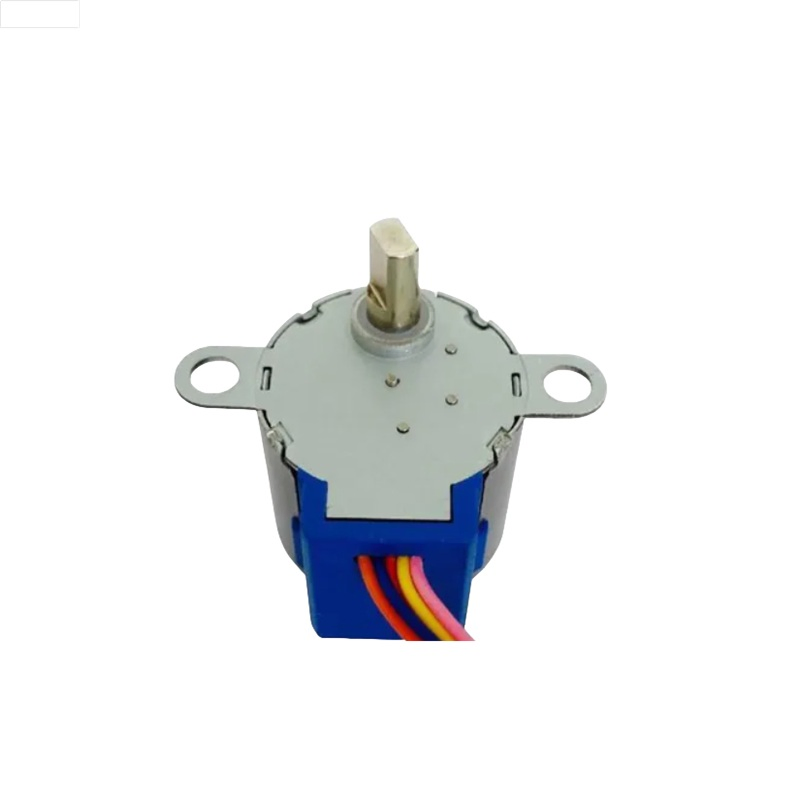

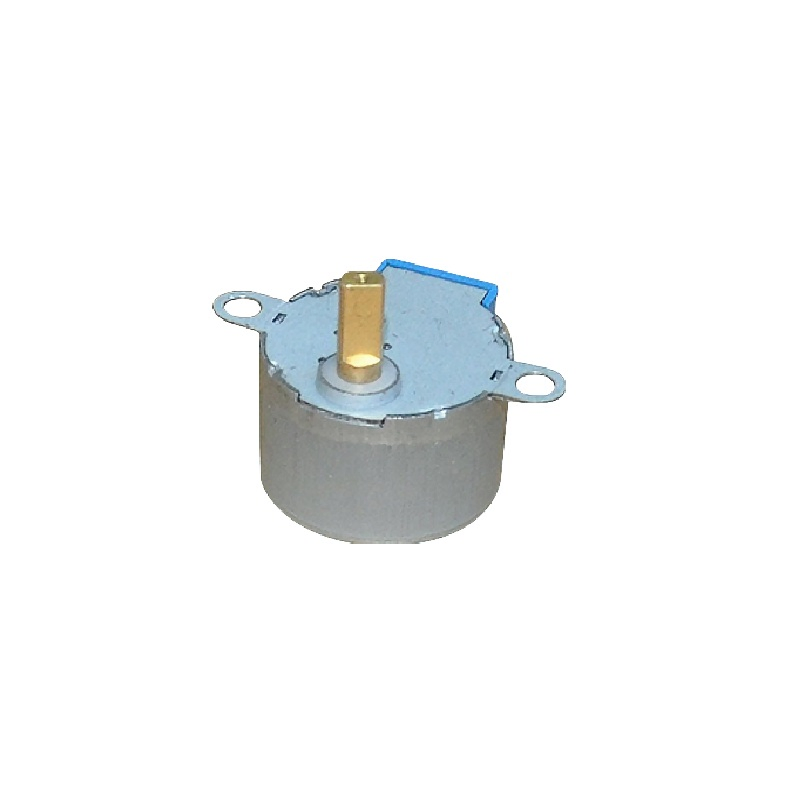

25mm Permanent Magnet Gear-box Stepping Motor
This 25mm permanent magnet gearbox stepping motor offers powerful holding torque in a variety of sizes. Designed for precision and durability in industrial and medical applications.

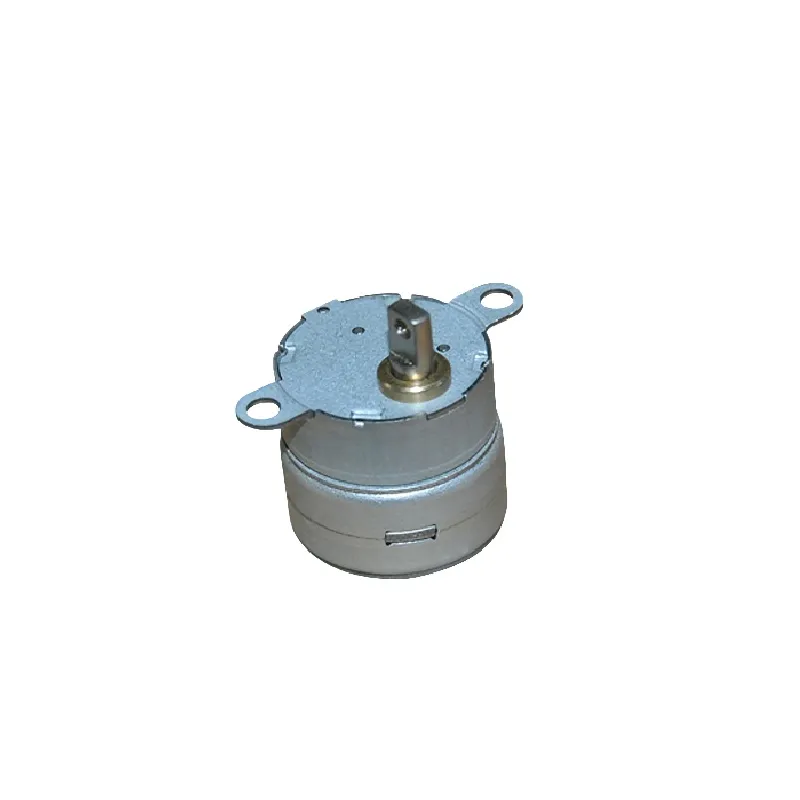

25mm Stepping Motor
  • Coil resistance and other electrical parameters can be customized according to requirements.
  • Motor shaft size, output synchronous belt pulley, output gear, lead length, and plug specifications are fully customizable.
P

Product Parameters

Item Specification
Resistance Accuracy±10%
Temperature Rise60ºC (rated current, 2 phase on)
Ambient Temperature-40ºC ~ +50ºC
Insulation Resistance100MΩ Min., 500VDC
Dielectric Resistance600VAC, 1s, 1mA
Shaft Radial Play0.05mm Max
Shaft Axial Play0.55mm Max
S

Technical Specifications

Model Rated Voltage (VDC) No. of Phase Resistance/Phase (Ω) Step Angle (DEG) Ratio Starting Freq (pps) Torque (mN.m)
W25BY01 12 4 40 3.75/48.8 1:48.8 ≥1000 ≥1000
M

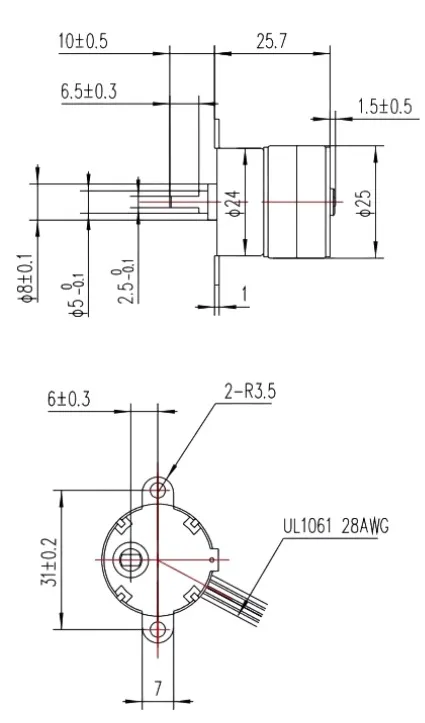

Dimensions (mm)

Motor Dimensions
A

Applications

  • Medical Imaging & Machines
  • 3D Printers & Printing
  • Textile Manufacturing
  • Air Conditioner/Heater Fans
  • Auto Door Locks
  • Digital Cameras
  • Ticketing Machines
  • Electric Appliances
  • Robotics & CNC Machining
  • Auto Spare Parts
Applications View
L

Packaging & Manufacturing

Standard price term: FCA Incoterms 2020. CFR, CIF, CPT terms available for customized orders.

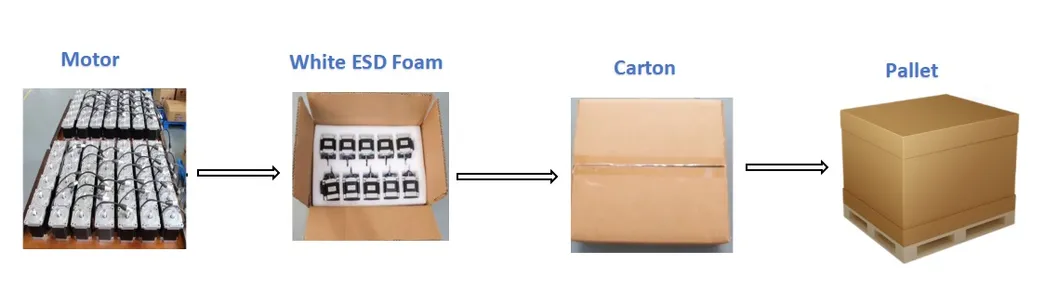

Shipping Info

Manufacturing Capacity

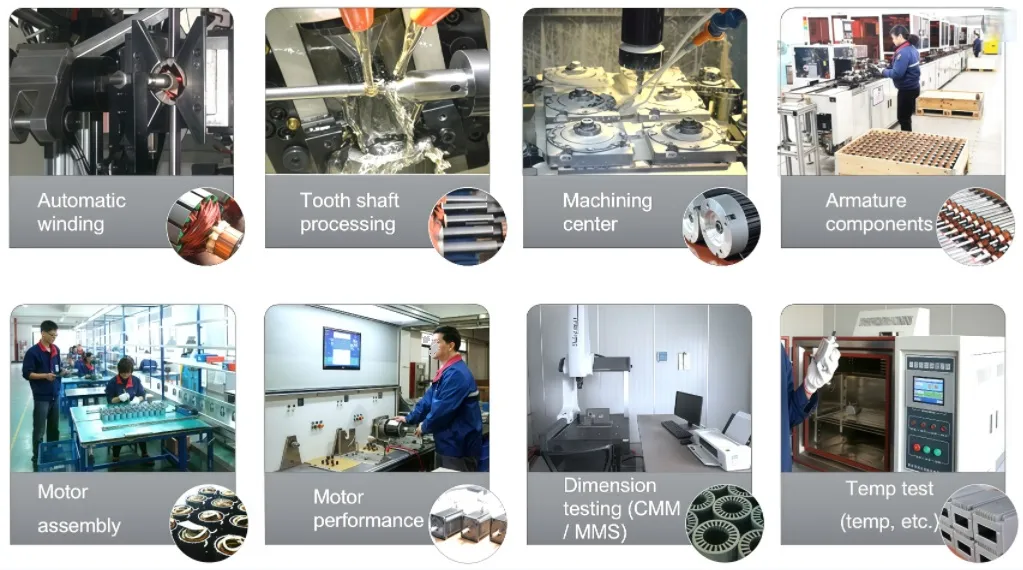

Manufacturing

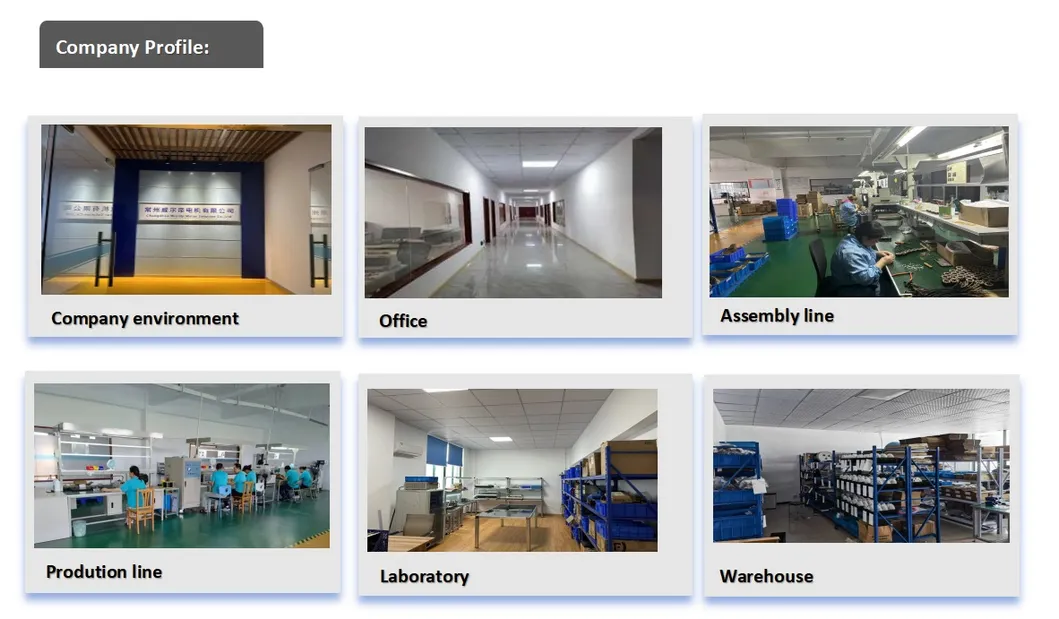

Production Process 1 Production Process 2 Production Process 3 Production Process 4 Production Process 5 Production Process 6 Production Process 7
?

Frequently Asked Questions

What is the primary advantage of the 25mm permanent magnet stepping motor?
It offers a compact 25mm size combined with a powerful gearbox to provide high holding torque for precision control.
Can I customize the motor shaft and electrical parameters?
Yes, both electrical parameters (like coil resistance) and mechanical features (shaft size, gears, lead length) can be customized to meet specific requirements.
What are the environmental operating conditions for this motor?
The motor is designed to operate in ambient temperatures ranging from -40ºC to +50ºC.
What certifications does the product hold?
This motor is certified under CCC, ISO9001, and CE standards, ensuring international quality compliance.
What is the standard price term for international orders?
Our standard price term is FCA Incoterms 2020. We also offer CFR, CIF, and CPT terms for customized logistics needs.
Which industries typically use this 25mm gear-box motor?
It is widely used in medical imaging, 3D printing, textile manufacturing, robotics, and automotive spare parts.
