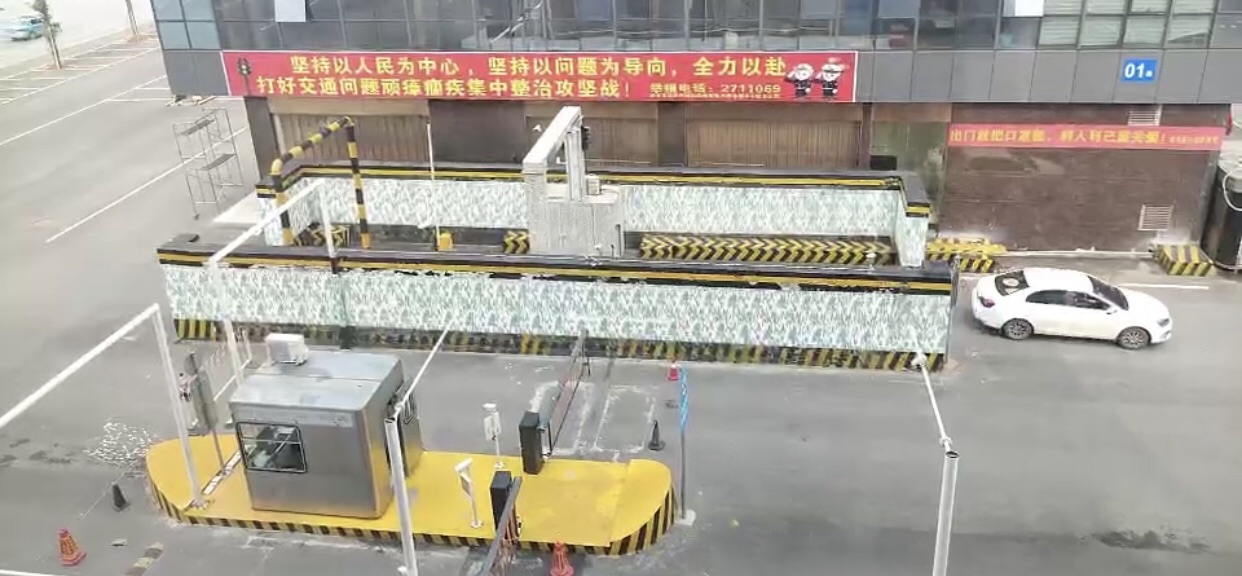

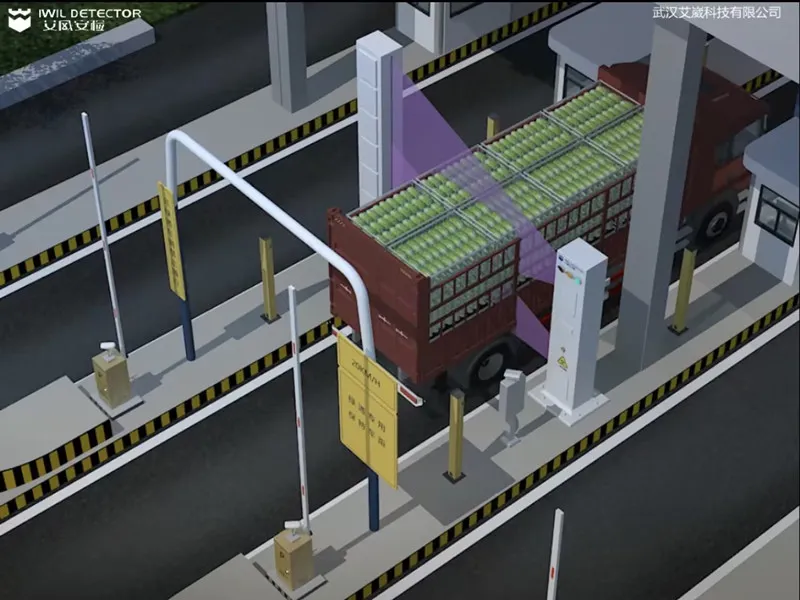

The vehicle X-ray scanning security system is specially designed for public security inspection stations, large-scale sports events, and major assembly activities. It significantly reduces labor time and effort for small vehicle trunk safety inspections while improving overall security efficiency. The system effectively detects prohibited goods, explosives, drugs, weapons of mass destruction (WMDs), and dangerous chemicals.
Equipped with a 320kv ray source, the system achieves a penetration force reaching up to 80mm thick steel plates. It is capable of scanning up to 60 small vehicles per hour, ensuring high-throughput operations.

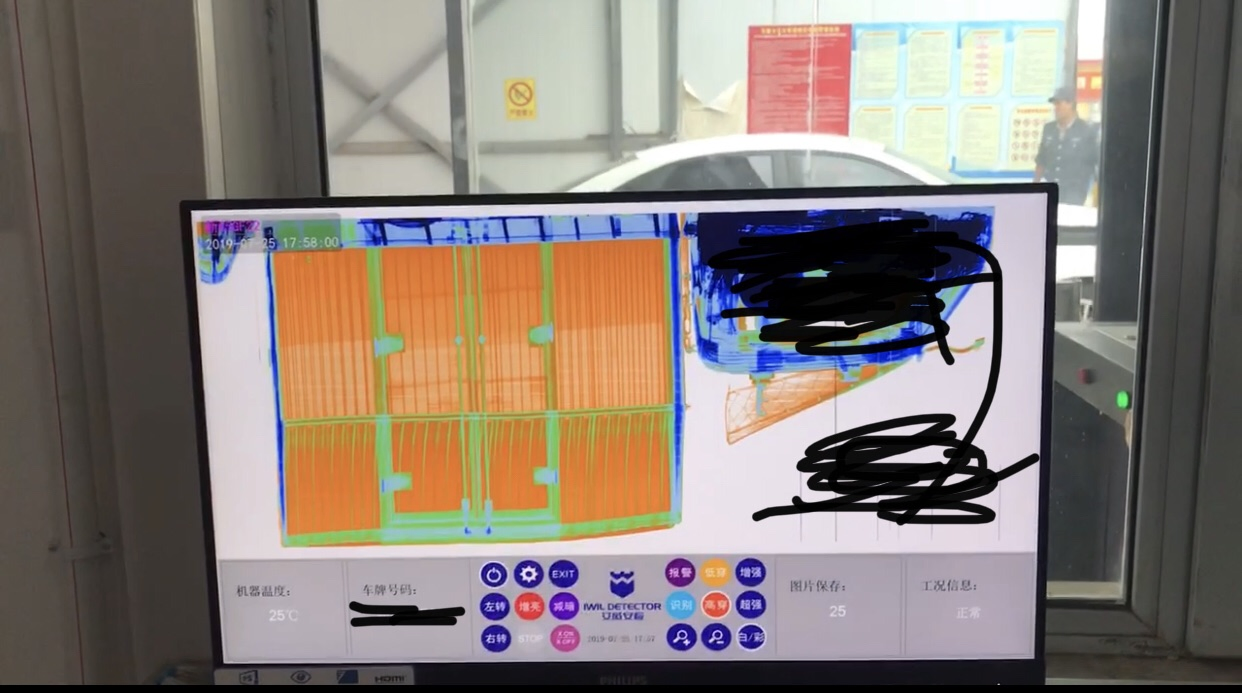

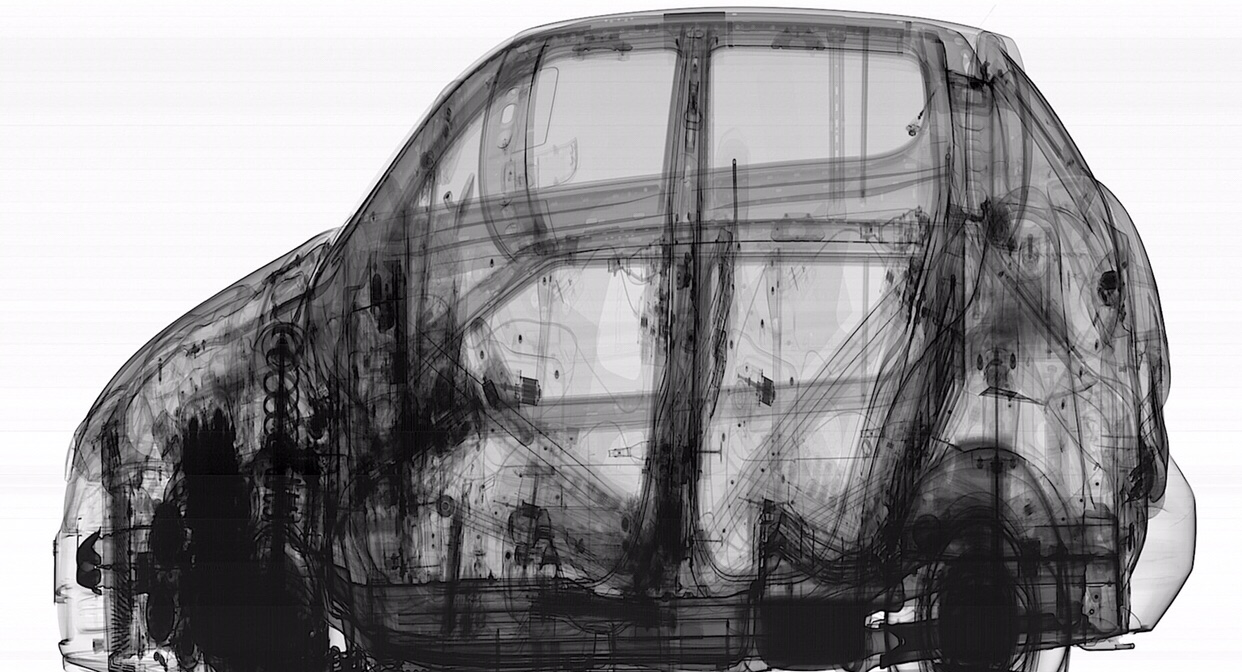

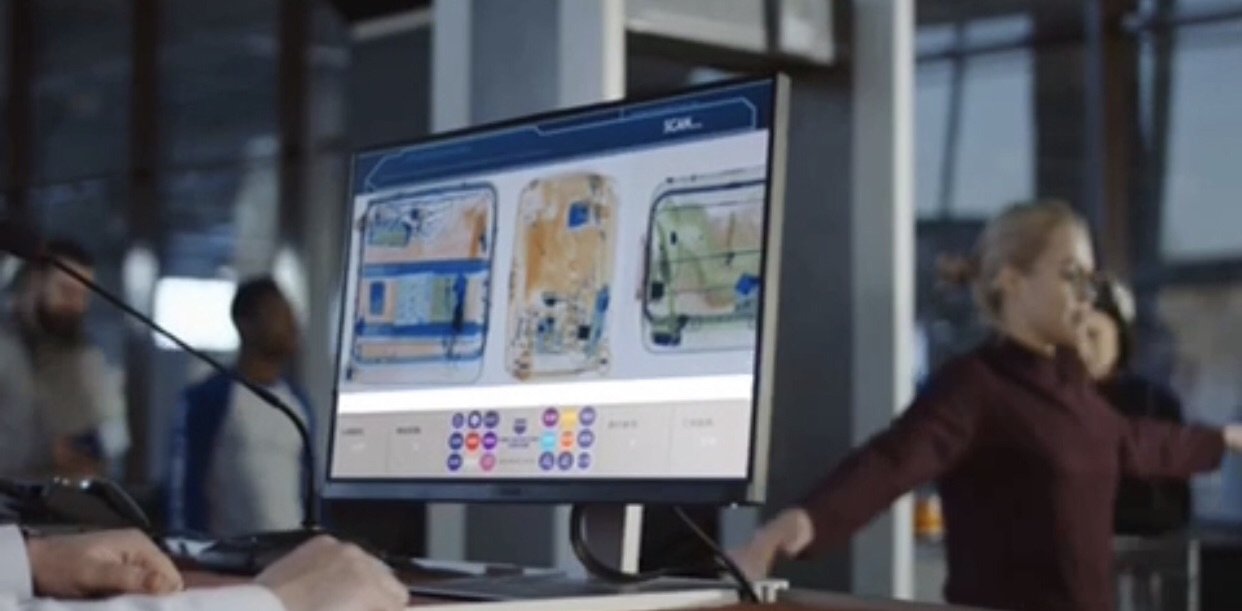

The system utilizes an array image detector with a high-speed data acquisition circuit (0.80 meters per second). Data is processed via advanced software to display vehicle structures layer by layer using pseudo-color gray levels. Operators can perform reliable analysis via high-resolution IPS LCD monitors.
Technical Parameters
Ray Source System
Ray Energy: 320kv
Irradiation Direction: Top illumination type
Penetration: Max 80mm thick steel plate
Radiation Protection: 40mm thick lead tank
Scattering Angle: 80 degrees
Collimator: Electric shutter device, ultra-narrow slit beam
License Plate Recognition: Automatic classification and archiving
Data Storage: 500,000 images standard
Display: 24 inch 20000:1 high resolution LCD
Equipment Performance

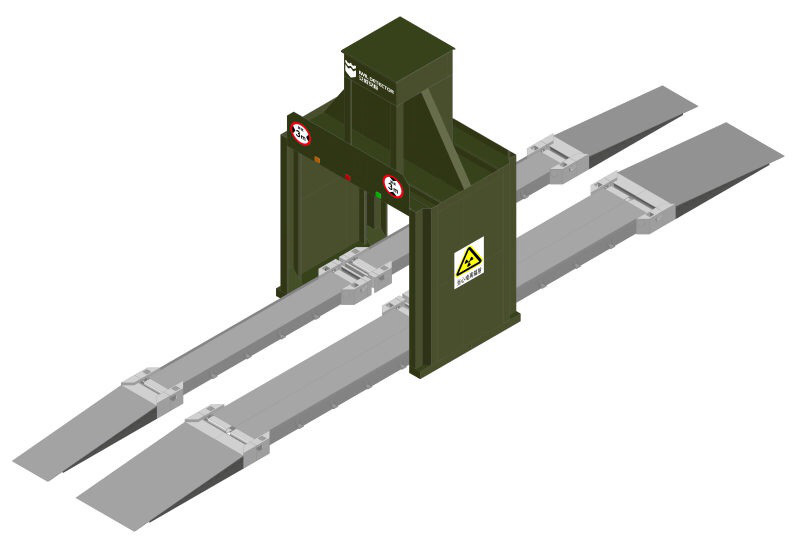

Scanning Mode: Drag scanning
Passing Rate: 60 vehicles / hour
Scanning Speed: 0.8m/s
Spatial Resolution: Steel wire < 1.5mm
Waterproof Grade: IP45
Operating Temperature: -20°C to +43°C
Absorbed Dose: Less than 1usv / time
Frequently Asked Questions
What is the maximum penetration capability of this system?
The system utilizes a 320kv ray energy source which can penetrate up to 80mm thick steel plates, allowing for clear imaging of vehicle interiors.
How many vehicles can be scanned in one hour?
The system supports high-efficiency drag scanning with a throughput of up to 60 vehicles per hour.
What is the scanning speed and resolution?
The scanning speed is 0.8m/s. It features a spatial resolution capable of detecting steel wires with a diameter of less than 1.5mm.
Does the system include license plate recognition?
Yes, the software includes license plate recognition with automatic image classification and archiving capabilities.
Is the equipment suitable for outdoor use?
The system is rated at IP45 for water resistance and has an operating temperature range of -20°C to +43°C, making it suitable for various outdoor environments.
What kind of maintenance and training is provided?
Comprehensive on-site training for operation and maintenance is provided, including at least 1 day of theoretical and 3 days of practical training.
