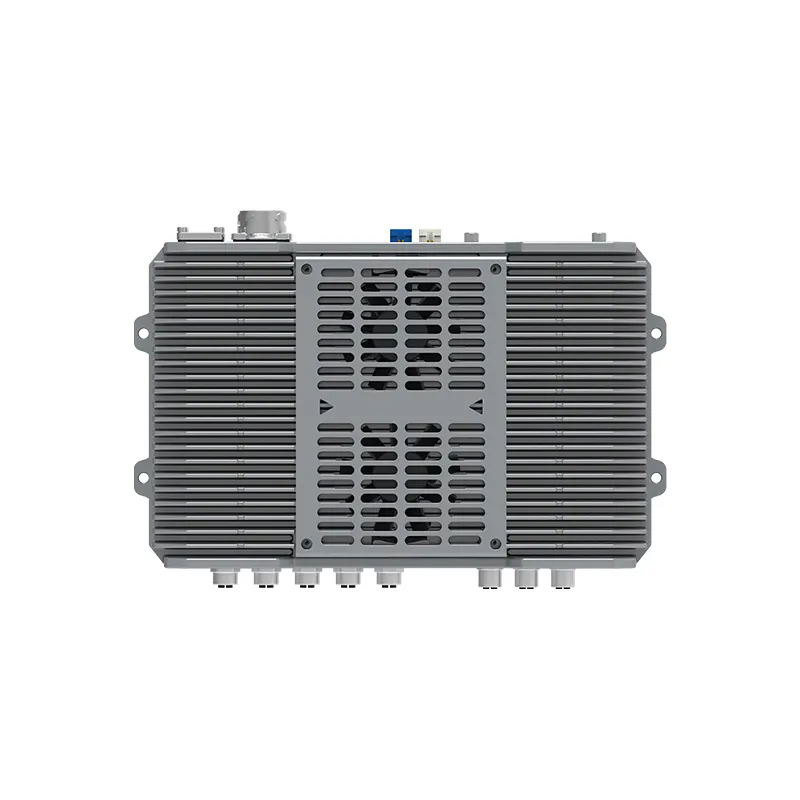

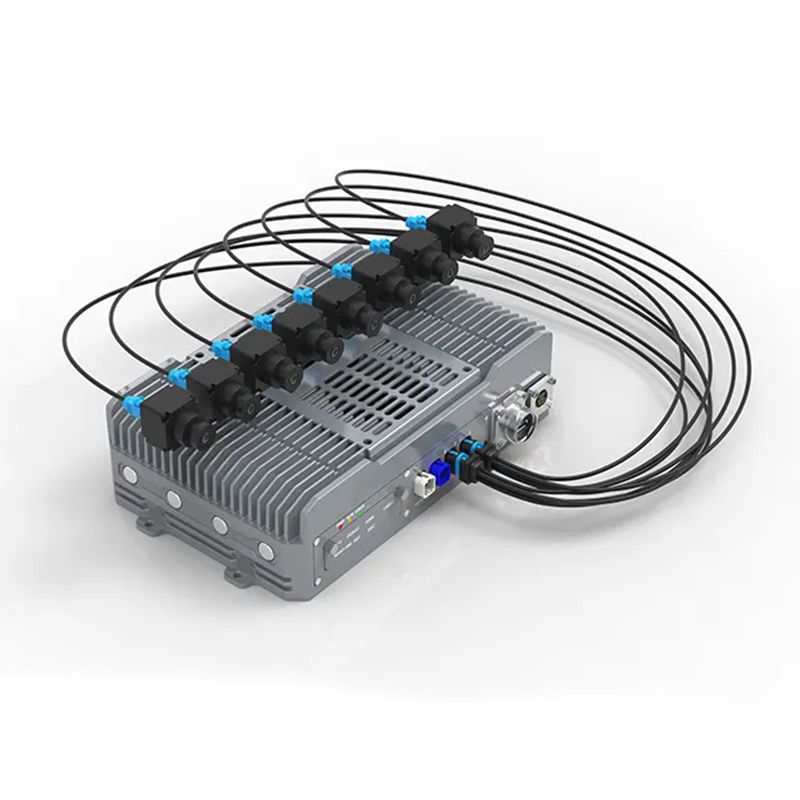

FC9130G is an Al edge computing device developed based on NVIDIA Jetson AGX Orin embedded GPU module. It has 200/275 TOPS computing power and rich interfaces. It supports sensors commonly used in autonomous vehicles and can meet high computing power requirements such as industrial vision and autonomous driving.
| System Configuration | Details | |
|---|---|---|

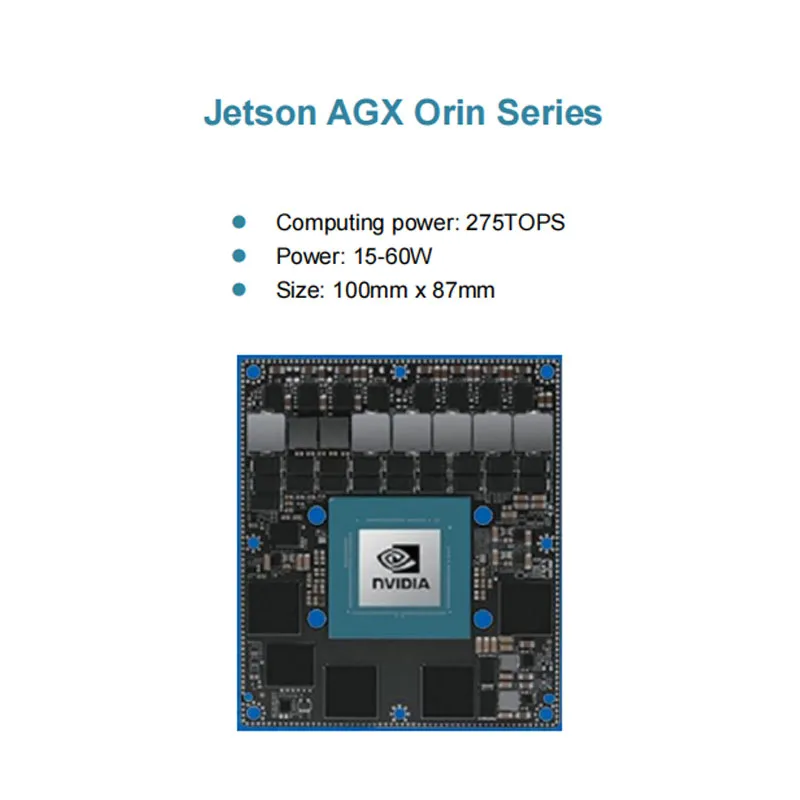

| AI Platform | Jetson AGX Orin | |
| AI Computing Power | 200 TOPS / 275 TOPS | |
| GPU | 1792-core NVIDIA Ampere with 56 Tensor Cores / 2048-core with 64 Tensor Cores | |
| CPU | 8-core / 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU | |
| Video Coding | Up to 2x4K60 (H.265) / 16x 1080p30 (H.265) | |
| Video Decoding | Up to 1x 8K30 (H.265) / 22x 1080p30 (H.265) | |
| Memory | 32GB / 64GB 256-bit LPDDR5 204.8GB/S | |
| Storage | 64GB eMMC 5.1 | |
| Hardware Interface | ||
| Wired Network | 1x M12 10G Port, 4x M12 Gigabit Port (Optional POE) | |
| Wireless | Dual-band WiFi, 4G/5G Full Netcom (Optional) | |
| GNSS | Support BD, GPS, RTK/Inertial navigation (Optional) | |

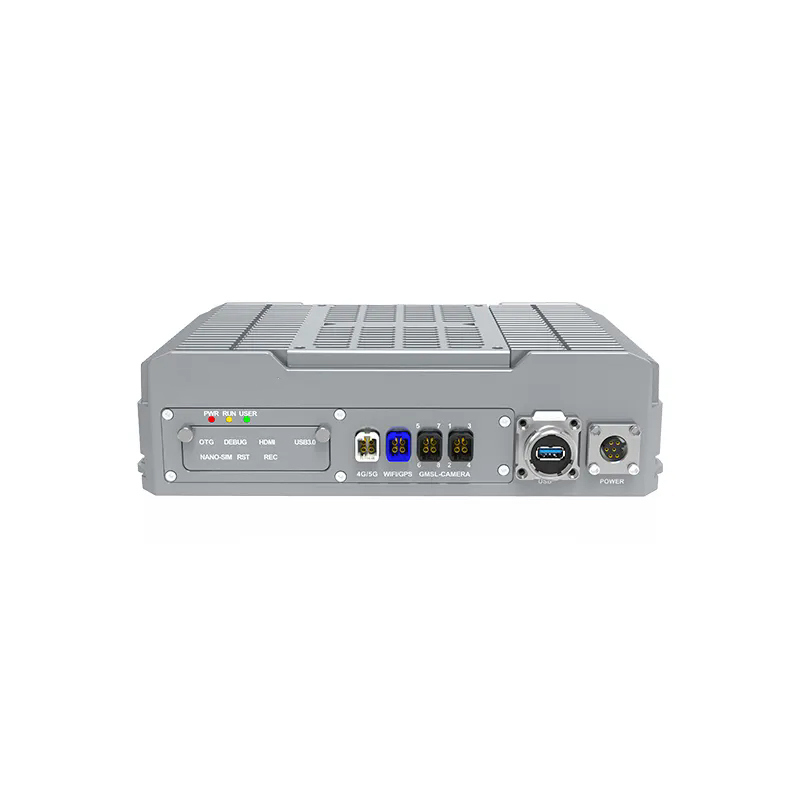

| I/O Ports | 2x USB3.0, 1x Type-C OTG, 1x Type-C Debug, 2x CAN, 3x RS232/485 | |
| Camera Interface | 8x GMSL2 | |
| Power Input | 10V-36V, supporting ACC | |
| Operating Temp | -20ºC to 60ºC (standard) / -40ºC to 70ºC (optional) | |
