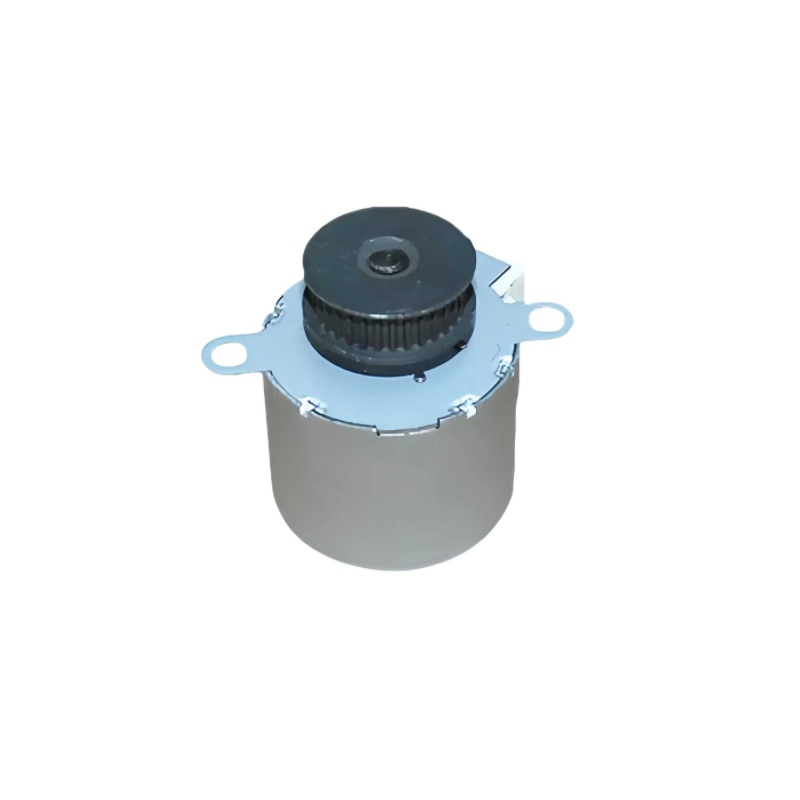

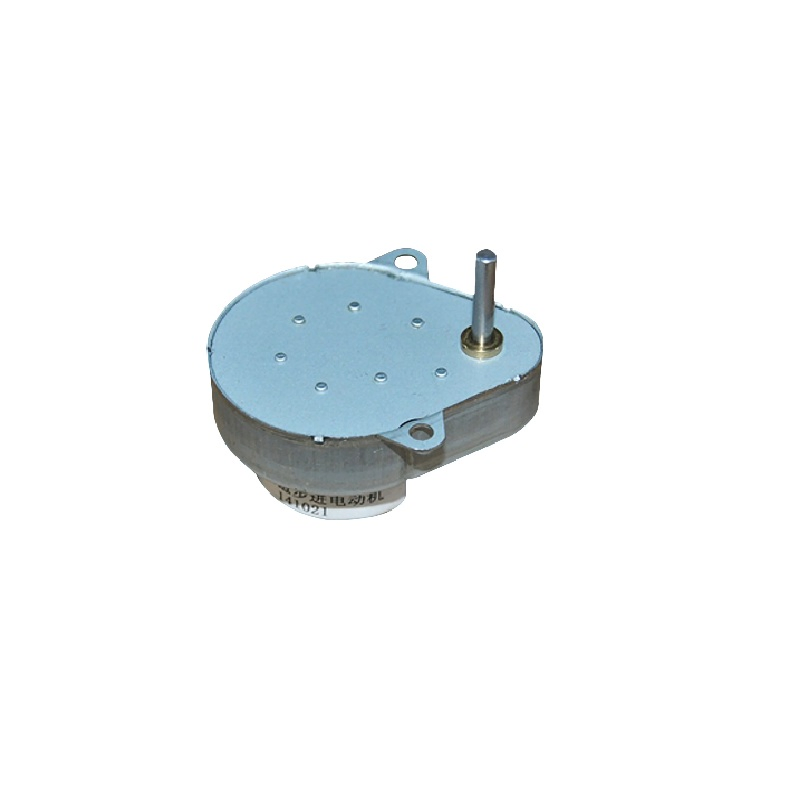

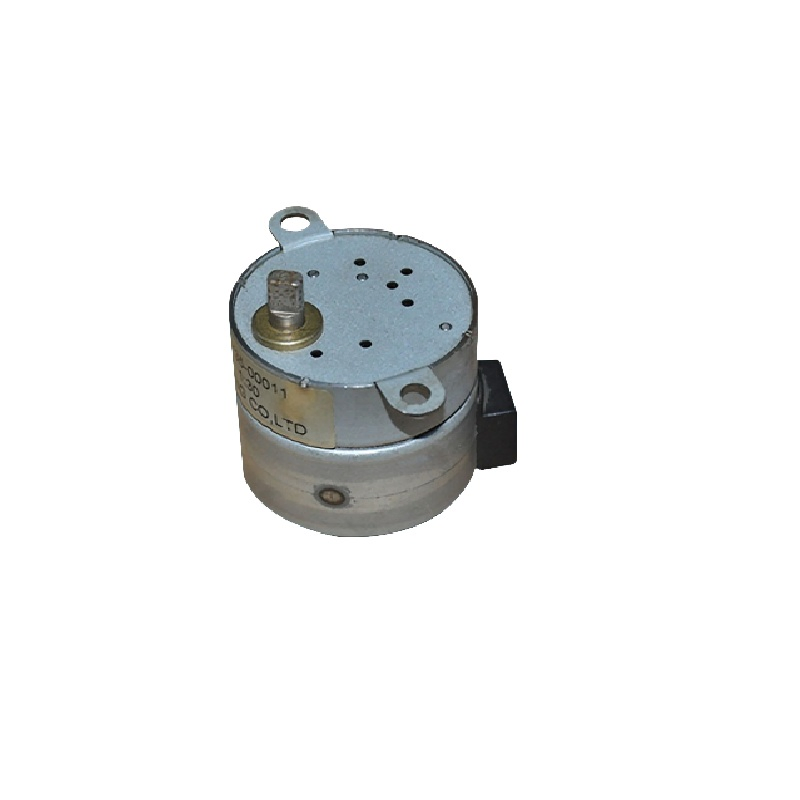

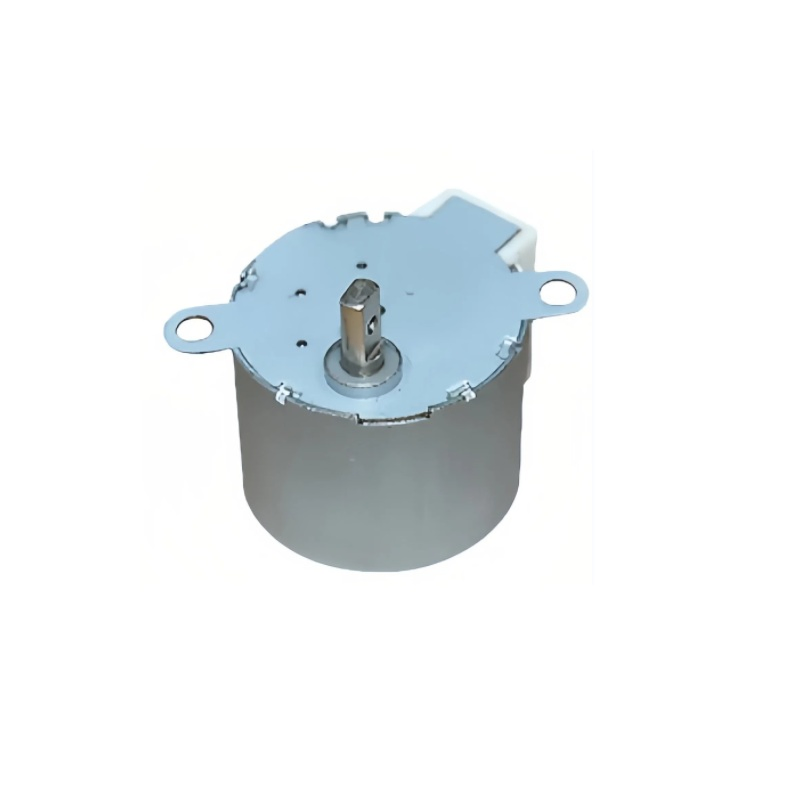

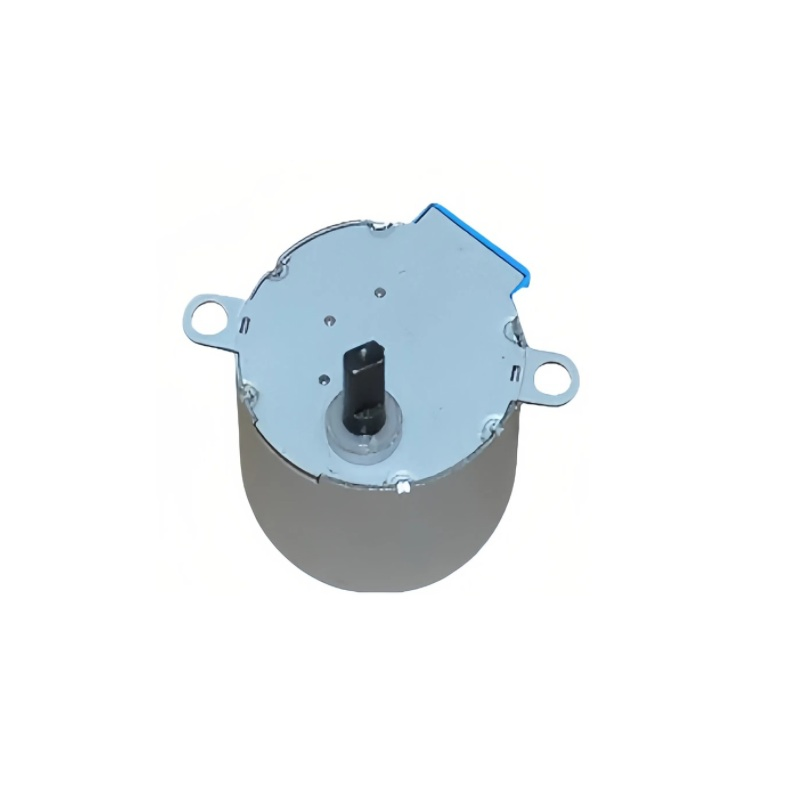

The 35mm 35PM1 permanent magnet gearbox stepping motor offers powerful holding torque in a variety of sizes, designed for precision control and durability.
| Model NO. | 35PM1 | Operation Mode | Electric Motor |
|---|---|---|---|
| Magnetic Structure | Permanent Magnet | Function | Driving, Control |
| Structure | Rotating Pole Type | Number of Poles | 2 |
| Ventilation | Open Type | Certification | CCC, ISO9001, CE |
| HS Code | 850131000 | Production Capacity | 100,000/Year |
| Item | Specification |
|---|---|
| Resistance Accuracy | ±10% |
| Temperature Rise | 60ºC. (rated current, 2 phase on) |
| Ambient Temperature | -40ºC ~ +50ºC |
| Insulation Resistance | 100MΩ Min., 500VDC |
| Dielectric Resistance | 600VAC, 1s, 1mA |
| Shaft Radial Play | 0.1mm Max |
| Shaft Axial play | 0.55mm Max |
| Model NO. | Rated Voltage (VDC) | No. of Phase | Resistance/Phase (Ω) | Step Angle (DEG) | Rating Ratio | Starting Freq (pps) | Detent Torque (mN.m) |
|---|---|---|---|---|---|---|---|
| W35BYJ41201 | 12 | 4 | 20 | 3.75/22 | 1:22 | ≥900 | ≥78.4 |
| W35BYJ41202 | 12 | 4 | 120 | 3.75/42.5 | 1:42.5 | ≥600 | ≥147 |
| W35BYJ41203 | 12 | 4 | 60 | 3.75/42.5 | 1:42.5 | ≥700 | ≥147 |
| W35BYJ21201 | 12 | 2 | 30 | 3.75/42.5 | 1:42.5 | ≥800 | ≥147 |
| W35BYJ21202 | 12 | 2 | 60 | 3.75/42.5 | 1:42.5 | ≥600 | ≥147 |
Standard price term: FCA Incoterms 2020.
Customized terms: CFR, CIF, CPT are available upon request.
