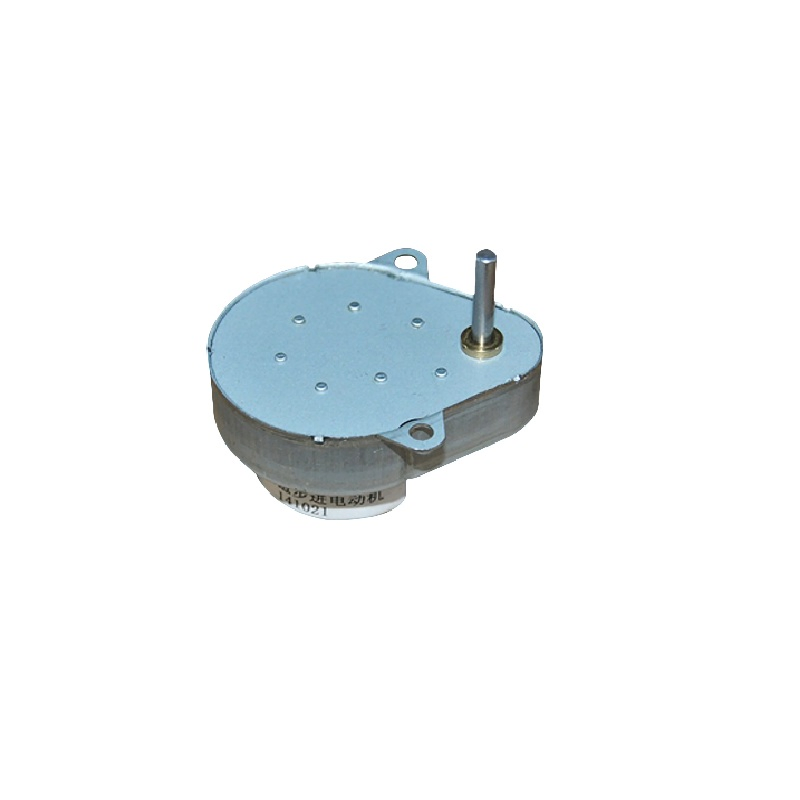

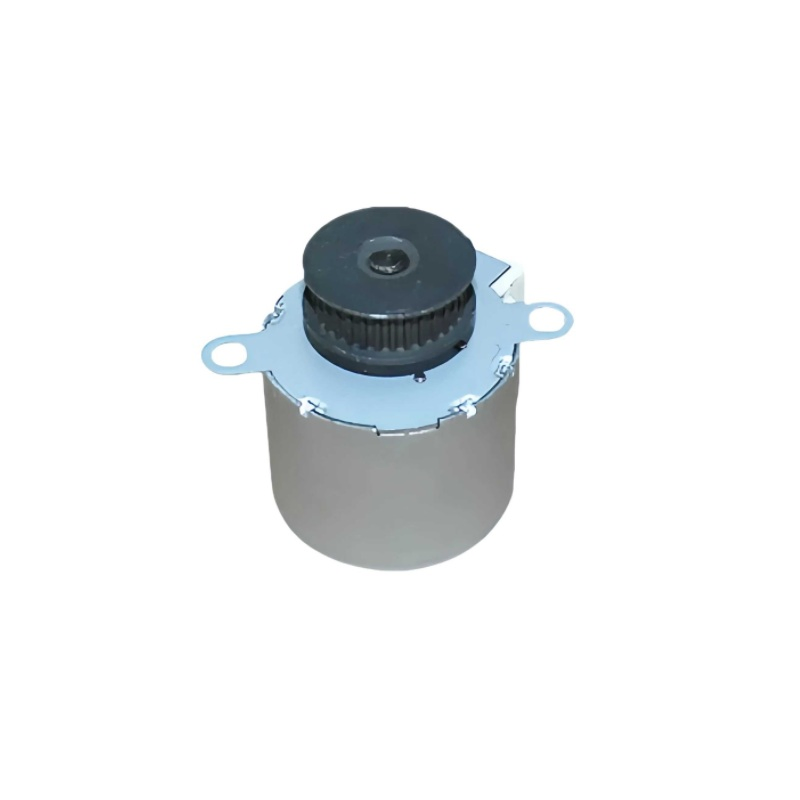

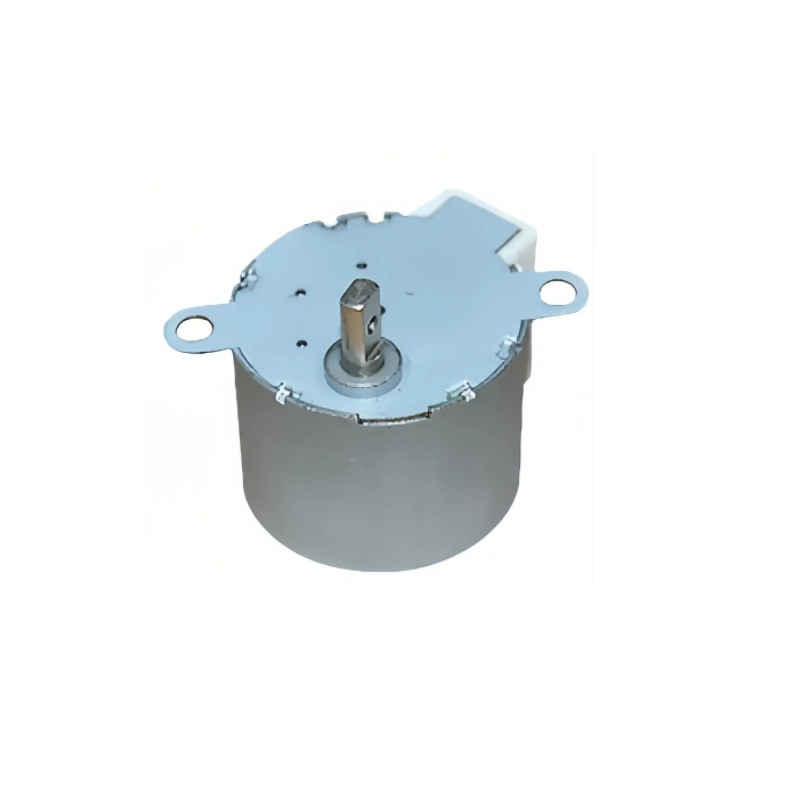

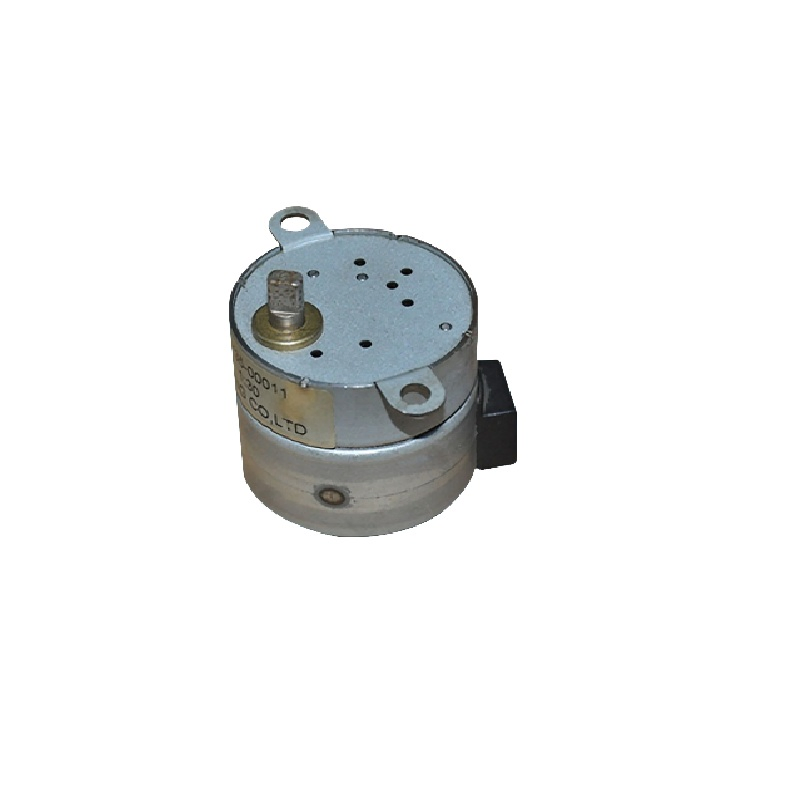

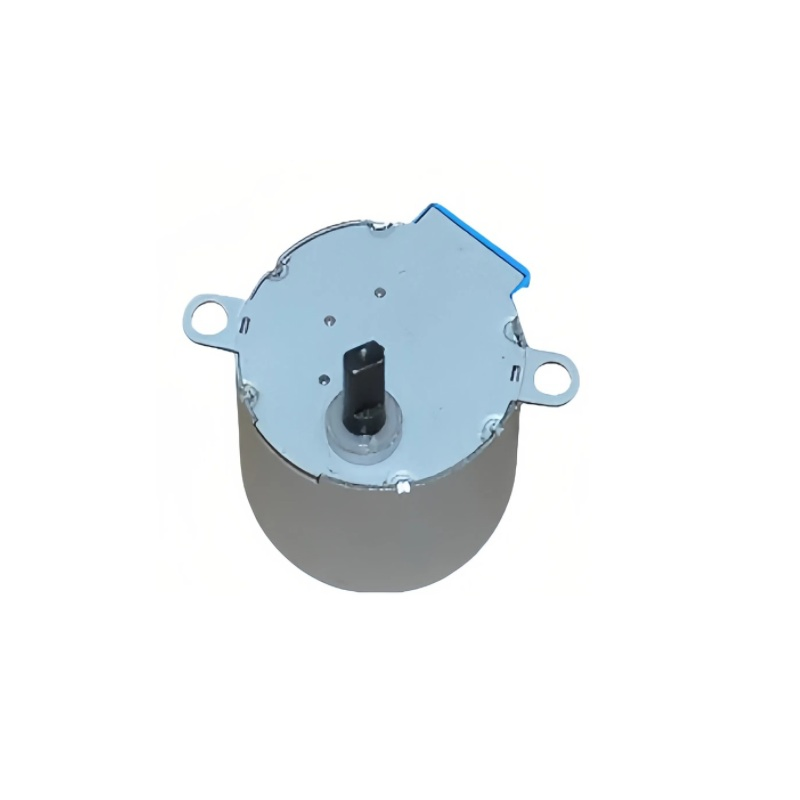

35mm 35PM2 Permanent Magnet Gear-box Stepping Motor
The 35mm 35PM2 permanent magnet gearbox stepping motor offers powerful holding torque in a variety of sizes, designed for precision control and durability.
| Item | Specification |
|---|---|
| Resistance Accuracy | ±10% |
| Temperature Rise | 60ºC (rated current, 2 phase on) |
| Ambient Temperature | -40ºC ~ +50ºC |
| Insulation Resistance | 100MΩ Min., 500VDC |
| Dielectric Resistance | 600VAC, 1s, 1mA |
| Shaft Radial Play | 0.1mm Max |
| Shaft Axial play | 0.55mm Max |
| Model NO. | Rated VDC | Phase | Resistance/Phase | Step Angle | Ratio | Freq (pps) | Torque (mN.m) |
|---|---|---|---|---|---|---|---|
| W35BYJ412P01 | 12 | 4 | 20Ω | 3.75/12 | 1:12 | ≥900 | ≥88.2 |
| W35BYJ412P02 | 12 | 4 | 60Ω | 3.75/12 | 1:12 | ≥850 | ≥44.1 |
| W35BYJ412P03 | 12 | 4 | 120Ω | 3.75/80 | 1:80 | ≥600 | ≥147 |
| W35BYJ412P04 | 12 | 4 | 60Ω | 3.75/80 | 1:80 | ≥800 | ≥176 |
| W35BYJ212P | 12 | 2 | 60Ω | 3.75/80 | 1:80 | ≥850 | ≥215 |
Primary Applications:
