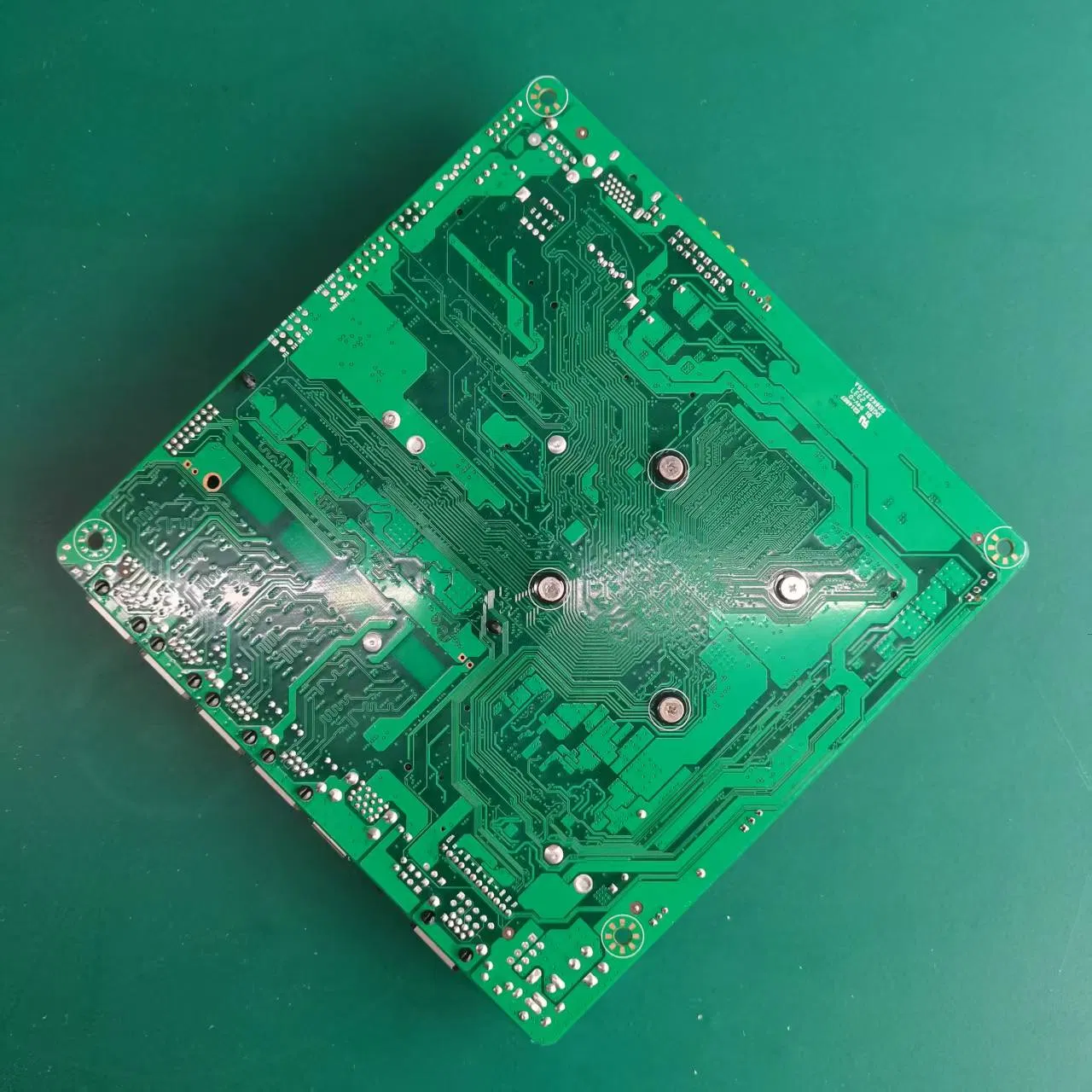

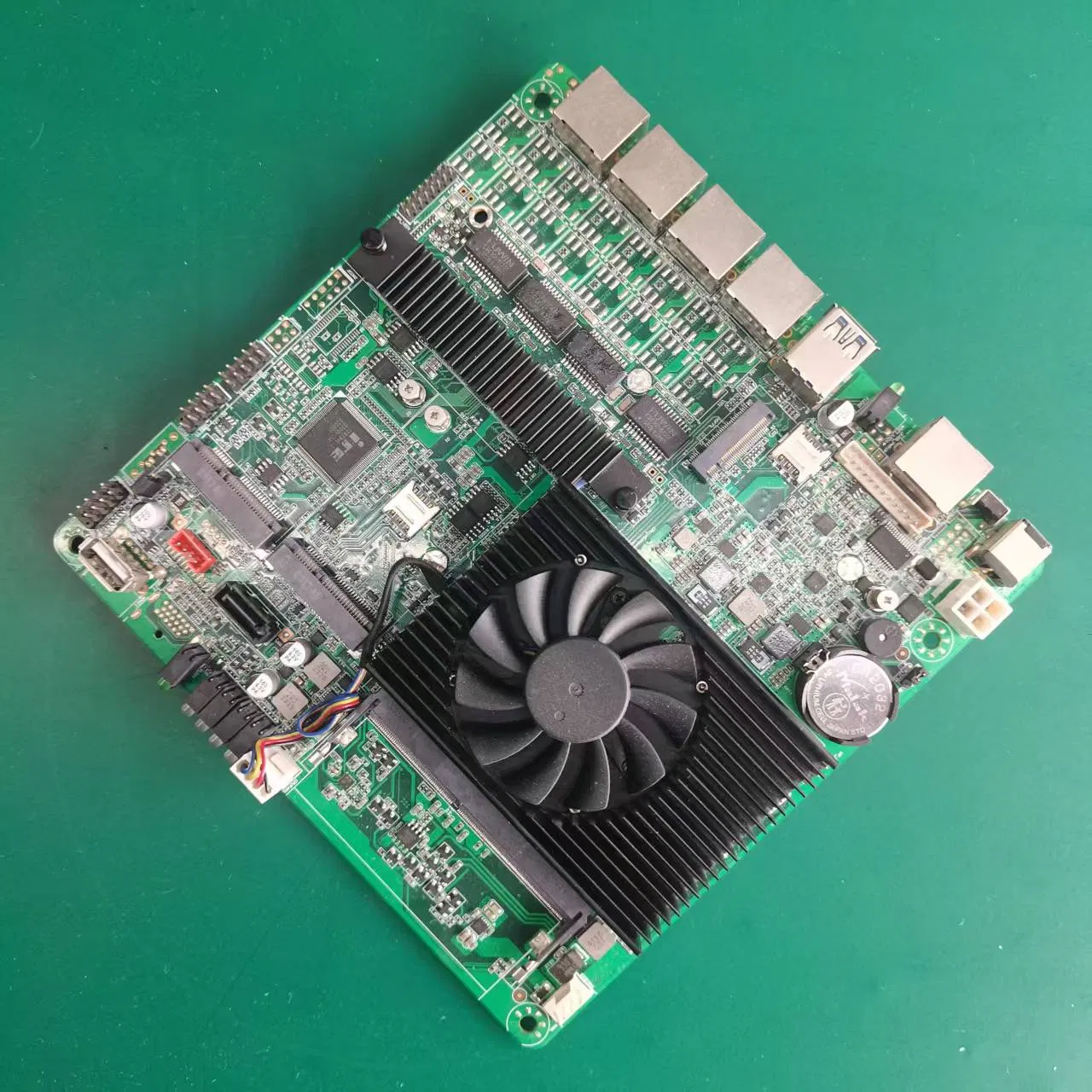

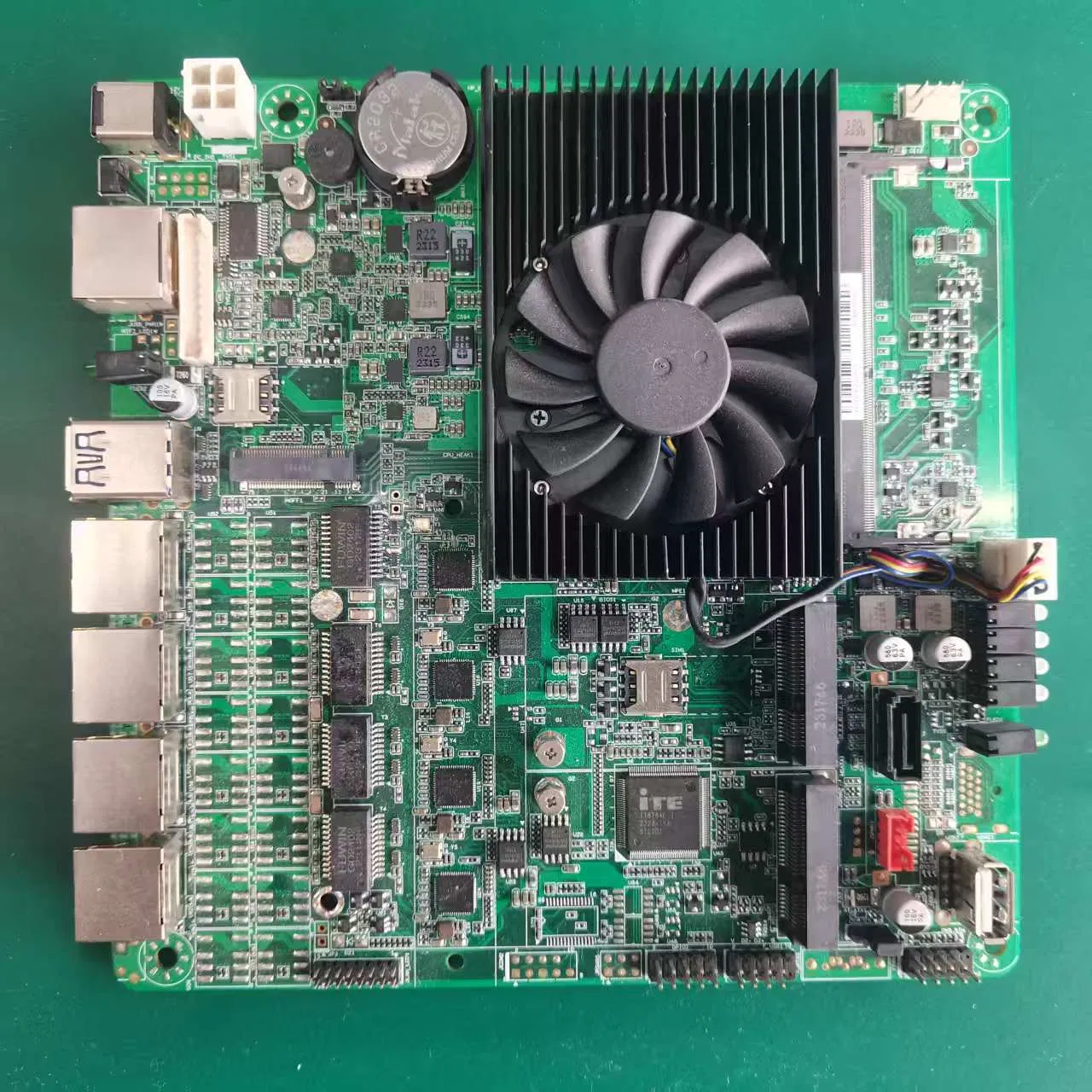

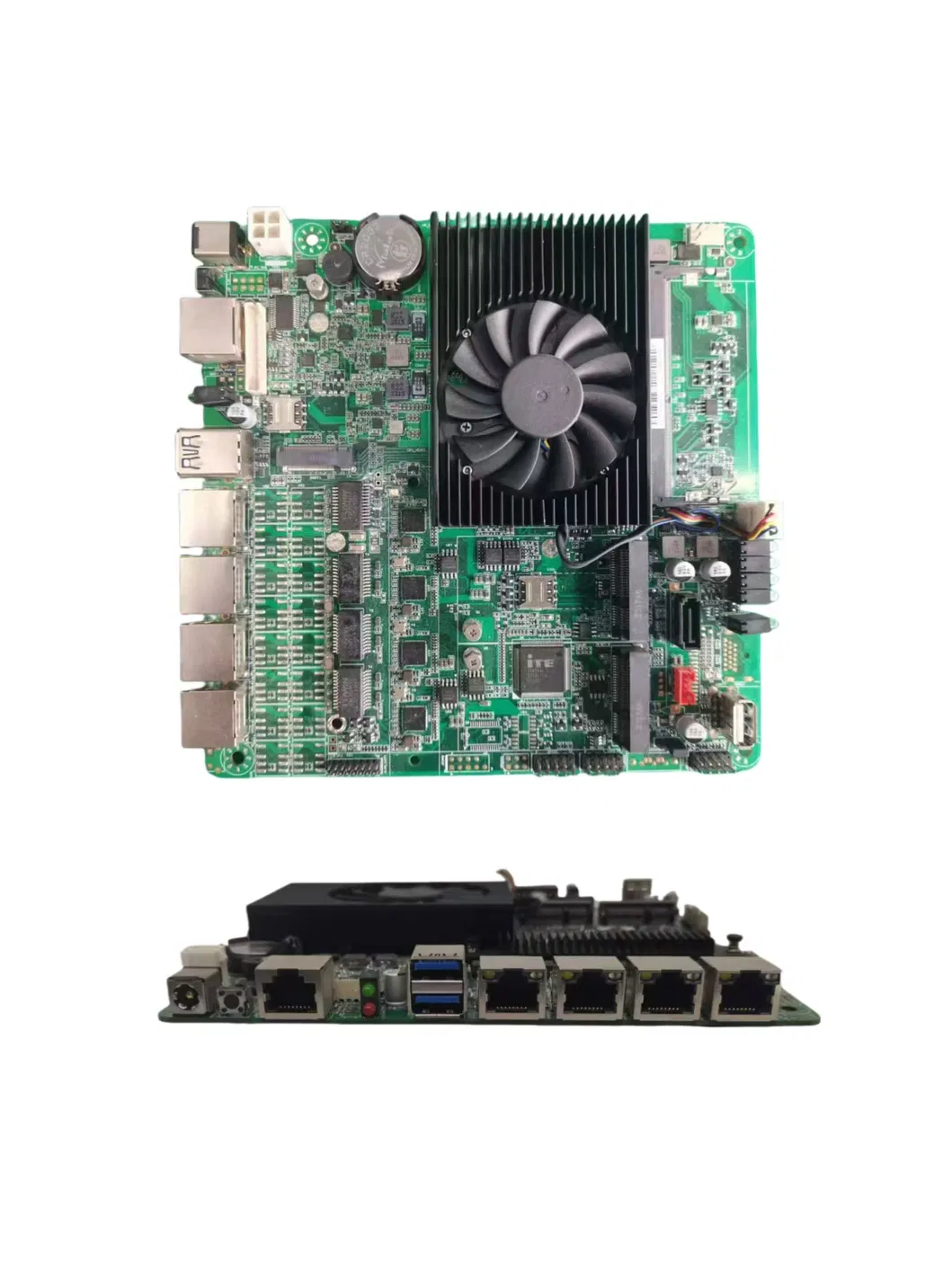

Industrial-Grade 4LAN 2.5g Network Port Edge Computing Motherboard Intel J6412 Quad-Core/Elkhart Lake Dual-Display HDMI + VGA 5g Module Expansion

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
ITX-SB64L4
Processor
Intel J6412 Compatible with Elkhart Lake CPU
Memory Type
1* SODIMM DDR4 up to 32GB
LAN
4* 2.5GB Ethernet Ports
Display
1* HDMI/VGA Synchronous / Asynchronous
Storage Interface
M.2 / MSATA / SATA3.0
Operating Temp.
-20℃ to 70℃
USB Ports
2*USB3.1, 4*USB2.0
OS Support
Windows 10 / 11 / Linux
Dimension
170mm * 170mm (Mini-ITX)

Product Highlights

Intel J6412 4LAN 2.5G Firewall Motherboard
  • Integrated Intel® Celeron J6412 2.0GHz quad-core processor, Elkhart Lake full range compatible.
  • Single-channel 3200MHz DDR4 memory support, up to 32GB capacity.
  • Dual display support via VGA and HDMI (4K @60Hz).
  • Equipped with 4* Intel I225V or I226 2.5G Gigabit network ports, optional BYPASS function.
  • Rich expansion: 1 Mini-PCIe (WIFI/4G) and 1 M.2 KeyB for 5G modules.
  • Storage flexibility: 1 MSATA SSD and 1 SATA3.0 interface.
  • Industrial design: Supports -10 to 60 degrees wide temperature working environment.
  • Power: 12V DC power supply with AT/ATX mode switching.

Detailed Specifications

Hardware Configuration
Processor Integrated Intel® Celeron J6412 2.0GHz quad-core (10W TDP).
Memory 1* SODIMM slot, DDR4 3200MHz, up to 32GB.
Graphics Intel® UHD Graphics 10th Gen; 1* HDMI(4K), 1* VGA.
Ethernet 4* Intel i225/i226 2.5G NIC; Wake-on-LAN/PXE support.
Expansion 1* Mini-PCIe (4G/WIFI), 1* M.2 KeyB (5G).

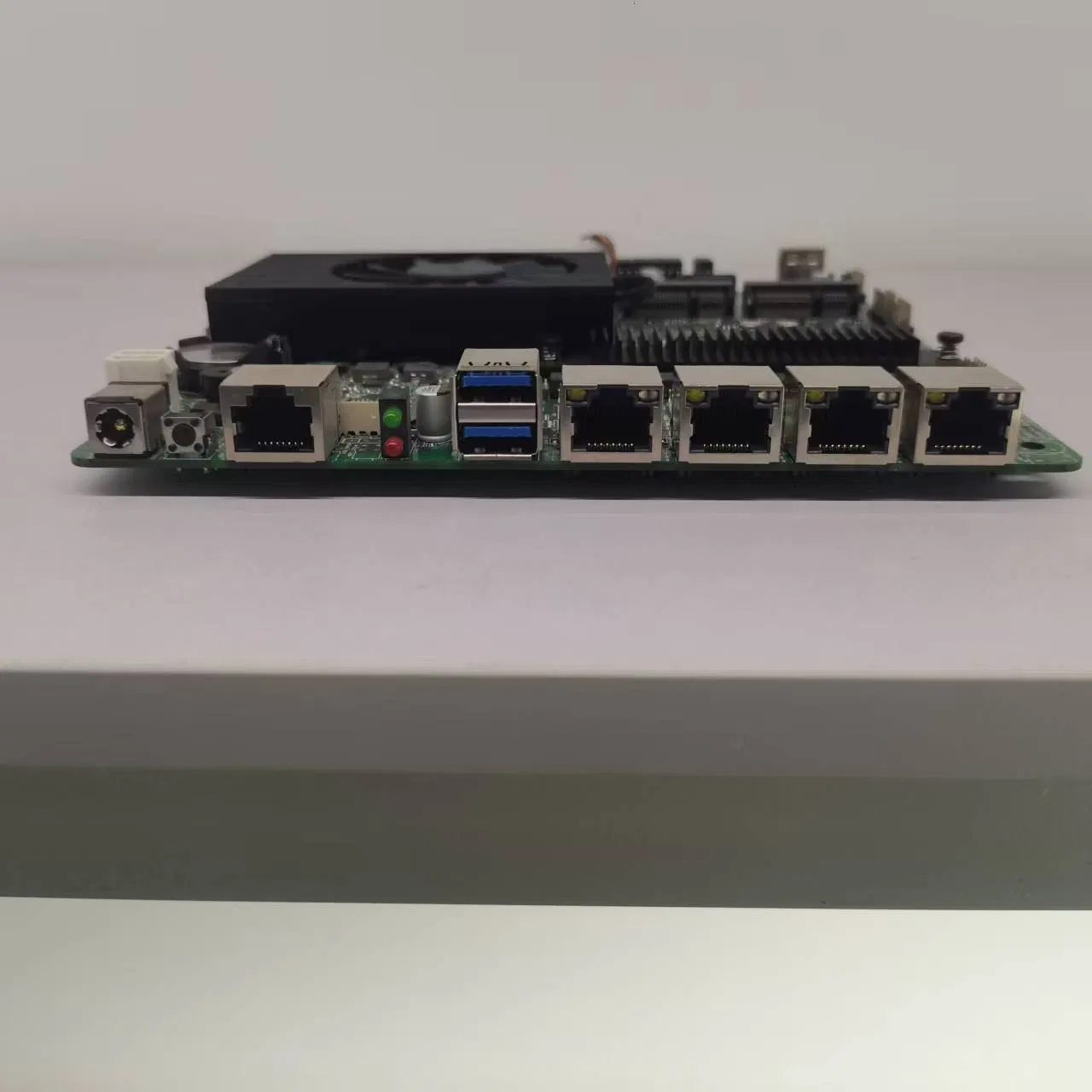

Back I/O 4*RJ45, 2*USB3.0, 1*RS232, 1*DC 12V, Power Button.

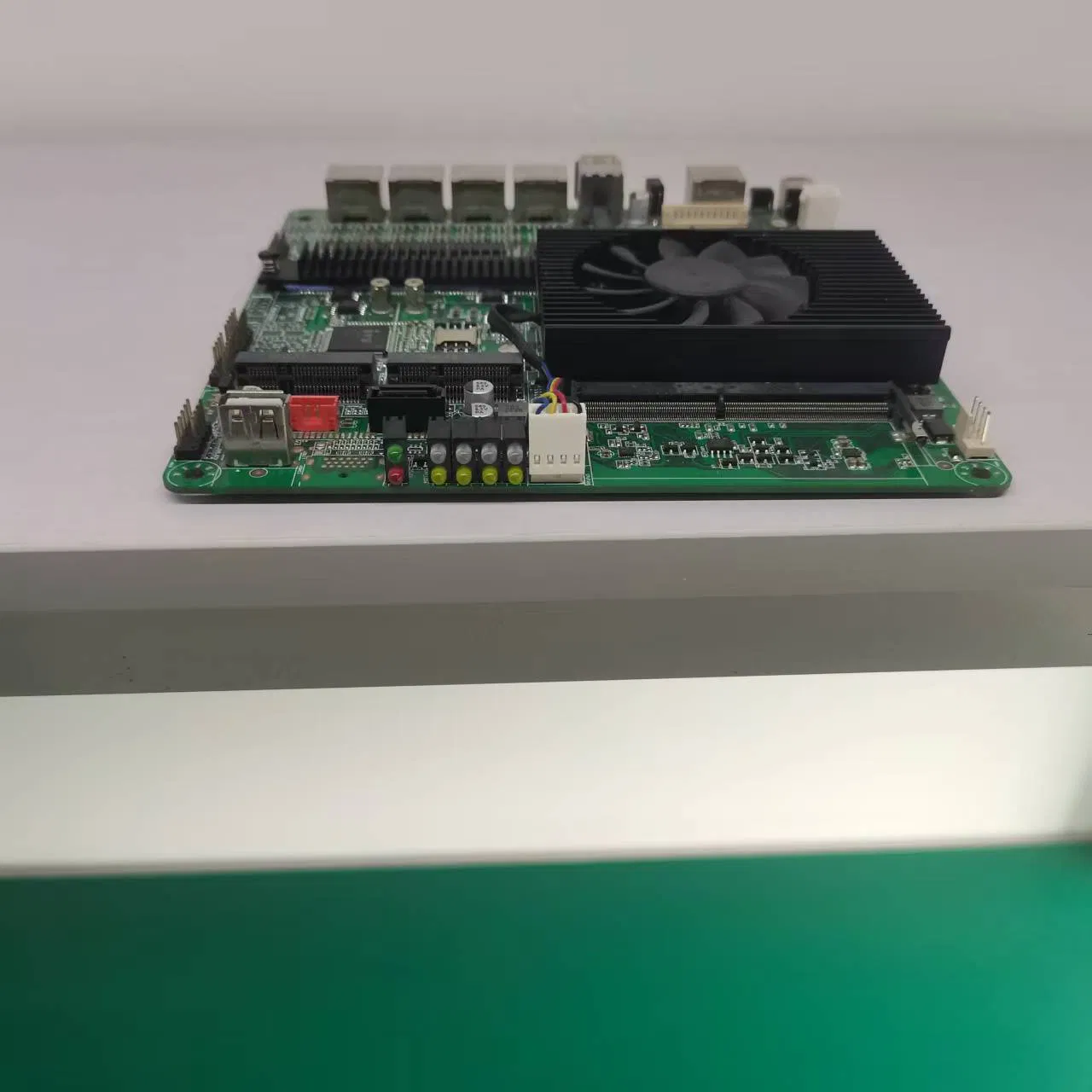

Inner I/O JVGA, Front panel pins, 4*USB 2.0, COM/RS485, GPIO, TPM2.0.
Watchdog Hardware Reset Function (0~255S).

Order Information

Item No. CPU Core Memory LAN USB COM Power
ITX-SB64L4 VER:1.0 J6412 4 DDR4 4 6 2/2 12V

Product Gallery

Dimension and Layout Interface Details

Frequently Asked Questions

What is the Minimum Order Quantity (MOQ)?
We can provide a single piece sample for your initial testing and evaluation.
Do you provide OEM/ODM customization?
Yes, we support full OEM/ODM services including specific requirement analysis, design drafts, and customized production.
What is the typical lead time?
Samples are usually ready within 3 days, while large quantity orders take approximately 15 working days.
How is the product quality controlled?
Quality is our priority. We perform multiple checks: after manufacturing the motherboard, before warehouse storage, and a final inspection before shipping.
What is the warranty period?
We offer a 1-year warranty for non-artificial damage. Free repair services are available for the 2nd and 3rd years, charging only for necessary replacement parts.
Can the motherboard operate 24/7?
Yes, our industrial-grade low power consumption boards have passed strict tests and are designed for reliable 24/7 continuous operation.
