Product Description

Overview

Model NO.

50PM

Operation Mode

Electric Motor

Magnetic Structure

Permanent Magnet

Function

Driving, Control

Structure

Rotating Pole Type (Armature Fixed)

Number of Poles

Ventilation

Open Type

Certification

CCC, ISO9001, CE

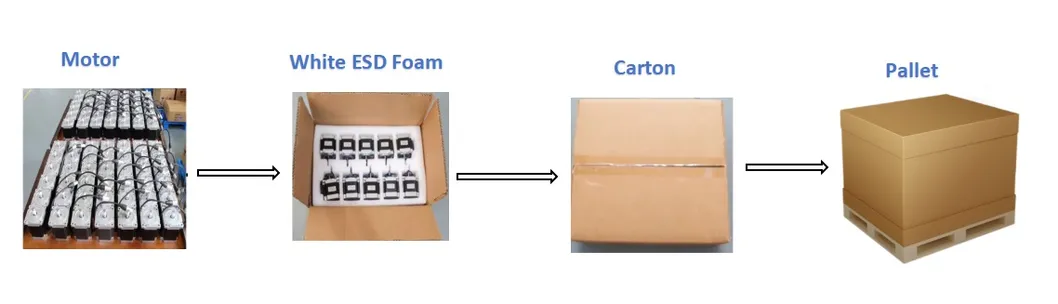

Transport Package

Carton

Specification

41x27x25cm

HS Code

850131000

Capacity

100,000/Year

Product Description

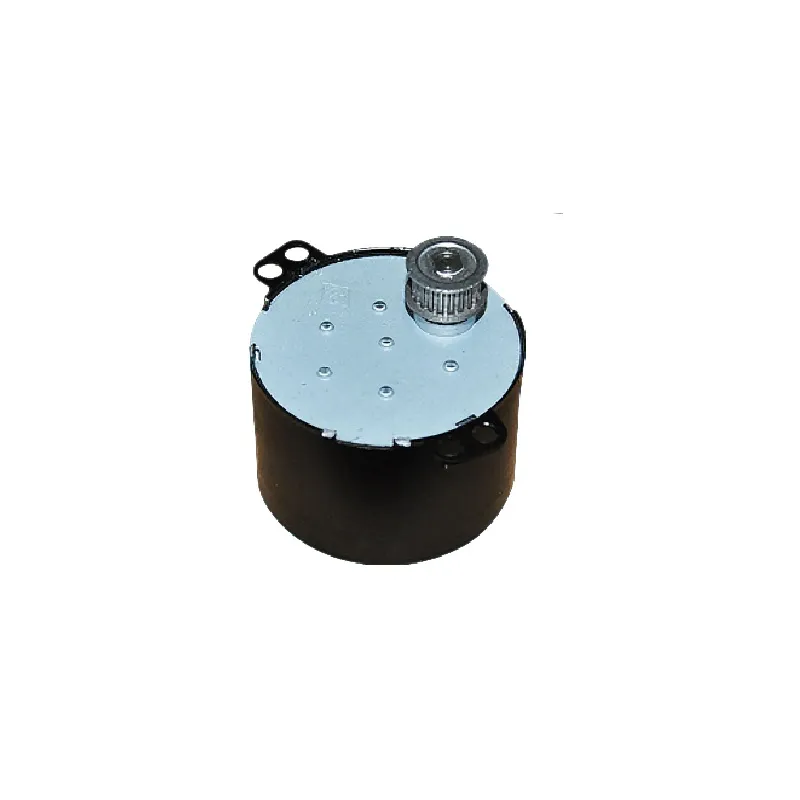

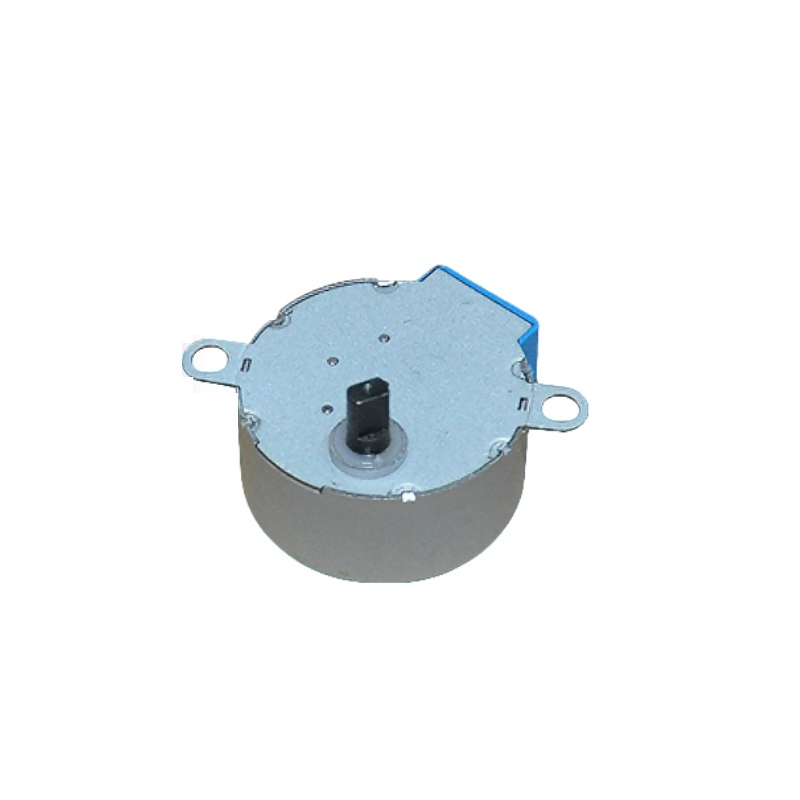

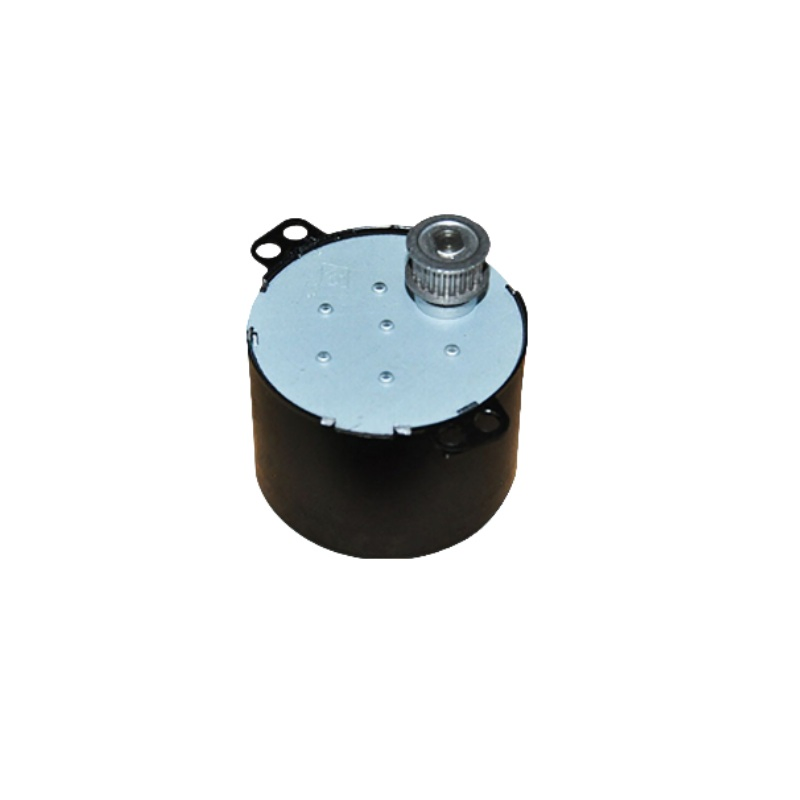

50mm Permanent Magnet Gear-box Stepping Motor

This 50mm permanent magnet gearbox stepping motor offers powerful holding torque in a variety of sizes, suitable for precision control applications.

Coil resistance and other electrical parameters can be customized according to requirements.

Motor shaft size, output synchronous belt pulley or output gear, lead length, and plug specifications are customizable.

Product Parameters

Item	Specification
Resistance Accuracy	±10%
Temperature Rise	60ºC (rated current, 2 phase on)
Ambient Temperature	-40ºC ~ +50ºC
Insulation Resistance	100MΩ Min., 500VDC
Dielectric Resistance	600VAC, 1s, 1mA
Shaft Radial Play	0.1mm Max
Shaft Axial play	0.55mm Max

Technical Specification

Model NO.	Rated Voltage (VDC)	No. of Phase	Resistance Phase (Ω)	Step Angle (DEG)	Starting Frequency (pps)
W50BYJ01	12	2	30	7.5/i	≥450
W50BYJ02	12	4	30	7.5/i	≥350

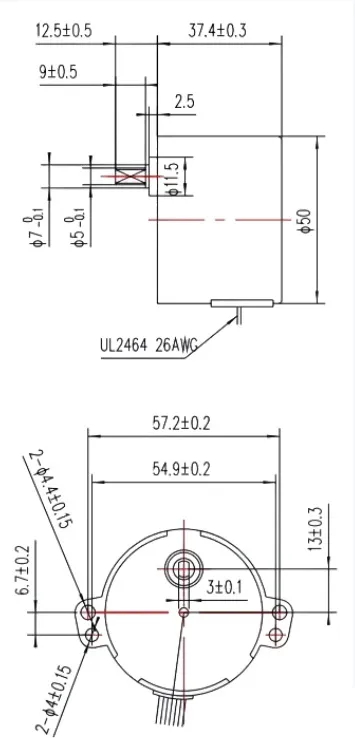

DIMENSIONS (IN MM)

Applications

Medical Imaging Devices & Medical Machine
3D Printing & 3D Printer
Textile Manufacturing
Air Conditioner / Heater Fan
Auto Door Lock
Digital Cameras
Ticketing Machines
Electric Appliances
Auto Parts & Spare Parts
Robotics Field
CNC Machining Parts

Packaging & Shipping

Price Term

Our standard price will be FCA price. CFR, CIF, CPT price terms are available for customized orders.

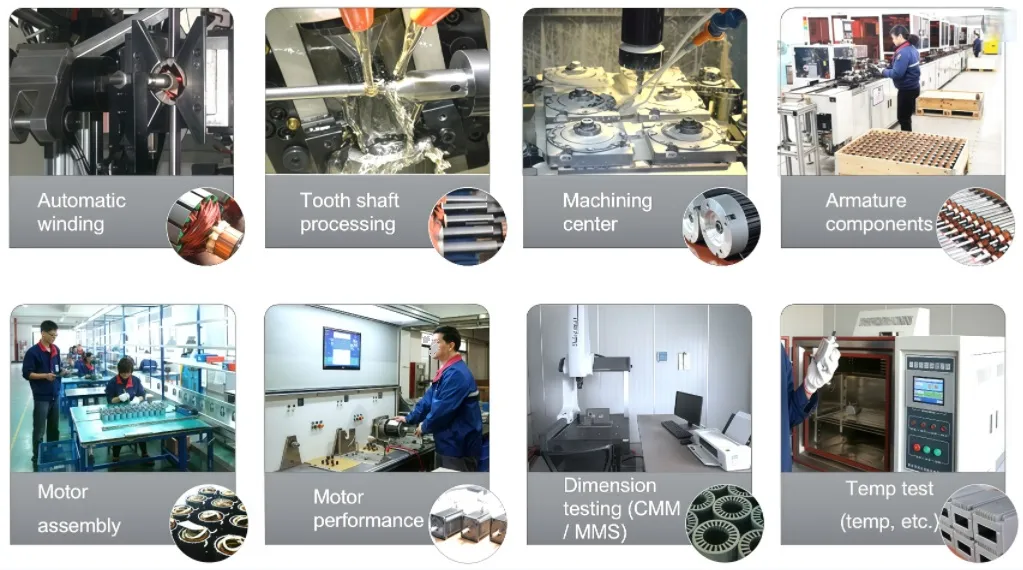

Manufacturing Capacity

Frequently Asked Questions

1. Can the electrical parameters of the 50mm motor be customized? Yes, coil resistance and other specific electrical parameters can be fully customized based on your application requirements.

2. What is the typical temperature range for operation? The motor is designed to operate reliably in ambient temperatures ranging from -40ºC to +50ºC.

3. What certifications do your stepping motors hold? Our motors are certified according to CCC, ISO9001, and CE standards, ensuring international quality compliance.

4. Is it possible to customize the shaft and gear? Absolutely. We can customize the motor shaft size, output synchronous belt pulley, or specific output gears to fit your machine.

5. What are the main applications for this permanent magnet gearbox motor? Common applications include medical imaging devices, 3D printers, textile machinery, HVAC fans, and robotics.

6. What are the available price terms for international orders? Standard pricing is FCA. However, we also support CFR, CIF, and CPT terms for customized logistics needs.
