Product Description

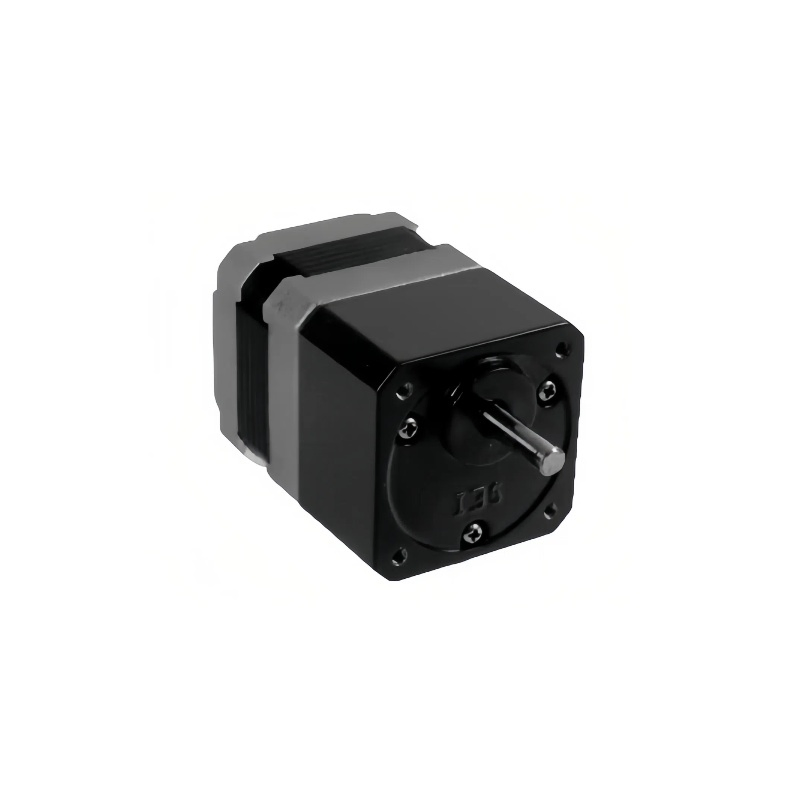

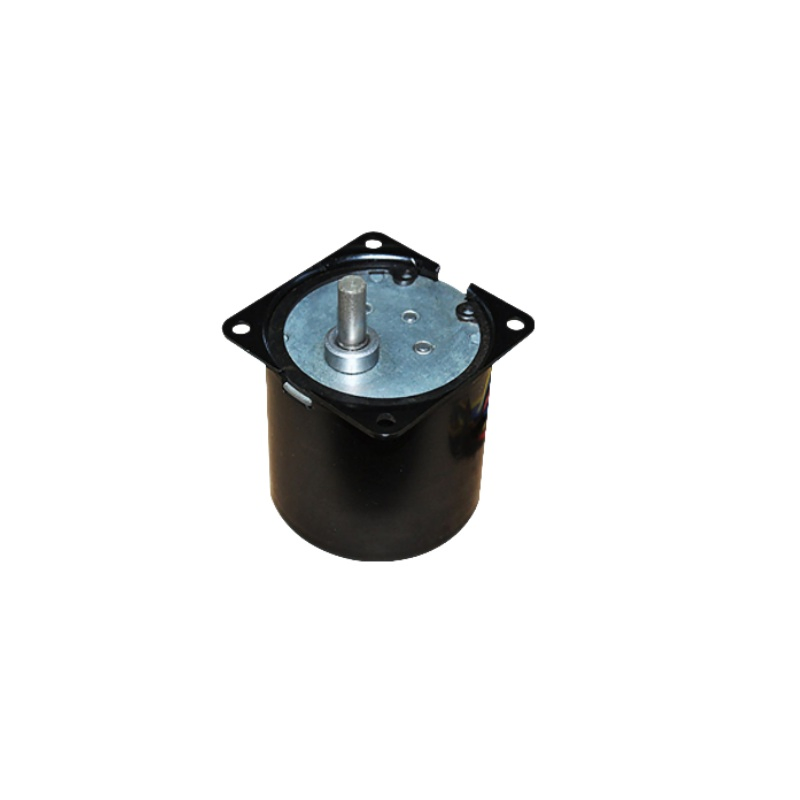

60mm Permanent Magnet Gear-box Stepping Motor
This 60mm permanent magnet gearbox stepping motor offers powerful holding torque in a variety of sizes, designed for precision control and durability.
- Coil resistance and other electrical parameters can be customized according to requirements.
- Motor shaft size, output synchronous belt pulley, output gear, lead length, and plug specifications are customizable.
Product Parameters
| Item |
Specification |
| Resistance Accuracy | ±10% |
| Temperature Rise | 60ºC (rated current, 2 phase on) |
| Ambient Temperature | -40ºC ~ +50ºC |
| Insulation Resistance | 100MΩ Min., 500VDC |
| Dielectric Resistance | 600VAC, 1s, 1mA |
| Shaft Radial Play | 0.1mm Max |
| Shaft Axial Play | 0.55mm Max |
Specifications Detail
| Model NO. |
Rated Voltage (VDC) |
No. of Phase |
Resistance/Phase (Ω) |
Step Angle (DEG) |
Rating Ratio |
Starting Freq (pps) |
Leads (mN.m) |
Detent Torque |
| W60BYJ01 |
12 |
4 |
15 |
5.625/71.25 |
1:71.25 |
≥250 |
≥28 |
≥40 |
| W60BYJ02 |
12 |
4 |
15 |
5.625/51.3 |
1:51.3 |
≥250 |
≥20 |
≥28 |

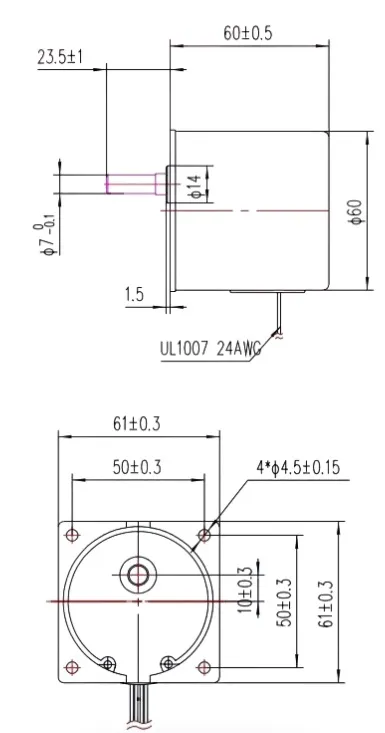

Dimensions (mm)
Applications
- Medical Imaging Devices & Medical Machines
- 3D Printing & 3D Printers
- Textile Manufacturing
- Air Conditioner/Heater Fan
- Auto Door Locks & Digital Cameras
- Ticketing Machines & Electric Appliances
- Robotics field & CNC Machining Parts

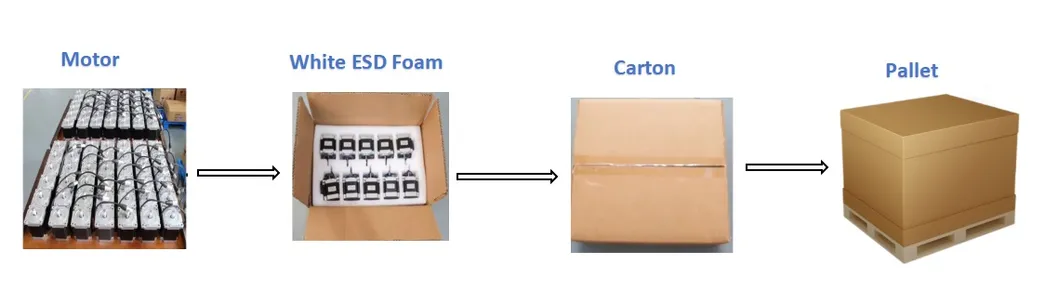

Manufacturing Capacity & Packaging
Price Terms: Our standard price is FCA Changzhou (Incoterms 2020). CFR, CIF, and CPT terms are available for customized orders.
Frequently Asked Questions (FAQ)
Q1: Can the motor parameters be customized?
A1: Yes, coil resistance, motor shaft size, lead length, and plug specifications can all be customized based on specific customer requirements.
Q2: What are the main applications for this motor?
A2: This motor is widely used in medical imaging, 3D printers, textile machinery, air conditioners, auto door locks, robotics, and ticketing machines.
Q3: What certifications does the product hold?
A3: Our motors are certified with CCC, ISO9001, and CE standards to ensure high quality and safety.
Q4: What is the operating temperature range?
A4: The motor is designed to operate efficiently within an ambient temperature range of -40ºC to +50ºC.
Q5: What is the production capacity for this model?
A5: We have a production capacity of approximately 100,000 units per year to support both small and large scale orders.
Q6: What shipping terms do you offer?
A6: Our standard term is FCA Changzhou. However, we can also provide CFR, CIF, and CPT terms upon request.
