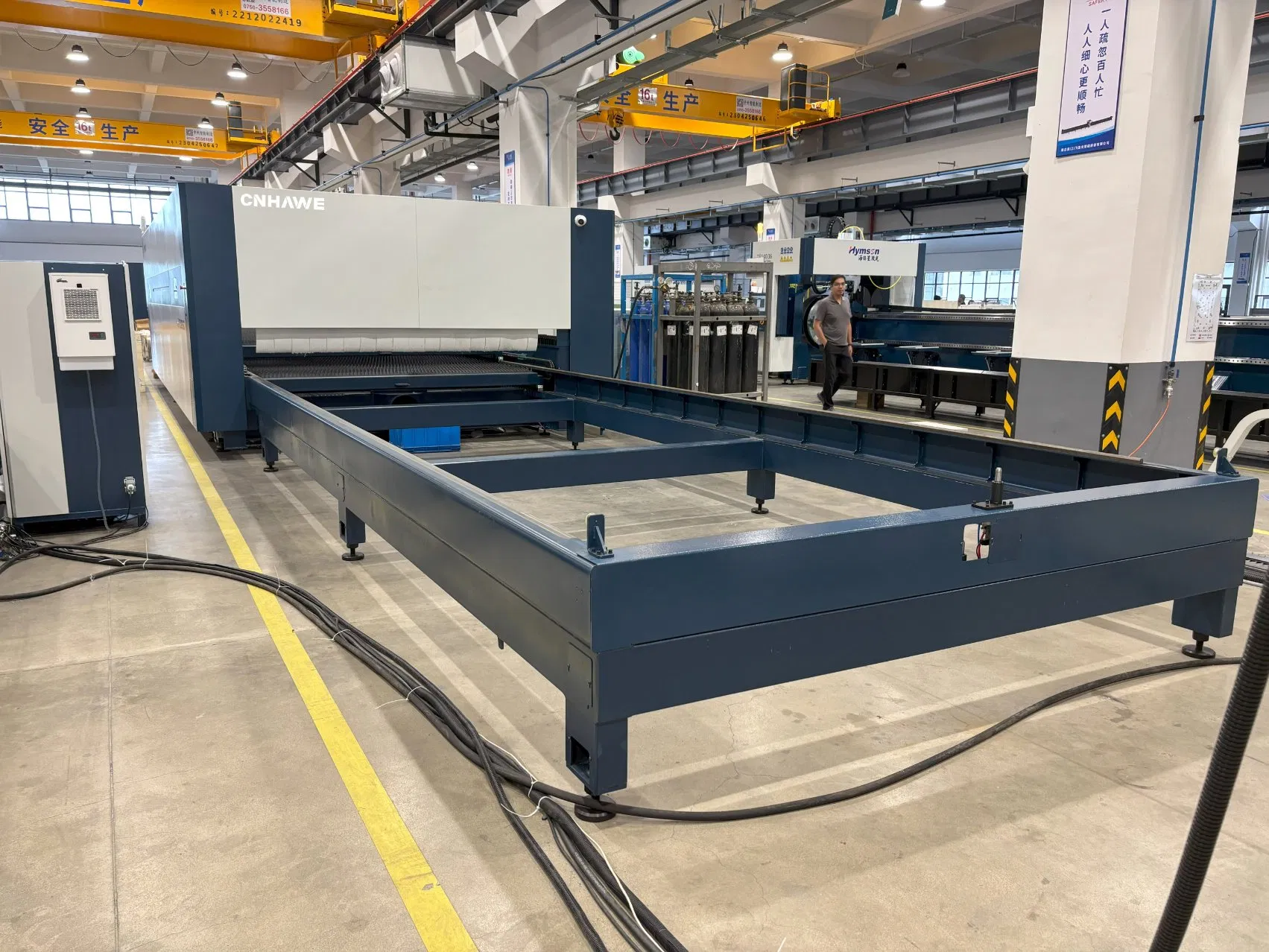

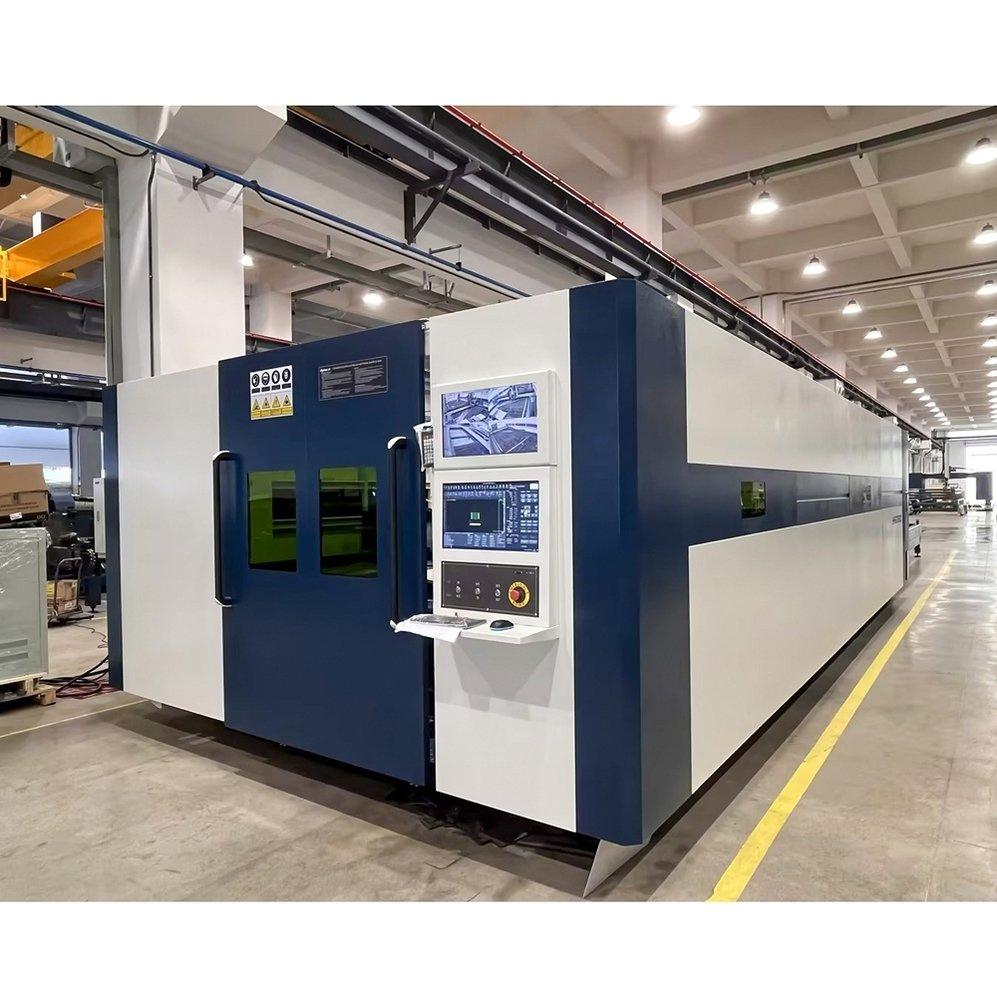

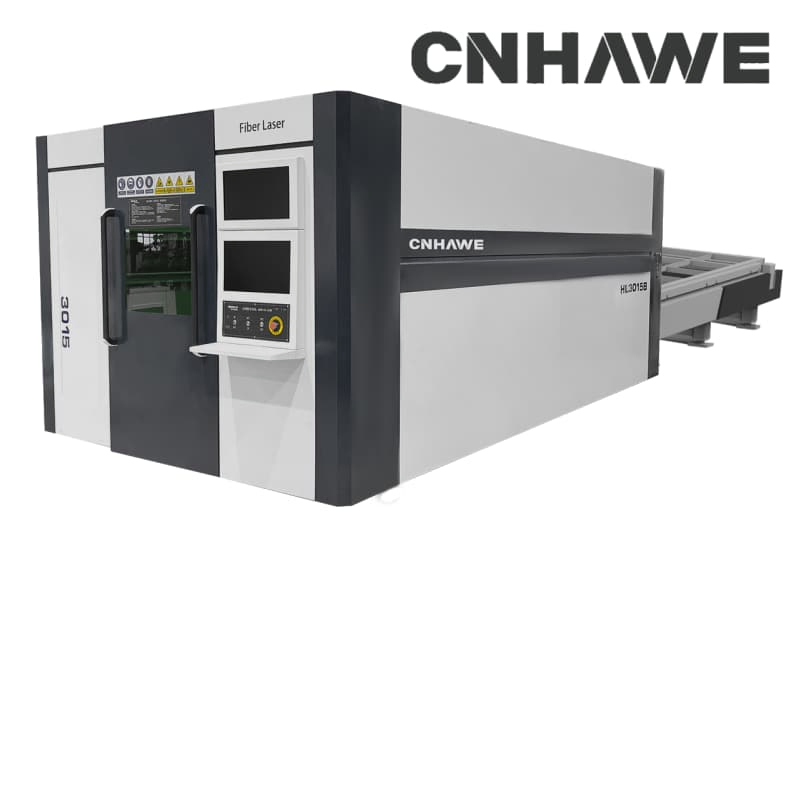

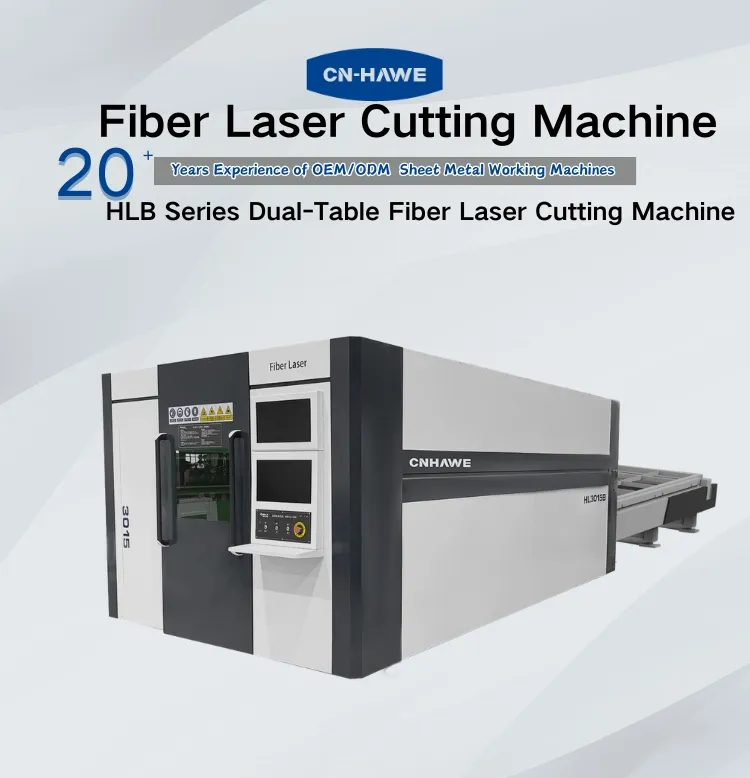

The HLB series laser cutting machine is a highly efficient solution designed for professional, high-volume cutting of thin metal sheets. Its modular construction and mortise-and-tenon joint structure provide exceptional stability and durability. Featuring a high-strength aluminum crossbeam, the machine delivers outstanding dynamic performance. The fully enclosed design, combined with a dual-platform system, ensures safe and streamlined production.
The application range is extensive, covering metal processing industries for carbon steel, stainless steel, and aluminum alloys. It is also vital in automobile manufacturing for body parts and the electronics industry for housings and circuit boards.
| Model | HLB3015 | HLB4020 | HLB6025 |
|---|---|---|---|
| Processing area | 3000mmX1500mm | 4000mmX2000mm | 6000mmX2000mm |
| X/Y positioning accuracy | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m |
| X/Y repeat accuracy | ±0.02mm | ±0.02mm | ±0.02mm |
| Max positioning speed | 110m/min | 110m/min | 140m/min |
| Max acceleration | 0.8g | 0.8g | 1.0g |
| Max load of worktable | 0.7t | 1.0t | 3.0t |

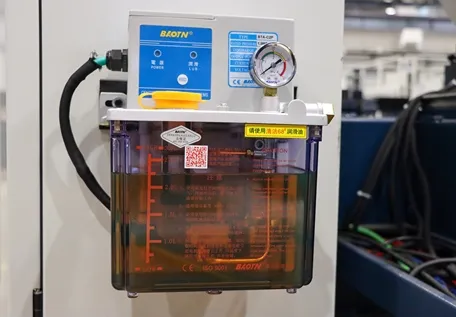

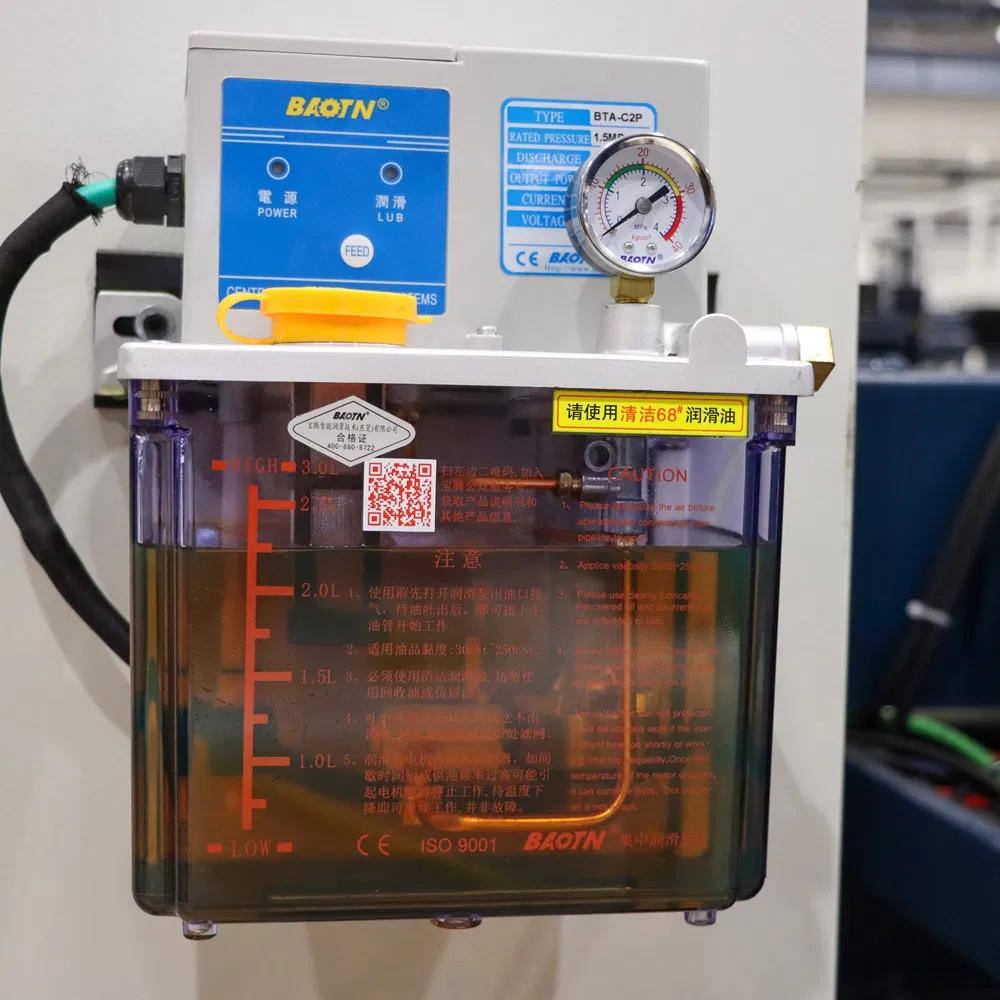

The system operates periodically according to the machine's schedule, automatically dispensing lubricating oil for quick maintenance. This effectively prolongs the machine's service life.

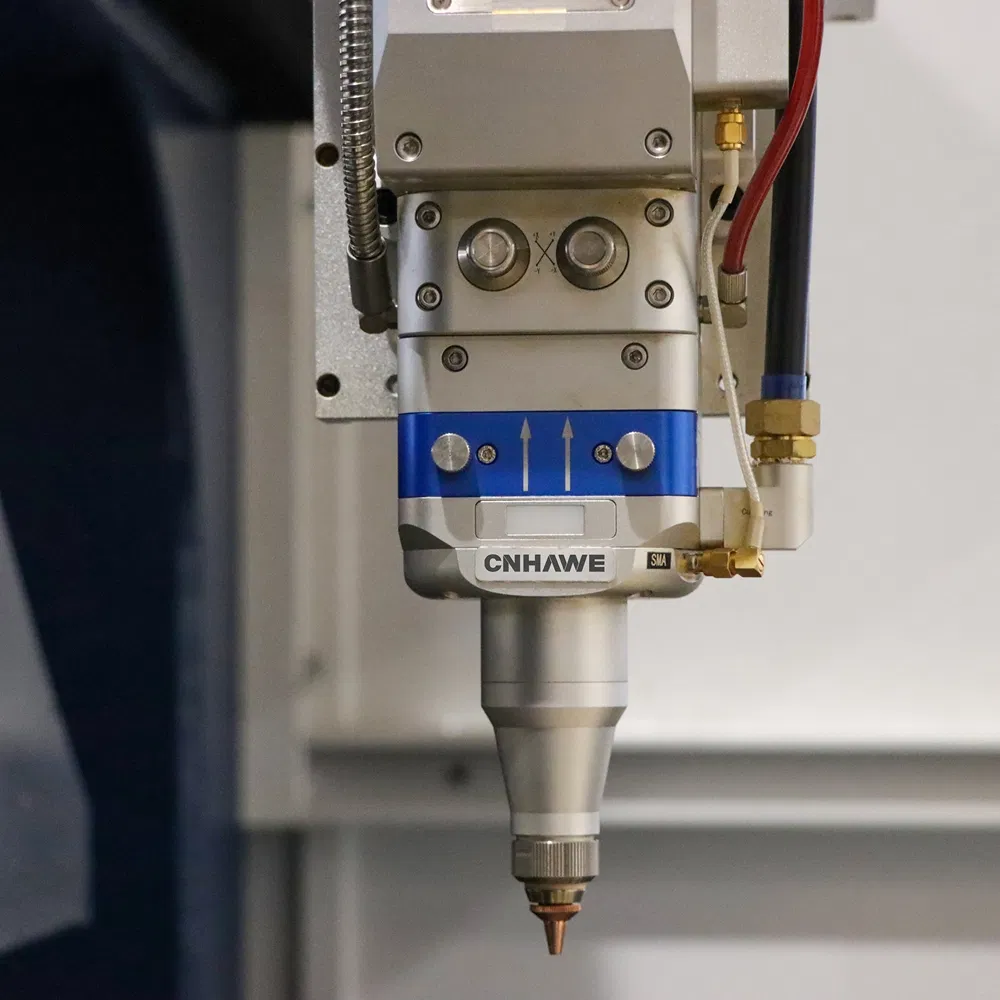

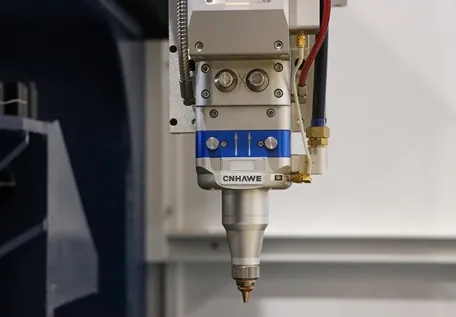

Features a lightweight and compact design, enhancing motion efficiency. Its air-tight seal protects internal optics, while the optimized gas path supports versatile cutting applications with intelligent anti-collision functions.

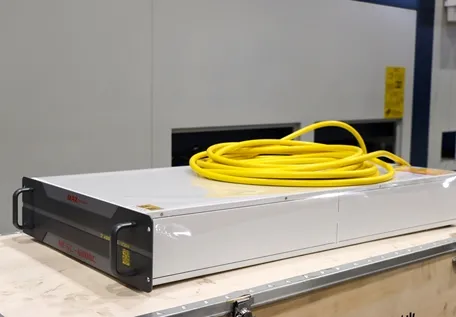

Equipped with state-of-the-art fiber laser generators known for high efficiency. Options include industry-leading brands like Raycus, Maxphotonics, IPG, and nLIGHT.

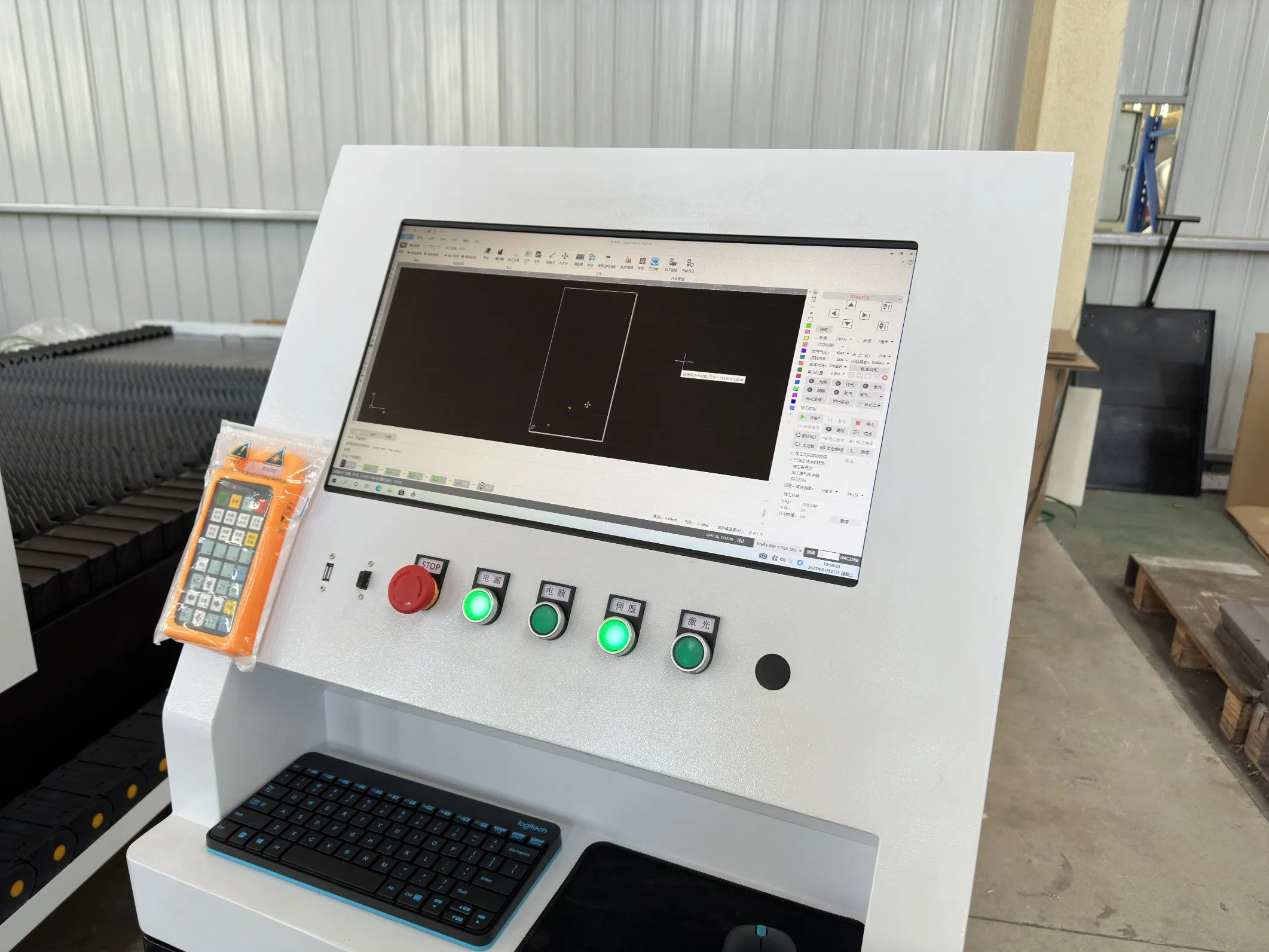

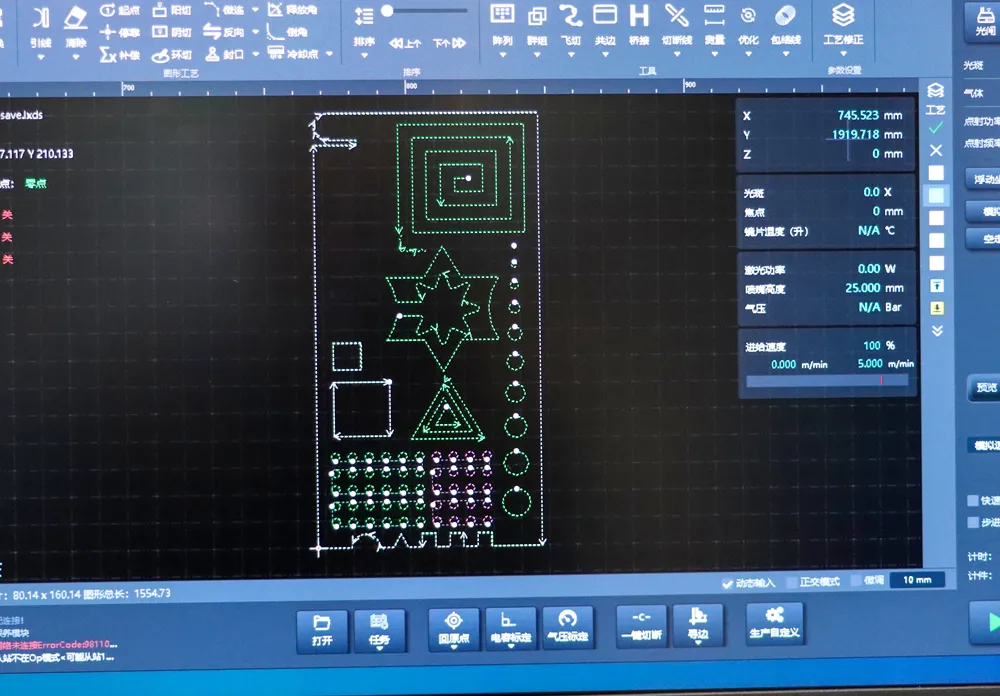

Based on Cypcut software, optimized for performance with easy installation and simple debugging. Supports power-based speed adjustment for maximum user flexibility.
