Biobase Clinical Chemistry Analyzer Point of Care Chemistry Analyzer

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: Biochemistry Analyzer

Product Description

Basic Specifications

Model NO.BK-400
CertificationCE
Throughput400 Test/Hour
Reagent Positions45 Refrigerated Reagent Positions

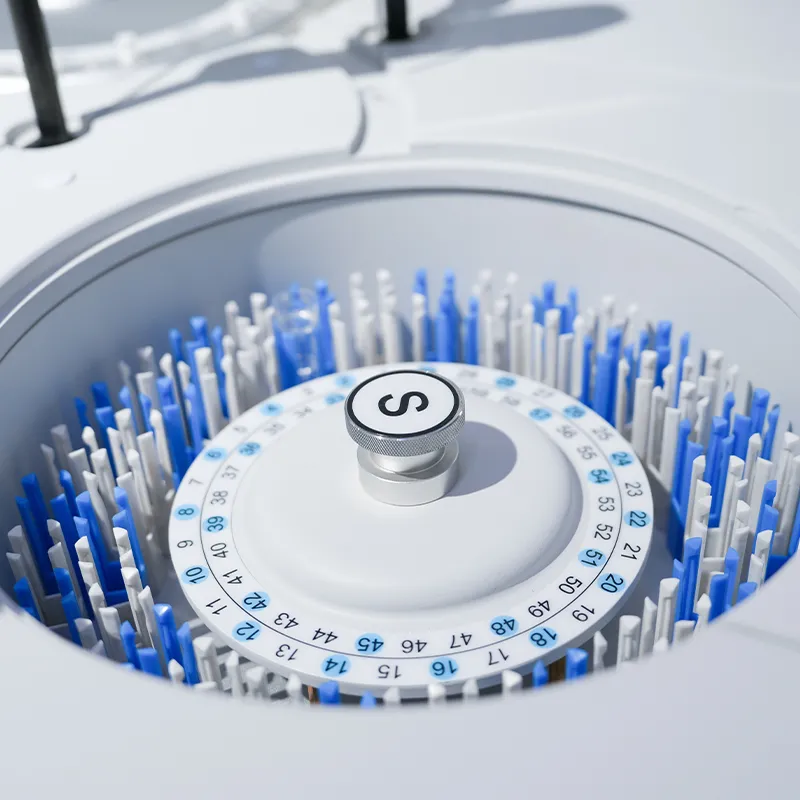

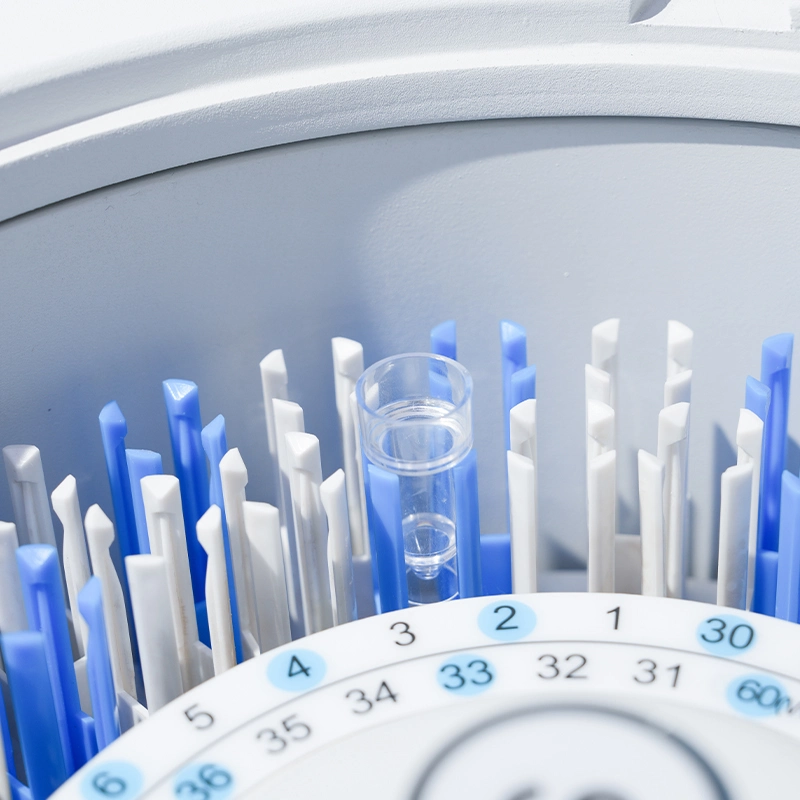

Sample Positions60 or 90 Sample Positions, Built-in Barcode System
Analysis MethodEnd-Point, Fixed-Time, Rate(Kinetic), Turbidimetry
Cuvettes120 reusable Cuvettes, Optical Length 6mm
Water ConsumptionDeionized Water: 12L/H
External Size1170*775*1145mm
Net Weight193kg

Core Features

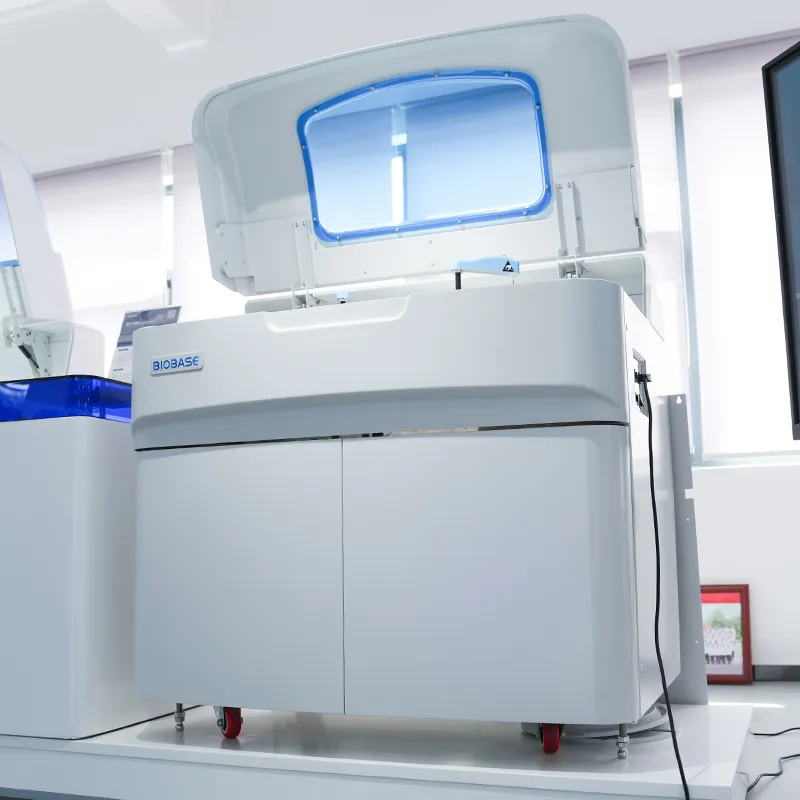

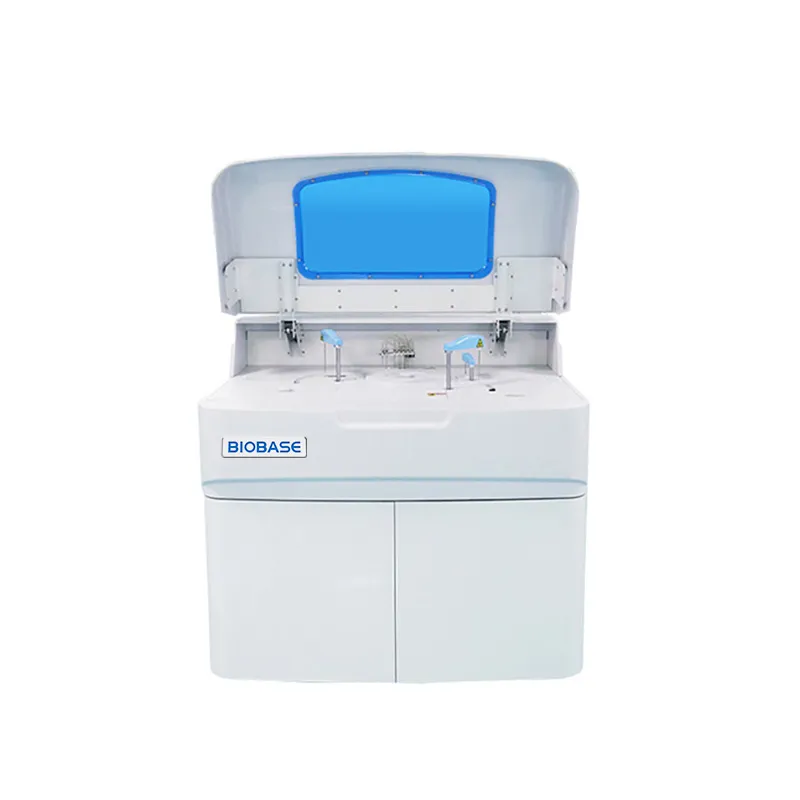

Auto Chemistry Analyzer BK-400
High speed: 400 tests per hour constant throughput.
Large capacity: 90 reagent positions & up to 90 sample positions.
Precision: 120 reaction cuvettes with real-time temperature monitoring.
Advanced probe: Anti-collision and liquid level detection.
User-friendly: Built-in barcode system and independent stirring.

Technical Parameters

Category Parameter Details
PerformanceThroughput400 Test/hour
Analysis MethodEnd-point, Fixed-time, Rate(Kinetic), Turbidimetry
Sample/ReagentSample Positions60/90 positions, barcode supported
Reagent Positions45 refrigerated positions

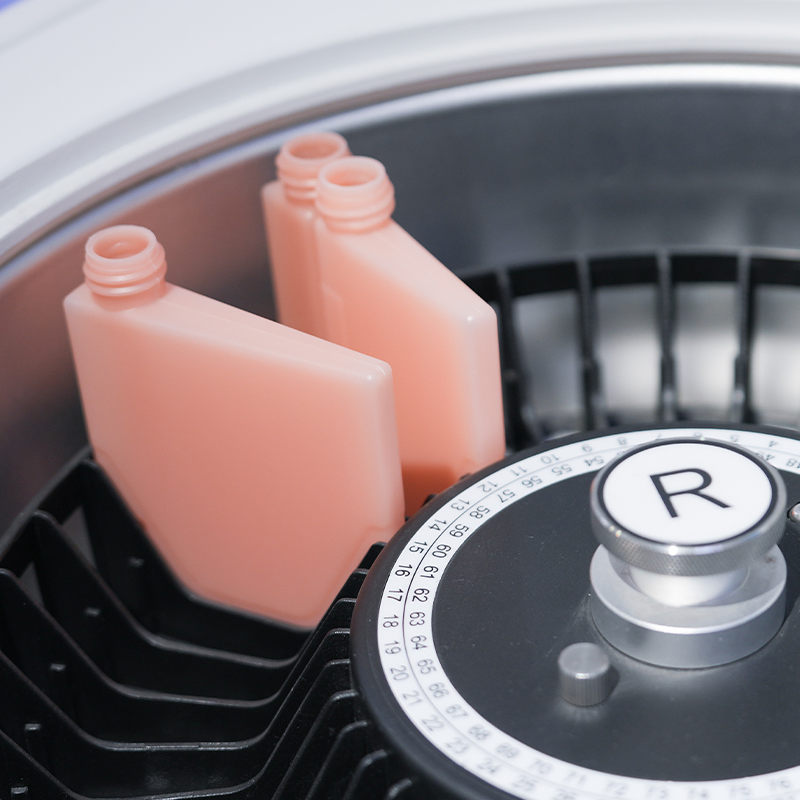

Reagent CoolingRefrigerated tray with independent switch
Optical SystemLight Source12V/30W halogen-tungsten lamp
Wavelength340, 405, 450, 510, 546, 578, 630, 700nm
Absorbance0~3.0Abs
ManagementSoftwareWindows 7/8/10, 32 or 64bit
LIS SystemBi-direction, support HL7 protocol
ConditionsPower SupplyAC220V±10%, 50/60Hz; 110V±10%, 60Hz
Water Consumption12L/H (Deionized water)

Product Visualization

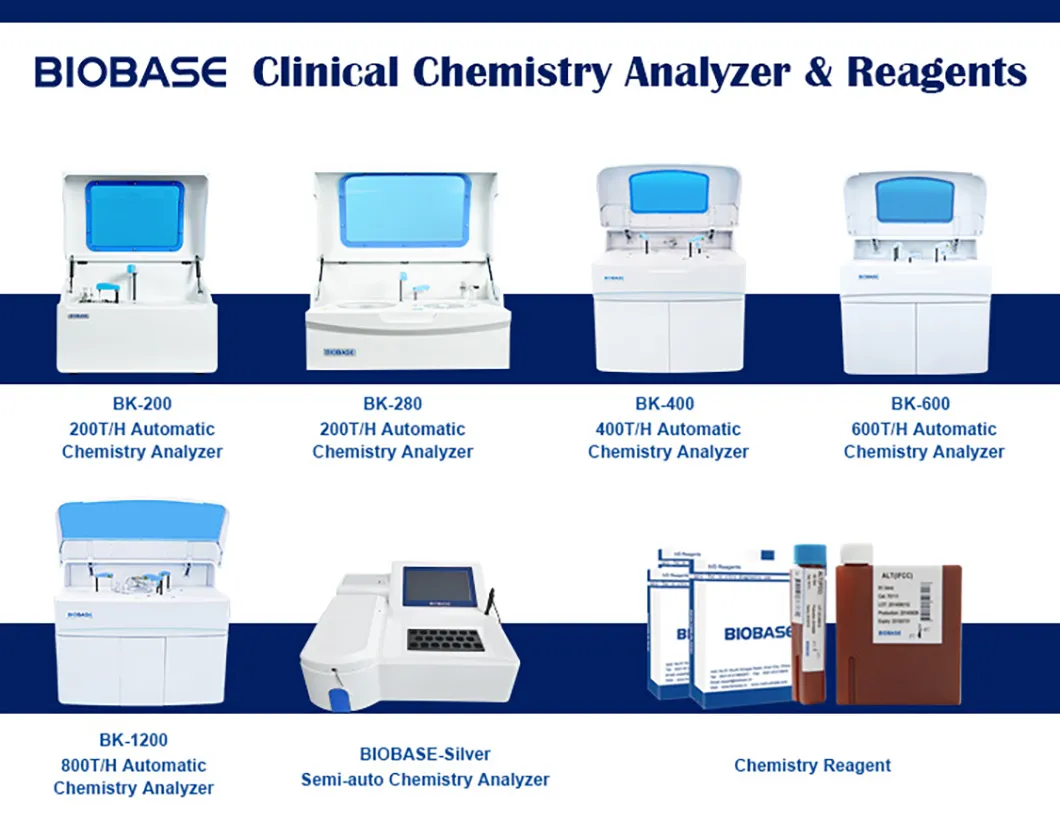

Analyzer Detail
Packing
Shipping
Service
Support
Exhibition
Exhibition Photo
Factory Advantages
Quality Control

Frequently Asked Questions

What is the testing speed of the BK-400?
The BK-400 provides a constant throughput of 400 tests per hour, making it ideal for medium to large laboratories.
How are the reagents kept stable?
The system features 45 refrigerated reagent positions with an independent switch to maintain a constant cool temperature, ensuring reagent stability.
Does the analyzer support STAT (emergency) samples?
Yes, the BK-400 includes a STAT function, allowing for immediate processing of emergency samples without interrupting the current workflow.
What kind of cuvettes does the system use?
It uses 120 reusable cuvettes with an optical length of 6mm, supported by an automatic washing system for high efficiency and low carryover.
Can it be connected to a Lab Information System (LIS)?
Absolutely. The software supports bi-directional communication and is compatible with the HL7 protocol for seamless LIS integration.
What are the water quality requirements?
The system consumes approximately 12 liters per hour of deionized water to ensure accurate results and proper probe/cuvette washing.
