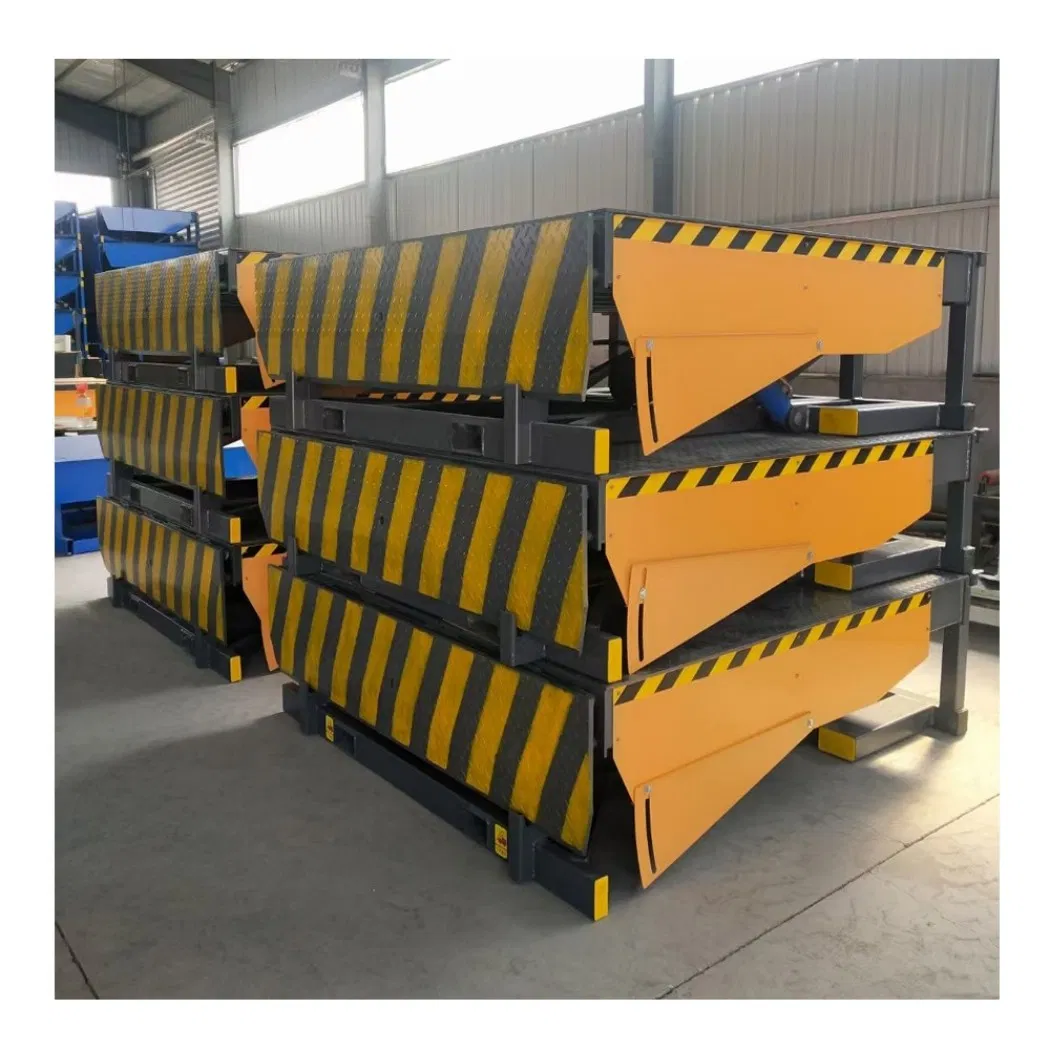

12t Cargo Platform Imported Seals Fixed Boarding Bridge
The Dock Leveler is engineered for docks, logistics terminals, and cold storage platforms where efficient loading and unloading is paramount. We provide a full spectrum of solutions including Hydraulic, Telescoping, Mechanical, and Air-powered levellers.

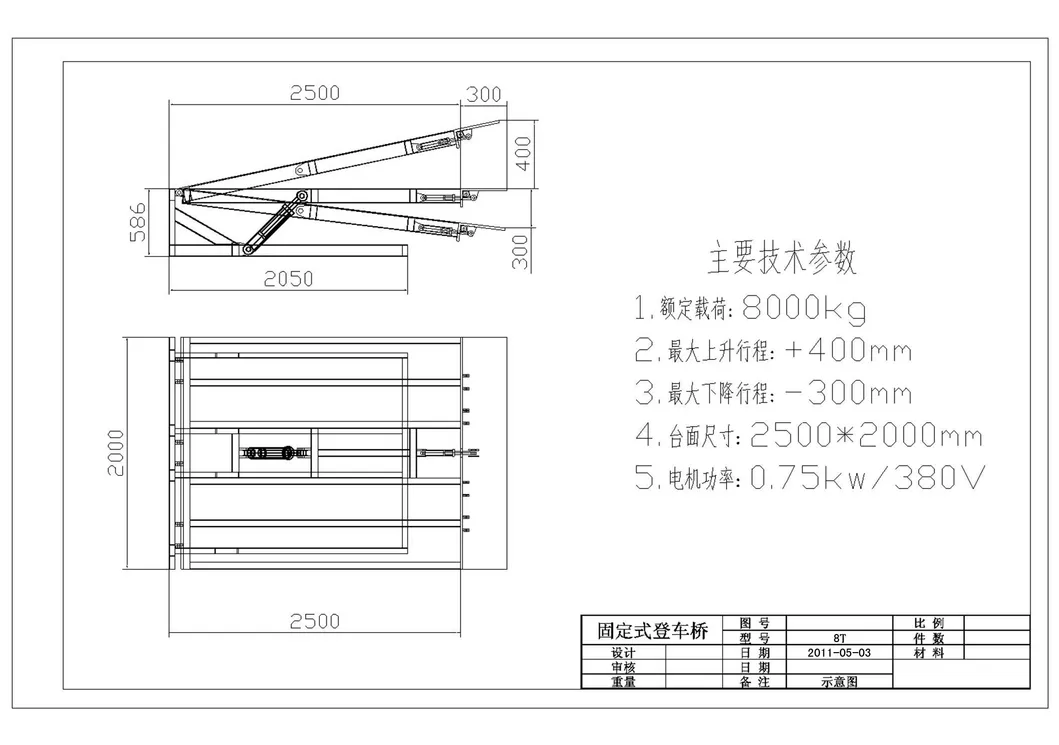

| Model | Capacity (t) | Platform Size | Distance | Lip Board Size | Motor Power |
|---|---|---|---|---|---|
| DCGQ6 | 6 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ8 | 8 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ10 | 10 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ12 | 12 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ6 (Alt) | 6 | 2000*2000mm | 100 | 400mm | 0.75KW |
| DCGQ8 (Alt) | 8 | 2000*2000mm | 100 | 400mm | 0.75KW |

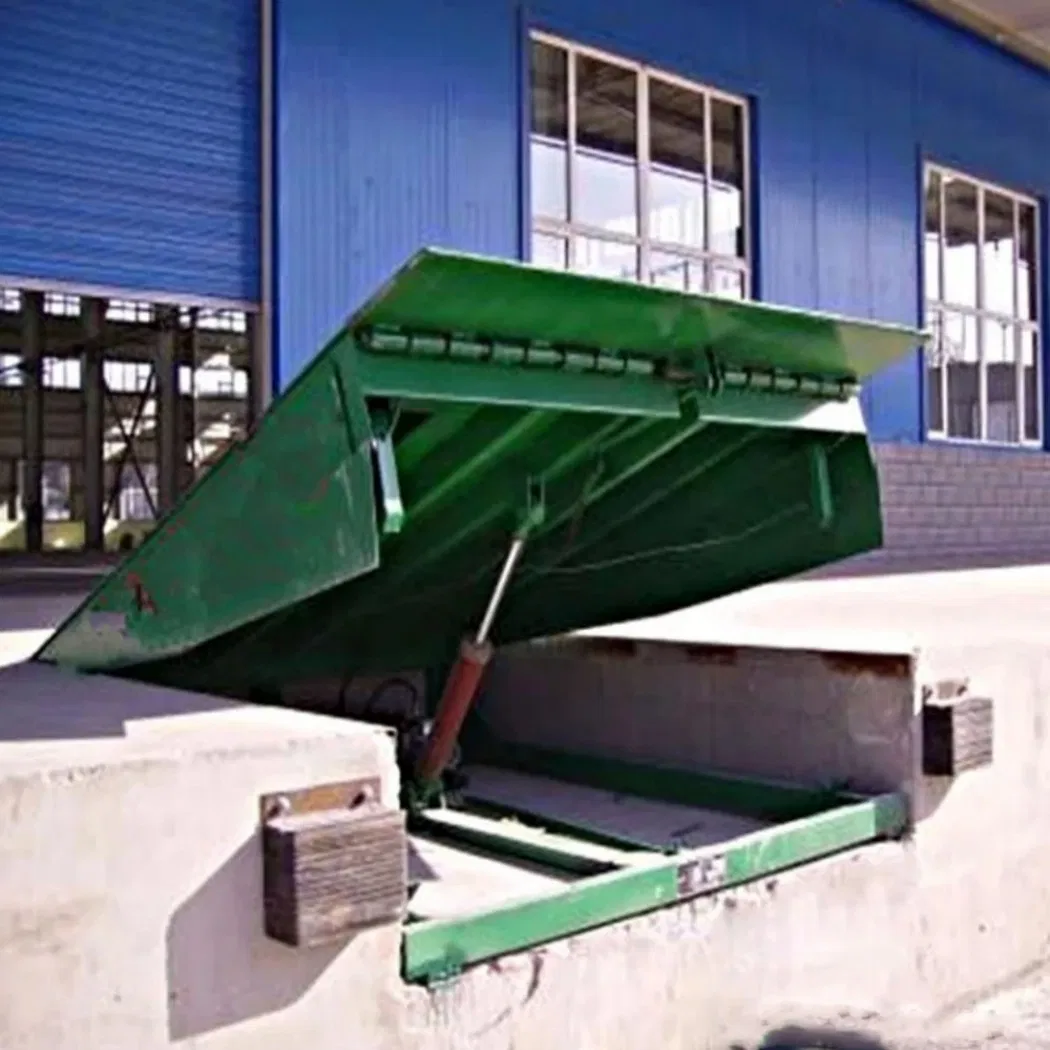

Fixed Hydraulic Dock Leveler: Excellent auxiliary equipment for material handling. Features anti-slip surfaces, anti-crush aprons, and emergency stop devices to ensure personnel and cargo safety. The adjustable height adapts to various vehicle types seamlessly.
⚙️ System Design

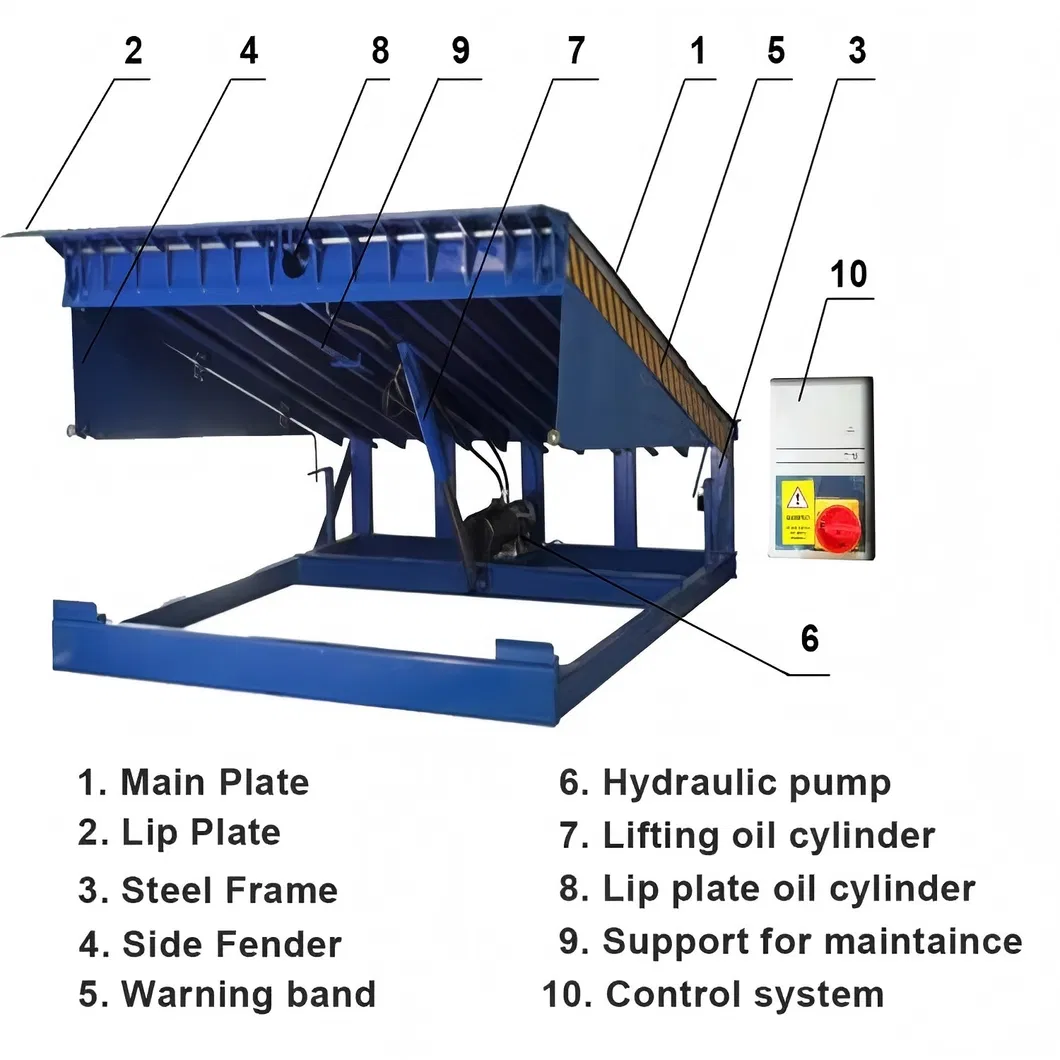

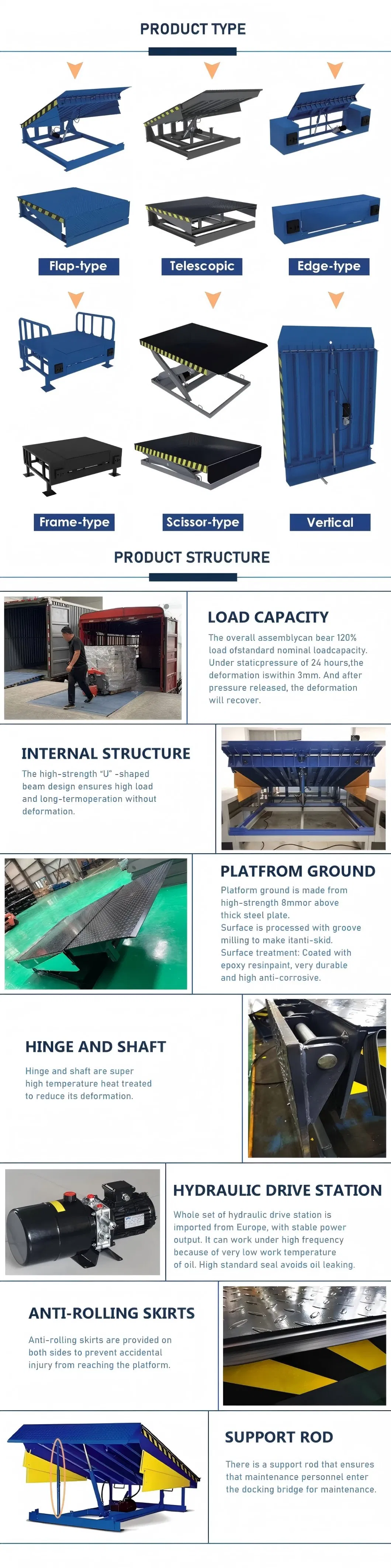

Maintenance-free design for long-term use. The hydraulic driving system controls both the main deck and lip. All components (Pump, Pipe, Tank) are integrated under the deck for protection.
🔒 Safety First
Equipped with full-range foot guards and a safety support bar for maintenance. Features a hydraulic velocity fuse that stops the leveler automatically during emergency loading drops.
🏗️ Heavy Duty Structure
The main deck uses 8mm high-strength embossed non-slip steel with 14# I-beam reinforcement. Includes a 15mm extension lip for non-deformation performance under heavy loads.

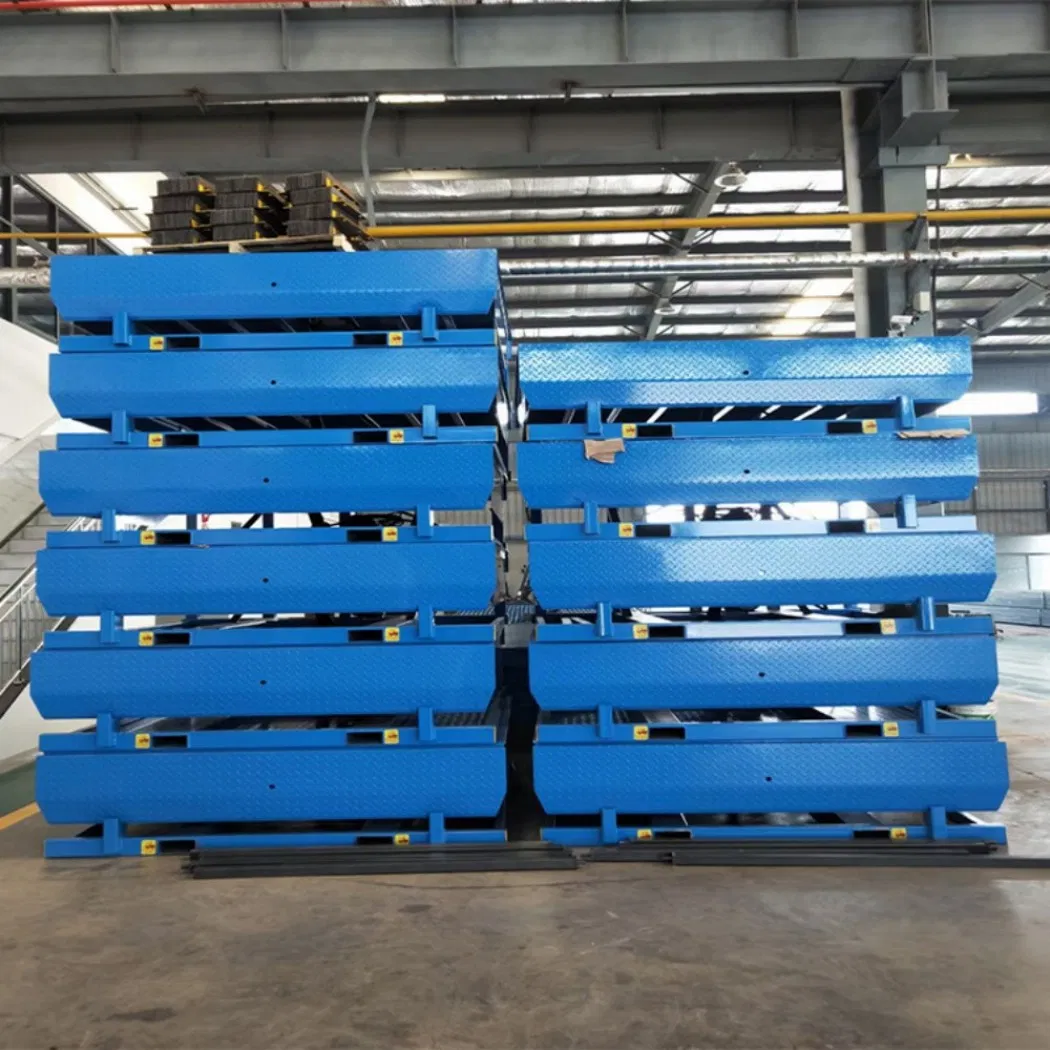

The main body is securely packaged using plywood boxes or plastic woven fabrics. Spare parts are carefully placed inside plywood boxes to ensure damage-free international transport.
