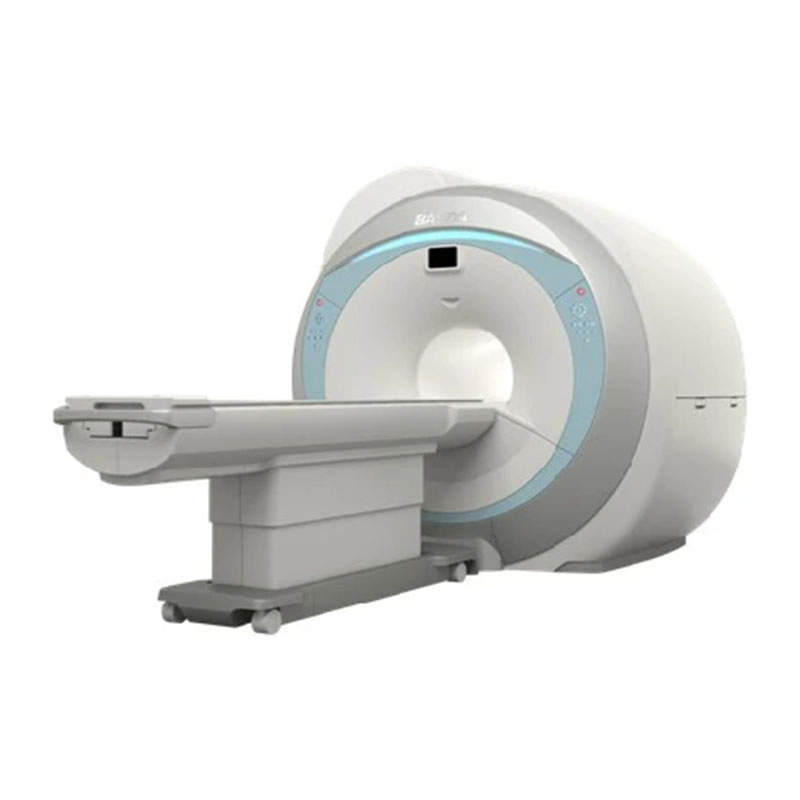

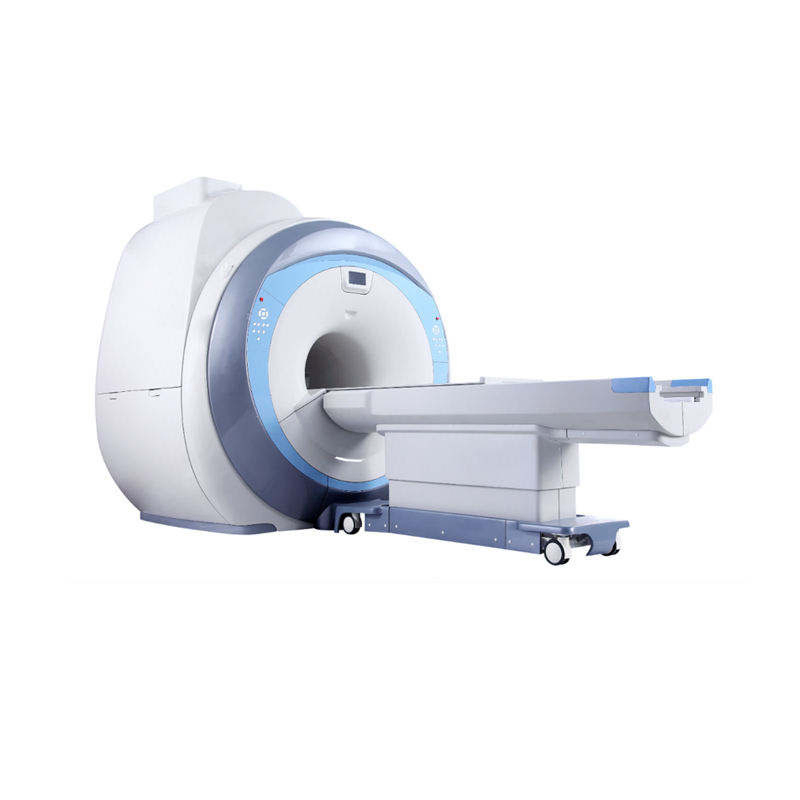

China 1.5t Hospital Imaging Machine Medical MRI Scanner
China 1.5t Hospital Imaging Machine Medical MRI Scanner
China 1.5t Hospital Imaging Machine Medical MRI Scanner
China 1.5t Hospital Imaging Machine Medical MRI Scanner
China 1.5t Hospital Imaging Machine Medical MRI Scanner
1 / 5
China 1.5t Hospital Imaging Machine Medical MRI Scanner
China 1.5t Hospital Imaging Machine Medical MRI Scanner
China 1.5t Hospital Imaging Machine Medical MRI Scanner
China 1.5t Hospital Imaging Machine Medical MRI Scanner
China 1.5t Hospital Imaging Machine Medical MRI Scanner

China 1.5t Hospital Imaging Machine Medical MRI Scanner

Customization: Available
Certification: CE
Product Name: Medical Equipment MRI Scan Price MRI Scanner Equip
Send Inquiry

Product Description

MRI Scanner Basic Information

Model NO.
MC-150
Min. Shielding Room Size
6000mm*5000mm*3200mm(H)
Standard Room Size
7000mm*6000mm*3200mm(H)
Equipment Category
1.5T Hospital Imaging System

Product Description

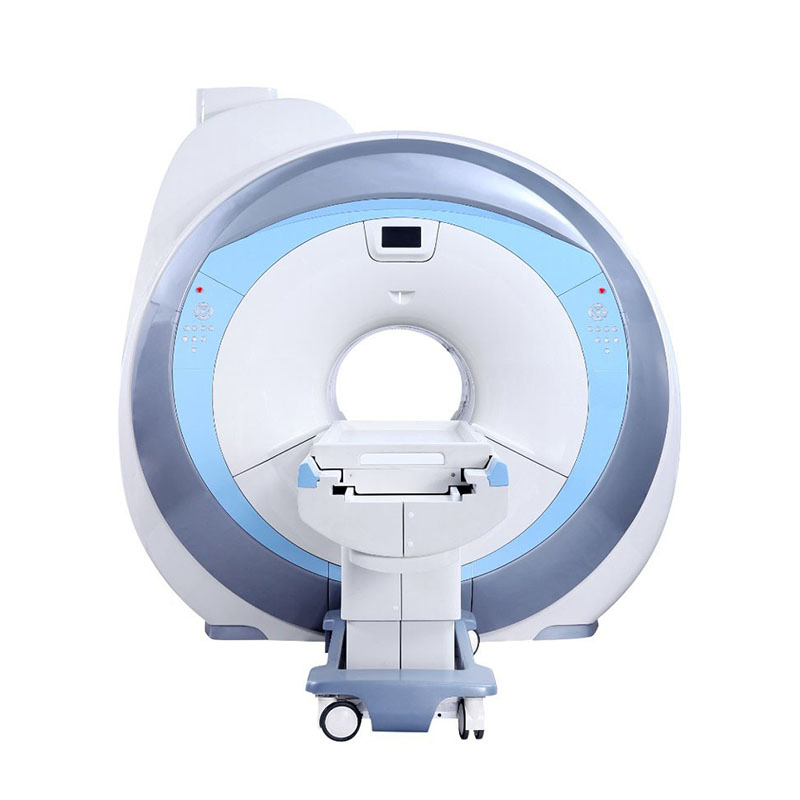

Hospital Medical Equipment MRI Scanner Machine (MC-150)

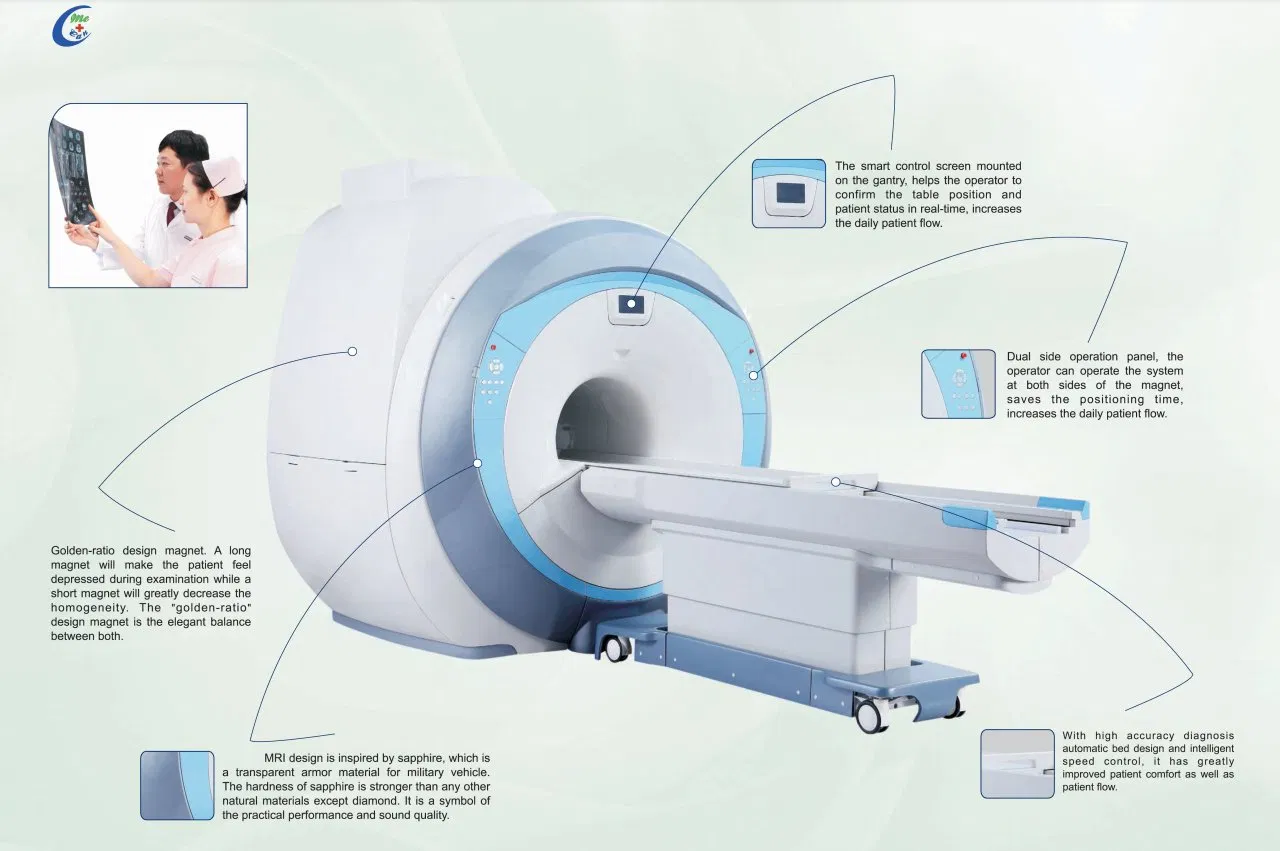

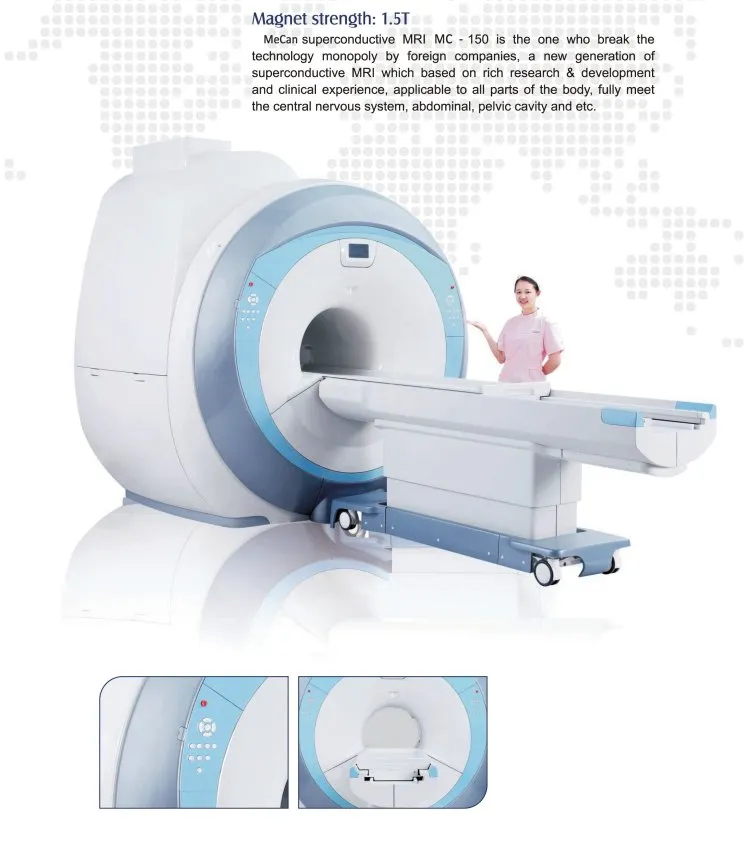

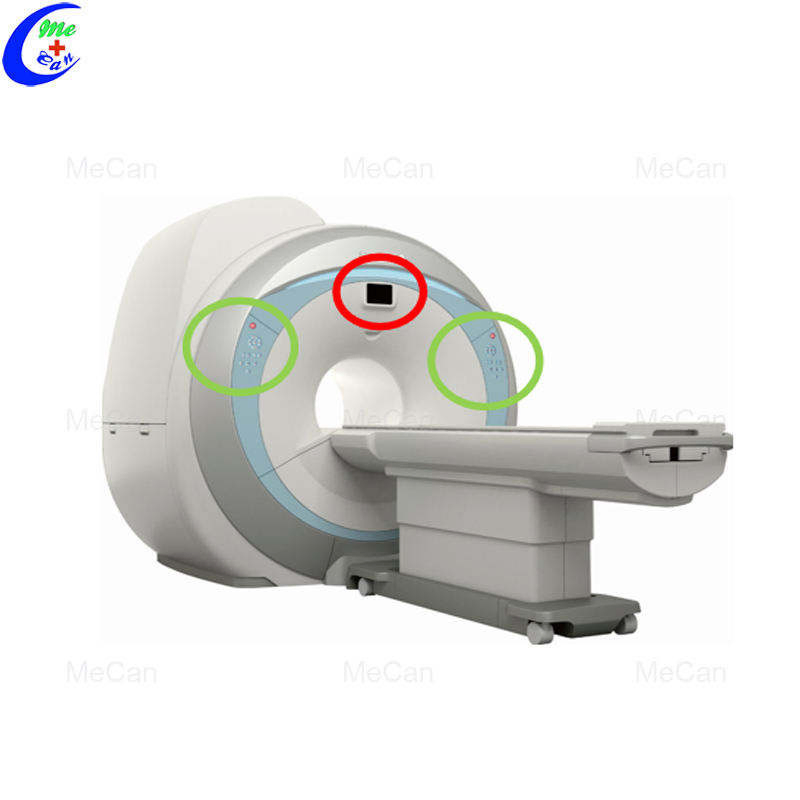

MRI Scanner Machine View 1
MRI Scanner Machine View 2

Advanced Technical Features

Superconducting Magnet: Helium supplement interval time ≥48 months with zero consumption technology.
E-alarm Technology: Built-in SIM card and monitoring system for real-time pressure, temperature, and liquid level alerts to minimize quench risks.
Spectrum Meter: Full Digital 8-16 channels spectrometer for precision imaging.
Fiber Technology (Optional): Signal transfer via fiber optics to reduce RF signal loss.
RF Amplifier: 18KW high-power amplifier ensuring strong proton excitation and B1 field homogeneity.
Gradient System: Intensity: 41mT/m, Slew rate: 187mT/m/ms, featuring water cooling and Quiet Comfort noise reduction (33% quieter).
AIT Technology: Enables one-time positioning for full-field imaging, significantly increasing workflow efficiency.
MRI Magnet System

Receiver Coils Configuration

No. Coil Type
1Head coil (CH8)
2Neck coil (CH8)
3Body coil (CH8)
4Knee coil (CH8)
5Breast coil (CH8 & CH4)
6Shoulder coil (CH4)
7Ankle coil (CH8)
8Full palm coil (CH8)
9Spine coil (CH18 HIGH)
10Soft coil (CH4)
11Head-neck coil (CH16)
12AIT coil (CH18)

System Components

Chiller System: Intelligent touch-screen control with auto fault/leak/overheat detection and built-in backup water pump.

Patient Table: Motor-driven, max load 200Kg, featuring an 8" TFT screen for easy operation and accurate positioning (≤ 1mm).

Workstation: High-performance Windows-based OS, Quad-core ≥2.8GHz, 24" LCD monitor, integrated with full system condition monitoring.

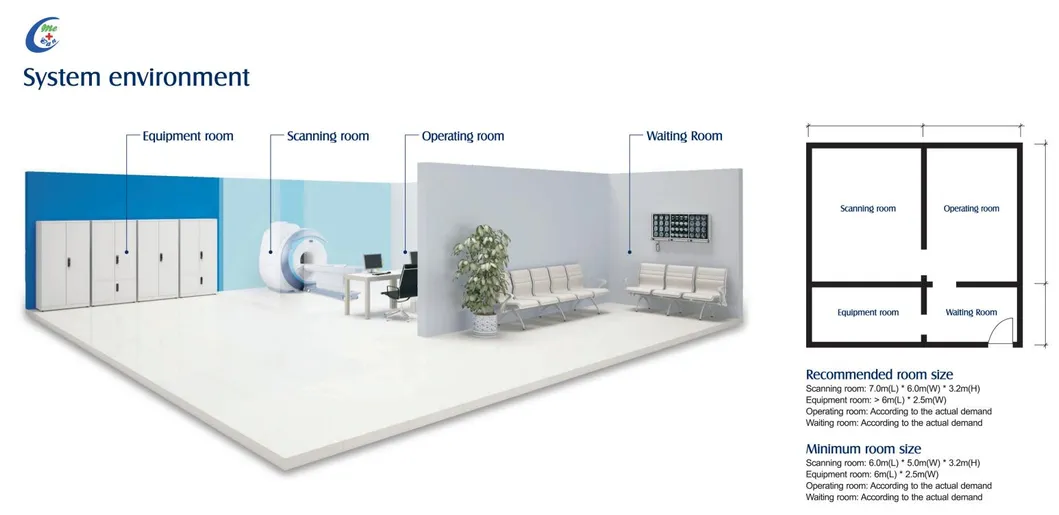

Room Installation Requirements

Standard Shielding Room7000mm × 6000mm × 3200mm(H)
Min. Shielding Room6000mm × 5000mm × 3200mm(H)
Equipment RoomApprox. 15m²
Operator RoomApprox. 12m²

Clinical Imaging Performance

Powered by new generation PA coils and parallel acquisition technology, most scanning sequences are completed in less than 2 minutes with high signal-to-noise ratio and excellent contrast.

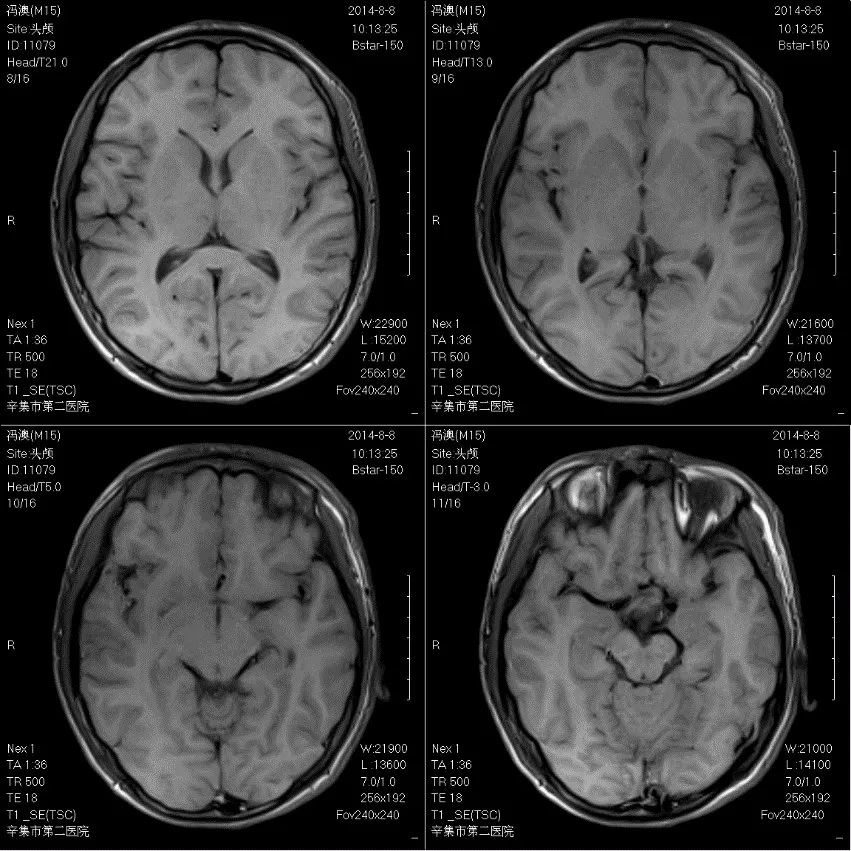

Clinical Head Image 1
Clinical Head Image 2

Manufacturing & Quality Control

Production Facility 1
Production Facility 2
Production Facility 3
Production Facility 4

Frequently Asked Questions (FAQ)

1. What is the helium consumption rate of this MRI machine?
The MC-150 uses zero consumption technology, with a helium supplement interval time of 48 months or longer.
2. How does the E-alarm technology protect the equipment?
It utilizes a built-in monitoring system and SIM card to auto-send alerts regarding internal pressure and temperature, significantly reducing the risk of a magnet quench.
3. What is the benefit of "Quiet Comfort" technology in the gradient coil?
This technology reduces gradient noise by 33%, providing a much more comfortable environment for patients during scans.
4. What is the maximum patient weight the table can handle?
The motor-driven patient table is designed for a maximum load of 200Kg with positioning accuracy of ≤ 1mm.
5. Does the system support fast scanning sequences?
Yes, with parallel acquisition technology and high-performance coils, most scanning sequences can be completed in under 2 minutes.
6. What are the minimum room requirements for installation?
The minimum shielding room size required is 6000mm × 5000mm × 3200mm(H), plus additional space for equipment and operator rooms.
