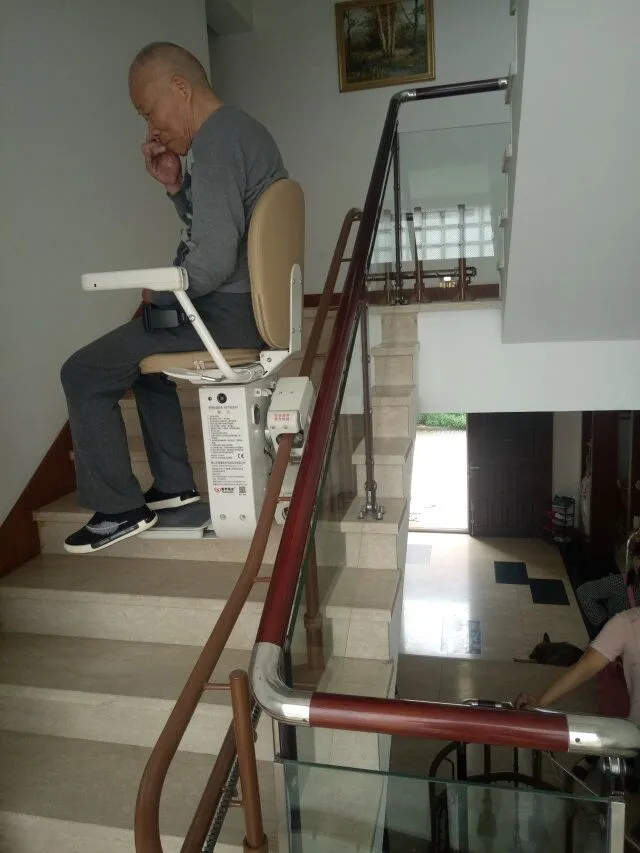

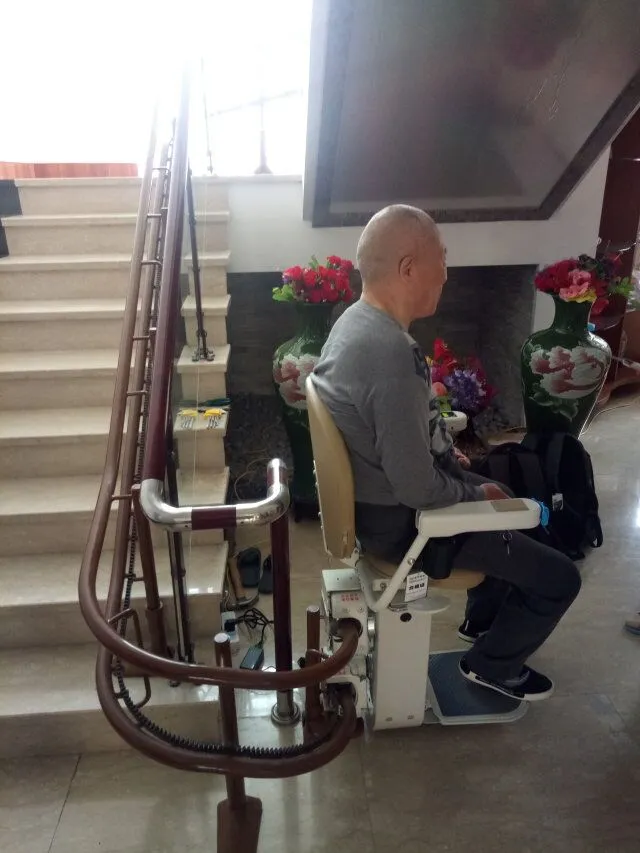

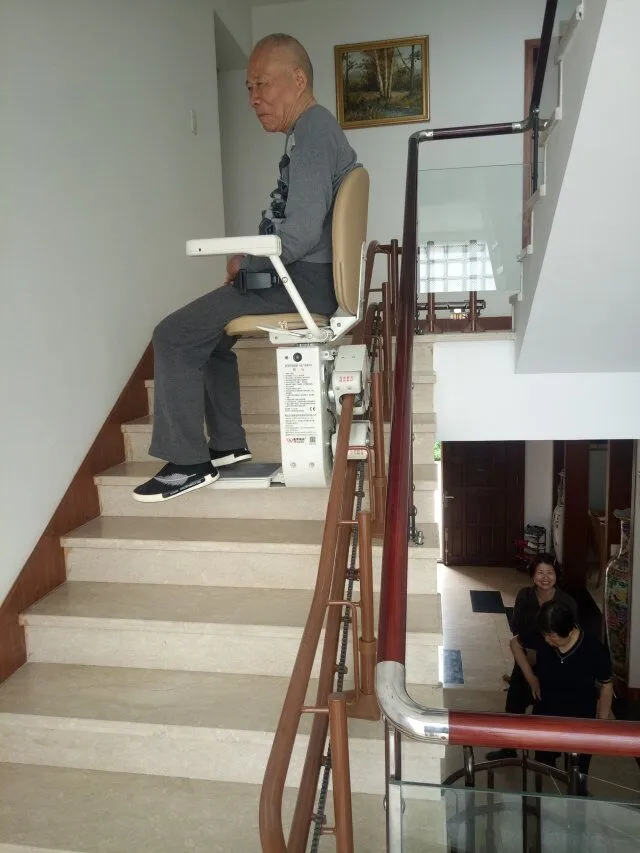

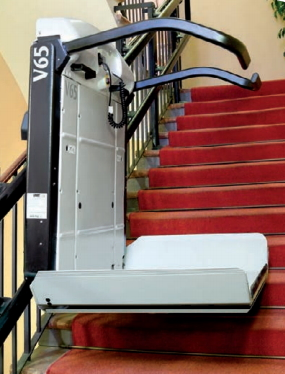

CURVED INCLINED PLATFORM STAIRLIFT
The platform stairlift is designed to tackle constant or variable gradients, adapting seamlessly to the incline variations of landings or flights of stairs.
Installation does not require building work and does not interfere with existing interior design styles.

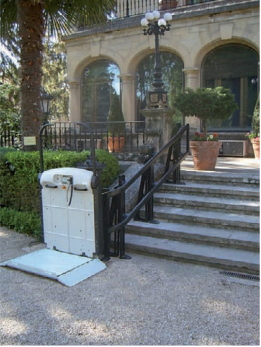

Suitable for both indoor and outdoor installation. Built to ensure long working life and performance even in severe weather conditions.
Equipped with a latest-generation power supply unit. It recharges batteries during descent, ensuring smooth and quiet operation.
Includes radio control, active/passive protection devices, and retractable safety arms to reduce headroom space when not in use.
Protected controls (constant pressure), Emergency stop, Manual emergency manoeuvre, Progressively operated safety gear, Speed limiter, Automatic protector panels, and Anti-crushing devices.
| SPECIFICATION | STANDARD | LARGE | EXTRA LARGE |
|---|---|---|---|
| Minimum stair width (mm) | 1130 | 1250 | 1320 |
| Tolerated gradient (degree) | 0 to 50 | 0 to 50 | 0 to 50 |
| Minimum size of rail (mm) | 160 | 160 | 160 |
| Folded size (mm) | 430 | 430 | 430 |
| Platform dimension | 830x700 | 1050x770 | 1250x800 |
| Capacity (up to 45°) | 300kg | 300kg | 250kg |
| Capacity (beyond 45°) | 200kg | 200kg | 200kg |
| Speed (m/min) | 8 | 8 | 8 |
| Power supply | 230V | 230V | 230V |
| Power consumption | 1KW | 1KW | 1KW |
