| Model NO. | BE-INS3-500-L02 |
| Display | Digital |
| Usage | Electric Component Tester, Inertial Components R&D |
| Type | Motion Simulator |
| Power Source | 380VAC/50Hz |
| Weight | 1200kg |
| Load Weight | 40kg |
| Angular Position Resolution | 0.0001° |
| Production Capacity | 500PCS/Year |

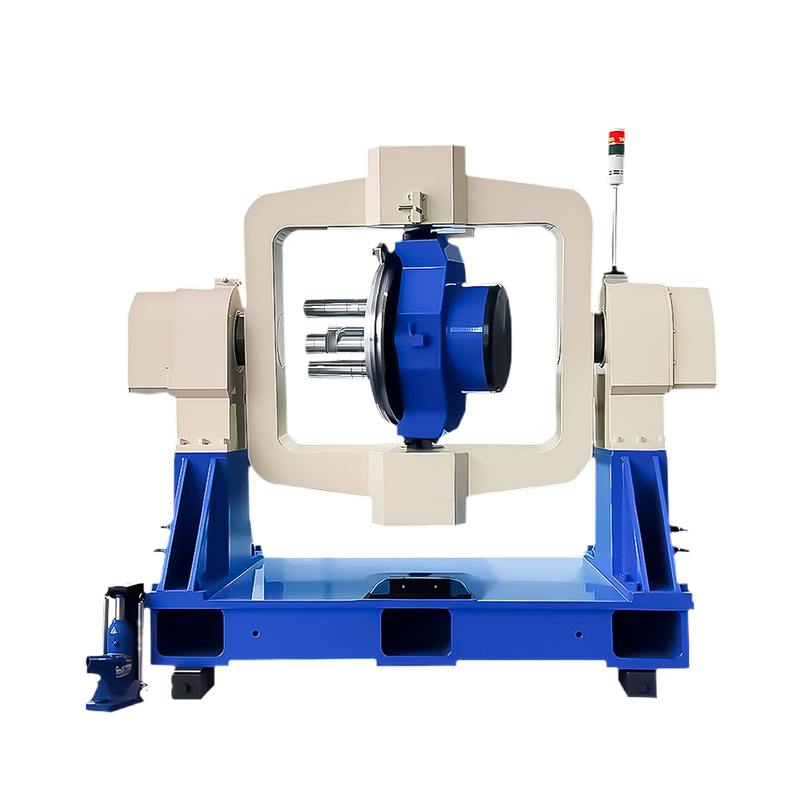

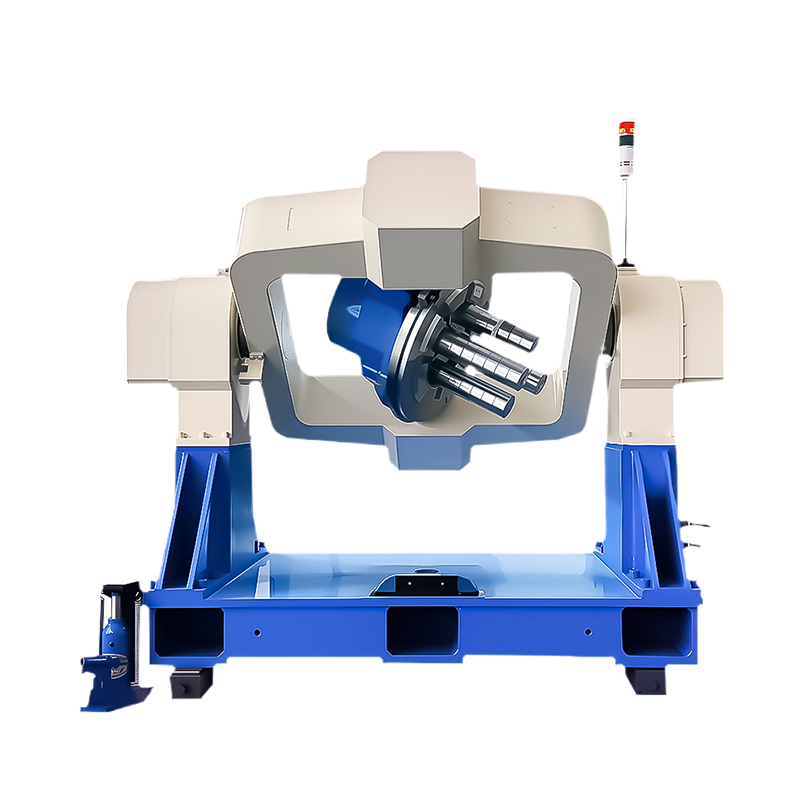

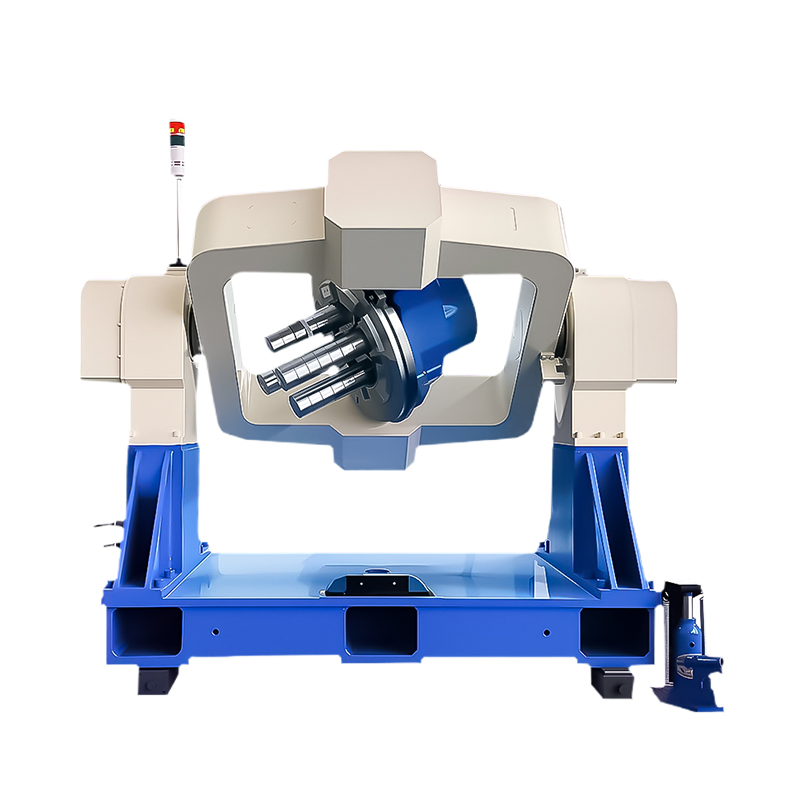

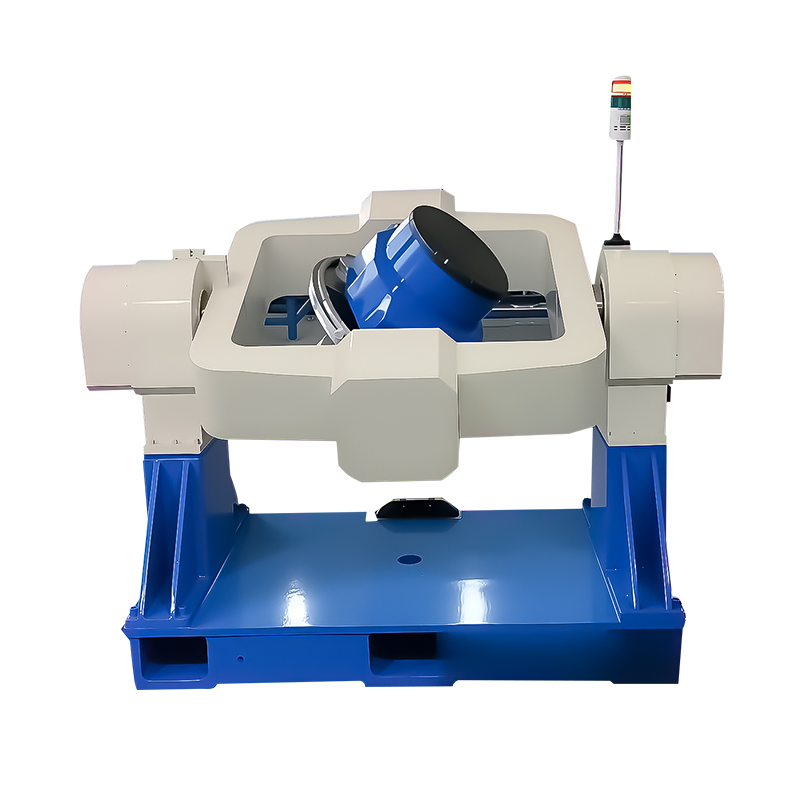

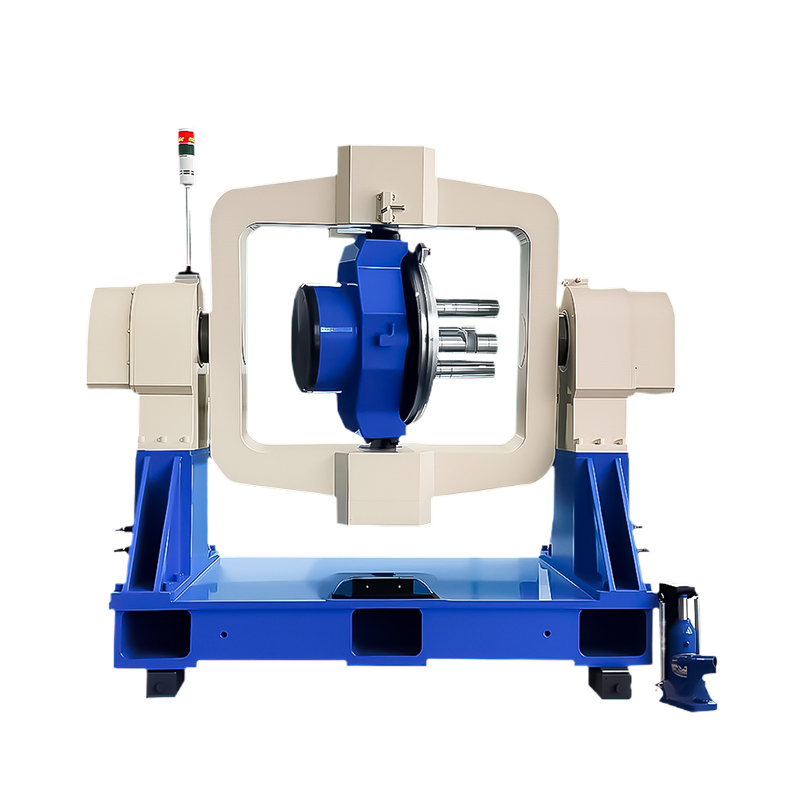

Precision Triaxial Motion simulation rate table for Strapdown Navigation Component Testing
Unlock the "real world" within the laboratory - the next-generation high-precision three-axis motion simulation turntable precisely, reliably, and repeatably condenses complex, multi-dimensional dynamic environments into a compact space. It's not just a testing device, but a dynamic benchmark driving cutting-edge sensing components to push performance boundaries.
Why Choose Our Technology?

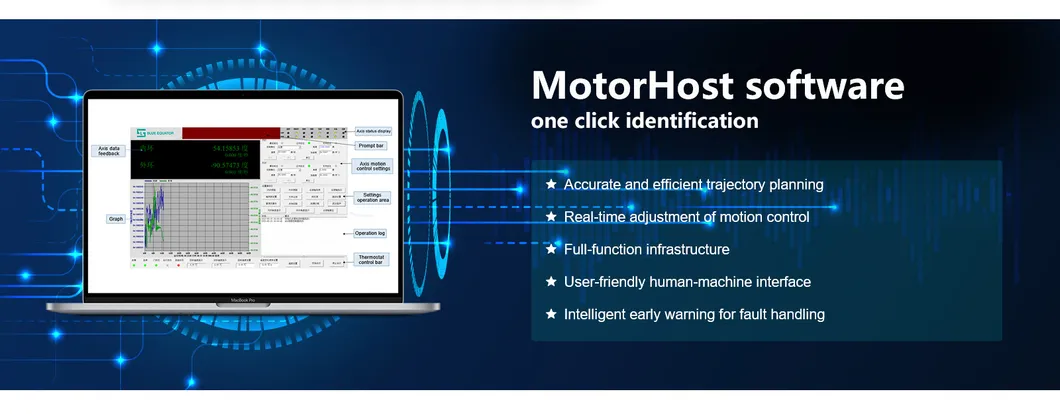

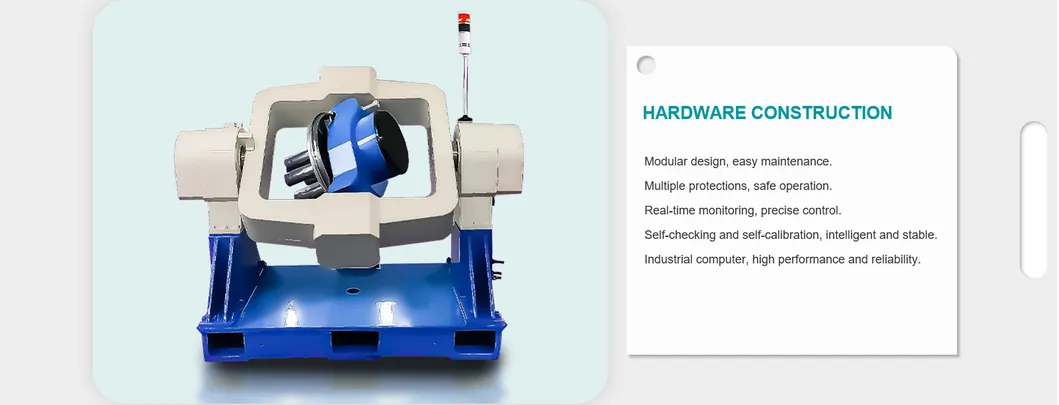

The product integrates cutting-edge electromechanical design and intelligent control: a high-rigidity, low-friction structure and a high-performance drive system deliver pure, smooth, and low-noise dynamic excitation; advanced all-digital closed-loop control and intelligent software platform support accurate reproduction of complex trajectories and automated testing processes.

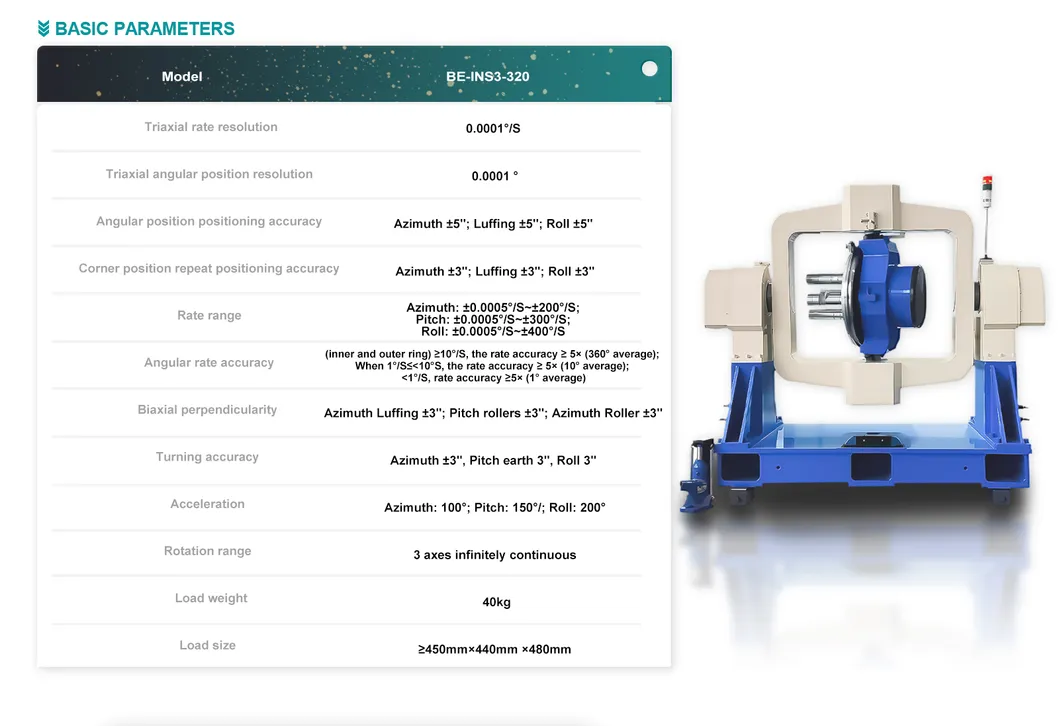

| Index Name | Indicator Parameters |
|---|---|
| Triaxial rate resolution | 0.0001°/S |
| Triaxial angular position resolution | 0.0001° |
| Angular position positioning accuracy | Azimuth ±5"; Luffing ±5"; Roll ±5" |
| Corner position repeat positioning accuracy | Azimuth ±3"; Luffing ±3"; Roll ±3" |
| Rate range | Azimuth: ±0.0005°/S~±200°/S; Pitch: ±0.0005°/S~±300°/S; Roll: ±0.0005°/S~±400°/S |
| Acceleration | Azimuth: 100°; Pitch: 150°/; Roll: 200° |
| Rotation range | 3 axes infinitely continuous |
