Cutting-Edge MRI System with Customizable Features for Enhanced Patient Care

1 / 5

Cutting-Edge MRI System with Customizable Features for Enhanced Patient Care

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	X Ray Equipment

Send Inquiry

Product Description

Basic Info.

Certification

CE, FDA, ISO13485

After-Sale Service

Online Technical Support

Product Name

Magnetic Resonance Imaging

Special Point

Wooden Boxes

Color

Customized

Material

Metal

Instrument Classification

Class III

Power Source

Electric

Voltage

AC220V±10% or AC110V±10%

X-ray Energy

20-50kv

Transport Package

Wooden Boxes

Origin

China

Product Description

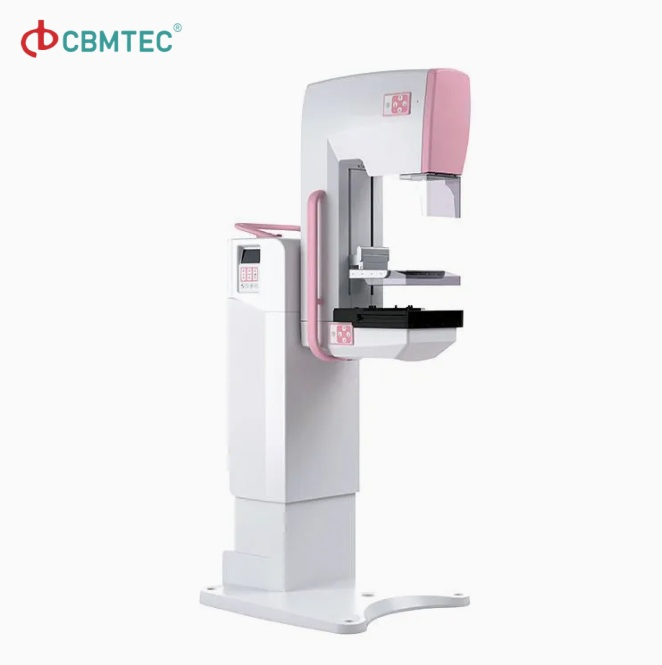

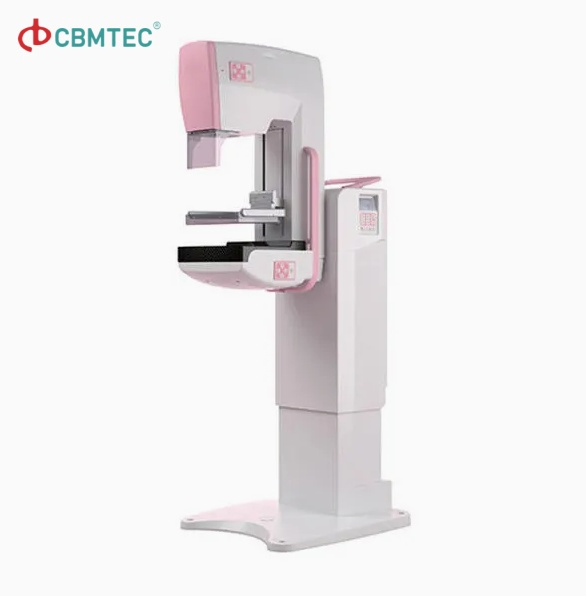

Digital Mammography System Specifications

Spatial Resolution: higher than (15) Lp/mm

Cassette size: 18*24cm or 24*32cm

Focal distance: 650mm-SID (Subject to Image Distance)

Additional filter: 0.03mm Molybdenum / 0.5mm Aluminum

Additional filter Switch: Automatic

Field adjustment: Auto/Manual

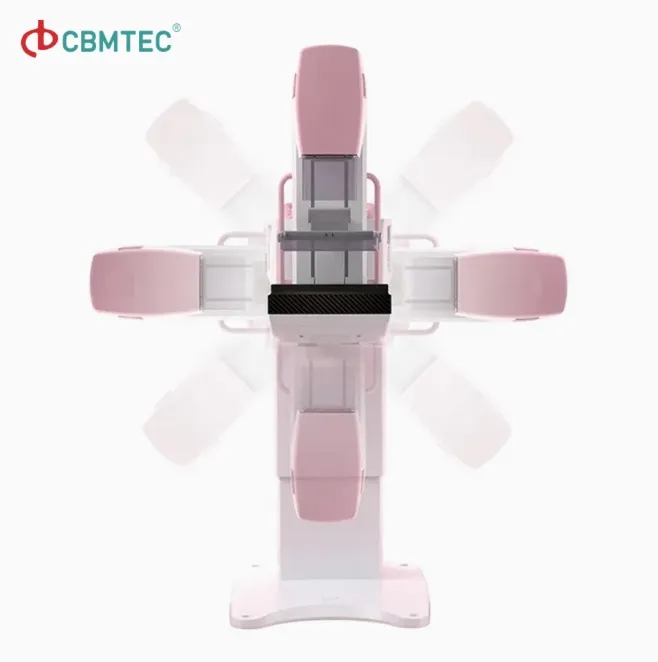

C-arm Rotation range: +180°/-135°

ISO center rotation: Yes

Height range of breast support surface: 750mm-1330mm

Magnification ratio: (1.4)/1-(1.6)/1

Exposure mode: Manual / AEC/AAEC

Compressor Details

Compression mode: foot pedal control; emergency release key; two-speed soft compression

Compressor paddle movement range: 268mm

Thickness of breast: 0-268mm

Pressure range: 0-20kg, step: 1kg

Pressure accuracy: ±20N

X-ray Tube

Anode material: Molybdenum

Focus size: Large: 0.3mm; Small: 0.1mm

Max tube current: Large: 140mA; Small: 35mA

KV range: 20KV~40KV

Rotating Anode: 2800 rpm or 9600rpm

Anode thermal capacity: ≥320KJ

Radiation shielding: ≥1mm lead equivalent

Generator & General Specs

High Voltage Frequency: 40kHz

Max. Power: 3.5KW

Power supply: AC220~ AC230±10% (50Hz~ 60Hz)

G.W.: 200 Kg

Packing Size: 115 * 85 * 135 CM3

Professional Overview

We adhere to the concept of quality first and superior service. We are committed to remaining practical, pragmatic, and enterprising to develop new and far-reaching multi-channel business cooperation. Relying on years of experience in the medical industry, we focus on providing specialized and high-quality medical equipment solutions globally.

Core Advantages

Original Manufacturer: Professional manufacturing with specialized equipment.

Large Output Capacity: Capability to produce more than 50,000PCS each month.

Quality Control: ISO13485 Quality Management system with 100% factory testing.

Cost Advantages: Professional scale economy benefits for competitive pricing.

Series Diversity: Multiple models available to meet different international standards.

Exporting Experience: Over 5 years of professional global export expertise.

Exhibition & Services

Support customization based on special requests.

OEM services available.

Special LOGO printing available.

Fast shipping within 5-7 days via Fedex, DHL, TNT, EMS, UPS, etc.

Should you have any interests or require more info on our surgical lights and allied gas items (cylinder valves, regulators, medical hospital central oxygen system products), you are welcome to enquire anytime!

Frequently Asked Questions (FAQ)

Q1: What certifications does this medical equipment hold? A1: Our products are fully certified with CE, FDA, and ISO13485 quality management standards to ensure international compliance.

Q2: Do you offer customization or OEM services? A2: Yes, we support full customization based on special requests, including OEM services and custom LOGO printing.

Q3: What is the typical lead time for shipping? A3: We typically ship within 5-7 days after 100% payment is received, using reliable carriers like DHL, Fedex, and TNT.

Q4: What kind of after-sale support is provided? A4: We provide comprehensive online technical support to assist with any operational or maintenance inquiries.

Q5: What are the power requirements for the system? A5: The system is designed to work with electric power sources of AC220V±10% or AC110V±10%, suitable for various global regions.

Q6: How is the equipment packaged for international transport? A6: For maximum protection during transit, the equipment is securely packed in high-quality wooden boxes.
