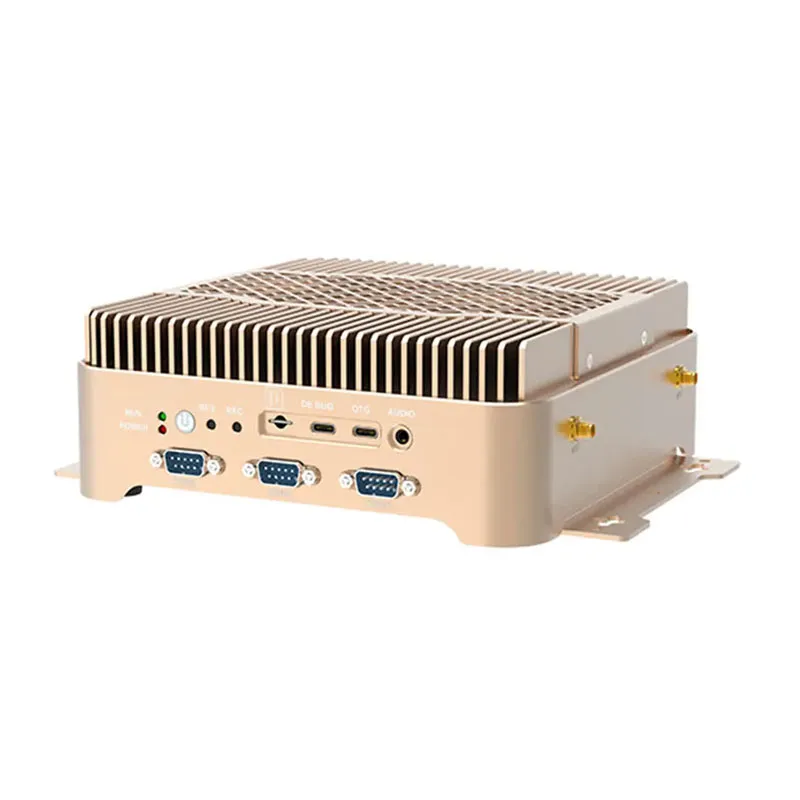

FC9106 is a vehicle-mounted edge computer developed based on NVIDIA Jetson AGX Orin module. The product's AI computing power is as high as 200TOPS (up to 275 TOPS in the maximum configuration). It is specially designed for low-speed autonomous driving and is widely used in autonomous driving scenarios such as: unmanned delivery vehicles, unmanned sanitation vehicles, intelligent driving commercial vehicles, and unmanned sweeping boats.
| System Configuration | |

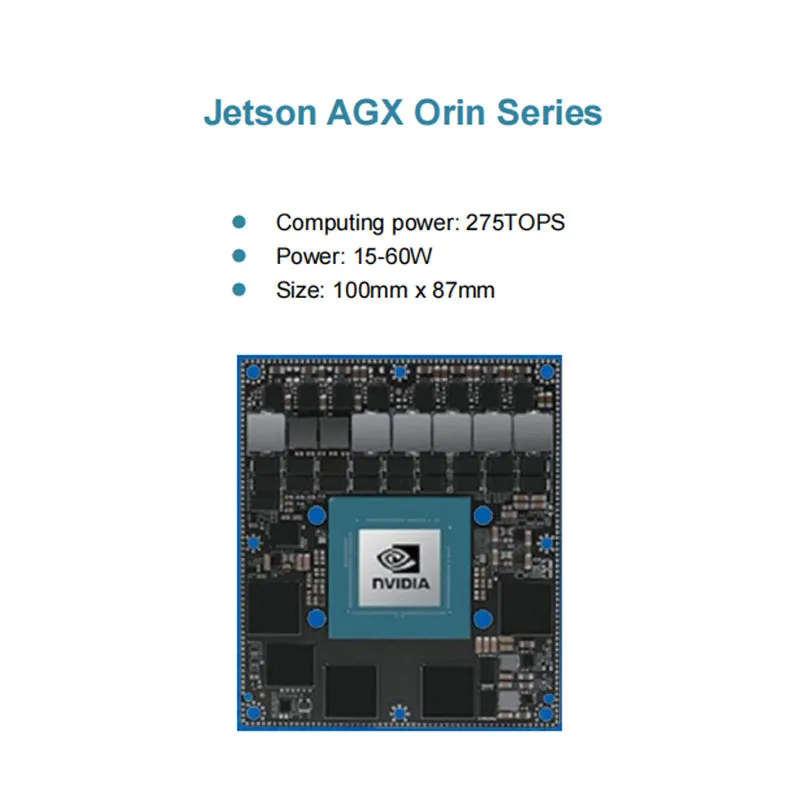

| AI Platform | Jetson AGX Orin |
| AI Computing Power | 200 TOPS / 275 TOPS |
| GPU | 1792-core or 2048-core NVIDIA Ampere architecture with Tensor Cores |
| CPU | 8-core or 12-core Arm® Cortex®-A78AE v8.2 64-bit |
| Memory | 32GB / 64GB 256-bit LPDDR5 204.8GB/S |
| Storage | 64GB eMMC 5.1 |

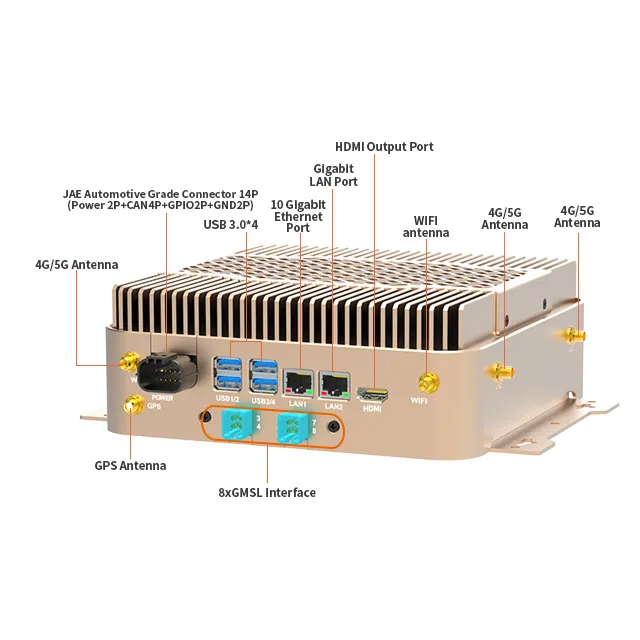

| Hardware Interface | |
| Wired Network | 1 × RJ45 10GbE, 1 × RJ45 1GbE (Independent IP) |
| Wireless | Dual-band WiFi, 4G/5G Full Netcom (Optional), GNSS (BD/GPS/RTK) |
| I/O Ports | 4 × USB3.0, 1 × Type-C OTG, 1 × Type-C Debug, 3 × RS232, 2 × CAN |
| Multimedia | 1 × HDMI, 1 × AUDIO OUT (3.5mm) |
| Physical & Environmental | |

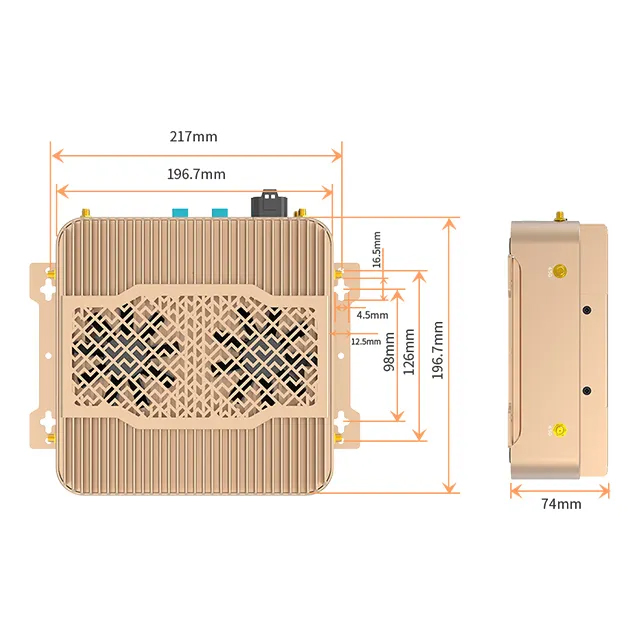

| Dimensions | 196.7mm × 196.7mm × 74.0mm |
| Power Input | 12-36V (On-board ECU connector) |
| Operating Temp | -20ºC to 60ºC |
| Cooling | Fan Cooling |
