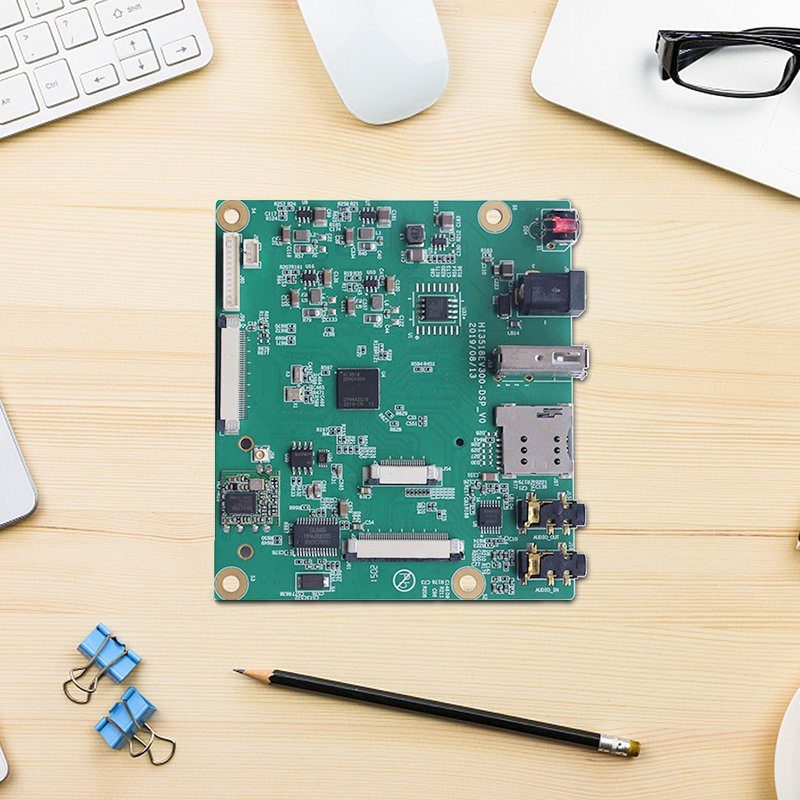

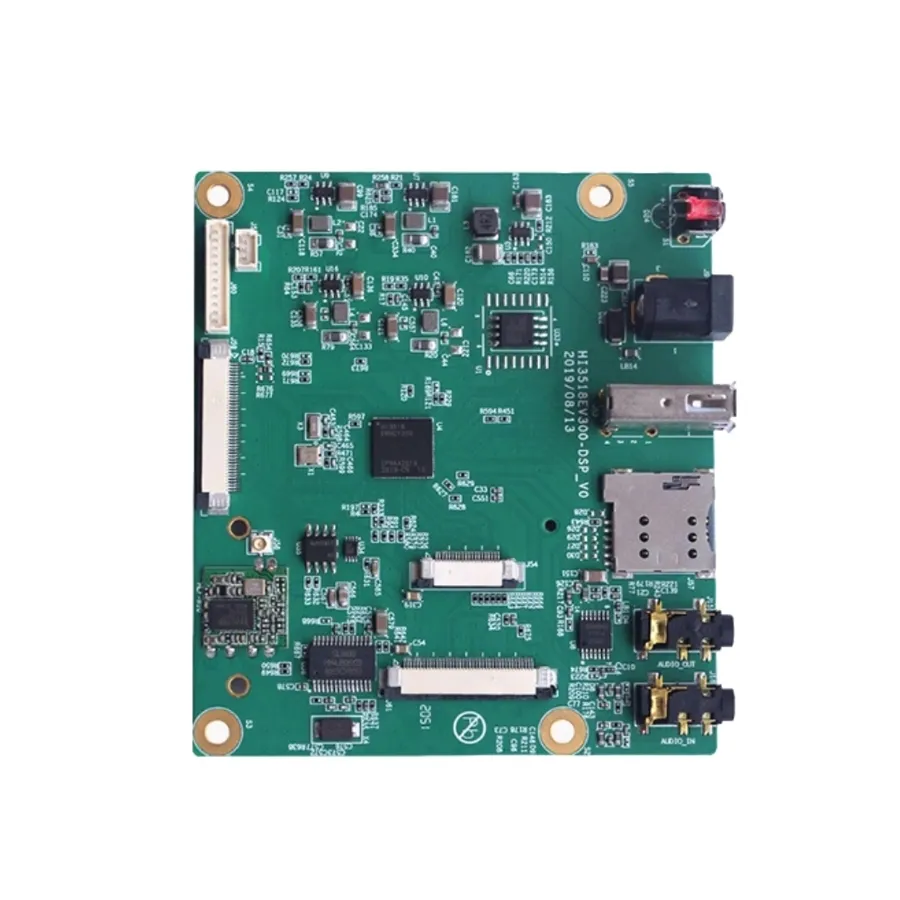

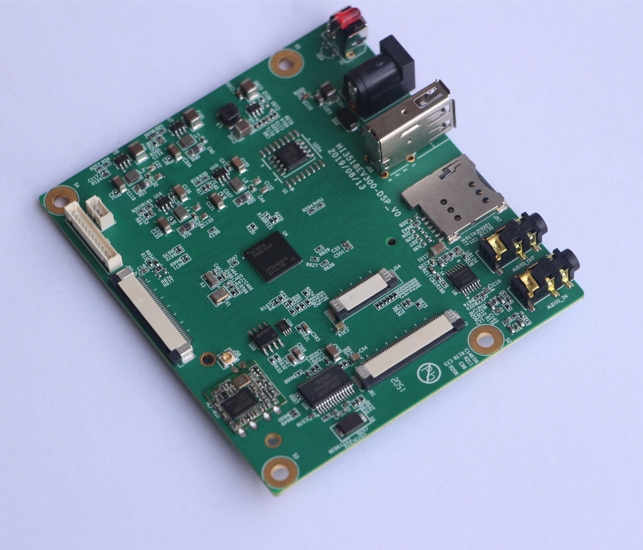

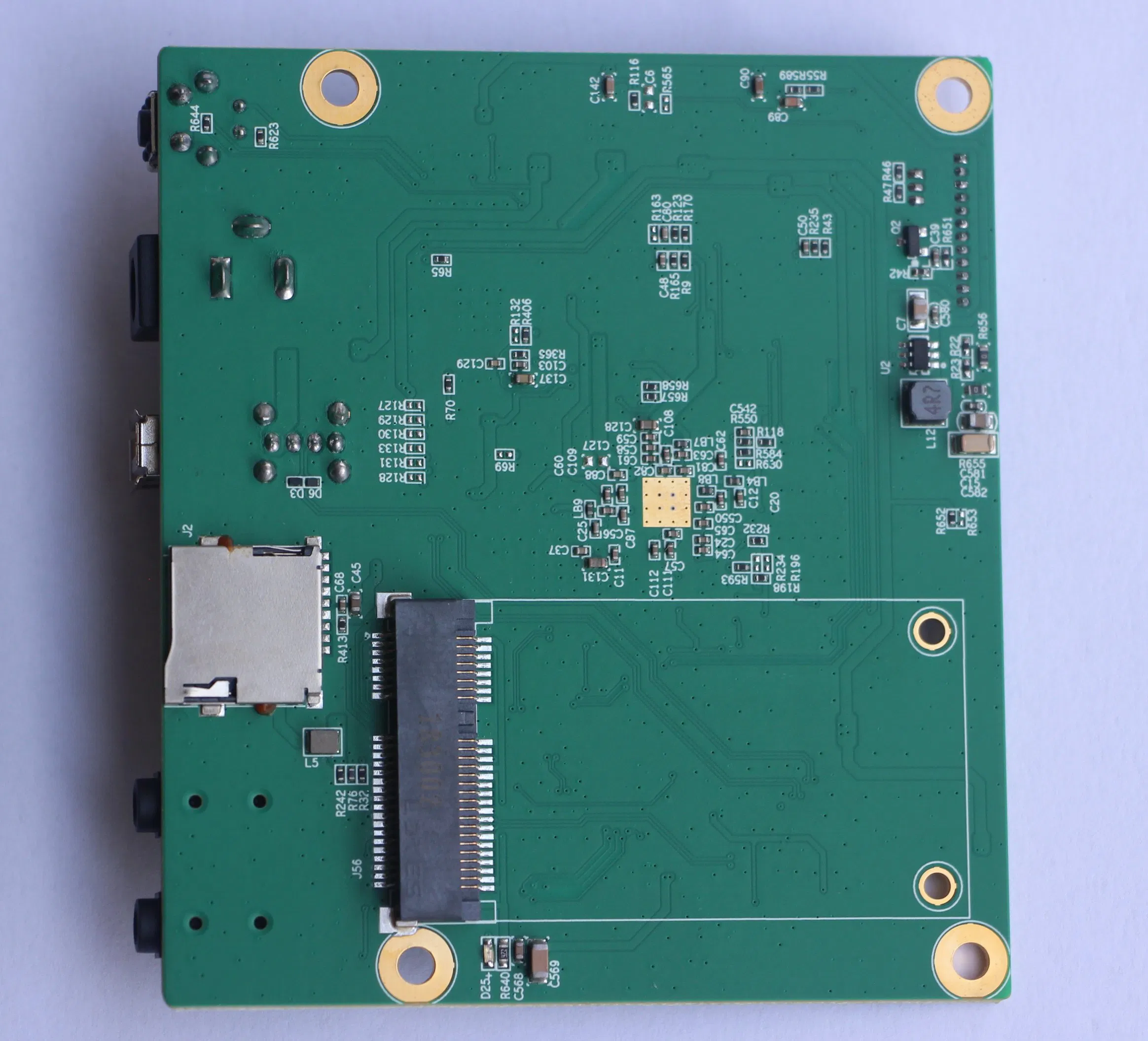

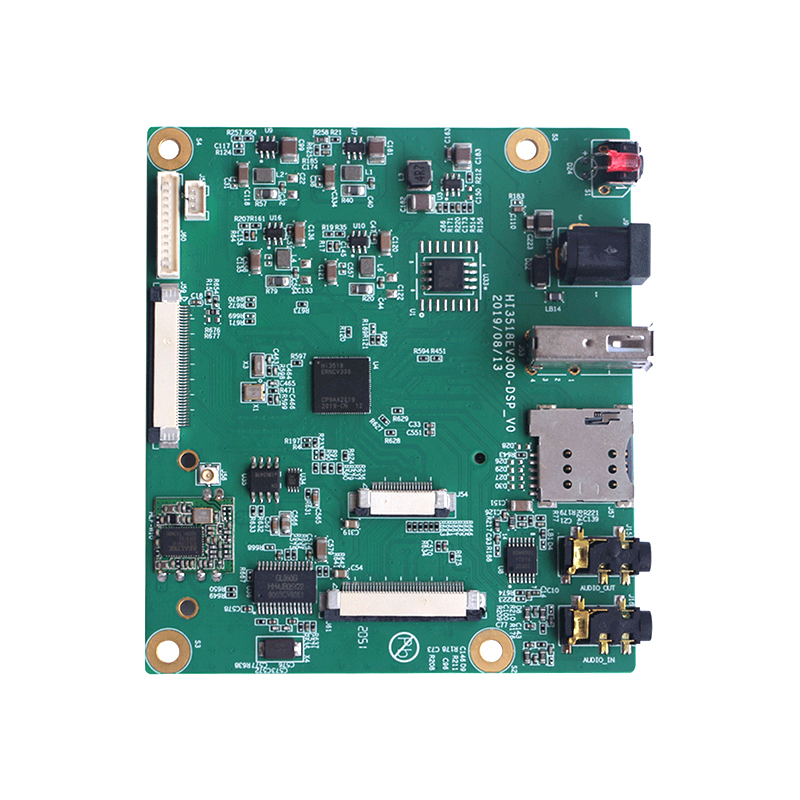

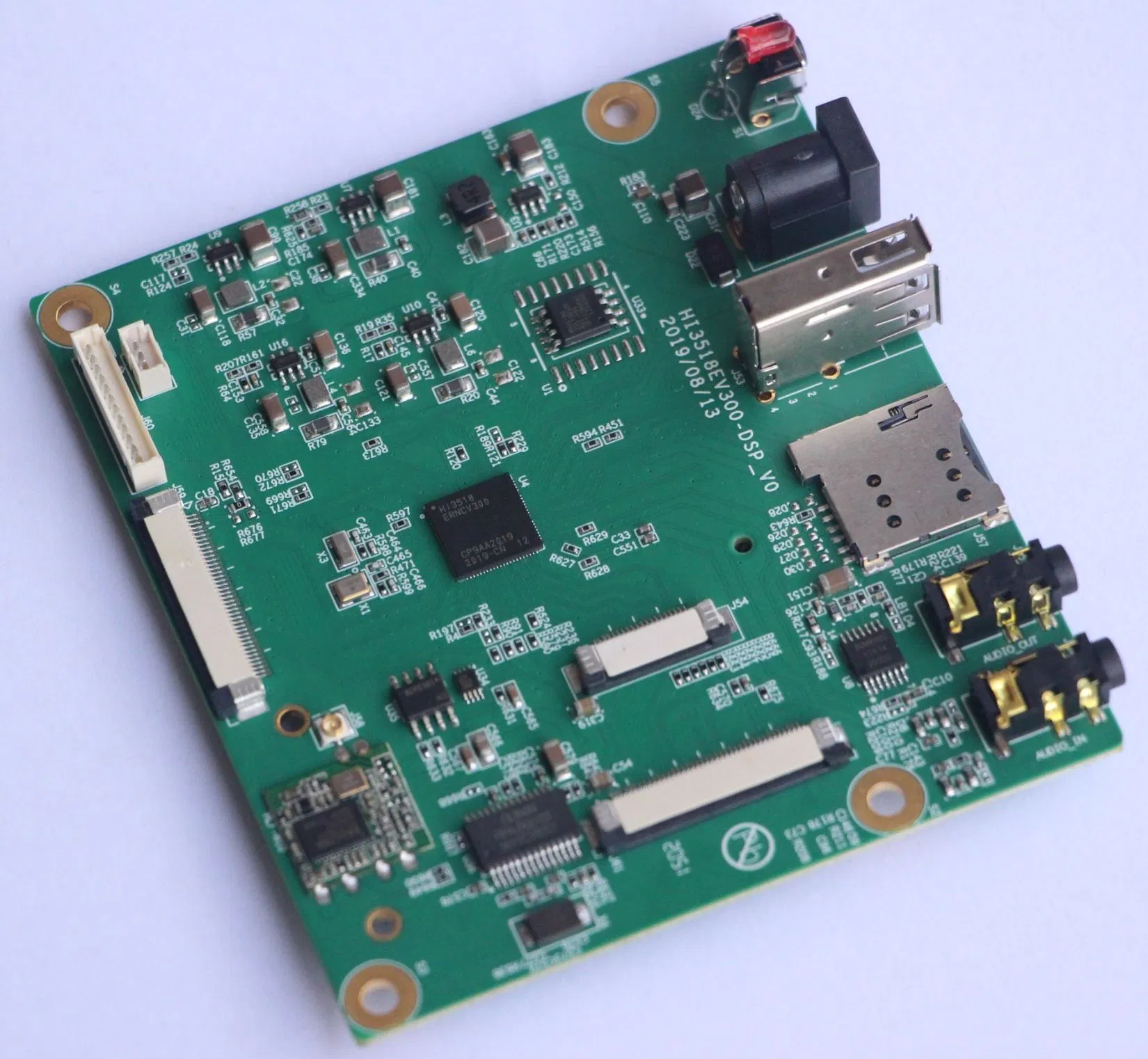

| Product Name | Camera Module |
| Model | Xswtvr-1CE18EV300307/Ex |
| CPU | Hi3518EV300 |
| Sensor | Imx307 Low-Light CMOS Sensor |
| Video Encoding | Support H.265/H.264 Encoding/Decoding |
| Network Support | CDMA / RJ45 10/100m |
| Intelligent Analysis | 1tops Computing Power |
| Certification | CE, ISO |
| Operating Temp | 0 to 70 Celsius |
| Life Cycle | > 2 Years Continuous Operation |
As a new generation of consumer camera SoC, the Hi3518EV300 integrates a next-gen ISP and the industry's latest H.265 video compression encoder. It leads the industry in low bit-rate and high image quality performance. It supports intelligent applications such as humanoid detection, face detection, and abnormal sound detection.
Superior image signal processing with multi-level noise reduction (BayerNR, 3DNR) and sharpening enhancement.
Low bit-rate, low latency, and ultra-low power consumption; supports fast-boot battery solutions.
Built-in 1TOPS computing power supporting humanoid/face detection and abnormal sound analytics.
Our cutting-edge camera modules deliver unmatched clarity and precision, capturing vital visual information with accuracy.
Engineered for effortless integration into diverse systems, streamlining development time for designers and engineers.
| Technical Specifications | |
|---|---|
| Video Resolution | Maximum 1920*1080 @ 60fps |
| Audio Input Rate | 8K/12K/16K/24K/32K/44.1K/48K |
| Flash Memory | SPI Nor 128Mbit |
| RAM | 1GB |

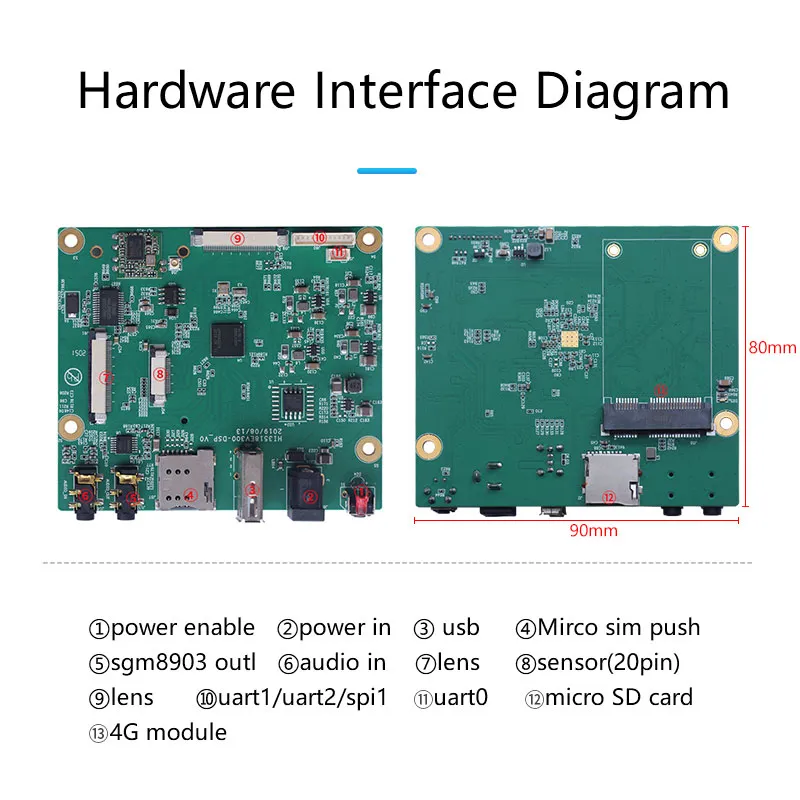

| Interface | USB 2.0 / RJ45 10/100m |
| Analysis Mode | Face, Motorcycle, and Pedestrian Recognition |
| Package Size | 26.00cm * 11.00cm * 8.00cm |
| Gross Weight | 1.500kg |
| Lead Time | 7 days (1-10 Pieces); To be negotiated (> 10 Pieces) |
