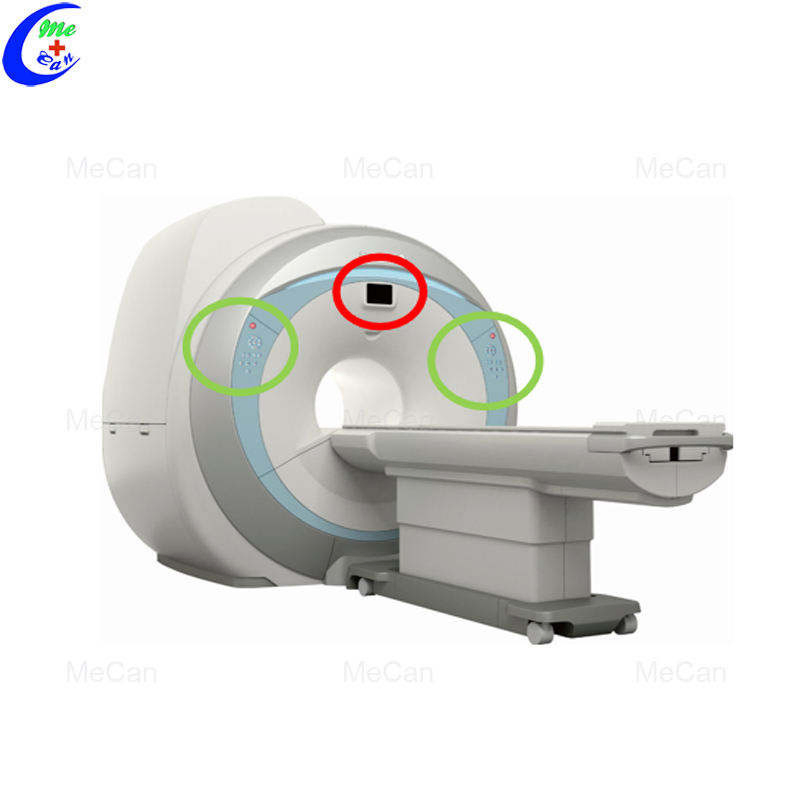

High Quality 1.5t Magnetic Resonance Imaging Radiology Equipment Price Medical MRI Equipments

1 / 5

High Quality 1.5t Magnetic Resonance Imaging Radiology Equipment Price Medical MRI Equipments

Customization:	Available
Certification:	CE
Product Name:	Medical Equipment MRI Scan Price MRI Scanner Equip

Send Inquiry

Product Description

Basic Information

Model NO.

MC-150

Min. Shielding Room Size

6000mm*5000mm*3200mm(H)

Standard Shielding Room Size

7000mm*6000mm*3200mm(H)

Product Description

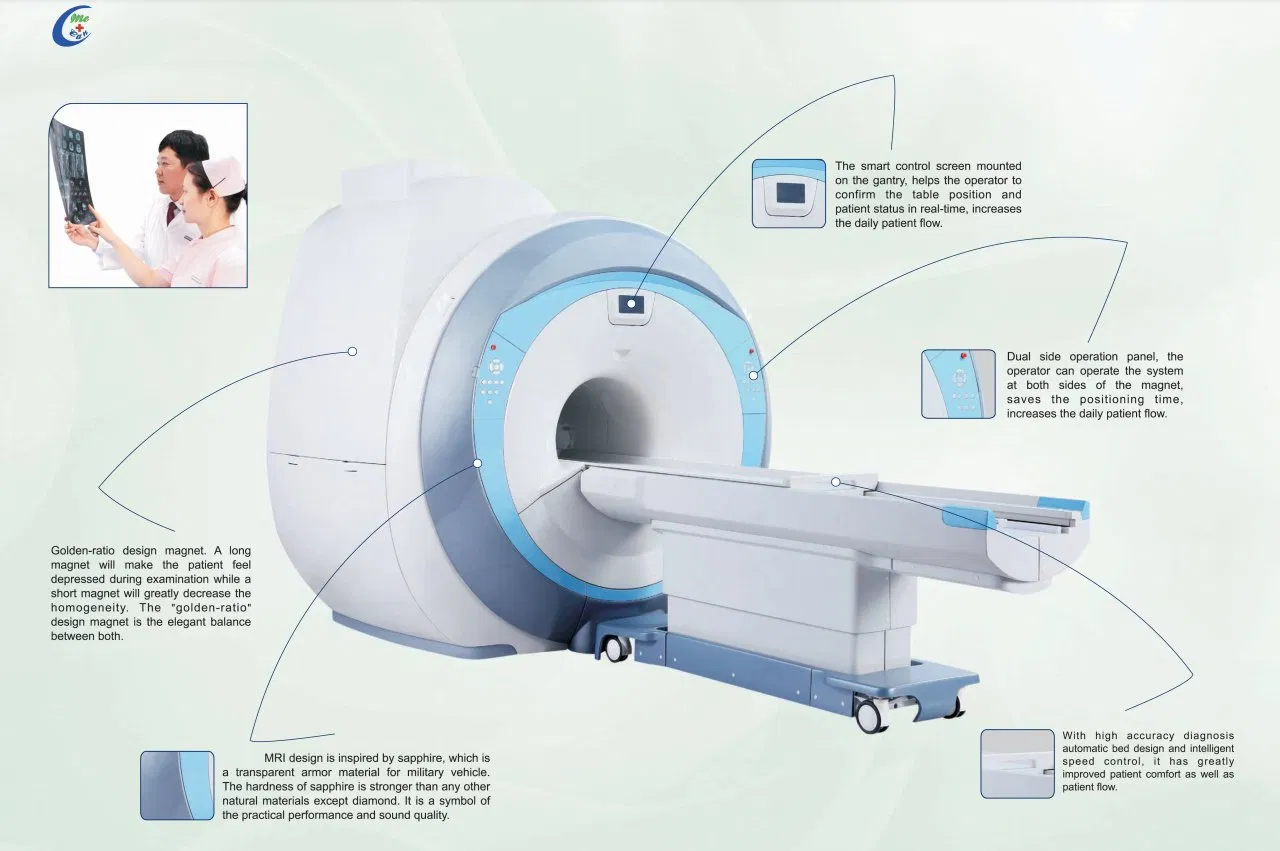

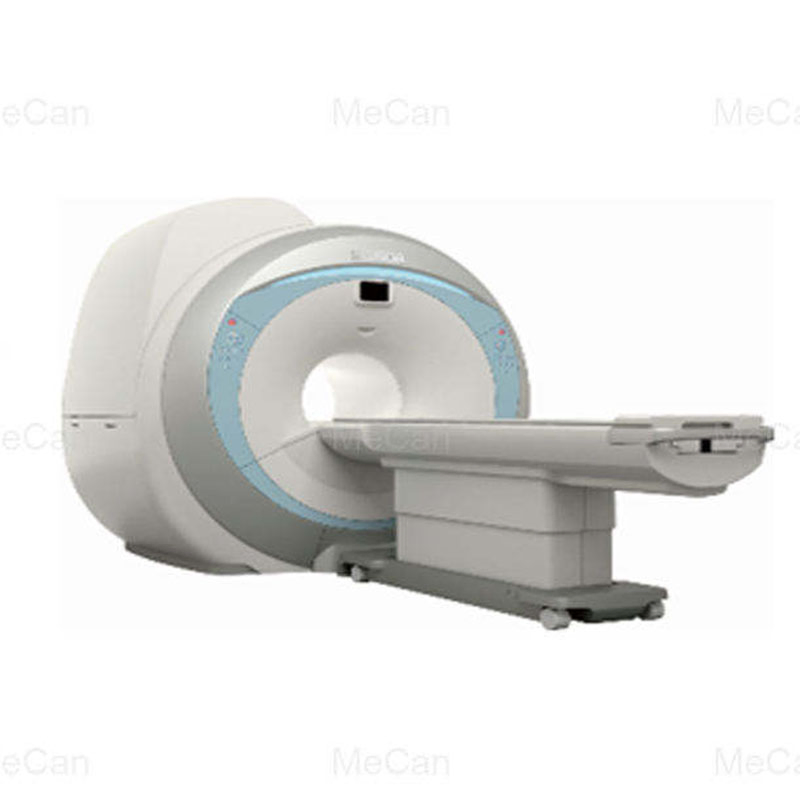

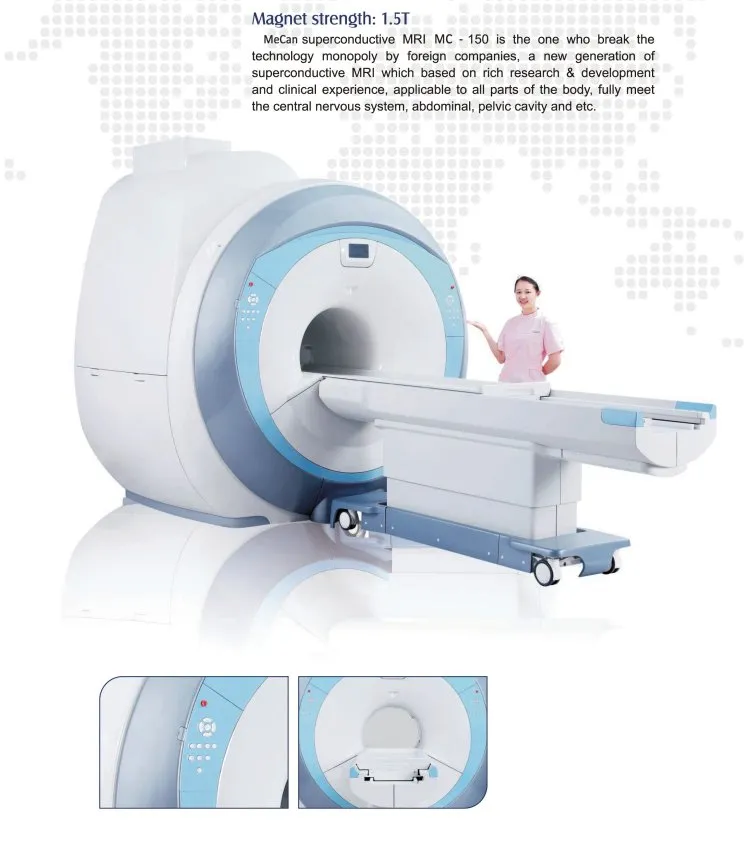

MRI Scan Scanner Machine - MC-150

Technical Features

⚙️ Magnet: Helium supplement interval time ≥48 months. Utilizes zero consumption technology.
🛡️ E-alarm Technology: Built-in monitoring for pressure, temperature, and liquid levels. Auto-messaging for abnormal conditions to reduce quench risks.
📊 Spectrum Meter: Full Digital 8-16 channels spectrometer.
⚡ RF & Gradient: 18KW RF Amplifier with a gradient intensity of 41mT/m and slew rate of 187mT/m/ms. Includes water cooling.
🔇 Noise Reduction: Quiet Comfort technology reduces gradient noise by 33% for patient comfort.
🧠 AIT Technology: Enables one-time positioning and full field imaging for enhanced efficiency.

Receiver Coils Configuration

No.	Coil Type
1	Head coil (CH8)
2	Neck coil (CH8)
3	Body coil (CH8)
4	Knee coil (CH8)
5	Breast coil (CH8 & CH4)
6	Shoulder coil (CH4)
7	Ankle coil (CH8)
8	Full palm coil (CH8)
9	Spine coil (CH18 HIGH)
10	Soft coil (CH4)
11	Head-neck coil (CH16)
12	AIT coil (CH18)

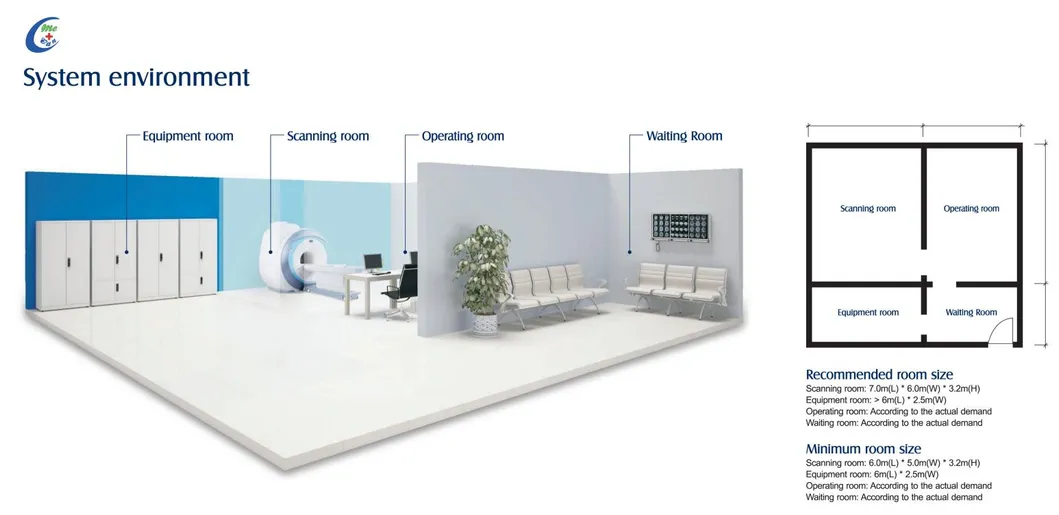

Room Size & Installation Requirements

Standard Shielding Room Size	7000mm × 6000mm × 3200mm(H)
Min. Shielding Room Size	6000mm × 5000mm × 3200mm(H)
Equipment Room	Approx. 15m²
Operator Room	Approx. 12m²

Clinical Performance

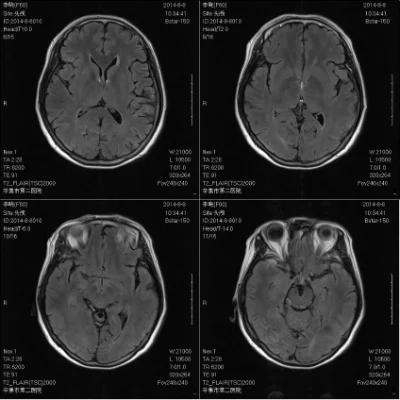

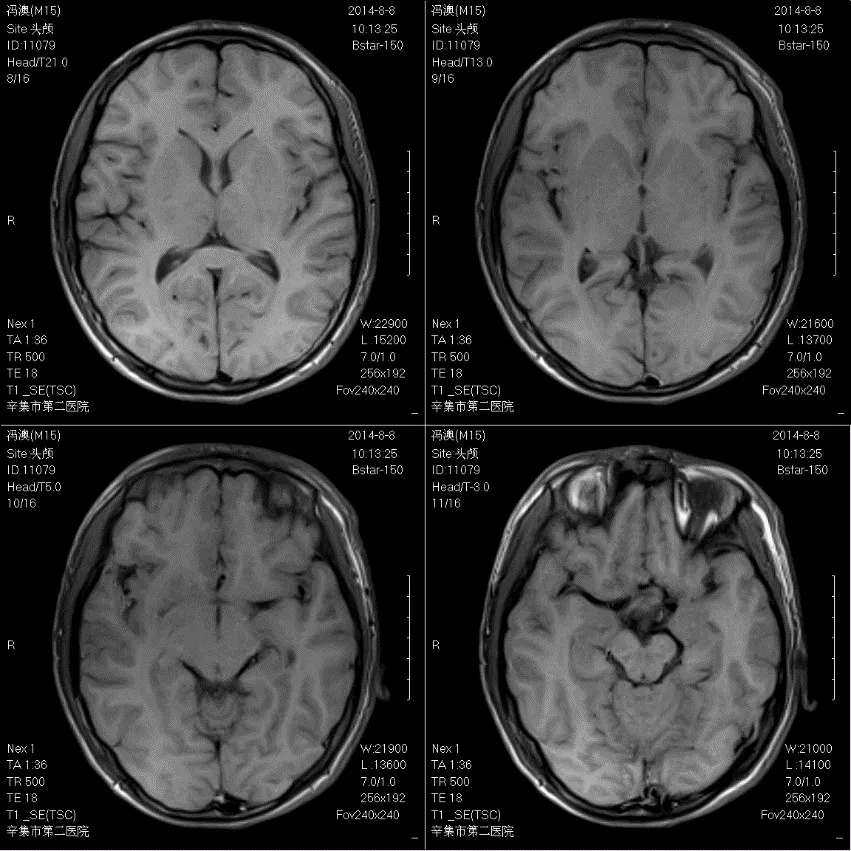

Routine head imaging powered by new generation PA coils and parallel acquisition technology. Most scanning sequences can be finished in less than 2 minutes with high signal-to-noise ratio and excellent contrast.

Gallery & Profile

Frequently Asked Questions

Q1: What is the helium refill interval for the MC-150? The helium supplement interval time is ≥48 months, thanks to zero consumption technology.

Q2: How does the E-alarm technology protect the magnet? It monitors internal pressure, temperature, and liquid levels in real-time and can auto-send messages to operators to prevent quench risks.

Q3: What is the maximum patient weight the table can support? The motor-driven patient table supports a maximum load of 200Kg with a positioning accuracy of ≤ 1mm.

Q4: Does the machine have noise reduction features? Yes, it features Quiet Comfort technology which reduces gradient noise by 33% for a better patient experience.

Q5: What are the minimum space requirements for installation? The minimum shielding room size required is 6000mm * 5000mm * 3200mm (H).

Q6: What operating system does the workstation use? The high-performance workstation runs on Windows 7 with MRI specific software and a Quad-core processor.
