🔹 Basic Information
Min. Shielding Room Size
6000mm*5000mm*3200mm(H)
Standard Room Size
7000mm*6000mm*3200mm(H)
🔹 Product Overview

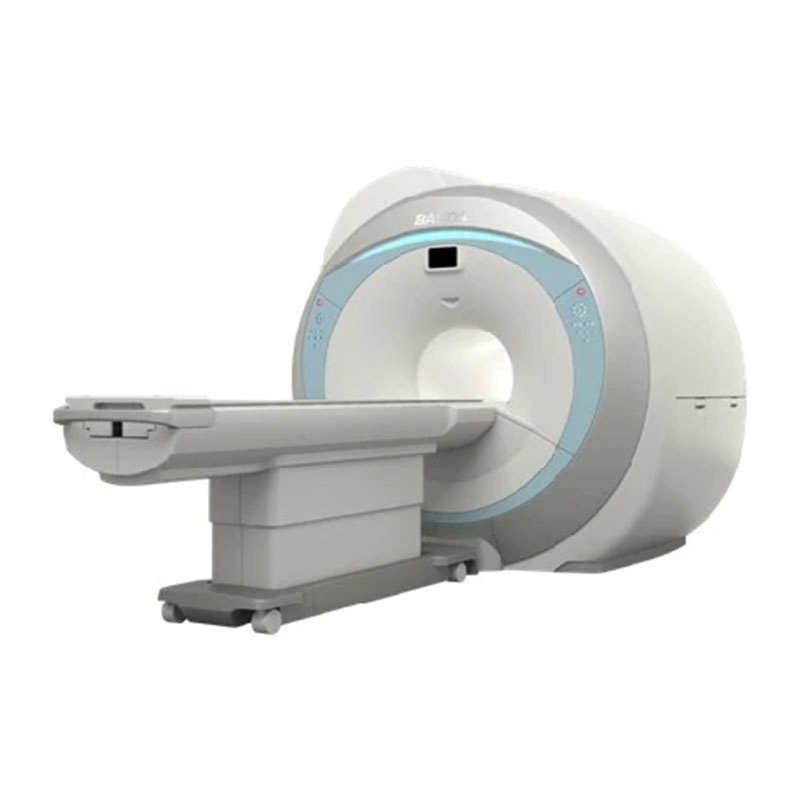

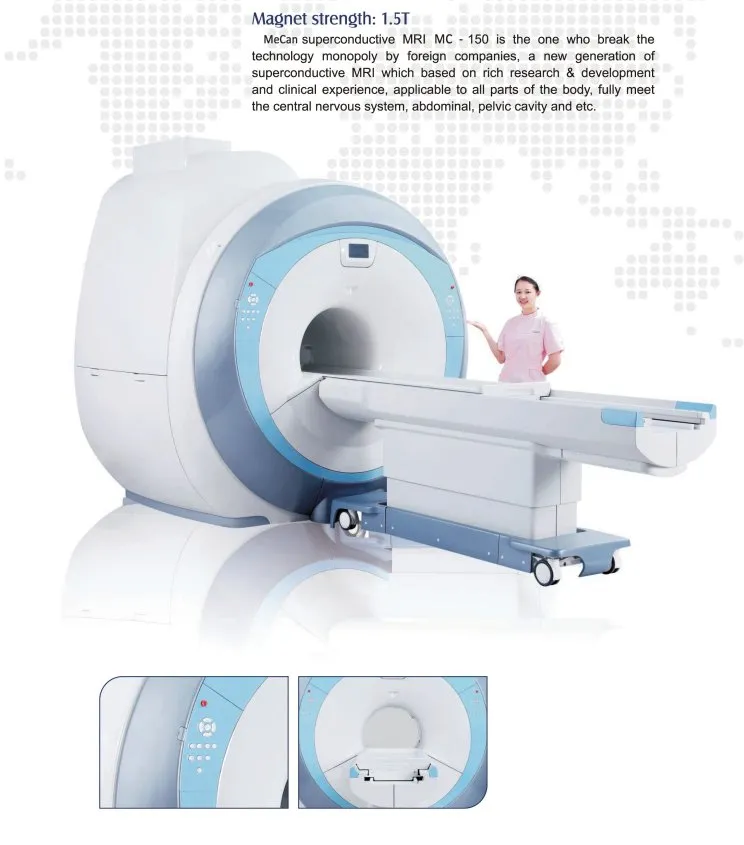

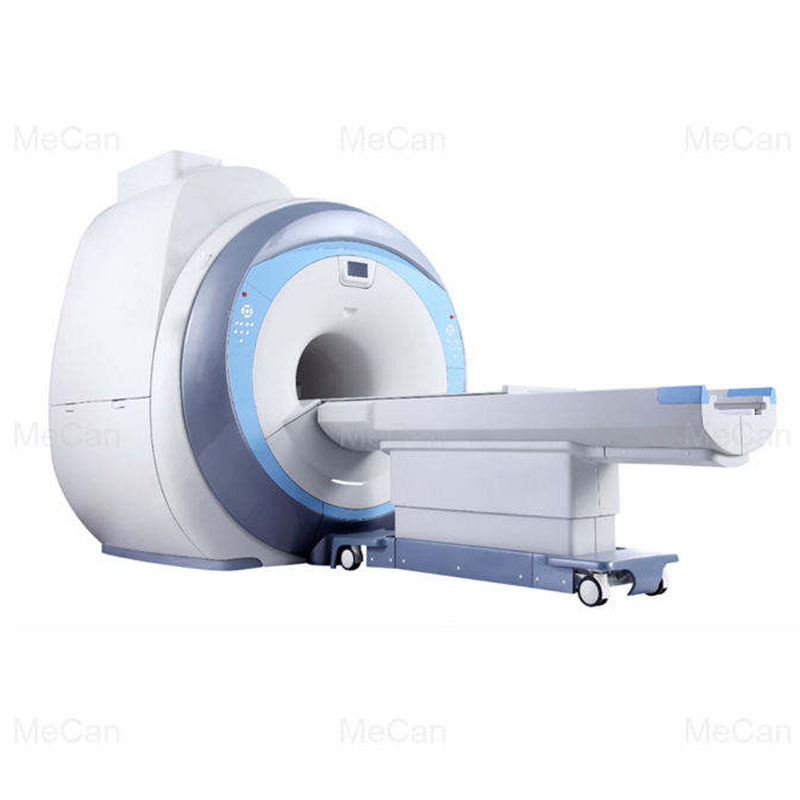

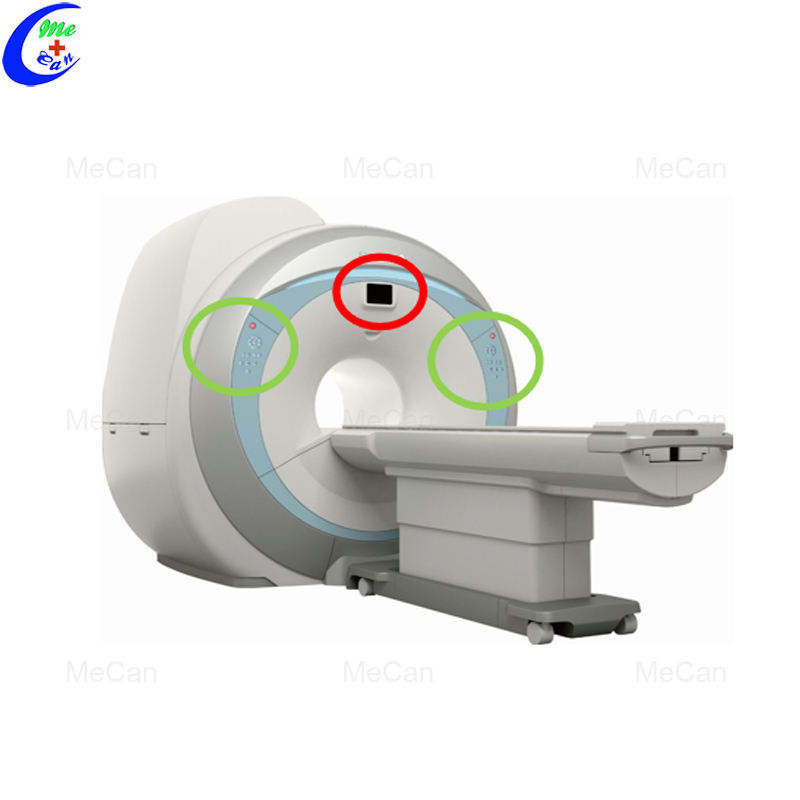

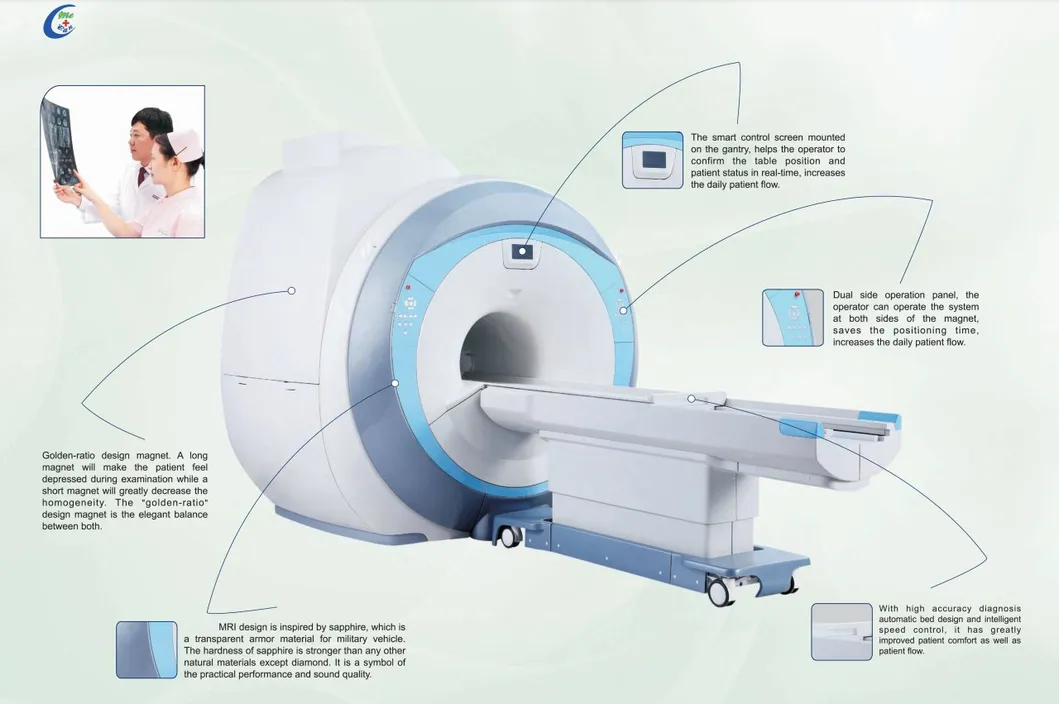

Hospital Medical Equipment MRI Scan - High-Resolution MRI Scanner Machine
🔹 Technical Features & Details
1. Advanced Magnet Technology
Helium supplement interval time: ≥48 months. Utilizes Zero consumption technology for enhanced efficiency.
2. E-alarm Safety Technology
Protective monitoring system with built-in pressure, temperature, and liquid level sensors. Automatic SIM card alerts for real-time risk reduction.
3. Digital Spectrometer
Full Digital 8-16 channels spectrometer for high-precision data acquisition.
4. RF & Gradient Performance
18KW RF Amplifier for strong proton excitation. Gradient intensity: 41mT/m with a Slew rate of 187mT/m/ms and efficient water cooling.
5. Quiet Comfort Technology
Gradient noise is reduced by 33%, providing a comfortable scanning environment for patients.
6. AIT & Fiber Technology
Optional signal transfer on fiber to reduce RF loss. AIT technology allows for one-time positioning and full field imaging.
🔹 Receiver Coils Configuration
| No. |
Coil Type |
| 1 | Head coil (CH8) |
| 2 | Neck coil (CH8) |
| 3 | Body coil (CH8) |
| 4 | Knee coil (CH8) |
| 5 | Breast coil (CH8 & CH4) |
| 6 | Shoulder coil (CH4) |
| 7 | Ankle coil (CH8) |
| 8 | Full palm coil (CH8) |
| 9 | Spine coil (CH18 HIGH) |
| 10 | Soft coil (CH4) |
| 11 | Head-neck coil (CH16) |
| 12 | AIT coil (CH18) |

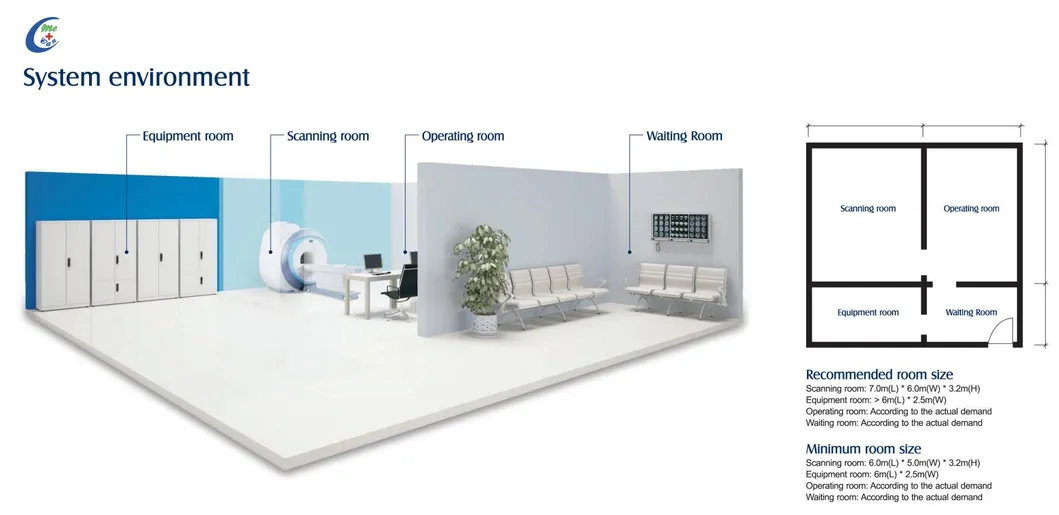

🔹 Installation Requirements
| Standard shielding room size | 7000mm×6000mm×3200mm(H) |
| Min. shielding room size | 6000mm×5000mm×3200mm(H) |
| Equipment room | Approx. 15m² |
| Operator room | Approx. 12m² |

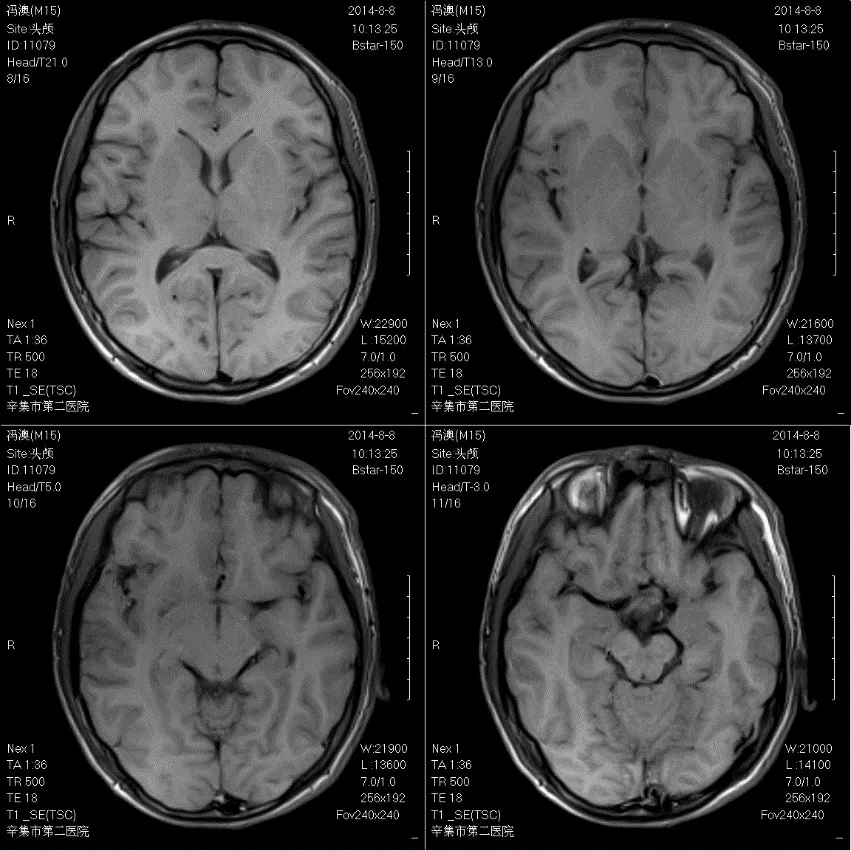

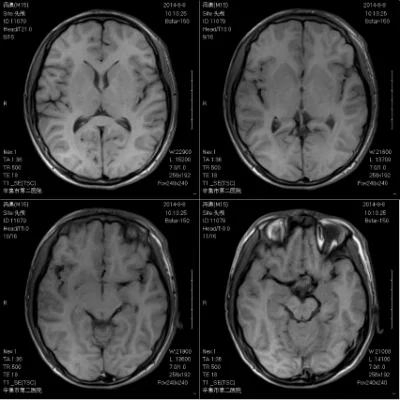

🔹 Clinical Imaging Capabilities
Powered by new generation PA coils and parallel acquisition technology, most scanning sequences (including T1WI and FLAIR) can be completed in less than 2 minutes with high signal-to-noise ratios and excellent spatial resolution.
🔹 Technical Production & Quality
🔹 Frequently Asked Questions
What is the helium refill interval for this MRI machine?
The system features zero consumption technology, allowing for a helium supplement interval time of 48 months or more.
How does the E-alarm technology work?
It real-time monitors internal pressure, temperature, and liquid levels. It includes a built-in SIM card that automatically sends messages to operators if conditions become abnormal.
Does the machine provide a comfortable experience for patients?
Yes, it utilizes Quiet Comfort noise reduction technology, which reduces gradient noise by 33% compared to standard systems.
What is the maximum weight capacity for the patient table?
The motor-driven patient table can support a maximum load of 200kg with a positioning accuracy of ≤ 1mm.
What are the minimum room size requirements for installation?
The minimum shielding room size required is 6000mm x 5000mm x 3200mm (H), plus additional space for the equipment and operator rooms.
What kind of workstation is included with the system?
A high-performance Windows-based workstation is provided, featuring at least a quad-core CPU, 500GB HDD, and a 24" LCD TFT monitor.
