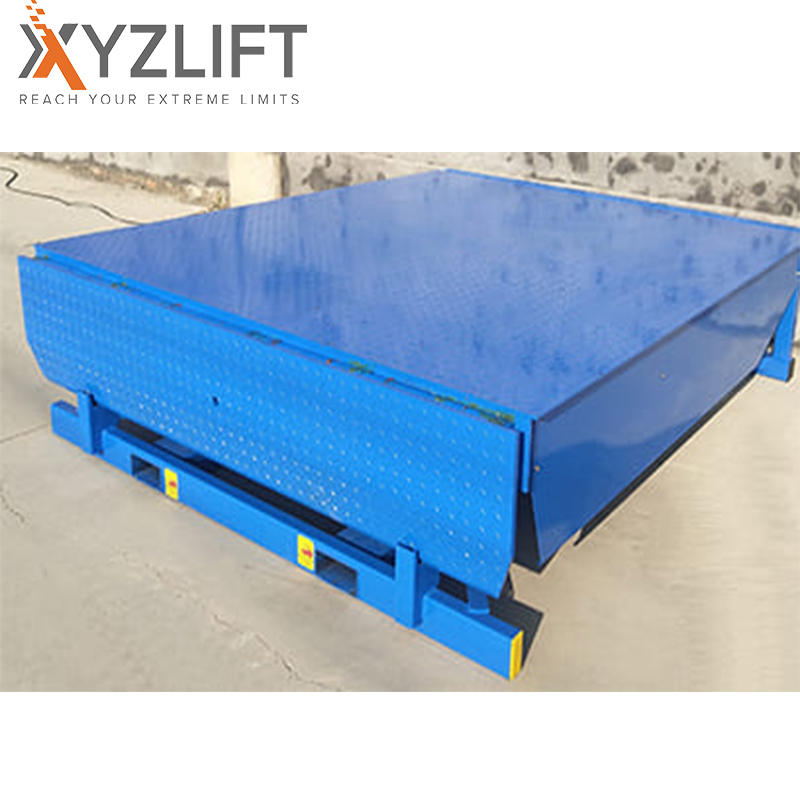

Hydraulic Warehouse Loading Dock Leveler Edge Loading and Unloading Platform

Customization: Available
After-sales Service: Door to Door Service
Warranty: 1 Year Warranty

Product Description

📋 Basic Info.
Model NO.
XYZCP-6
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Telescoping Lift
Driven Type
Hydraulic
Load Capacity
6, 8, 10 tons or Custom
Platform Size
2500*2000*600mm or Custom
Power
380V / 0.75Kw
Surface Treatment
Powder Coated / Galvanized
Certification
CE, ISO 9001
HS Code
84289090
⚙️ Product Description

Hydraulic Warehouse Loading Dock Leveler Edge Loading and Unloading Platform

A dock leveler, also referred to as a dock ramp or loading dock leveler, is a mechanical device utilized to bridge the gap between a loading dock and a truck or trailer. Its primary objective is to facilitate the safe and efficient loading and unloading of goods or materials.

Dock levelers ensure a seamless transition between the dock and the truck bed, enabling smooth movement of forklifts and other material handling equipment. They compensate for differences in height and potential unevenness, guaranteeing a stable and secure transfer of goods.

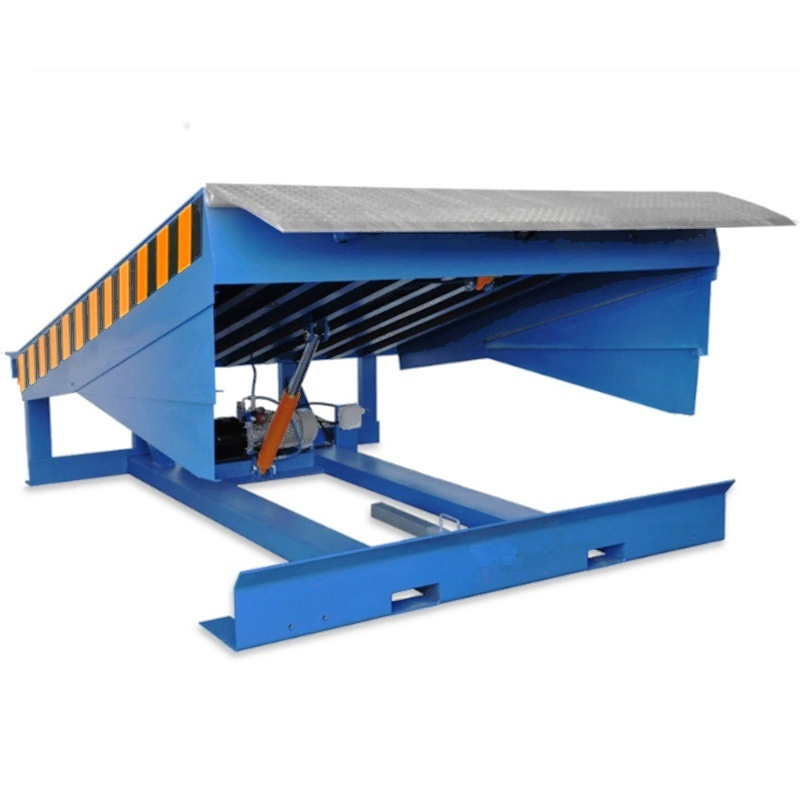

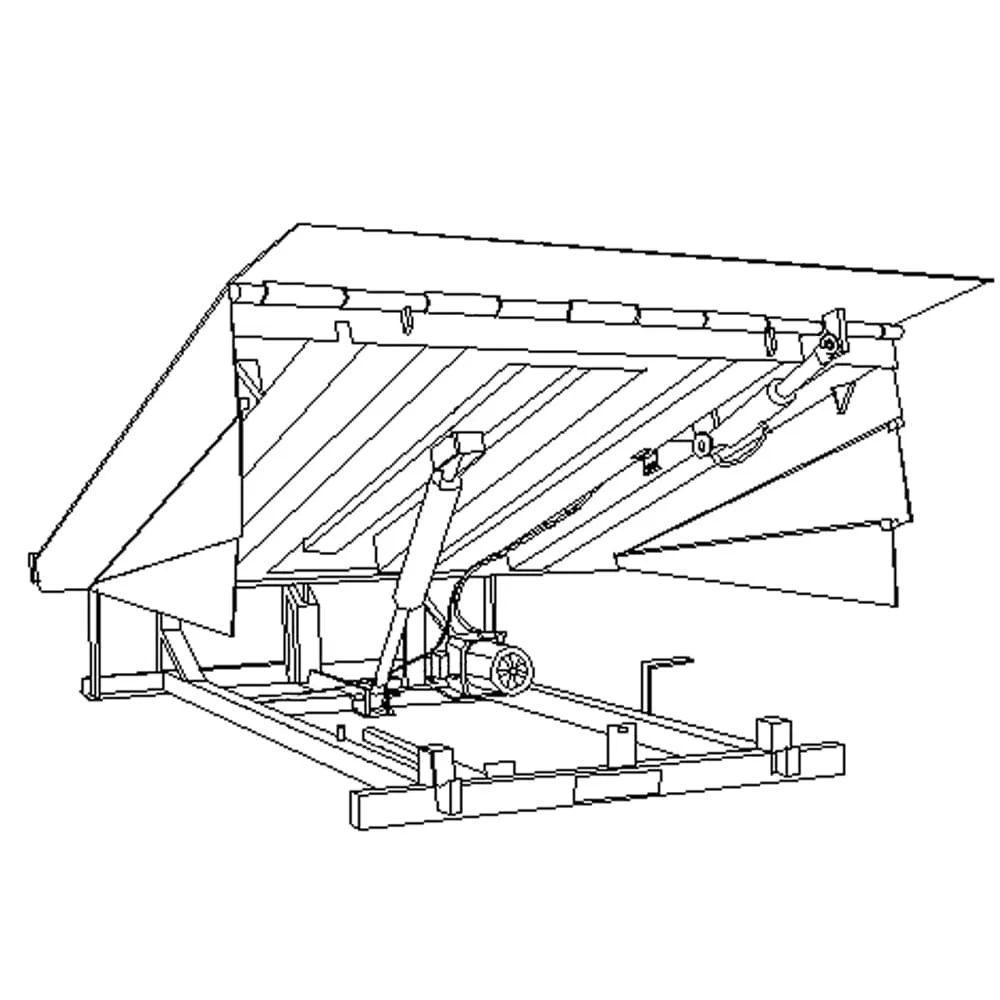

Hydraulic Warehouse Loading Dock Leveler
📊 Product Parameters
Model Load capacity (t) Platform size (mm) Power (v/kw)
XYZCP-6 6 2500*2000*600 380/0.75
XYZCP-8 8 2500*2000*600 380/0.75
XYZCP-10 10 2500*2000*600 380/0.75

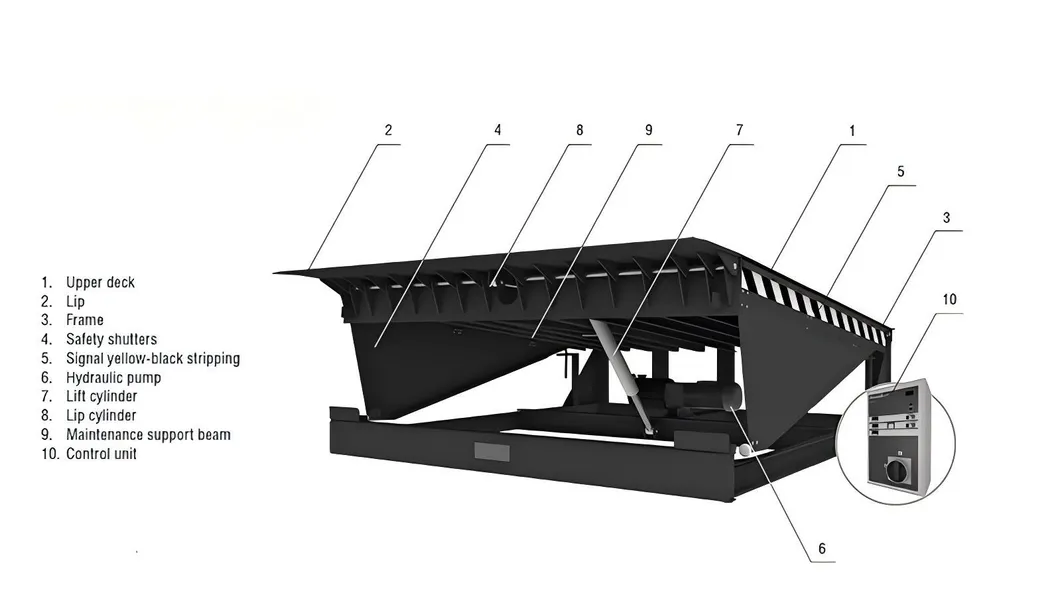

🛠️ Major Components
Major Components

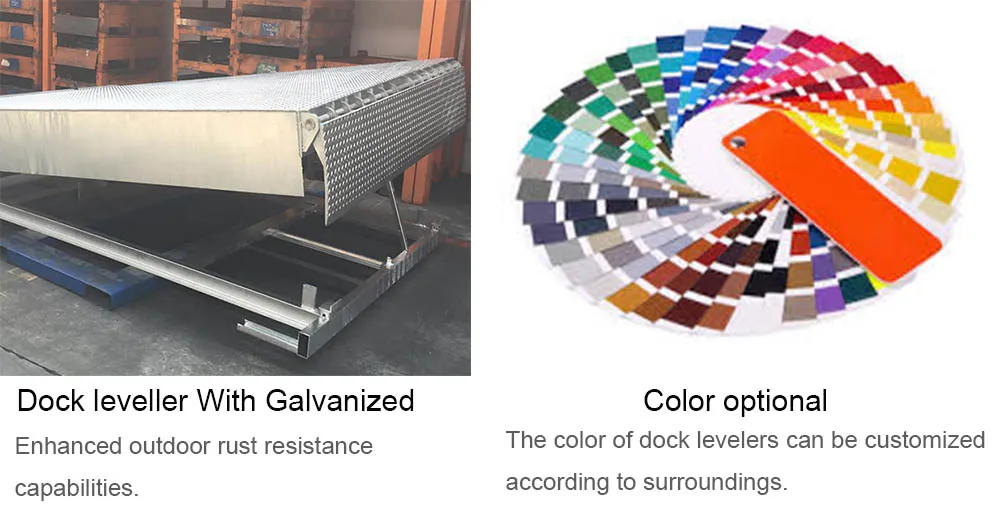

🎨 Surface Treatment
Surface Treatment

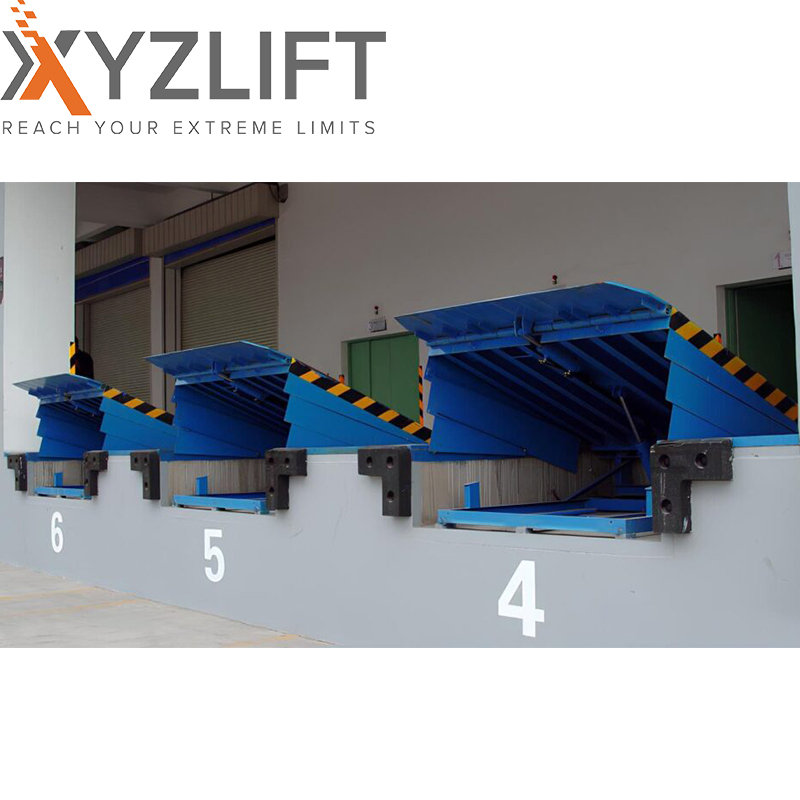

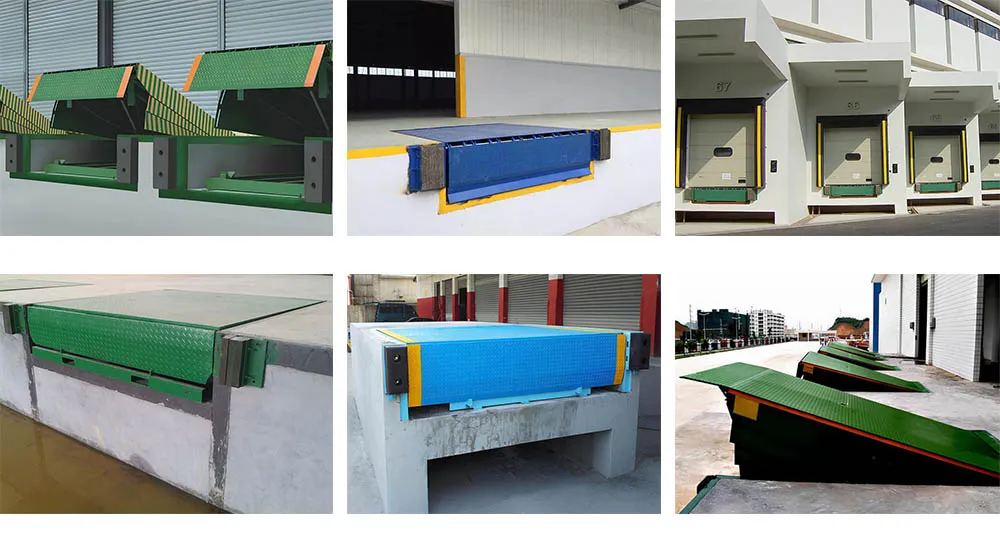

🚀 Applications for Dock Leveler
Applications
Certifications
Certifications
FAQ
Q1. What is the delivery time for the dock leveller?
A1. The delivery time is typically 3-5 days from the order deposit. We maintain stock for standard sizes.
Q2. What details are required for specifying a dock leveller?
A2. We need the load capacity (weight of materials and forklift) and the required platform size (slightly larger than the materials handled).
Q3. Can the Dock Leveler voltage be customized?
A3. Yes, the motor is produced according to the customer's local industrial voltage requirements.
Q4. What is the maximum weight a dock leveller can lift?
A4. Our heavy-duty dock levellers are designed to handle items weighing up to 100 tons depending on the custom specifications.
Q5. Are safety features included with the hydraulic system?
A5. Yes, our systems include safety velocity fuses, toe guards, and emergency stop capabilities to ensure operator safety.
Q6. Can these levelers be installed in existing facility pits?
A6. Absolutely. We provide custom sizing to fit existing pit dimensions for warehouse retrofitting projects.
