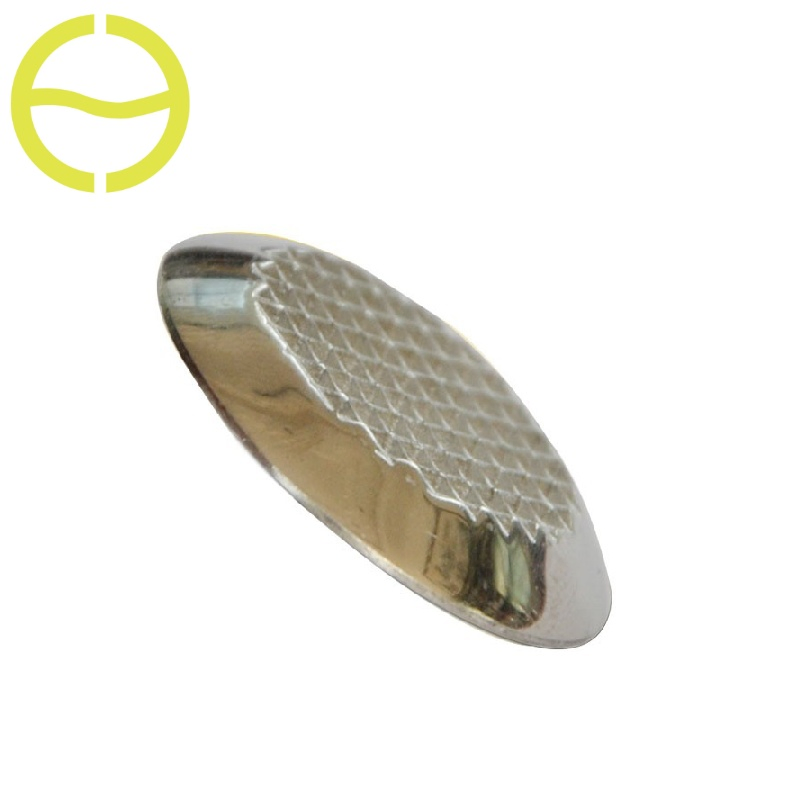

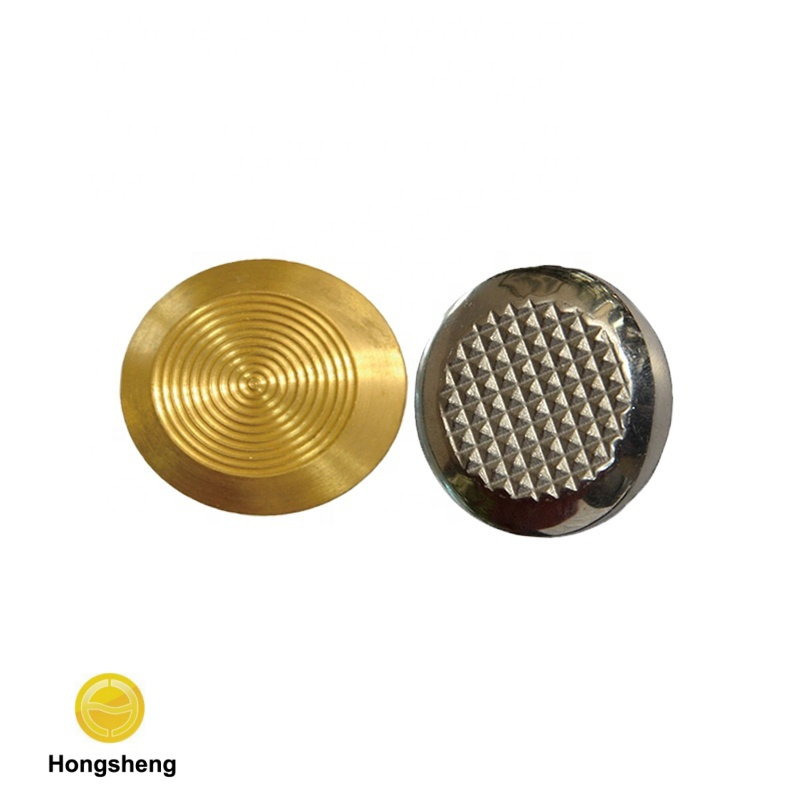

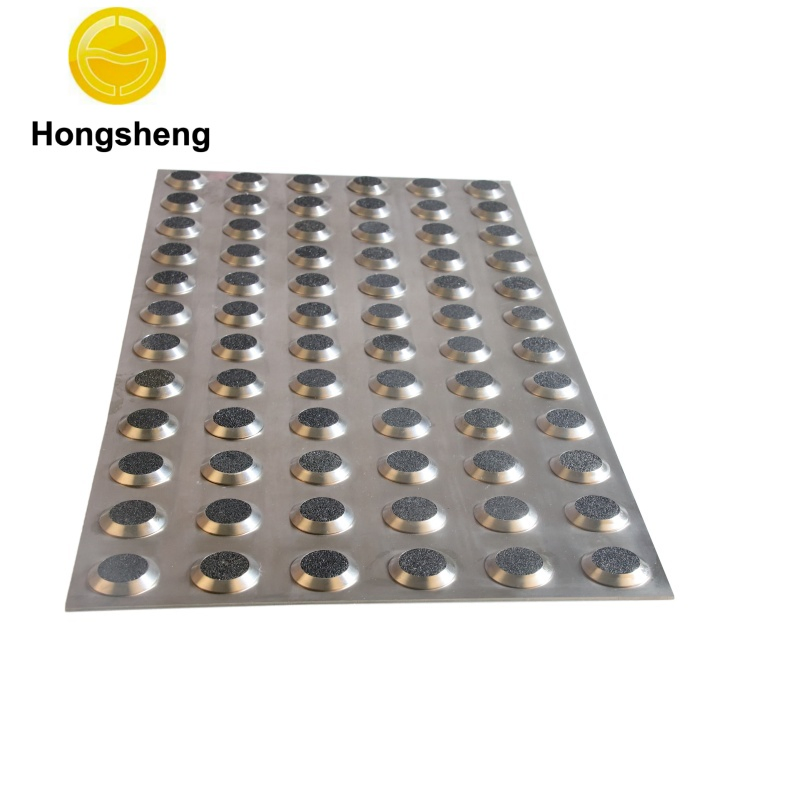

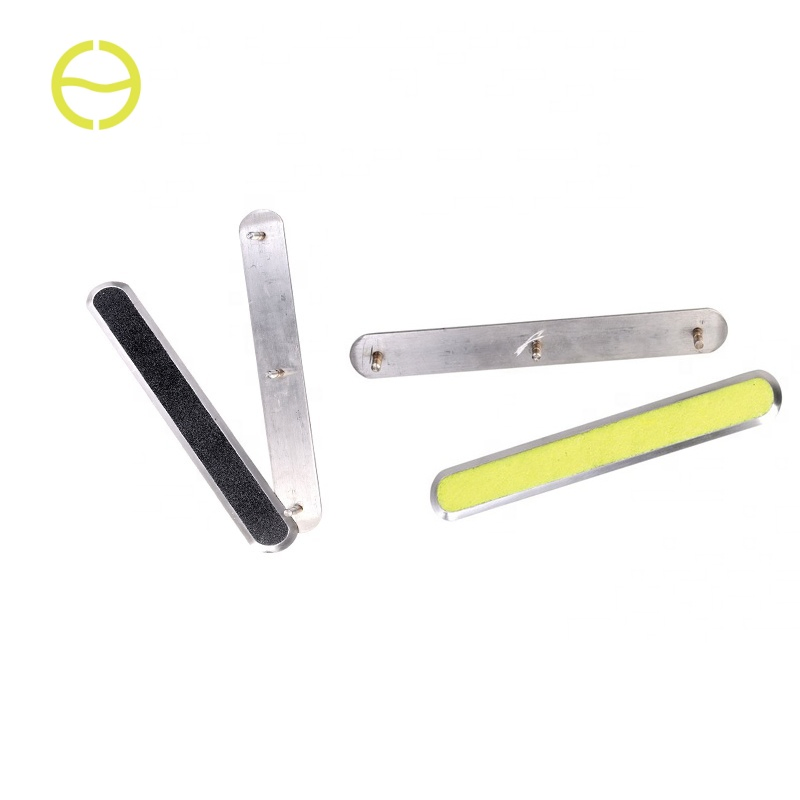

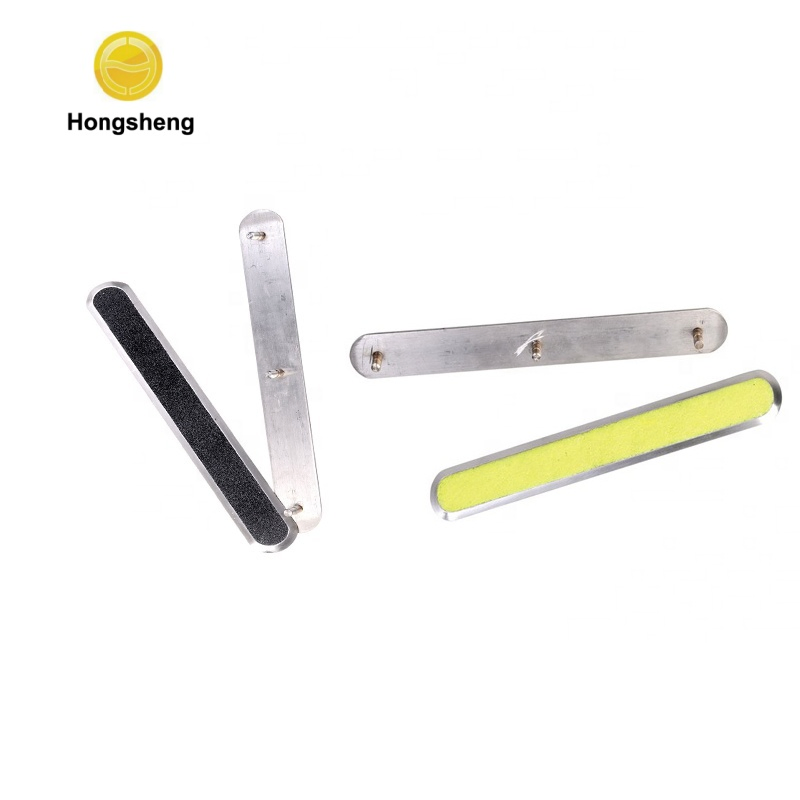

ISO9001 Certified Factory AS/NZS 1428.4 Ground Surface Platform Edge Tactile DOT
ISO9001 Certified Factory AS/NZS 1428.4 Ground Surface Platform Edge Tactile DOT
ISO9001 Certified Factory AS/NZS 1428.4 Ground Surface Platform Edge Tactile DOT
ISO9001 Certified Factory AS/NZS 1428.4 Ground Surface Platform Edge Tactile DOT
ISO9001 Certified Factory AS/NZS 1428.4 Ground Surface Platform Edge Tactile DOT
1 / 5
ISO9001 Certified Factory AS/NZS 1428.4 Ground Surface Platform Edge Tactile DOT
ISO9001 Certified Factory AS/NZS 1428.4 Ground Surface Platform Edge Tactile DOT
ISO9001 Certified Factory AS/NZS 1428.4 Ground Surface Platform Edge Tactile DOT
ISO9001 Certified Factory AS/NZS 1428.4 Ground Surface Platform Edge Tactile DOT
ISO9001 Certified Factory AS/NZS 1428.4 Ground Surface Platform Edge Tactile DOT

ISO9001 Certified Factory AS/NZS 1428.4 Ground Surface Platform Edge Tactile DOT

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO. TS1305 Reflectors Marine Stainless Steel
Reflective Surfaces Single-Side Certification CE / ISO9001:2015
Product Name High Brightness Warning Tactile Strip Indicators Technology Stamped & Polishing
Inspection 100% Visual Inspection Lead Time 20-30 Days
MOQ 5000 PCS Specification 35*25mm / 280*35mm
Capacity 100 Tons/Month Origin China
★

Product Description

High Brightness Warning Tactile Strip Indicators For Disabled

Tactile Strip Indicator
R&D Software Solidworks, CAD, Procast, UG
Materials Stainless steel: 304/304L, 316/316L, 410/416 etc.
Top Profile Concentric rings
Slip Rating R13
Fixing Method Adhesive or Mechanical
Warranty 5 years

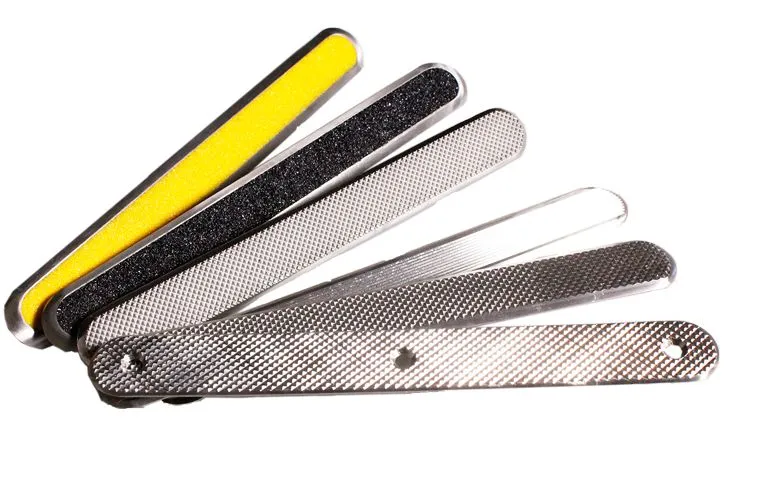

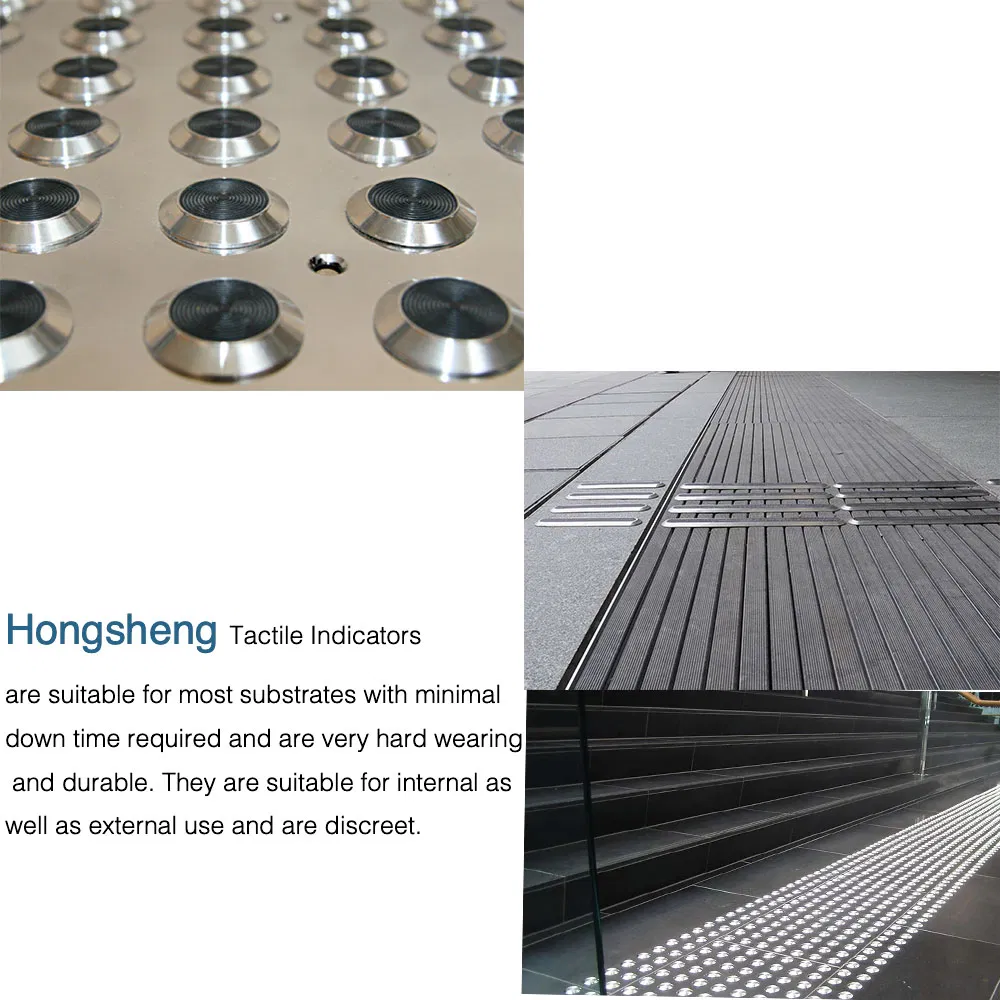

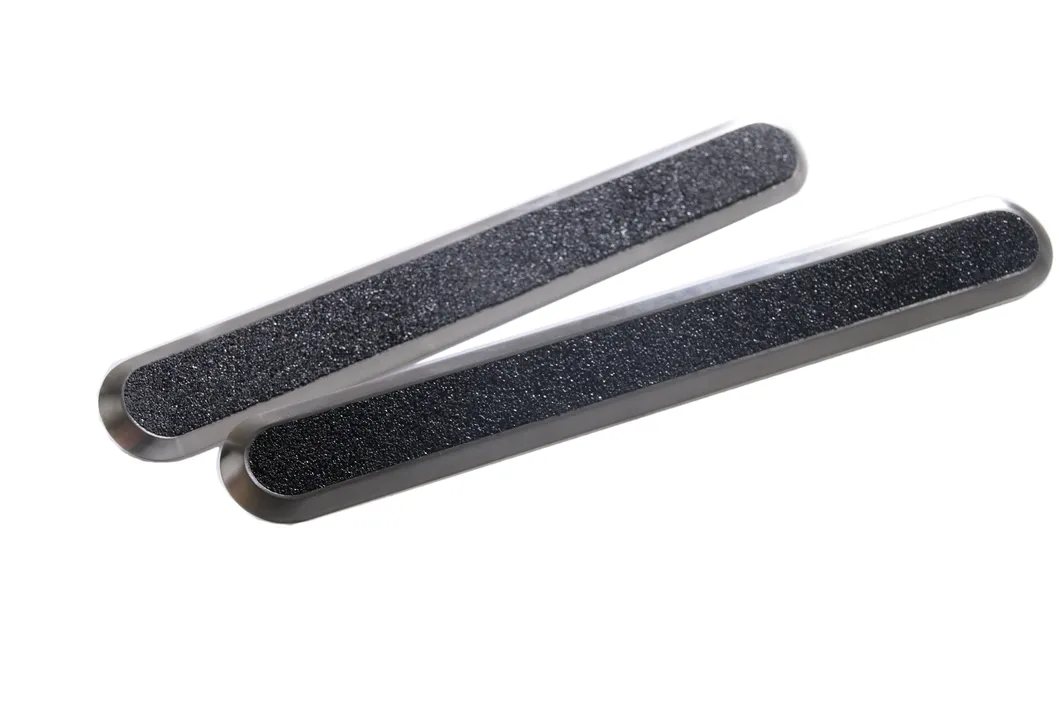

Product View 1 Product View 2 Product View 3
⚙

Production Process

  • Pattern Creation: Creating a replica part by injecting wax into a die.
  • Tree Assembly: Compiling wax patterns into a gating system for molten metal flow.
  • Investment Stage: Immersing the assembly in high-grade ceramic slurry.
  • Coating: Building up an additional coating of coarse ceramic particles (up to 10mm).
  • Dewaxing: Melting wax from the dry mould to leave a hollow ceramic shell.
  • Firing: Heating moulds to 1000°C to remove wax residues and add durability.
  • Pouring: Pouring molten metal into pre-heated moulds for high dimensional accuracy.
  • Knock-out: Breaking the cooled shell mould to reveal the casting.
  • Finishing: Finishing via grinding, sandblasting, heat treatment, and surface polishing.

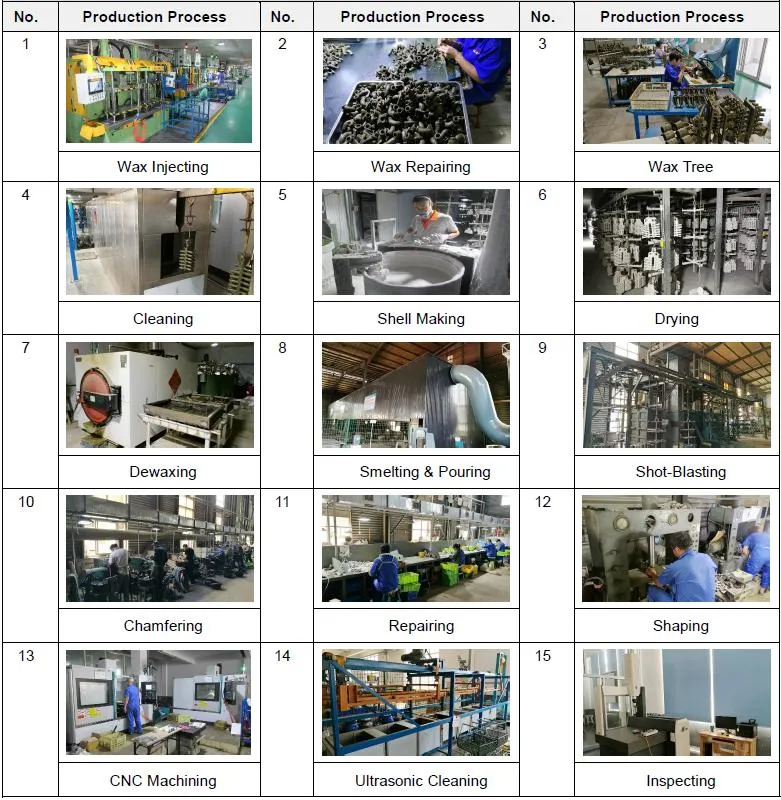

Process Diagram

Latest News!!

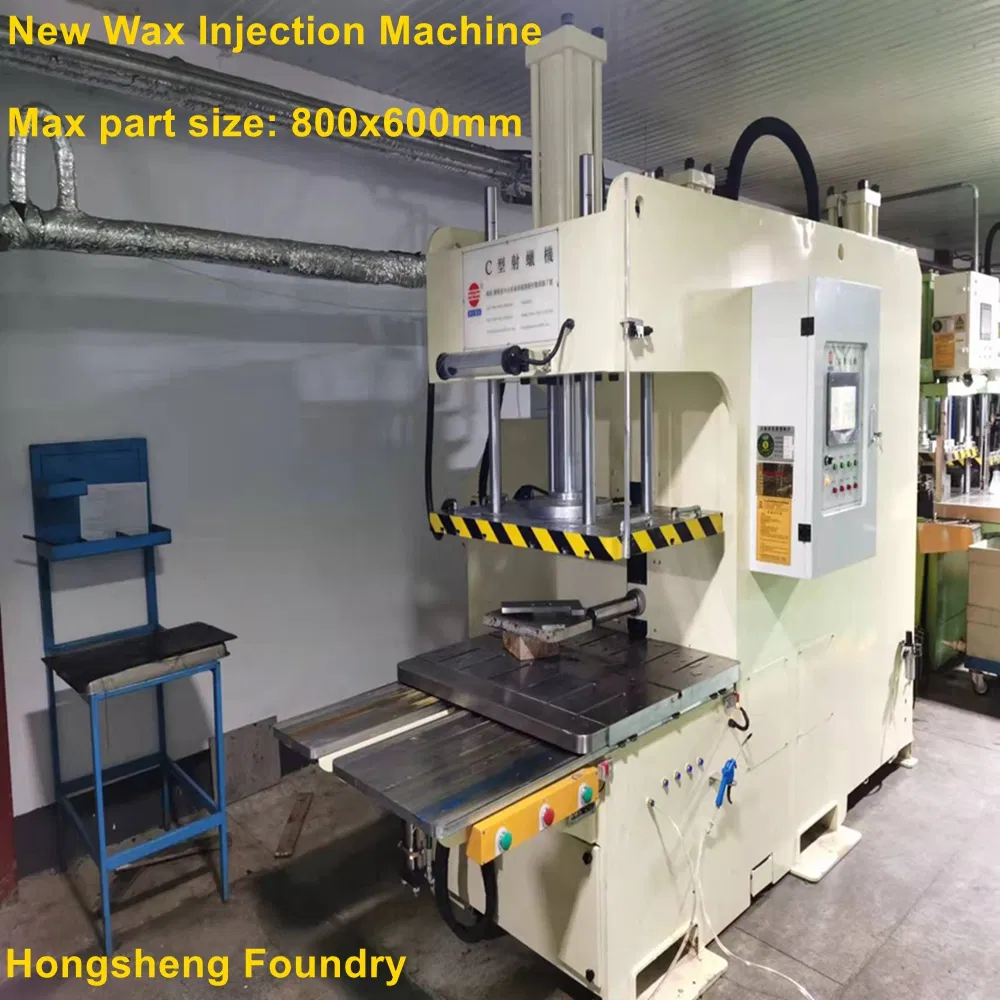

New wax injection machine set up finished. Max-pressure is 35 tons, wax pattern largest size is 800*600 mm. It's the biggest wax injection machine in China. With the help of this machine, we are able to cast big steel parts for our customers by silica sol investment casting.

New Machine
🛠

Secondary Operations & Treatments

Polished zinc plating, nickel plating, electroplating, Chrome plating
Anodizing, phosphating, acid treatment, polishing
High precision CNC machining
Broaching, milling, drilling, tapping
Surface grinding, sand blasting, powder coating
Heat treatment
✔

Quality & Advantages

Profile 1 Profile 2 Certifications
Advantages 1 Advantages 2
?

Frequently Asked Questions

1. What materials are used for the tactile strip indicators? We use high-quality stainless steel, including grades 304, 304L, 316, 316L, 410, and 416, to ensure durability and corrosion resistance.
2. What is the slip resistance rating of the product? Our tactile indicators have a slip rating of R13, providing the highest level of safety for pedestrians and the disabled.
3. Can you produce large-scale steel parts? Yes, with our new 35-ton wax injection machine, we can handle wax patterns up to 800*600 mm for silica sol investment casting.
4. What is the standard lead time for an order? The typical lead time is 20 to 30 days, depending on the order volume and specific requirements.
5. What kind of warranty do you provide? We offer a 5-year product warranty on our warning tactile strip indicators.
6. Are samples available before placing a bulk order? Yes, we provide free samples with freight collect for quality evaluation.
