Jetson Agx Orin Sensing Sg2-Ar0231c-0202-Gmsl-H30X 2MP Gmsl Camera Module Onemi 2.3MP Ar0231 Rggb Sensor Gmsl Camera Interface

1 / 2

Jetson Agx Orin Sensing Sg2-Ar0231c-0202-Gmsl-H30X 2MP Gmsl Camera Module Onemi 2.3MP Ar0231 Rggb Sensor Gmsl Camera Interface

Customization:	Available
Application Field:	Industrial Control
Processor Type:	ARM

Send Inquiry

Product Description

Basic Specifications

Model NO.

SG2-AR0231C-0202-GMSL-H30X

Type

Development Board

Application

AI, Edge Computing

Series

Jetson AGX Orin Series

Size / Dimension

30mm*30mm*22.5mm

Sensor

Onemi 2.3MP AR0231 RGGB

ISP

AP0202

Image Size

1/2.7 Inch CMOS

Output Pixel

1920H * 1080V

Pixel Size

3um * 3um

Serializer

Maxim MAX96705

Connector

Amphenol (Z Type Fakra)

Product Description

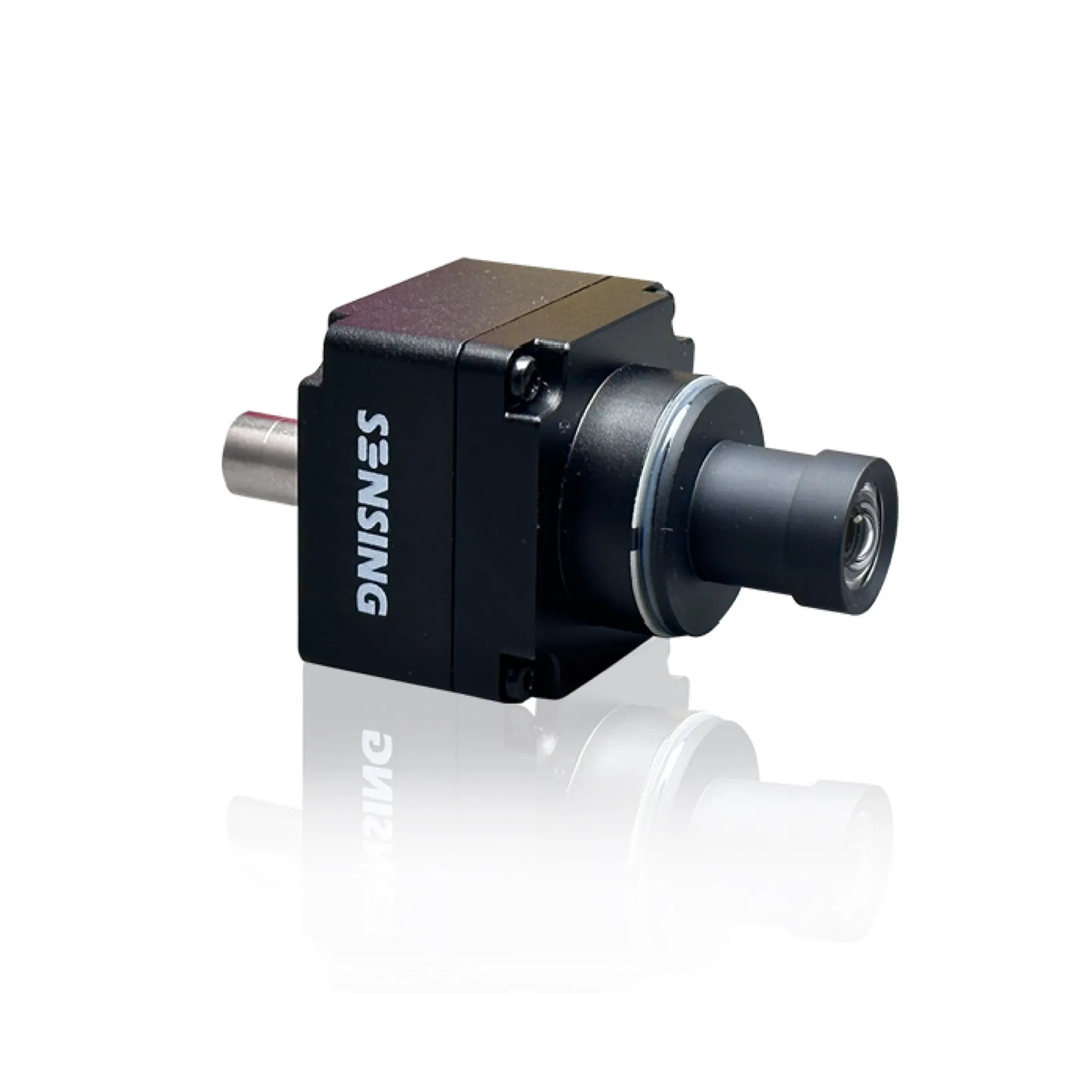

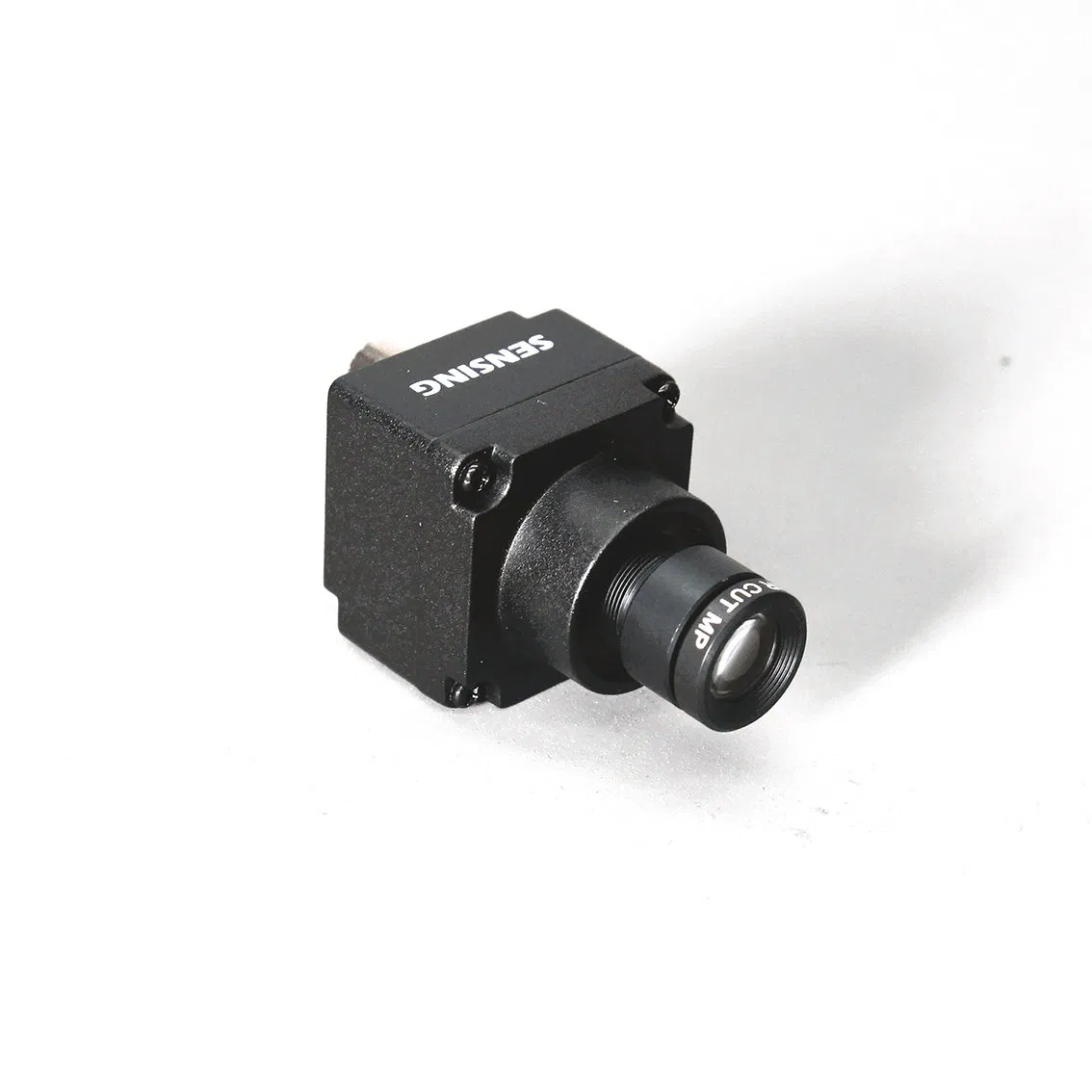

The SG2-AR0231C-0202-GMSL-H30X is a high-performance 2MP GMSL camera module specifically designed to adapt to the Jetson AGX Orin platform. Featuring the Onemi 2.3MP AR0231 RGGB sensor, this module provides exceptional image clarity and reliability for advanced AI and edge computing applications.

Condition	100% Original
Warranty	3 Year
Package	100% Original Package

This solution is dedicated to delivering high-quality, innovative, and dependable imaging for various fields, including autonomous machines and wireless network equipment. With an emphasis on advanced GPU associated hardware, it caters to the diverse needs of modern industrial applications.

Frequently Asked Questions

What is the effective resolution of the SG2-AR0231C camera module?

The module provides an output pixel resolution of 1920H * 1080V (2MP) using an Onemi 2.3MP AR0231 RGGB sensor.

Is this camera compatible with NVIDIA Jetson AGX Orin?

Yes, this module is specifically designed to adapt to the Jetson AGX Orin series for AI and edge computing tasks.

What type of interface and connector does it use?

It utilizes a GMSL interface with a Maxim MAX96705 serializer and an Amphenol (Z Type Fakra) connector.

What are the physical dimensions of the module?

The compact size of the module is 30mm * 30mm * 22.5mm, making it suitable for space-constrained industrial applications.

What is the sensor format and pixel size?

It features a 1/2.7 inch CMOS image sensor with a pixel size of 3um * 3um.

Does the module include an ISP?

Yes, the module is equipped with an AP0202 Image Signal Processor (ISP) for optimized image quality.
