Aert Medical
Aert Medical
Comprehensive application suite and powerful software included in standard configuration for optimal price-performance ratio.
Features a most open C-shaped magnet design to reduce patient anxiety and improve comfort.
Requires less than 50 m² (538 sq.ft) for installation, making it ideal for various facility sizes.
Utilizes a permanent magnet system—no liquid helium required, significantly reducing maintenance expenses.

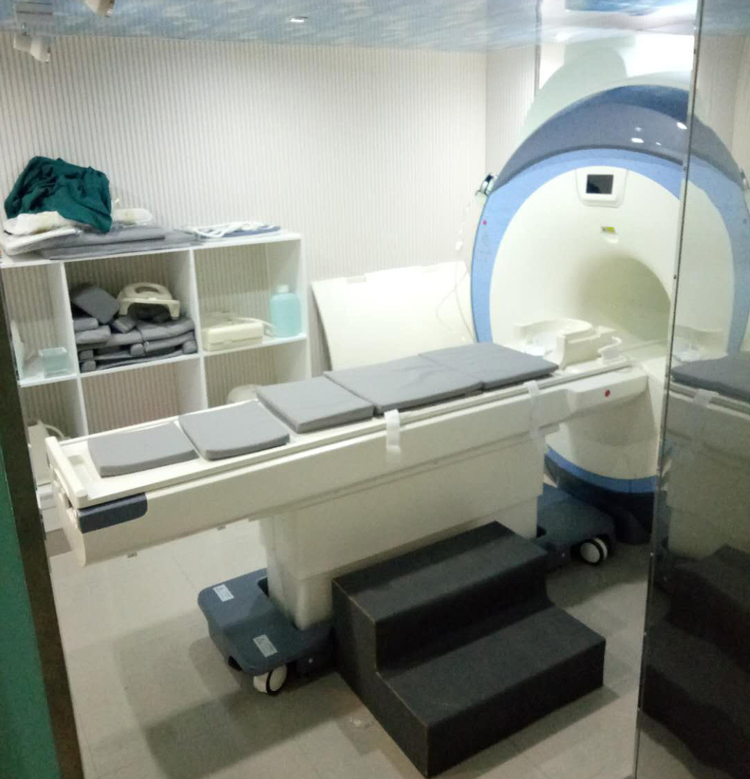

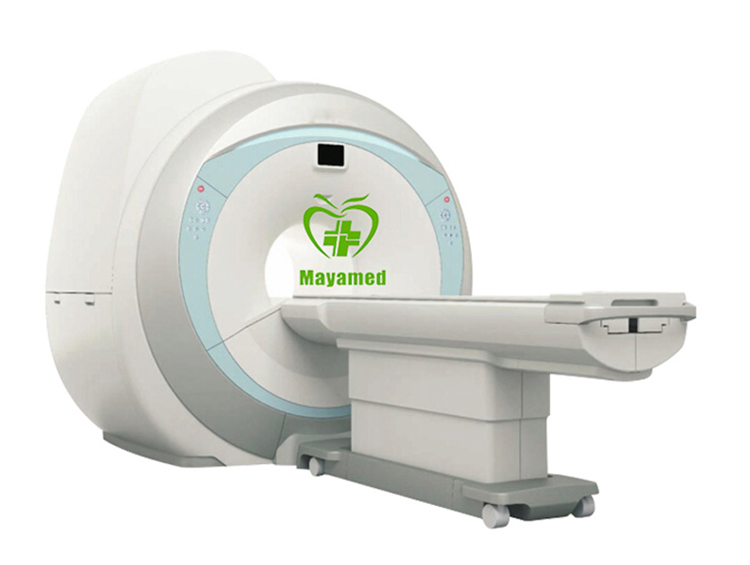

Low Field 0.35 T MRI Scanner Permanent Magnet Open MRI Machine
| 1.0 Magnet System | |
|---|---|
| Operating Field Strength | 0.35 Tesla (3500 Gauss) |
| Magnet Type | Full open C-shaped, 2-column |
| Magnetic Material | Permanent Nd-Fe-B magnet |
| Shimming | Passive & active shimming |
| Patient Gap | 400mm (cover to cover) |
| Net Weight | 17,500 KGS |
| 2.0 Gradient & RF System | |
|---|---|
| Gradient Strength | Max. 25mT/m (Gx/Gy/Gz) |
| Slew Rate | 64mT/M/ms (Gx/Gy/Gz) |
| Spectrometer | Digital (4 channels) |
| Receiving Coils | Phase array (Neck, Head, Body, Knee, etc.) |
| 3.0 Imaging Parameters | |
|---|---|
| Acquisition Matrix | 64 / 128 / 256 / 512 |
| Resolution | Up to 0.5mm (Head) / 0.75mm (Body) |
| FOV | 20 ~ 400mm |
| Pulse Sequences | SE, GRE, FSE, IR, STIR, FLAIR, MRA, DWI, EPI |

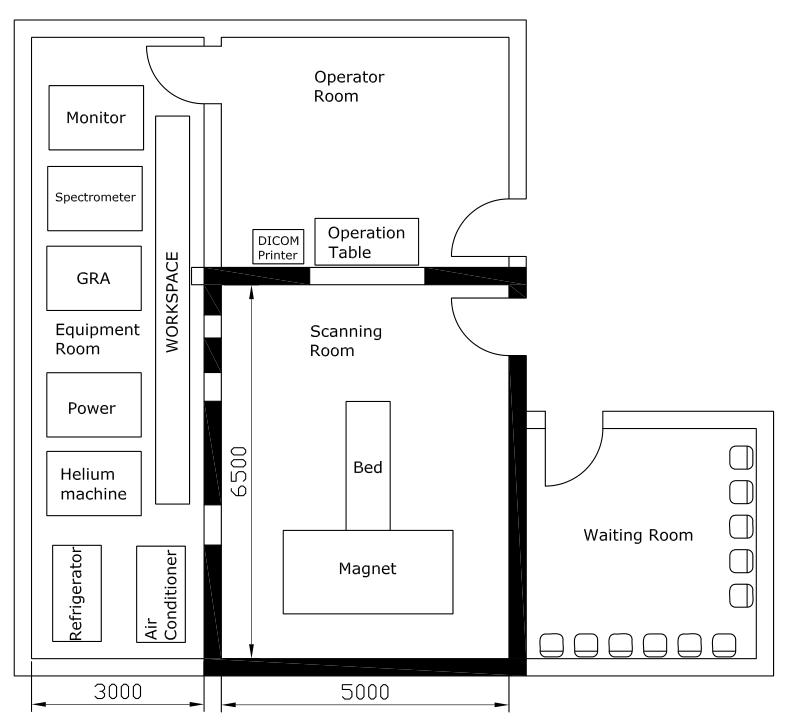

| 4.0 Layout & Requirements | |
|---|---|
| Max Patient Load | 240kg |
| Power Supply | 3N~380/400V 50/60Hz 10KVA |
| Total Installation Area | About 48 Square meters |
