Port Mobile X-ray Security Inspection Container Scanner System Safety Inspection Goods Loaded Into Trucks and Containers MRI Scanner
Port Mobile X-ray Security Inspection Container Scanner System Safety Inspection Goods Loaded Into Trucks and Containers MRI Scanner
Port Mobile X-ray Security Inspection Container Scanner System Safety Inspection Goods Loaded Into Trucks and Containers MRI Scanner
Port Mobile X-ray Security Inspection Container Scanner System Safety Inspection Goods Loaded Into Trucks and Containers MRI Scanner
Port Mobile X-ray Security Inspection Container Scanner System Safety Inspection Goods Loaded Into Trucks and Containers MRI Scanner
1 / 5
Port Mobile X-ray Security Inspection Container Scanner System Safety Inspection Goods Loaded Into Trucks and Containers MRI Scanner
Port Mobile X-ray Security Inspection Container Scanner System Safety Inspection Goods Loaded Into Trucks and Containers MRI Scanner
Port Mobile X-ray Security Inspection Container Scanner System Safety Inspection Goods Loaded Into Trucks and Containers MRI Scanner
Port Mobile X-ray Security Inspection Container Scanner System Safety Inspection Goods Loaded Into Trucks and Containers MRI Scanner
Port Mobile X-ray Security Inspection Container Scanner System Safety Inspection Goods Loaded Into Trucks and Containers MRI Scanner

Port Mobile X-ray Security Inspection Container Scanner System Safety Inspection Goods Loaded Into Trucks and Containers MRI Scanner

Customization: Available
After-sales Service: Remote Support
Warranty: 1year
Send Inquiry

Product Description

Basic Info
Model NO.
AN-48002800M
Certification
CE, ISO
Application
Security Check
Type
Industrial HD X-ray Detector
Channel Size
2.8m (W) X 4.8m (H)
Ray Energy
4-7.5mev
Protection
200 mm Thick Lead Tank
Capacity
2000 pieces/Year
Product Description

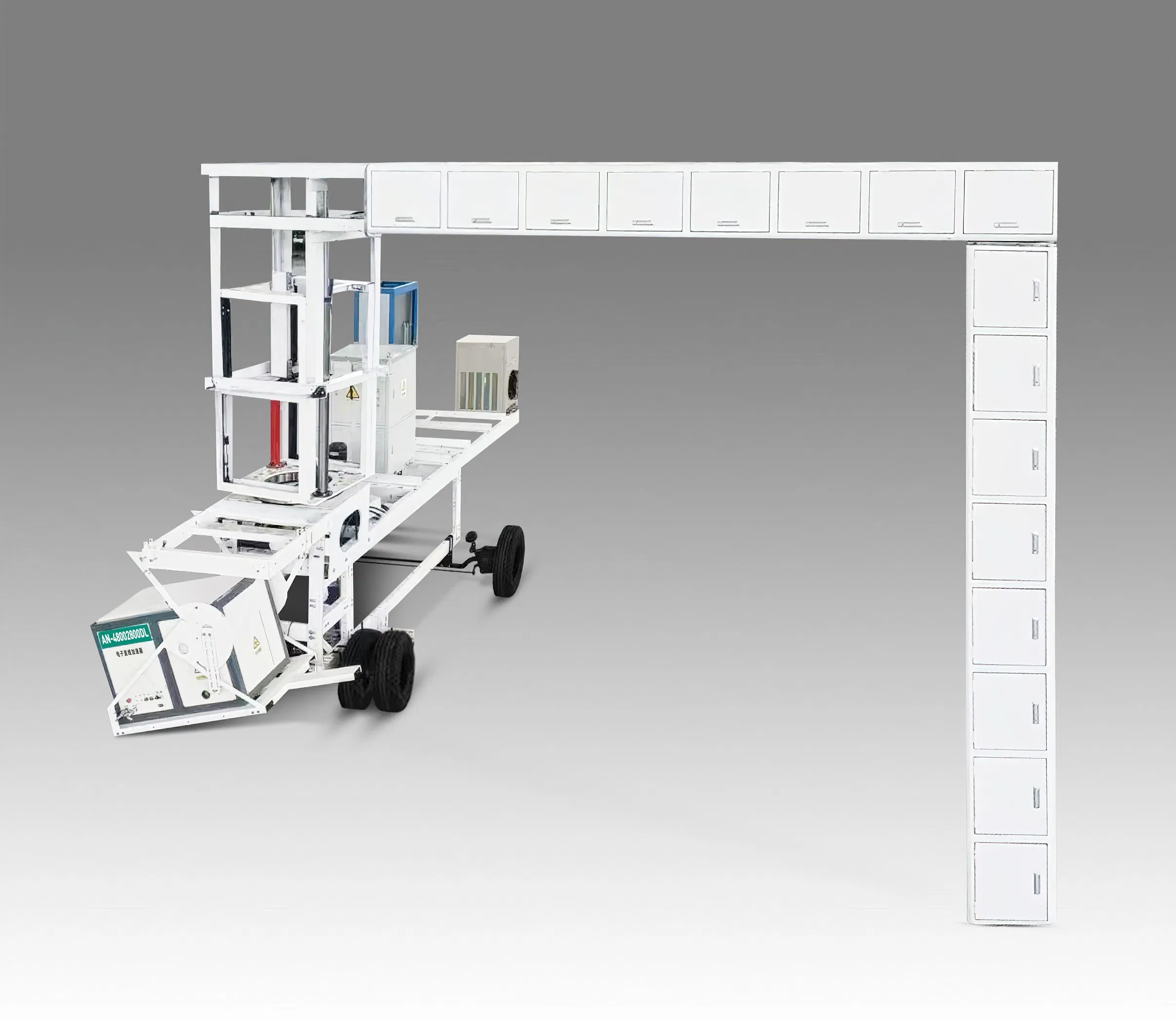

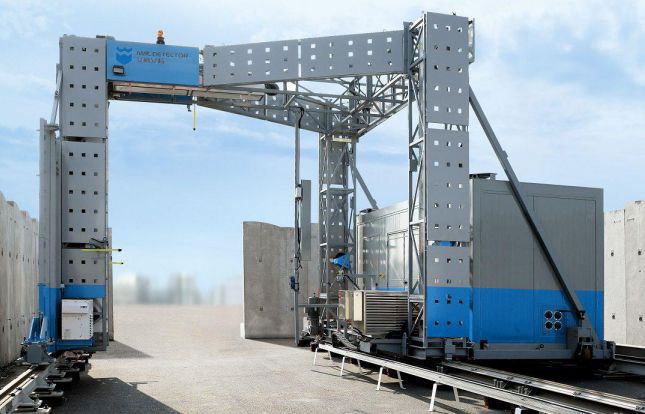

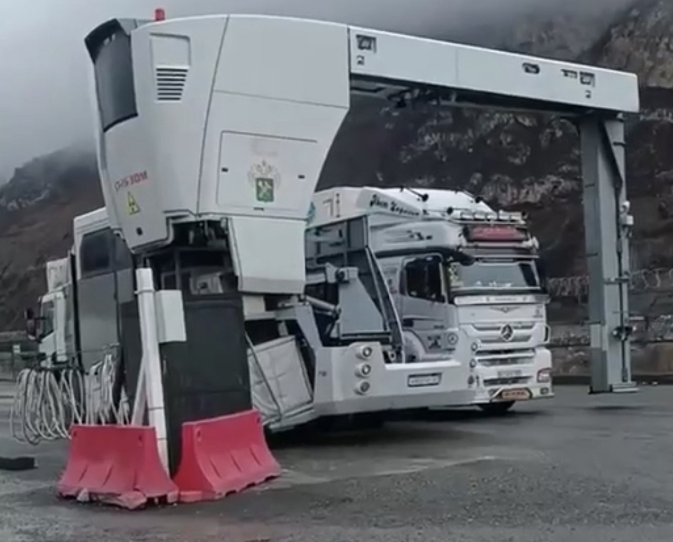

AN-48002800M Port Mobile X-ray Security Inspection System

This mobile large vehicle security inspection system is specially designed for the safety inspection of freight cars and containers at ports and border ports. It reduces the time-consuming and laborious safety inspection of trucks and containers. Through X-ray fluoroscopy scanning, images of material, volume, and quantity are generated to check for explosives, drugs, weapons of mass destruction (WMDs), and contraband.

High Penetration

Adjustable electron accelerator from 4MeV to 7.5mev, penetrating up to 330mm steel plate.

Fast Efficiency

Up to 60 vehicles/hour in mobile mode and 100 vehicles/hour in through scan mode.

Advanced Imaging

High-speed data acquisition circuit with pseudo-color gray level layer display.

Security Inspection System
Technical Parameters

Electron Induction Accelerator

  • Ray energy: 4-7.5mev
  • Irradiation direction: Side illumination
  • Penetration: Max 330mm steel plate
  • Heat dissipation: Air conditioning/Oil immersed
  • Radiation protection: 200 mm lead tank
  • Scattering angle: 80 degrees
  • Collimator: Electric shutter, ultra narrow beam

Detection System

  • Structure: Modular, removable
  • External dimension: 6.60m x 3.3m x 5.8m
  • Channel size: 2.8m (W) x 4.8m (H)
  • Equipment weight: 8 tons
  • Detection crystal: CdWO4
  • Pixels: 1920 (L-shaped line array)

Image Processing

  • Workstation: i7 / 8g / 4tb / 24 inch LCD
  • Functions: Edge enhancement, organic removal, real-time video
  • Recognition: License plate recognition & archiving
  • Storage: 500,000 images standard

Performance & Site Requirements

  • Track length: 60 m standard rail
  • Scanning speed: 5km/h - 10km/h
  • Working site: 55m (L) x 30m (W)
  • Temperature: -20°C to +43°C
  • Waterproof: IP45
  • Power: 24 kW average
Why Choose Our Solutions

We are a high-tech enterprise focused on delivering professional technical support and overall security solutions. Our mission is to provide high-quality pre-sale, sale, and after-sales services.

Security Factory
Testing Site
Device Details

Professional Support

Installation & Training: Free on-site installation, debugging, and training for personnel (1-day theoretical, 3-day practical).

Warranty: 12 months free warranty with timely on-site response within 10 hours of fault reporting.

Technical Support: 5 years of free soft technical consulting after the warranty period.

FAQ
What is the maximum penetration capability of the system?
The system utilizes an adjustable electron accelerator (4-7.5MeV) that can penetrate up to a 330mm thick steel plate.
How many vehicles can be inspected per hour?
The equipment can inspect up to 60 vehicles per hour in mobile scanning mode and up to 100 vehicles per hour in through-scan mode.
What certifications does the equipment hold?
The system is manufactured under ISO9001, ISO14001, and ISO18001 standards and holds CE and radiation safety certifications.
What kind of maintenance support is provided?
We provide a 12-month free warranty, 24/7 technical support, and on-site maintenance within 10 hours for reported faults.
Is the system safe for operators?
Yes, it features a 200mm thick lead tank for radiation protection and adheres to WHO, ICRP, and EU safety regulations.
Can the system identify specific cargo materials?
Yes, the software includes functions for organic and inorganic matter removal, displaying different shapes and densities using pseudo-color gray levels.
