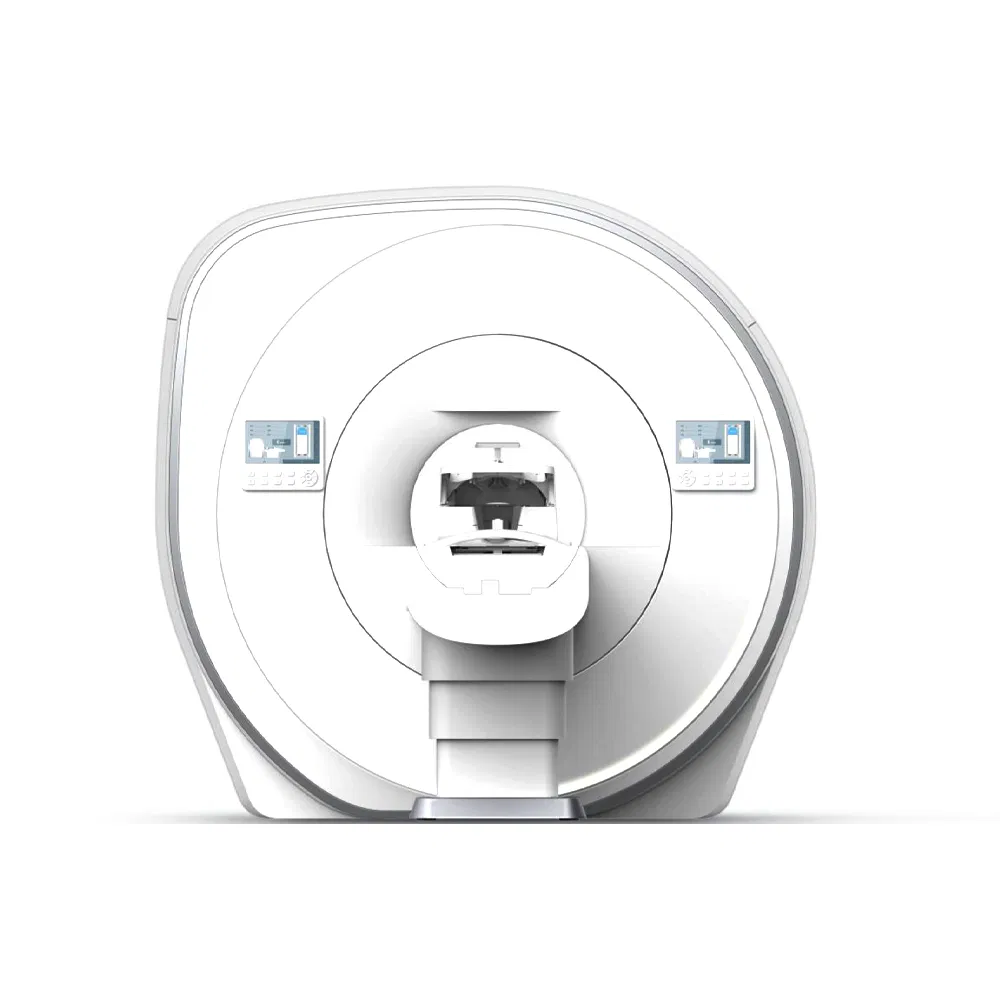

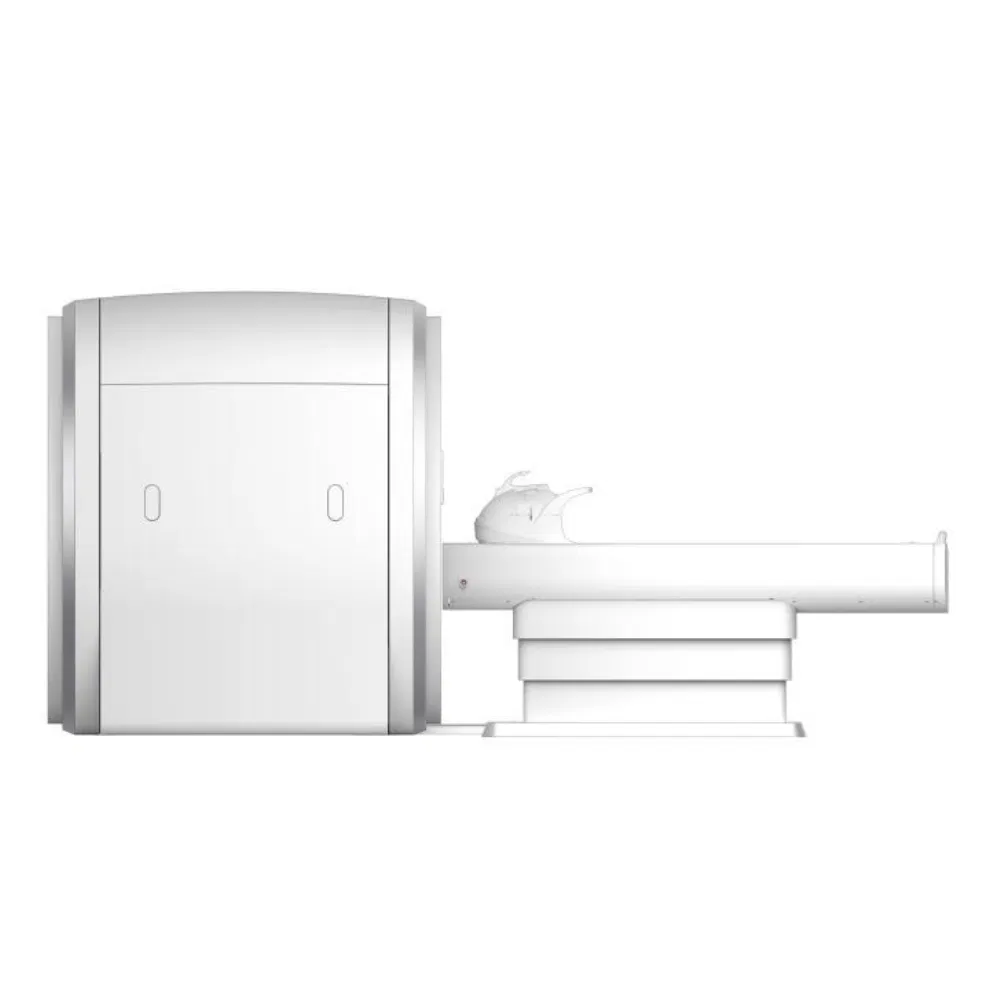

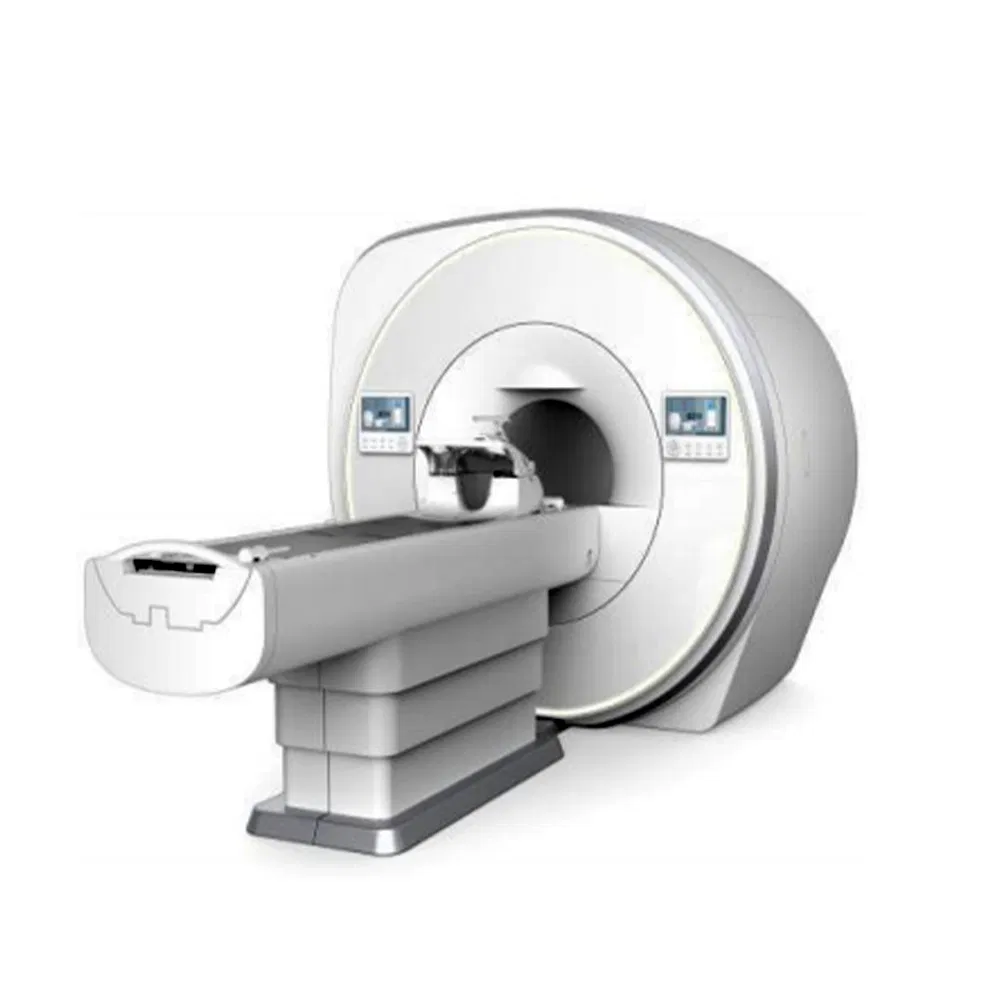

My-D054K Medical Equipment Liquid Helium Free MRI System with 1.5t
My-D054K Medical Equipment Liquid Helium Free MRI System with 1.5t
My-D054K Medical Equipment Liquid Helium Free MRI System with 1.5t
My-D054K Medical Equipment Liquid Helium Free MRI System with 1.5t
My-D054K Medical Equipment Liquid Helium Free MRI System with 1.5t
1 / 5
My-D054K Medical Equipment Liquid Helium Free MRI System with 1.5t
My-D054K Medical Equipment Liquid Helium Free MRI System with 1.5t
My-D054K Medical Equipment Liquid Helium Free MRI System with 1.5t
My-D054K Medical Equipment Liquid Helium Free MRI System with 1.5t
My-D054K Medical Equipment Liquid Helium Free MRI System with 1.5t

My-D054K Medical Equipment Liquid Helium Free MRI System with 1.5t

Customization: Available
Certification: ISO13485
Keyword: Liquid Helium Free MRI System
Send Inquiry

Product Description

📋 Basic Information
🆔
Model NO.: MY-D054K
⚡
Field Strength: 1.5T
🎨
Color: White
📦
Transport Package: MRI Packing
🌍
Origin: China
🔢
MOQ: 1 Unit

🚀 Liquid Helium Free MRI System

The MY-D054K is a cutting-edge medical imaging solution featuring a 1.5T superconductive magnet that operates without the need for liquid helium replenishment, significantly reducing maintenance complexity and operational costs.

⚙️ Technical Specifications
Field Strength: 1.5T Stability: ≤ 0.1 ppm/hour
Homogeneity: ≤2.0ppm @ 45cm DSV VRMMS Bore Size: 850 mm
Weight: ≤4.4 Ton 5G's Line: <2.5m, 2.5m, 4.0m
Dimensions (LxWxH): 1570 x 1891 x 2150 mm Cooling Type: Conductive Cooling
Liquid Helium Volume: 0L (Free) Recovery Time (Quench): < 3 Days
Minimum Service Height: 2500 mm Quench Tube: N/A
🖼️ Product Gallery

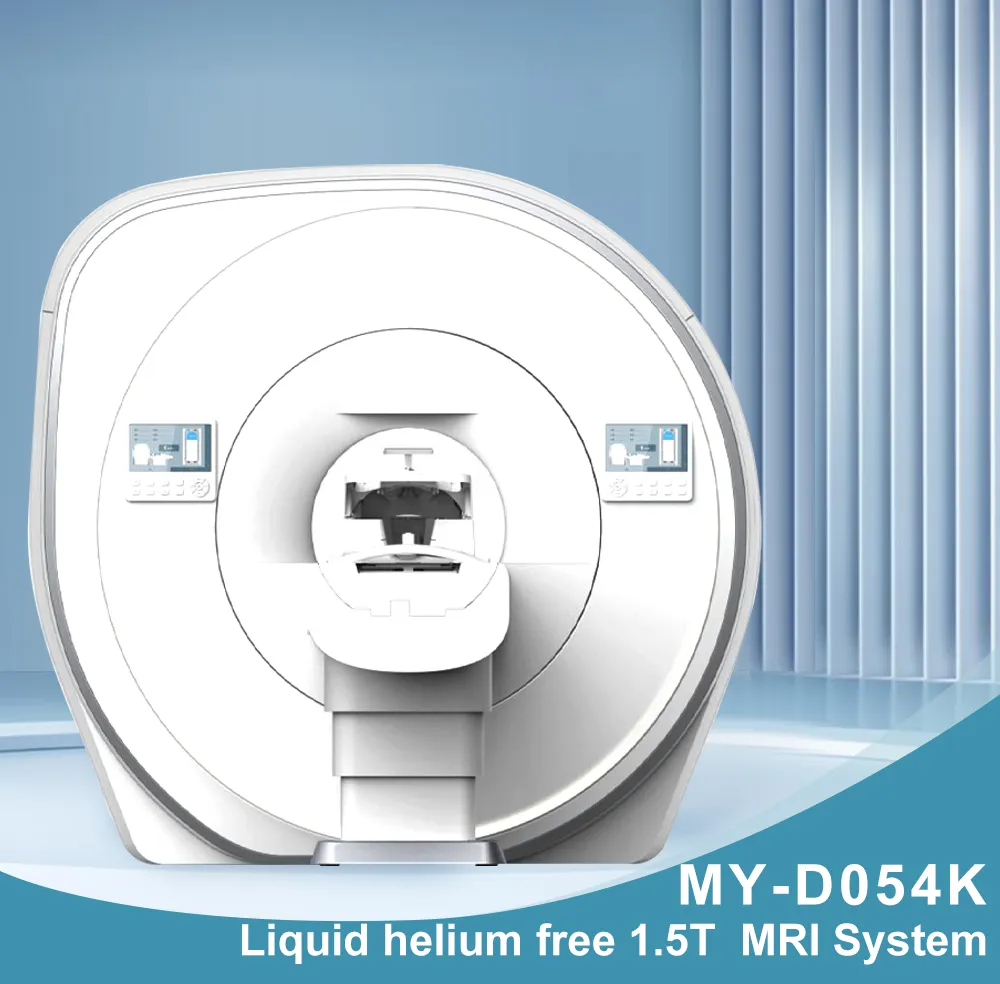

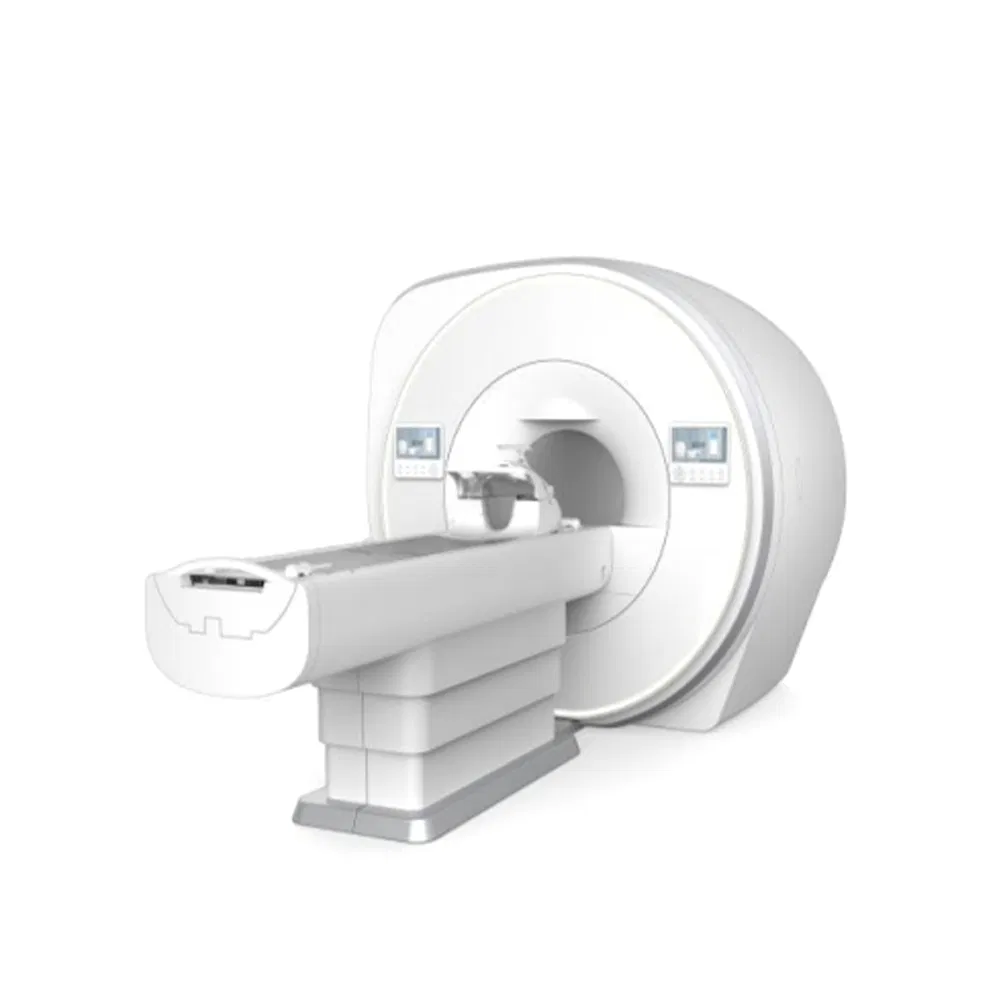

MRI System View 1

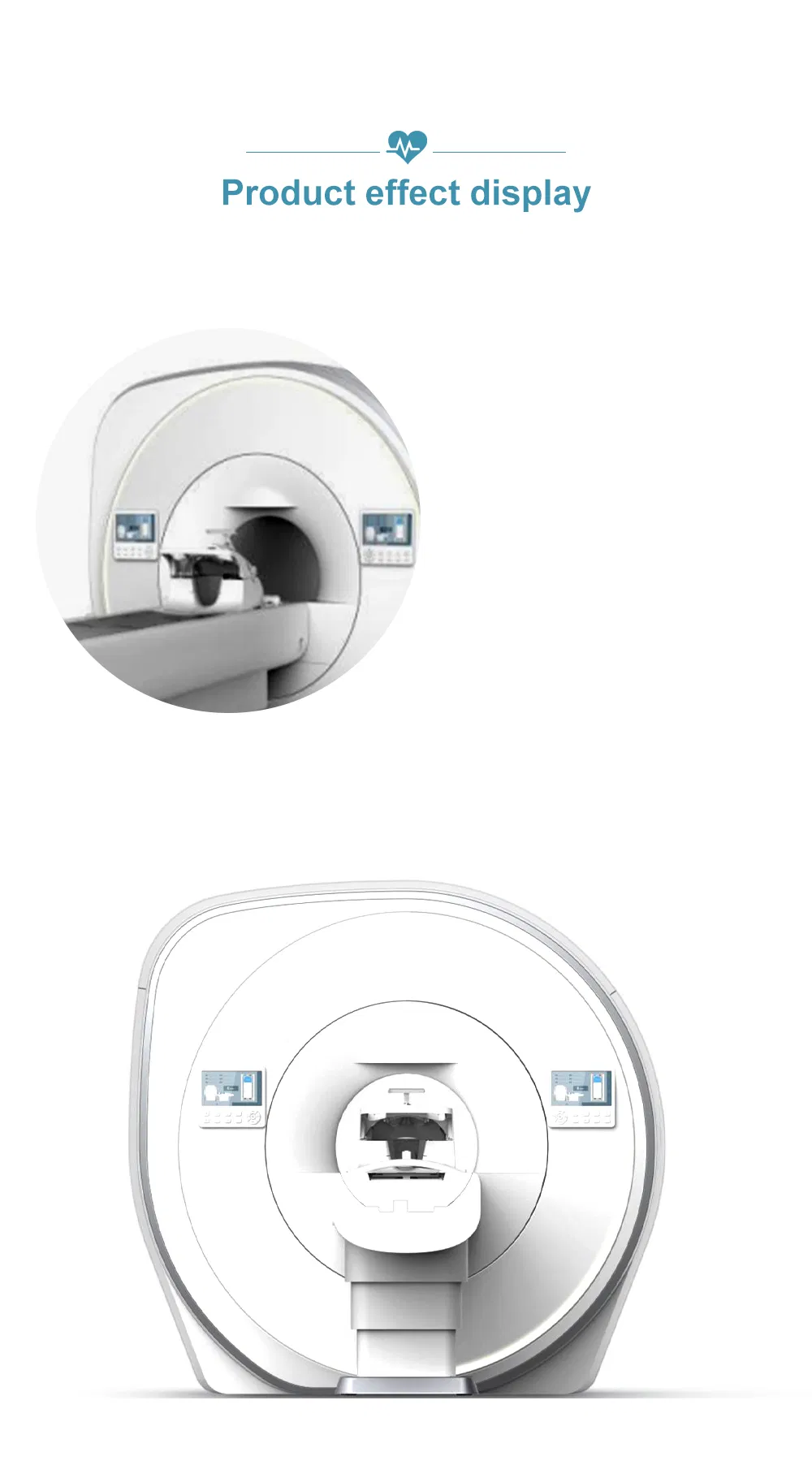

MRI System View 2

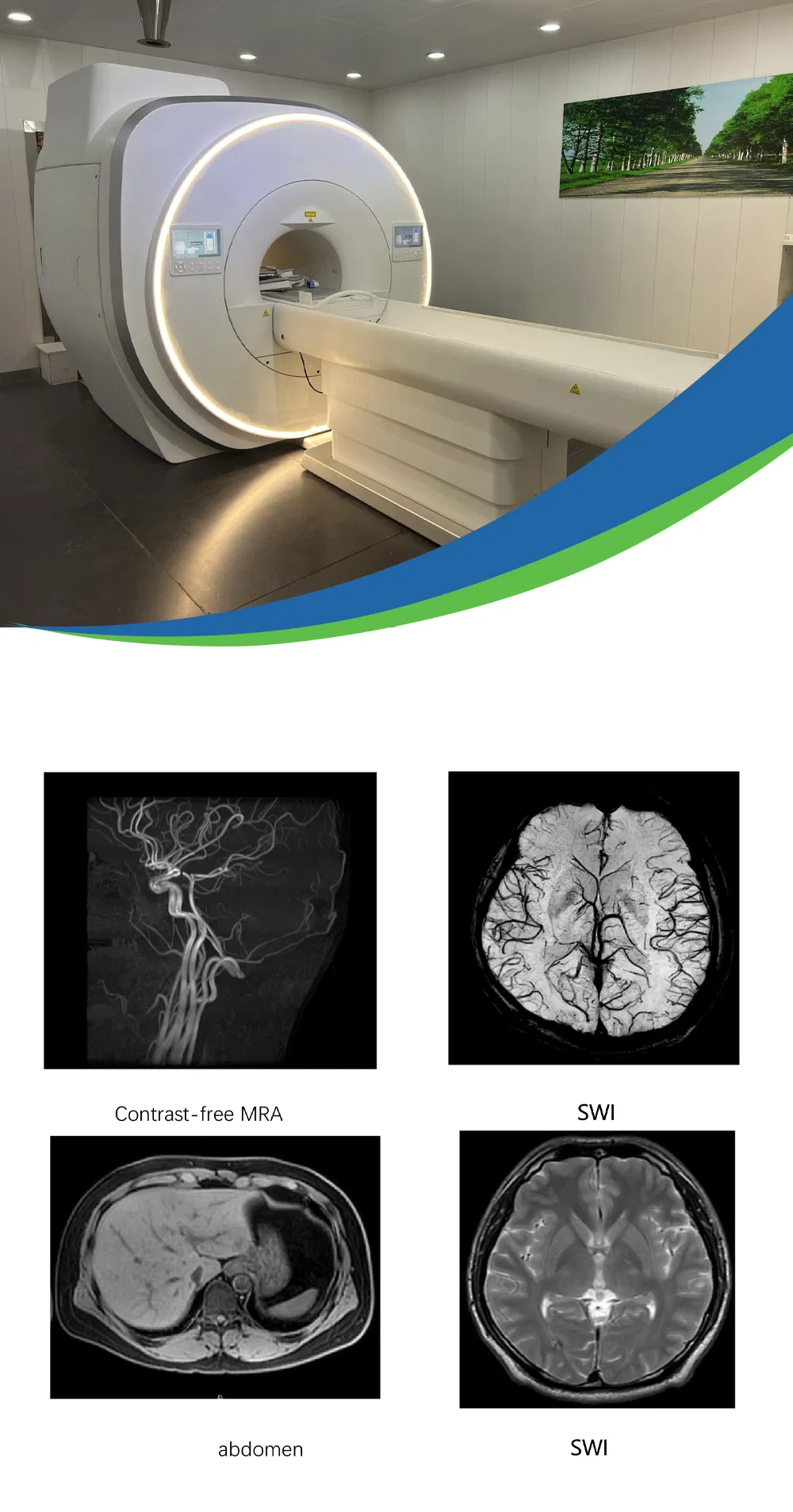

MRI System View 3

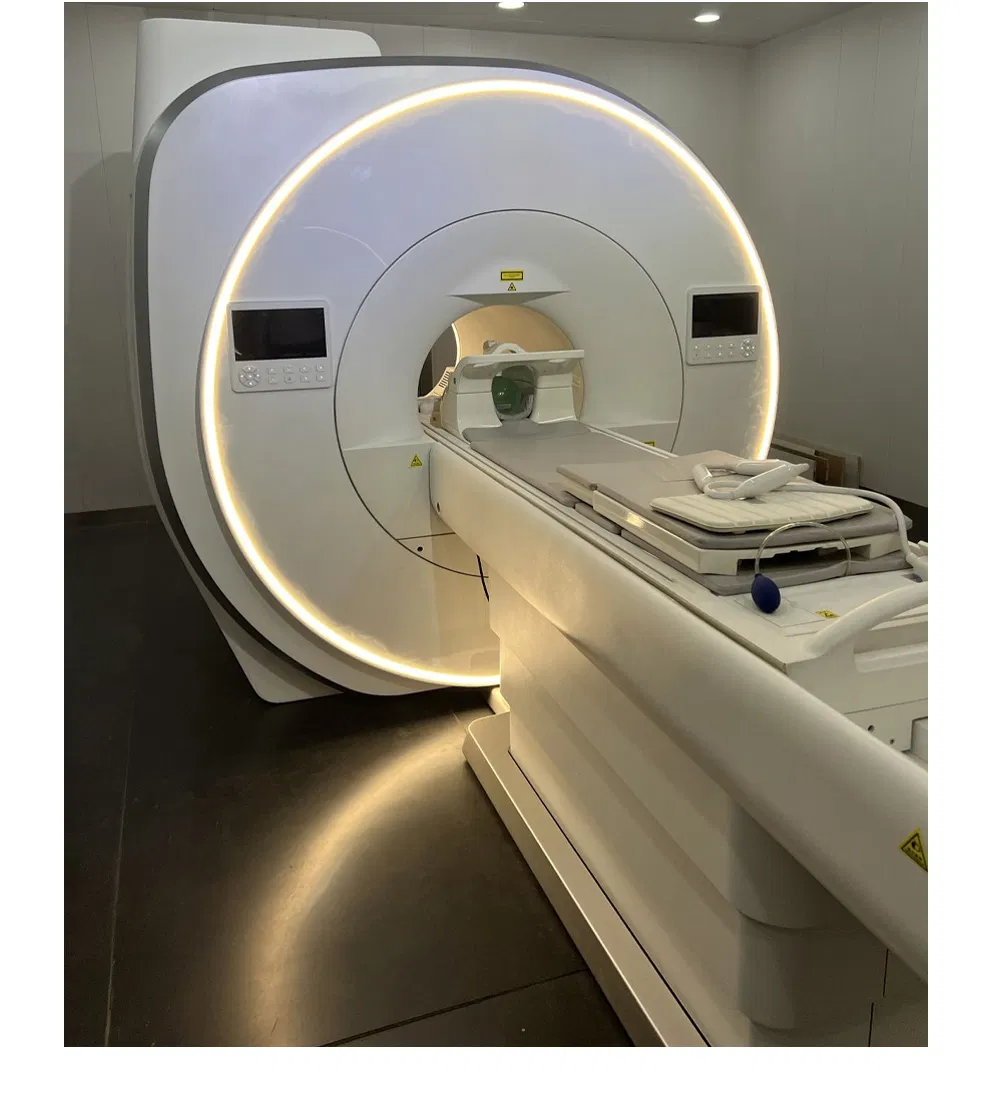

MRI System View 4

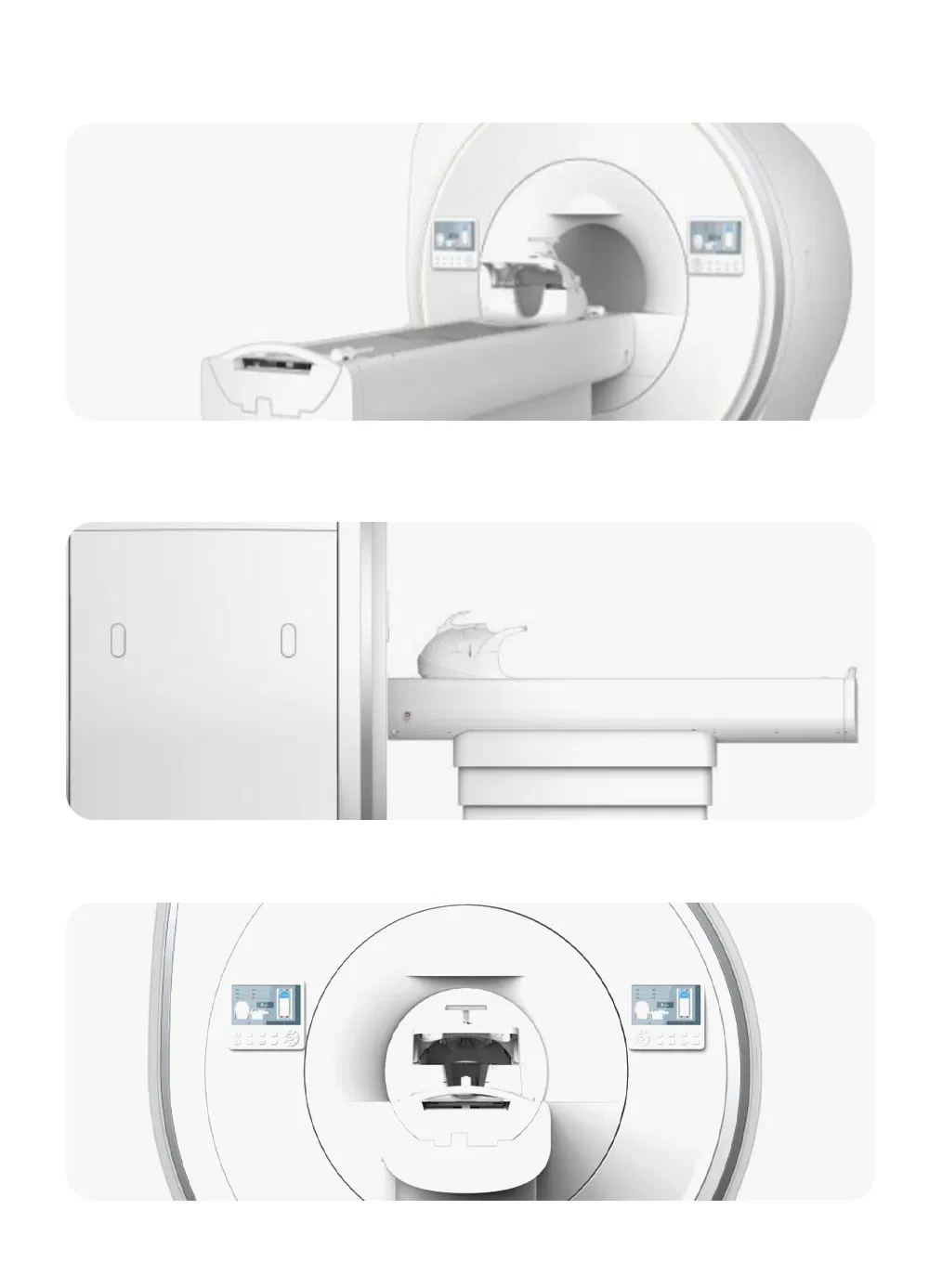

MRI System View 5
❓ Frequently Asked Questions
What does "Liquid Helium Free" mean for this MRI system?
It means the system uses conductive cooling technology and requires 0L of liquid helium for operation, eliminating the need for periodic helium refills and reducing maintenance costs.
What is the bore diameter of the MY-D054K?
The system features a spacious 850 mm bore, which helps improve patient comfort and reduces claustrophobia during scans.
How long does it take to recover from a quench?
The recovery time from a quench for this system is less than 3 days, ensuring minimal downtime for medical facilities.
What are the installation height requirements?
The minimum service height required for installation is 2500 mm, making it suitable for standard clinical environments.
What is the field strength and stability of this MRI?
The system operates at a field strength of 1.5T with a stability rate of ≤ 0.1 ppm per hour, providing high-quality diagnostic imaging.
Does this system require a quench tube?
No, because it is a liquid helium-free system with conductive cooling, a traditional quench tube is not applicable (N/A).
