Blood Test Machine Point of Care Biochemical Analyzer

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO. SD1

Origin China

Production Capacity 50000

Technical Specifications

Sample Type	Anti-coagulated whole blood, serum, plasma
Sample Volume	90-120μL
Bar Code	QR Code
Testing Time	12 minutes/sample
Testing Principle	Absorption spectroscopy, transmission turbidimetry
Testing Method	End point, kinetic, fixed time, turbidimetry etc
Temperature	37±0.3ºC
Absorbance	0-3.0Abs
Resolution	0.001 Abs
QC & Calibrate	IQC Intelligent QC
Working Condition	Temperature: 10-30ºC Humidity: 30%-70%
Light Source	120v/20w, halogen tungsten lamp's lifespan is over 2500 hours
Power Supply	AC220V, 50Hz
Power Rating	120VA
Display	Android 7.0 inch 800*480, multi-point capacitive touch screen, multilingual choice
Storage	500,000 results
Printer	Built-in thermal printer
Connectors	4 USB ports, 1 LAN port
Weight	4.6KG
Size	200mm(L)252mm(W)299mm(H)

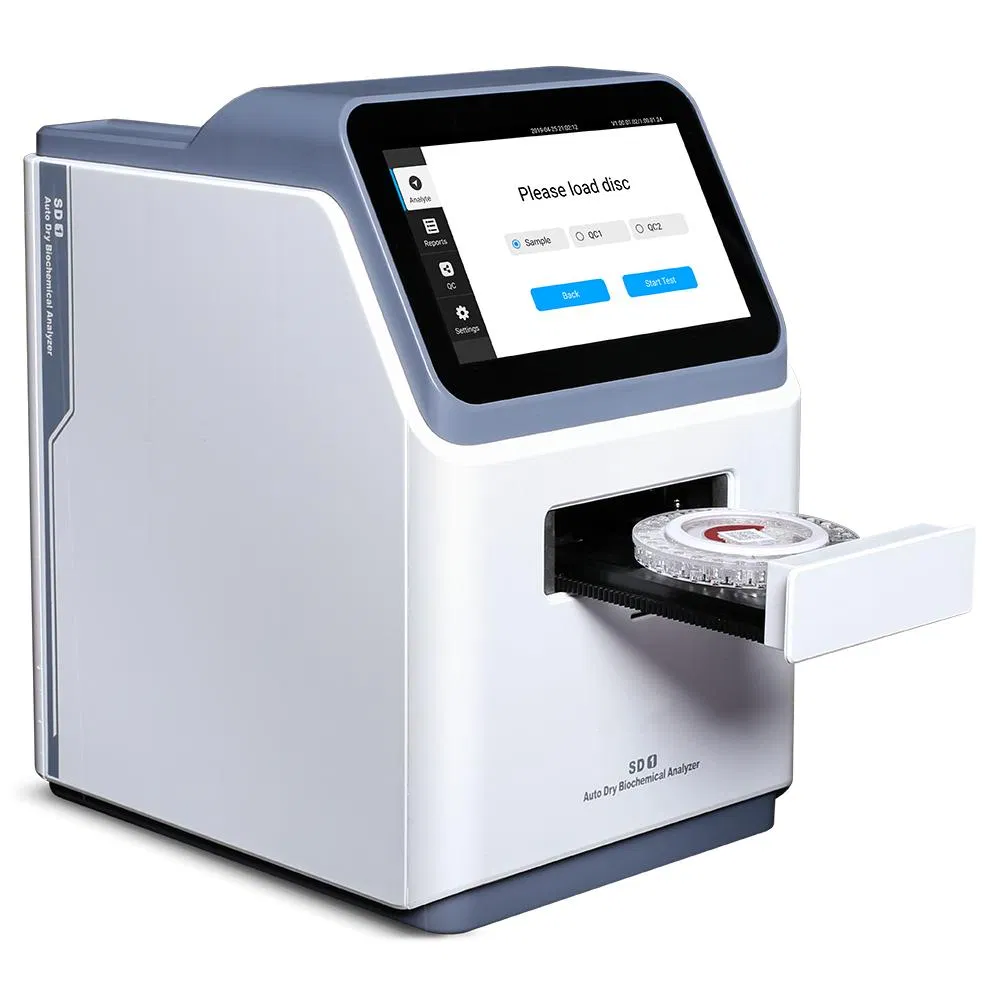

Product Visuals

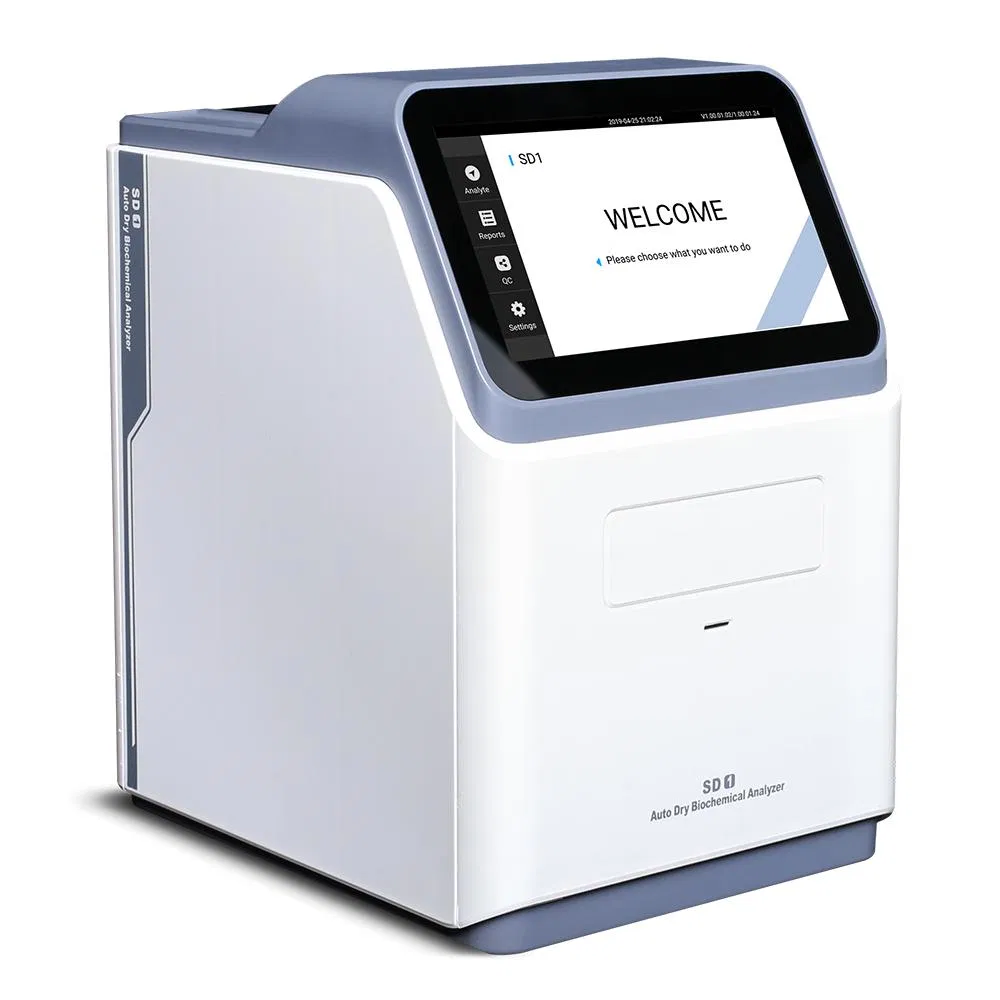

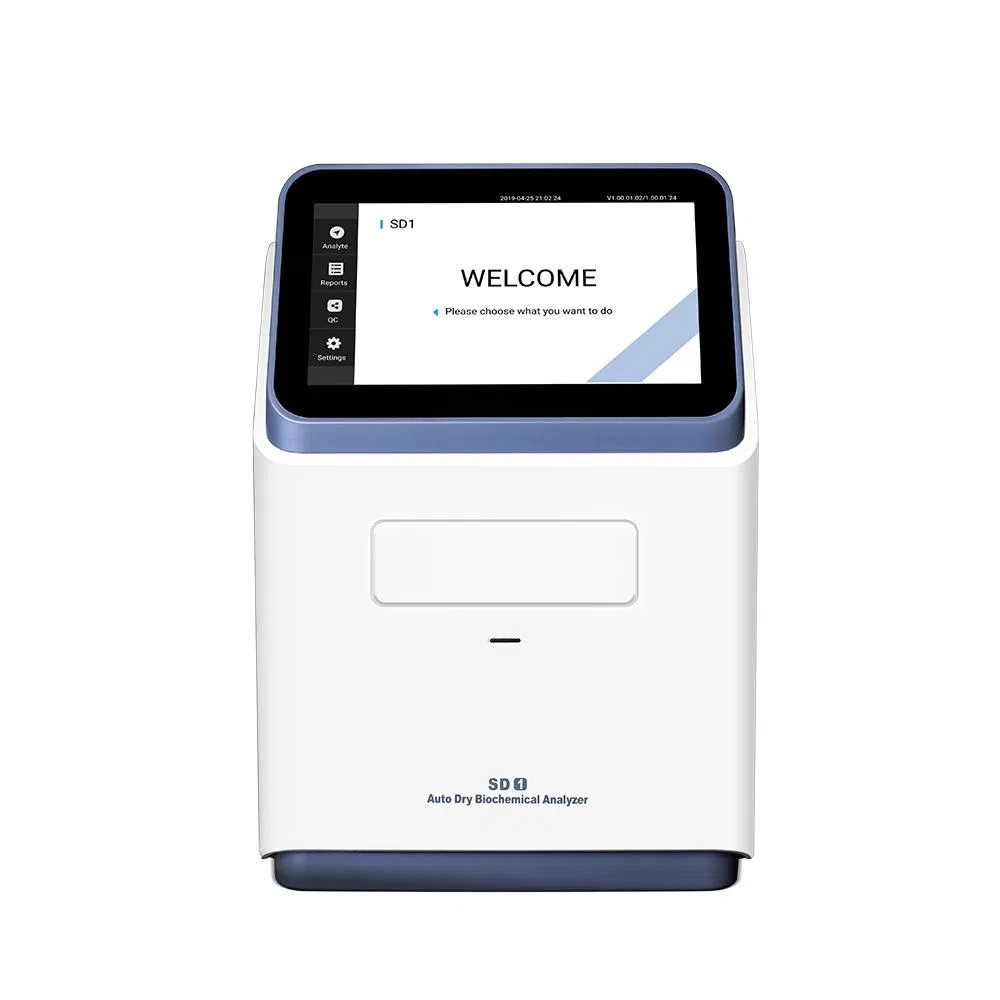

Point of Care Biochemical Analyzer Front View

Frequently Asked Questions

1. What types of samples can be used with the SD1 analyzer?

The SD1 supports anti-coagulated whole blood, serum, and plasma samples, providing flexibility for various clinical requirements.

2. How much sample volume is required for a single test?

The device requires a very small sample volume of only 90-120μL, which is ideal for pediatric and geriatric testing.

3. How long does it take to get the test results?

The testing process is highly efficient, delivering complete results within approximately 12 minutes per sample.

4. Does the device include a data storage and printing system?

Yes, it features a built-in thermal printer for immediate reporting and has an internal storage capacity for up to 500,000 results.

5. What kind of display and interface does the SD1 use?

The analyzer is equipped with a 7.0-inch Android capacitive touch screen (800*480 resolution) with a multi-lingual interface for easy operation.

6. How does the device ensure testing accuracy?

It utilizes an IQC Intelligent Quality Control system alongside absorption spectroscopy and transmission turbidimetry principles to ensure high precision and reliability.
