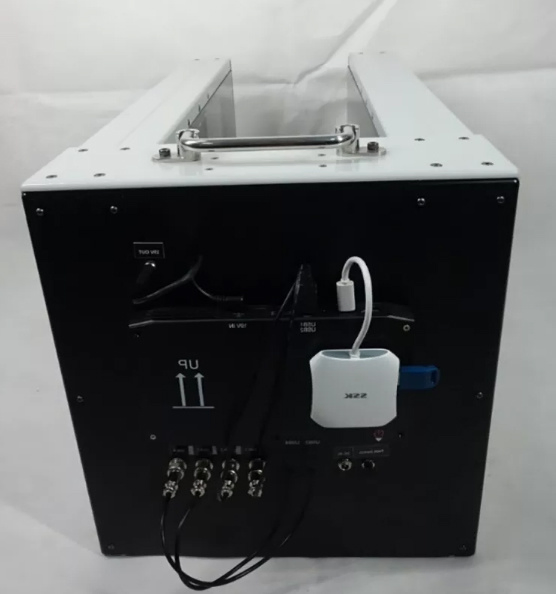

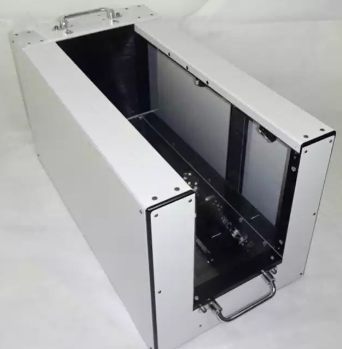

Portable Shoe Last Insole Making 3D Body Printer Scanner
Portable Shoe Last Insole Making 3D Body Printer Scanner
Portable Shoe Last Insole Making 3D Body Printer Scanner
Portable Shoe Last Insole Making 3D Body Printer Scanner
Portable Shoe Last Insole Making 3D Body Printer Scanner
1 / 5
Portable Shoe Last Insole Making 3D Body Printer Scanner
Portable Shoe Last Insole Making 3D Body Printer Scanner
Portable Shoe Last Insole Making 3D Body Printer Scanner
Portable Shoe Last Insole Making 3D Body Printer Scanner
Portable Shoe Last Insole Making 3D Body Printer Scanner

Portable Shoe Last Insole Making 3D Body Printer Scanner

Customization: Available
Type: Orthopedics
Function: Rehabilitation
Send Inquiry

Product Description

Basic Information

Model NO.: SN-UPOD-HD
Theory: Laser
Certification: CE, ISO13485
Display: Without LCD Display
Group: Adult
Package: Marton Carton
Production: 1000 pieces/Year

Product Description

Portable shoe last insole making 3D body printer scanner

3D Scanner View 1
3D Scanner View 2
ModelSN-UPOD-HD
Foot/Foam Box/Plaster CastYes/Yes/Yes
Full Foot Non/Full/Semi-WeightYes/Yes/Yes
Indoor Lighting ConditionsYes, no darkroom or shielding required. But should avoid direct sunlight.
3D AccuracyClean 3D Mesh +/-0.5mm.
3D OutputSTL/WRL, PDF, CSV file
Color Texture (Round-Trip)Yes. A unique feature not found on other 3D foot scanners.
Size (mm) / Weight(Kg)682*350*367 / 19kg
Scan Volume (mm)380*180*180
Load Capacity180 Kg
PC Requiredi5-6200U, 4~8G ram, and 1080P display
Scanning Speed5.9~11.9s one-way for 3D
Minimum RAM4G
USB Port2.0 or 3.0 Compatible
Operating SystemWin10 only
Power SupplyAC 100-240V; DC 12V/3A. Worldwide compatible.
Warranty1 Year (per warranty statement)

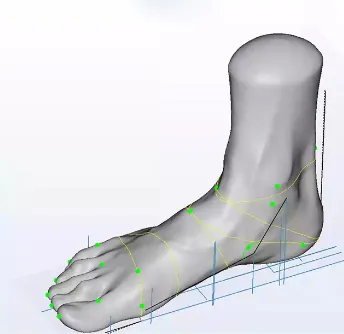

3D Scanning Process

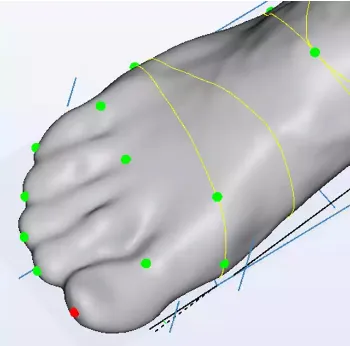

Foot Analysis Output

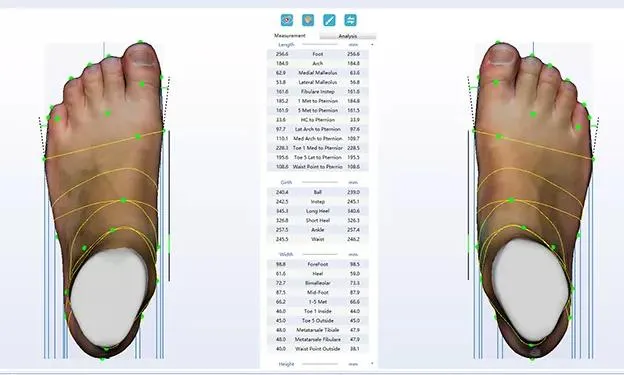

Software Analysis 1

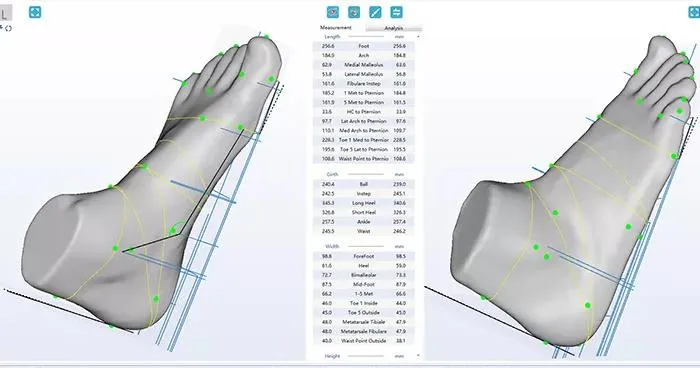

Software Analysis 2

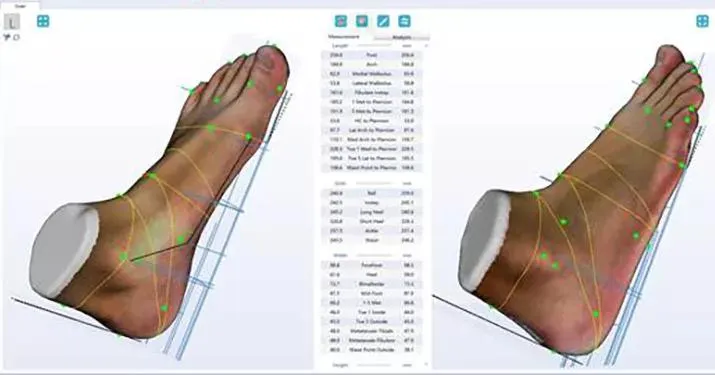

Software Analysis 3

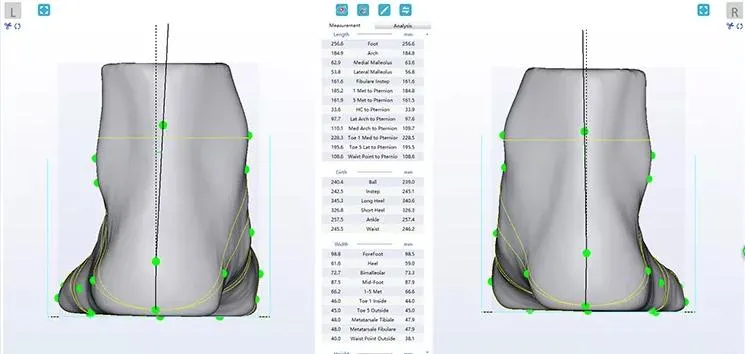

Final Product Comparison

Main Features & Highlights

◈ Full-foot in non/semi/full-weight with very high accuracy.
◈ Compatible with Foam Impression, Plaster Cast, and Shoe Last.
◈ Scan round-trip captures color texture (Unique Feature).
◈ Works in normal indoor lighting; no shield required.
◈ Auto diagnostic for arch type, hallux, and heel.
◈ Mark landmarks on foot and drag points to match.
◈ Detailed foot report with manual annotations.
◈ Export to STL/WRL, PDF, and CSV files.
◈ FTP send order to shoe/insole fabrication.
◈ Customizable software logo for brand promotion.

FAQ

What objects can this 3D scanner scan?
The SN-UPOD-HD can scan feet directly (non/semi/full-weight), foam impression boxes, plaster casts, and shoe lasts.
What is the scanning speed and accuracy?
The scanning speed is between 5.9 to 11.9 seconds for a one-way 3D scan, providing a clean 3D mesh with an accuracy of +/-0.5mm.
Does it require a darkroom for operation?
No, it is designed for normal indoor lighting conditions. No special shielding or darkroom is required, though direct sunlight should be avoided.
What are the computer system requirements?
The scanner requires a Windows 10 operating system, an i5-6200U processor or better, at least 4-8G of RAM, and a 1080P display.
What file formats can be exported?
It supports standard industry formats including STL/WRL for 3D models, as well as PDF reports and CSV data files.
Is there a load weight limit for the scanner?
Yes, the scanner has a robust load capacity and can support a maximum weight of up to 180 Kg.
