High-Performance AI Edge Computing & 8K Multimedia Solution

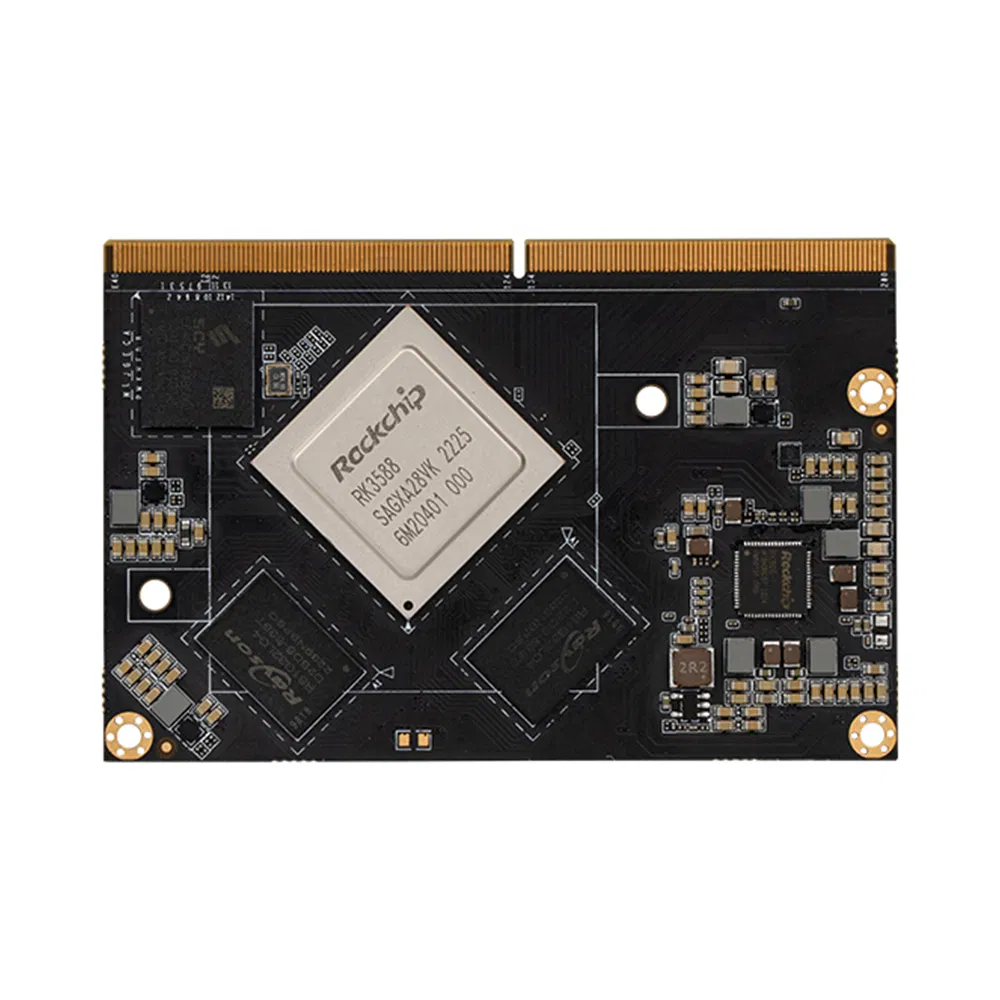

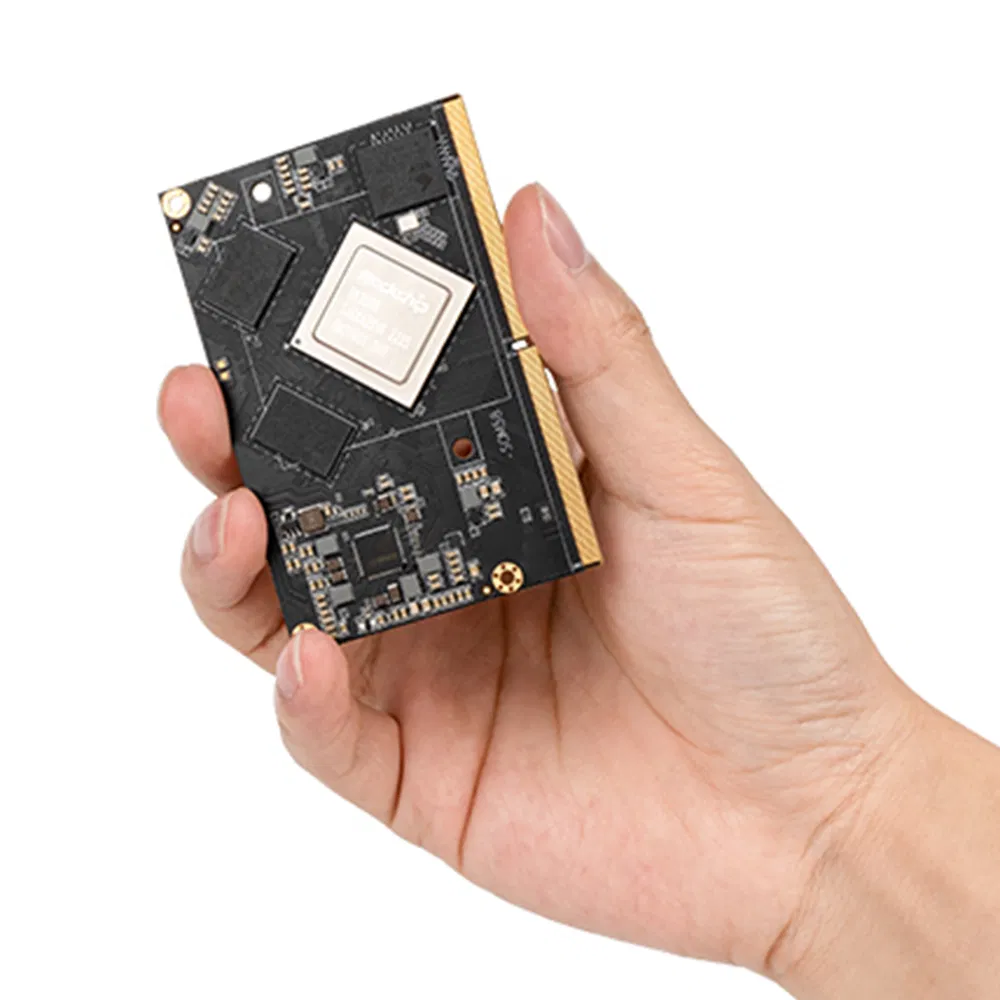

The SOM58 Core Module is powered by the Rockchip RK3588 processor, built on 8nm technology. It is designed for AI computing, edge computing, and 8K multimedia processing. It supports both Android and Linux operating systems, making it suitable for applications in industrial automation, robotics, smart surveillance, IoT, and high-performance computing.
| Rockchip RK3588 SoM3588 Detail Specs | |
|---|---|
| SOC | CPU: RK3588, 4 x Cortex-A76 + 4 x Cortex-A55 2.4GHz, 8nm; GPU: ARM Mali-G610 MP4; NPU: 6.0TOPS |
| OS | Android / Linux / Ubuntu |
| Memory & Storage | RAM: LPDDR4 4GB/8GB/16GB/32GB; ROM: eMMC 5.1 64G/128G/256G |
| Video Processing | Decode: 8K@60fps H.265/VP9/AVS2, 4K@60fps AV1; Encode: 8K@30fps H.265/H.264 |
| Display Output | HDMI 2.1 (8K@60Hz), HDMI In (4K@60Hz), eDP 1.4, DP 1.4, MIPI-DSI |
| Connectivity | Dual 1000M Ethernet, WiFi 6 (802.11ax), Bluetooth 5.0 |
| I/O Interfaces | PCIe 3.0, SATA 3.0 x 3, USB 3.1 OTG x 2, USB 3.0 x 2, UART, I2C, SPI, GPIO |

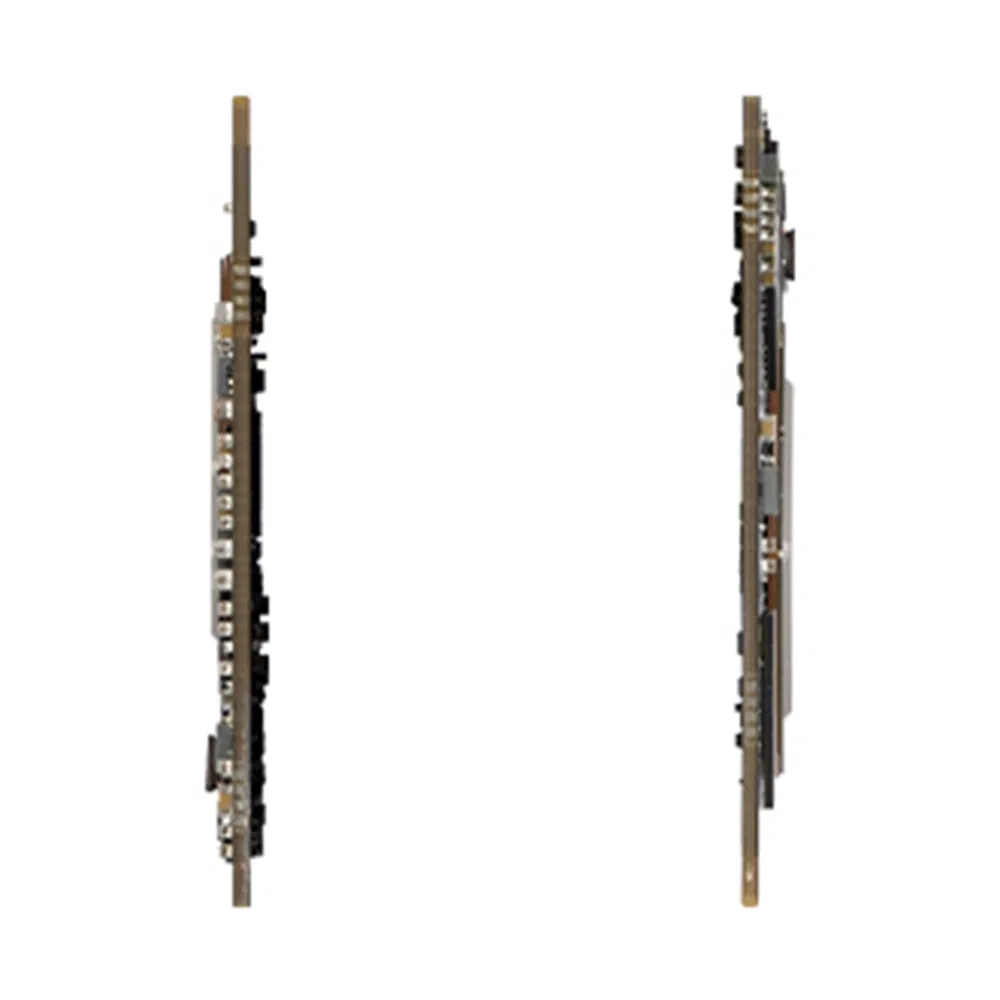

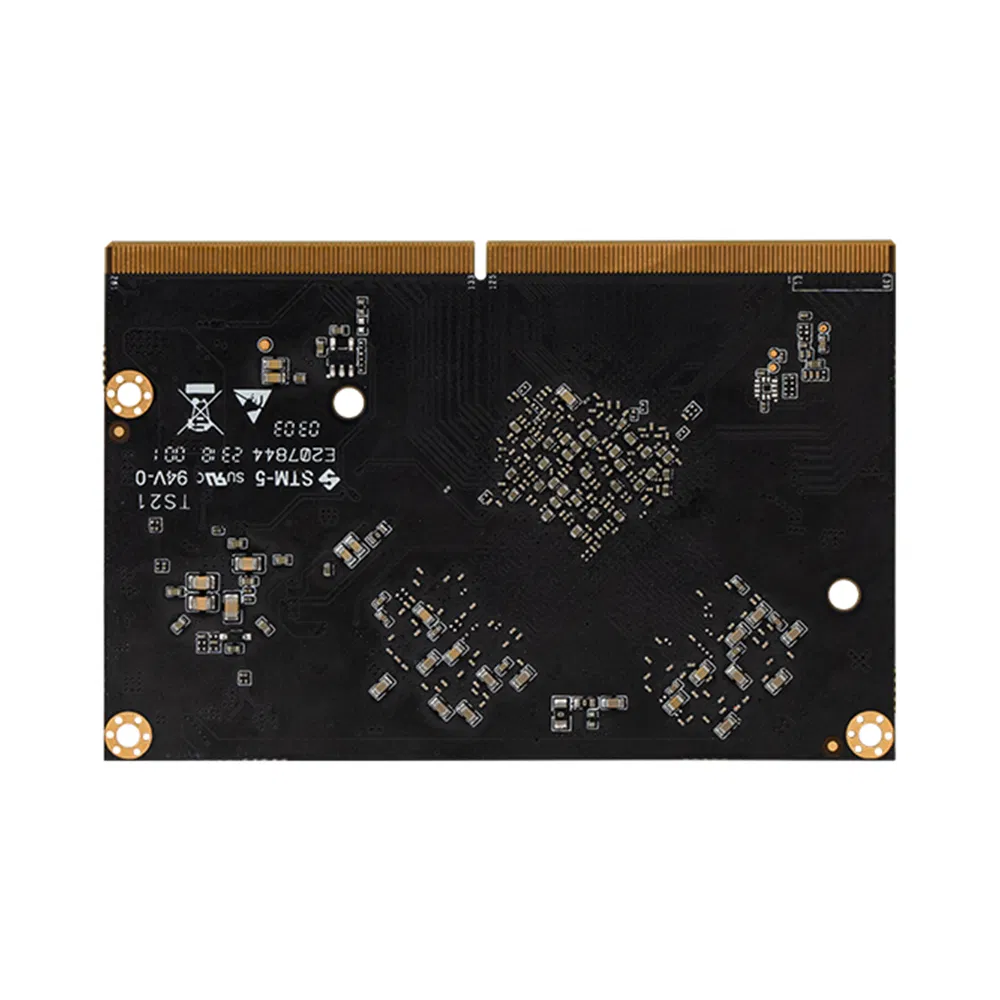

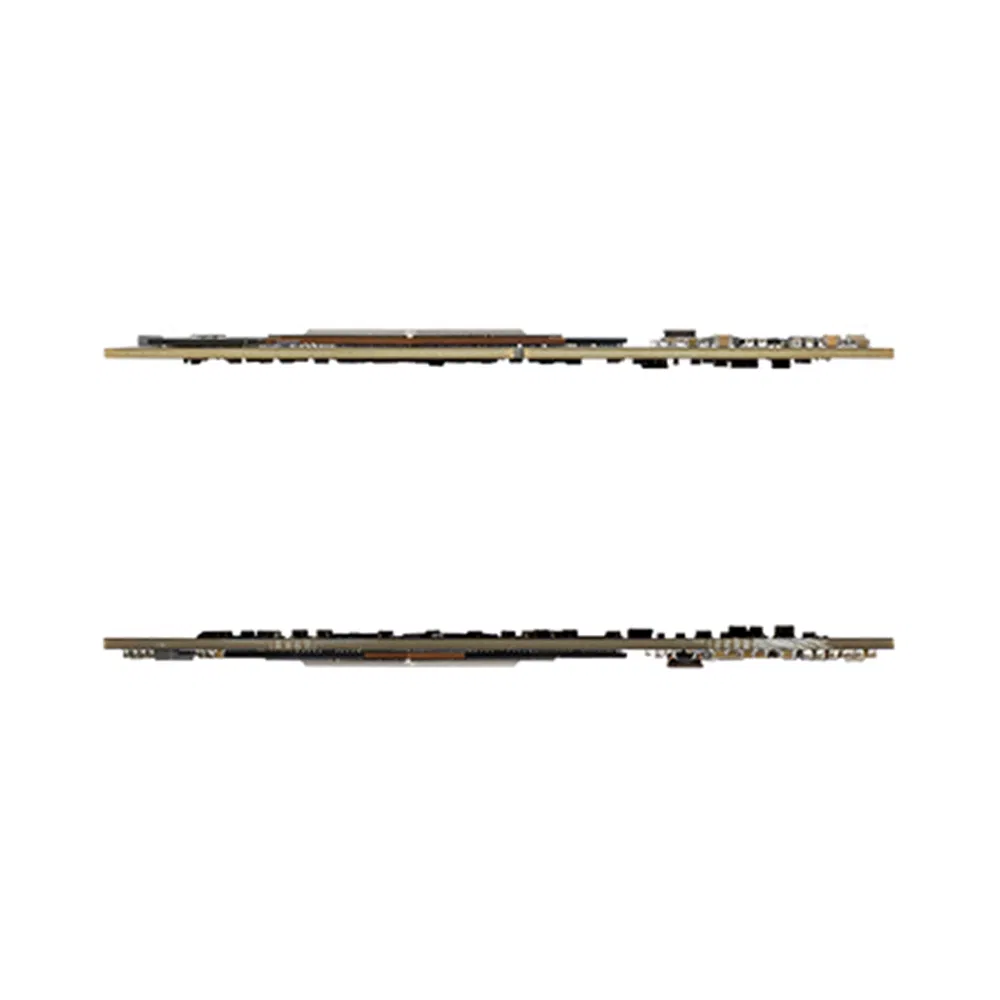

| Physical Size | 54 x 82 x 1.2mm, 8-layer HDI Immersion Gold |
1. AI Computing & Deep Learning: Hardware acceleration for edge devices, facial recognition, and smart surveillance.
2. Industrial Automation: Machine vision, robotic control, and factory automation systems.
3. Multimedia Processing: 8K video playback, video conferencing, and digital signage.
4. IoT Gateways: Exceptional processing power and connectivity for smart home and industrial IoT systems.
We specialize in Android and Linux-based smart display solutions. We offer fully customized solutions as well as off-the-shelf options, focusing on technical development, balancing quality and cost, and providing excellent service. Our smart panels feature functions such as 5G, LTE, Wi-Fi, POE, RS485, KNX, Bluetooth, Zigbee, and AI acceleration to provide superior HMI experiences.
