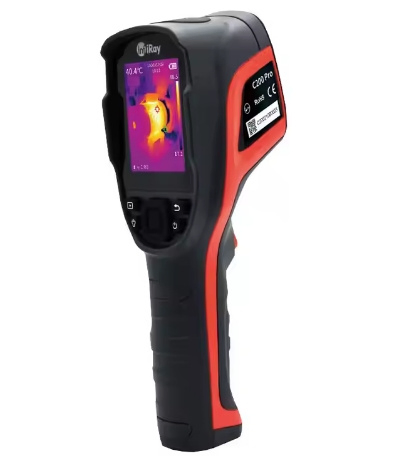

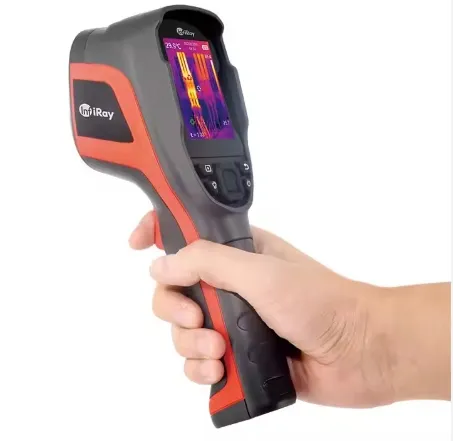

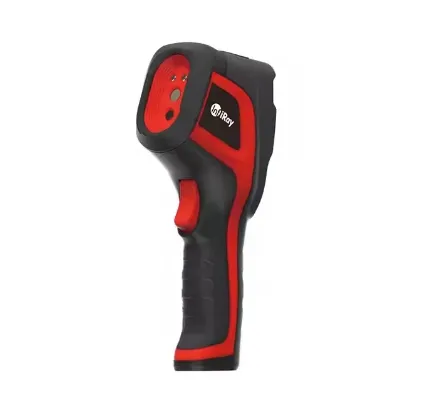

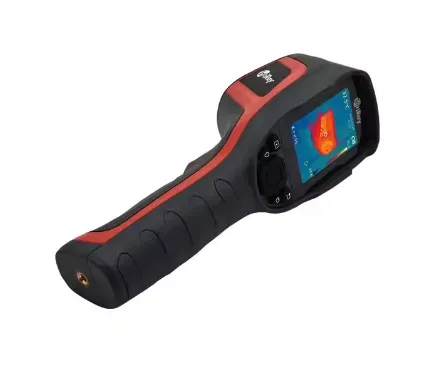

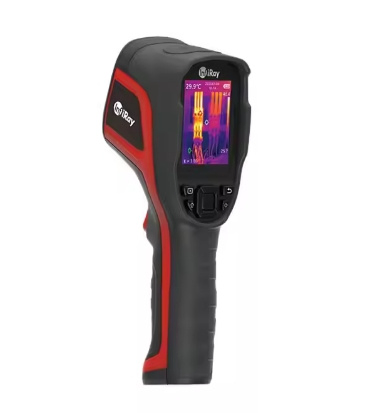

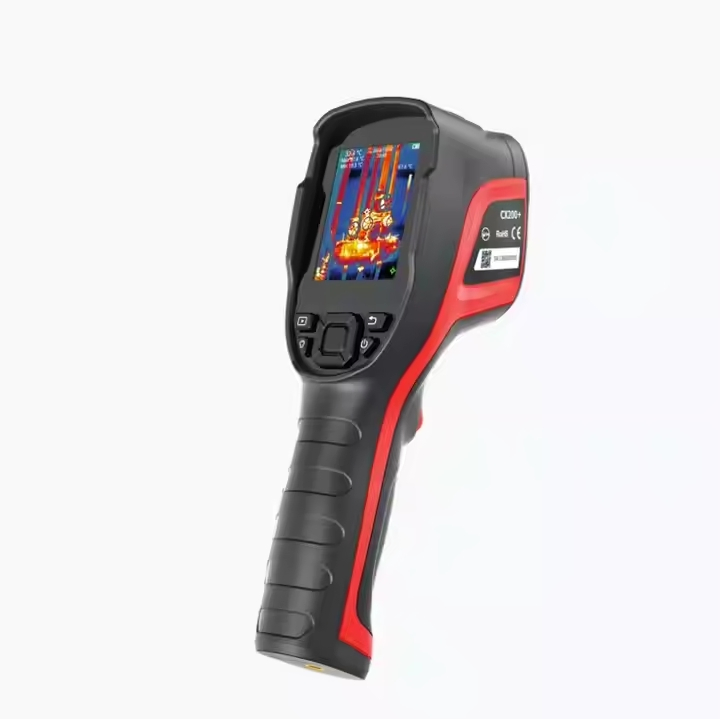

Handheld Infrared Thermal Imaging Camera for Technology Power Maintenance Equipment Inspection

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Basic Information

Model NO.

CX200 PRO+

Application

Entertainment / Industrial

Structure

Handheld Monocular

Detector Resolution

256*192

Infrared Spectral Band

8-14μm

Thermal Sensitivity

40mk

Focusing Mode

Focus-Free

FOV

56°X42°

Shell Material

Professional Plastic / TPU

Product Description

Features of CX200+ SERIES Handheld Thermal Imager

Image+: 12μm 256×192 infrared detector for professional-grade high sensitivity (40mK).
AI Enhanced: Matrix IV image algorithm for superior detail and smaller temperature difference detection.
Display: 500nit sunlight screen, offering 4 image modes and 7 color palettes.
Software+: Complete PC secondary analysis software and mobile App for real-time transmission.
Rugged Performance: IP54 waterproof/dustproof, 2m drop protection, and wear-resistant TPU material.
Long Battery Life: Up to 15-hour operation with built-in 32GB expandable memory.

Technical Specifications

Feature	CX200 SE+	CX200+	CX200 Pro+
Infrared Resolution	256×192
Thermal Sensitivity (NETD)	<40mK (25℃, F1.0)
FOV / Frame Rate	56°×42° / 25Hz
Measurement Range	-20℃ to +400℃	-20℃ to +550℃
Visible Light Camera	No	2 Megapixels
Image Modes	Infrared	Infrared, Visible, PIP, Fusion
Battery Life	~9h	~11h	~15h
Protection Rating	IP54 / 2m Drop Resistance

Packing & Delivery

Packing List: Infrared camera, USB cable, 32GB SD card, Quick start guide, and a professional storage bag.

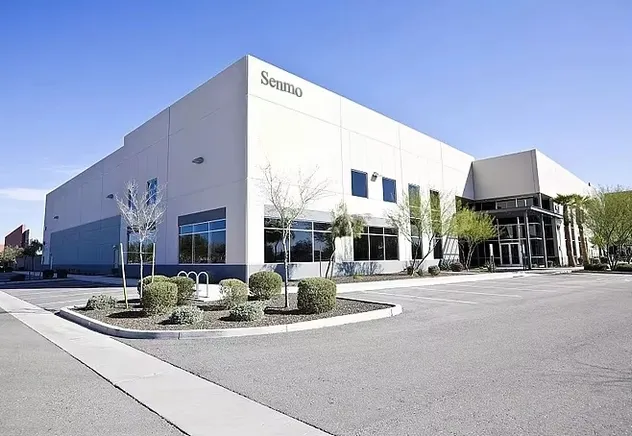

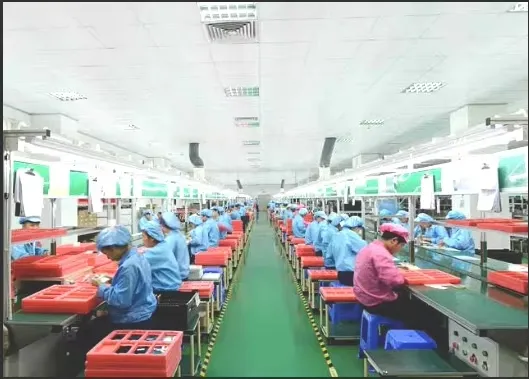

Manufacturing Excellence

With nearly 10 years of industry experience in research, development, and production of optical instruments including thermal imaging and night vision, we provide high-quality and affordable products. Every unit undergoes strict quality inspection before leaving the factory to ensure maximum reliability.

Frequently Asked Questions

1. What are the key features of the CX200+ series?

The series features high-resolution 256x192 sensors, AI-driven Matrix IV image algorithms, high sensitivity (40mK), and a rugged IP54-rated build with up to 15 hours of battery life.

2. Can the thermal images be analyzed on a computer?

Yes, we provide professional PC secondary analysis software for deep thermal data evaluation, along with mobile apps for iOS and Android.

3. Is the device suitable for outdoor or industrial use?

Absolutely. With an IP54 protection rating and 2-meter drop resistance, it is designed for demanding environments like power maintenance, equipment inspection, and outdoor security.

4. How is the quality of the products guaranteed?

We conduct pre-production sample testing and a final 100% inspection before shipment. All products meet strict international standards for optical instruments.

5. What is the difference between the SE+ and Pro+ models?

The Pro+ model offers a longer battery life (15h vs 9h), higher temperature measurement range (up to 550°C), dual-spectrum fusion modes, and WiFi connectivity.

6. Does the package include a memory card?

Yes, it comes with a standard 32GB MicroSD card, which is expandable up to 128GB to store thousands of thermal images and reports.
