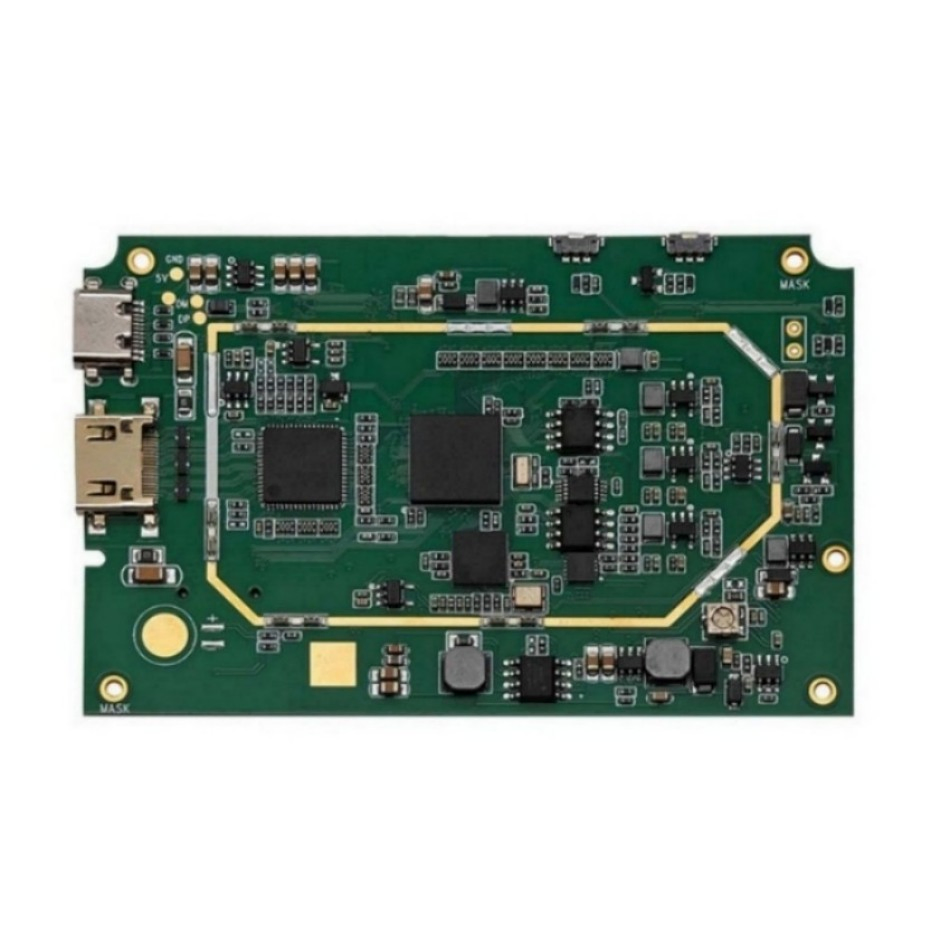

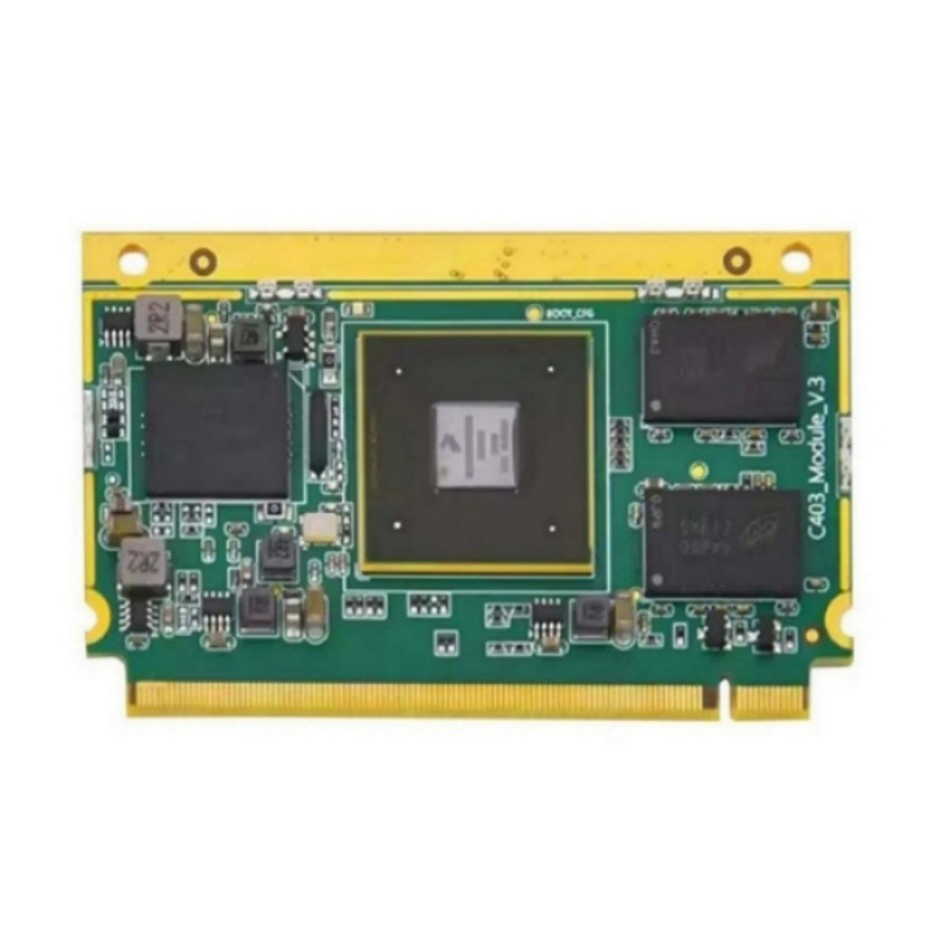

Dust Free Magnetic Resonance Imaging Solutions with Alternative Component Recommendations for Global B2B Buyers

Customization:	Available
Layers:	Multilayer
Base Material:	FR-4

Basic Information

Model NO.

Medical PCBA

Certification

RoHS, CCC, ISO

Customized

Condition

New

Testing Service

Electrical, Flying Probe, Functional

Origin

China

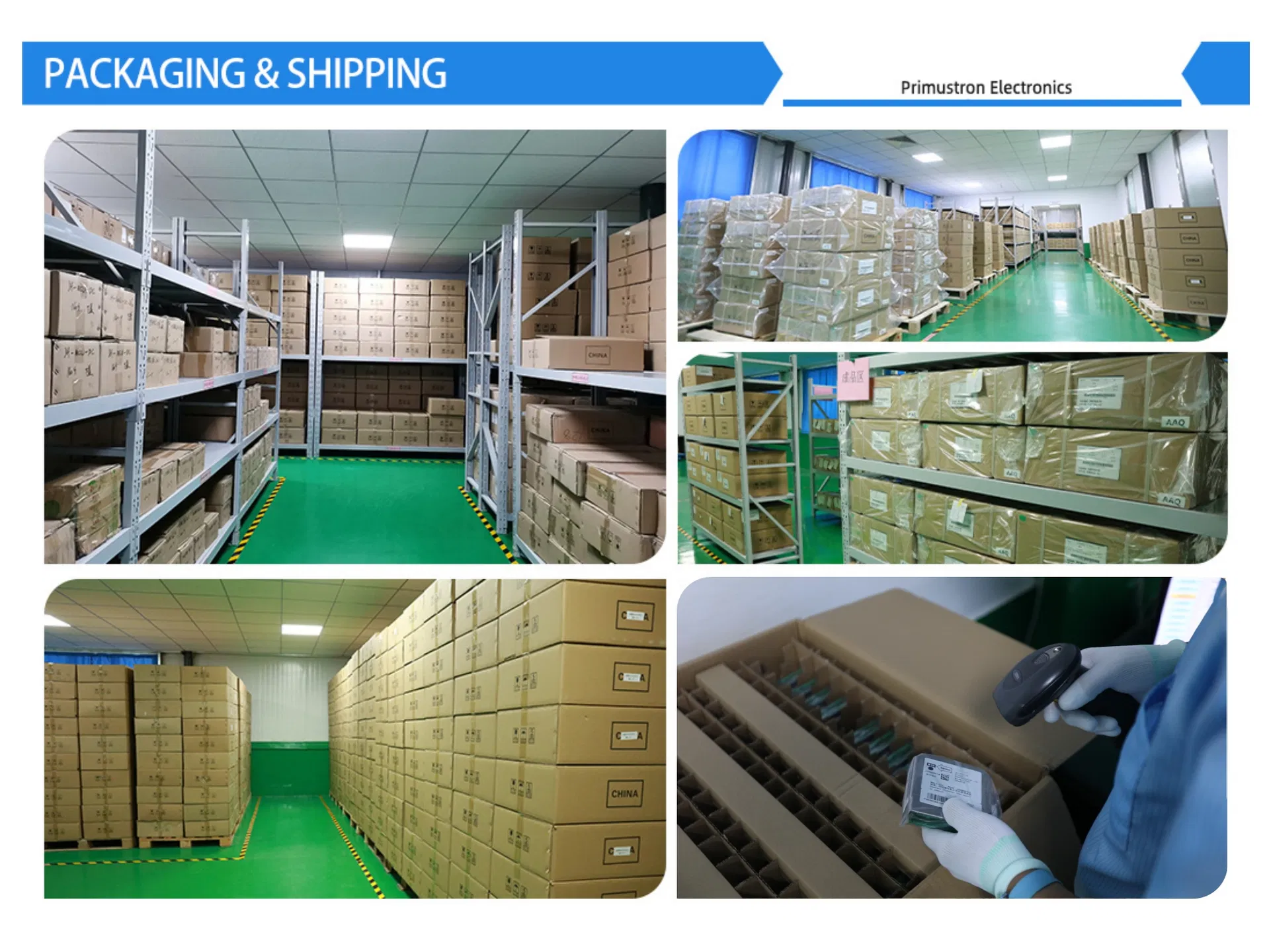

Packaging & Delivery

Package Size

60.00cm * 60.00cm * 40.00cm

Gross Weight

3.000kg

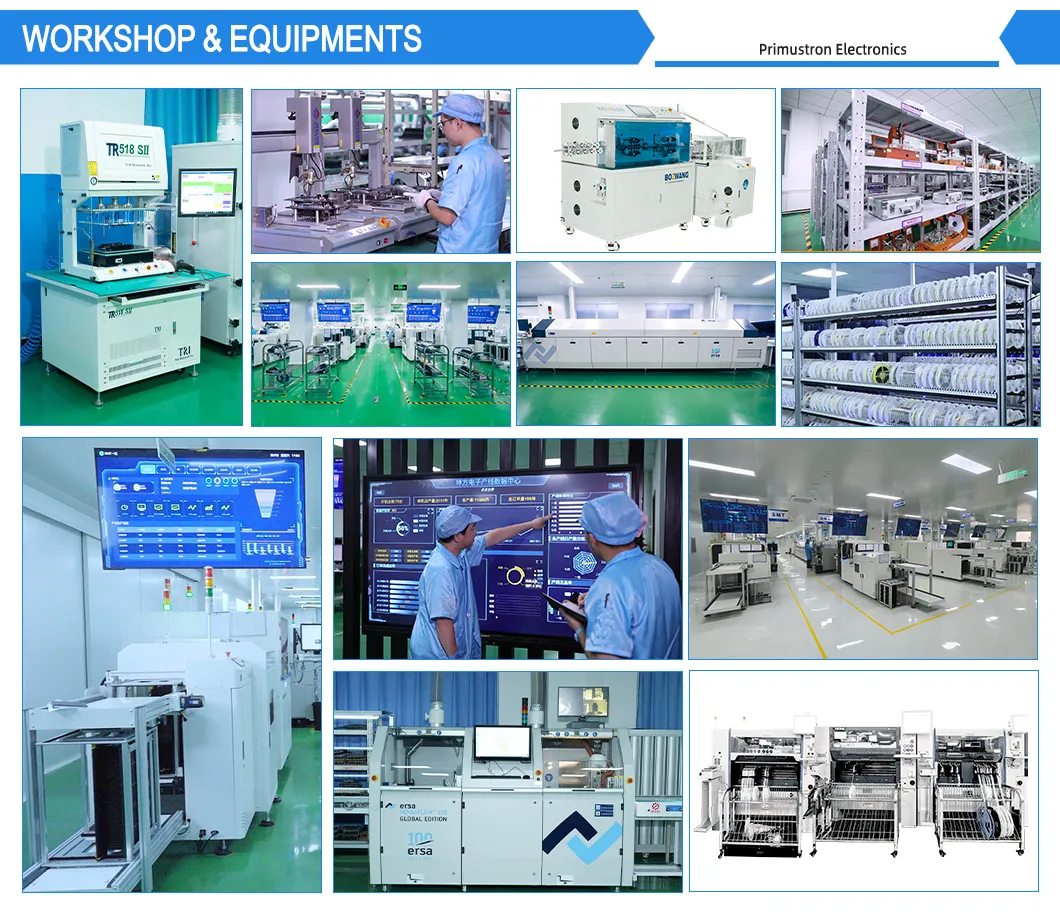

Workshop Introduction

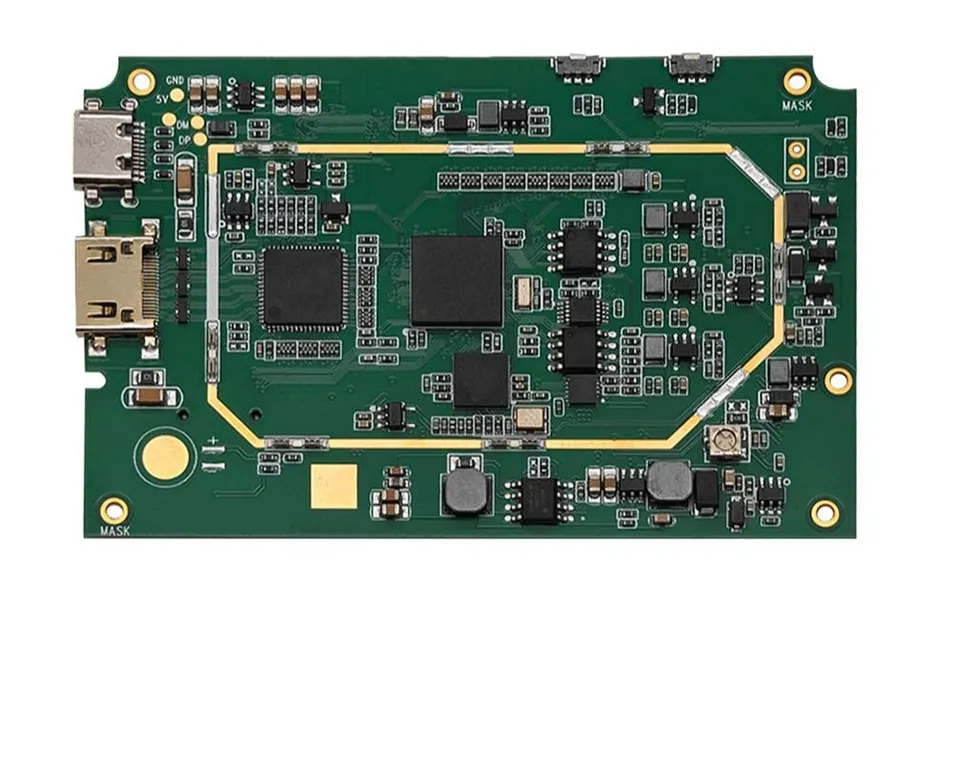

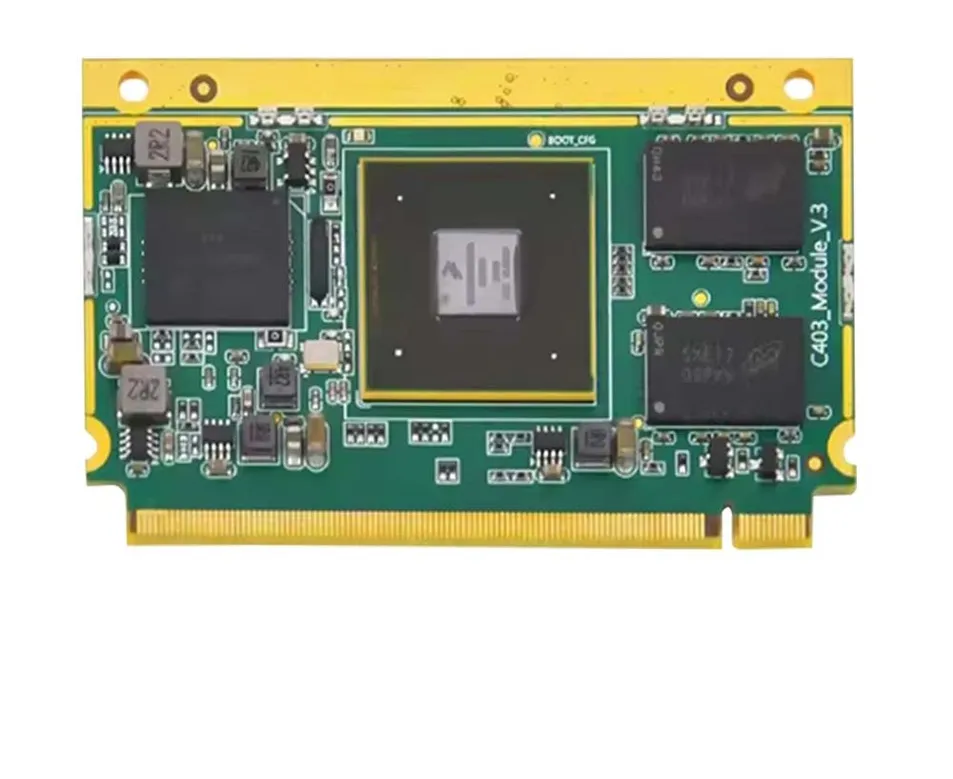

Medical Device PCB Assembly

High-Precision Turnkey PCBA Solutions

Technical Specifications

Feature	Capability & Details

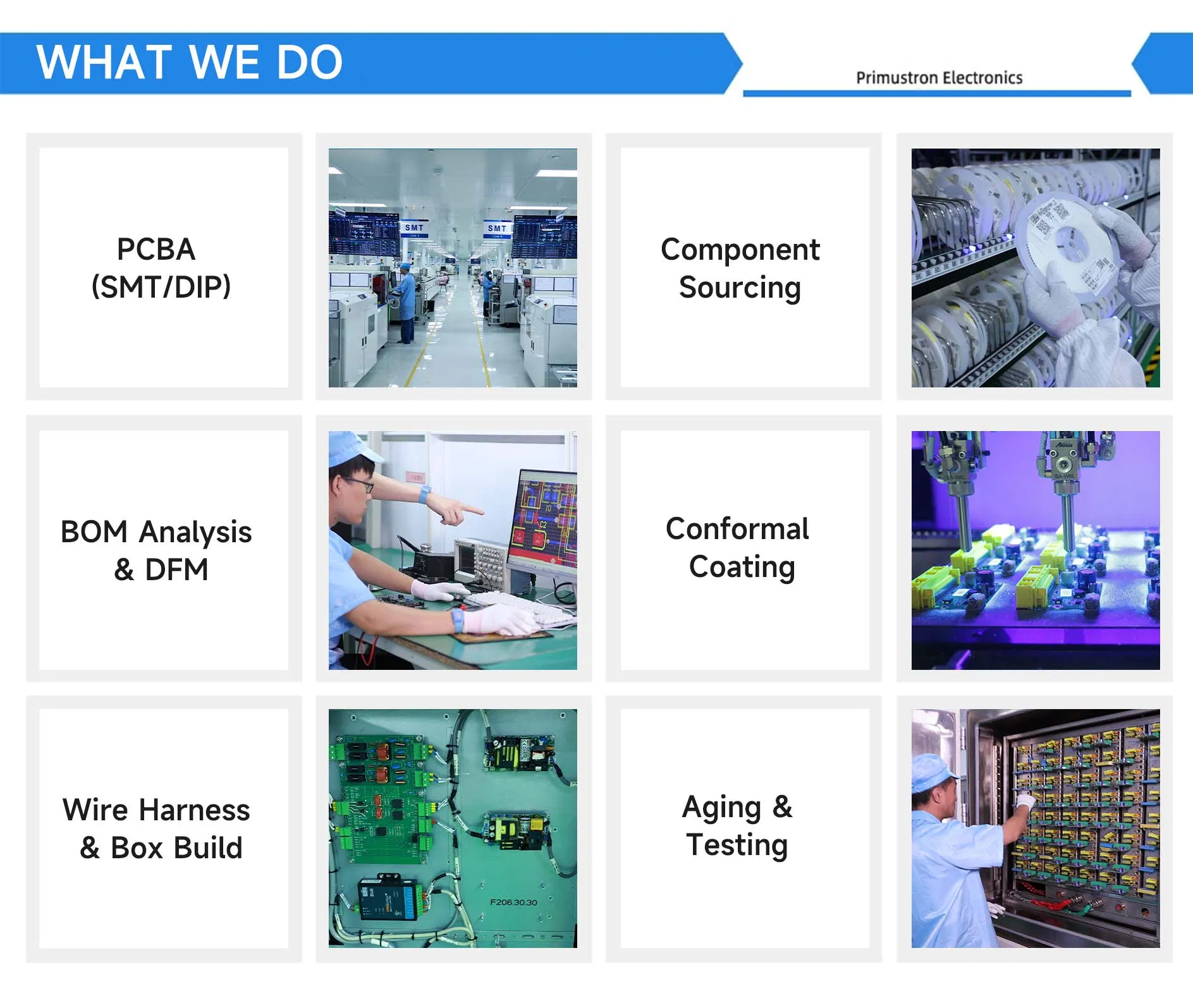

Turnkey Service	PCB Design + FAB + Component Sourcing + PCBA + Box Build + Packaging
Assembly Capacity	SMT: 30 Million points/day; DIP: 100,000 pieces/day
Quality Standards	IPC-A-610 Class 2 / Class 3 (Medical Grade)
Inspection	3D SPI + 3D AOI, X-ray, Flying Probe, ICT, FCT, Burn-in Test
Component Size	Passive: 0201 (01005 support); Fine-pitch BGA, QFN, CSP
Solder Type	RoHS Lead-Free, High-reliability Solder
Certifications	ISO 13485:2016, IATF 16949, ISO 9001, UL, CE, RoHS

Why Choose Our Expertise

✓

For over 20 years, we have dedicated ourselves to serving high-stakes industries including medical devices, automotive electronics, new energy, and rail transit. We provide end-to-end turnkey services encompassing BOM sourcing, product design solutions, SMT/THT assembly, and final logistics delivery.

Our facilities include a Class 10,000 cleanroom, dedicated RoHS-compliant workshops, and specialized lines for small-batch trial production. Our hardware features world-class Japanese high-speed mounters and German nitrogen reflow ovens.

Certificates & Logistics

Frequently Asked Questions

What types of products are your PCBA services primarily targeted at?

We specialize in medical devices, automotive electronics, rail transit, industrial products, new energy, network communication, and instruments with high process complexity.

What information is required for a PCBA quote?

To provide an accurate quote, we require PCB Gerber files, a detailed Bill of Materials (BOM), and your specific test requirements or documents.

What is your minimum order quantity (MOQ)?

There is no MOQ restriction. We fully support both rapid prototype development and high-volume mass production.

Do you ensure confidentiality for our design files?

Yes, we prioritize data security. We are willing to sign Non-Disclosure Agreements (NDA) compliant with local laws to maintain strict confidentiality of all customer data.

What quality standards do you follow for medical PCBA?

We strictly adhere to IPC-A-610 Class 2 and Class 3 standards, and our facility is ISO 13485:2016 certified specifically for medical device manufacturing.

What is the typical lead time for production?

Prototypes usually take 5-10 working days, while mass production typically ranges from 15-25 working days depending on component availability and complexity.
