Point-of-Care Blood Collection System  User-Friendly Blood Sample Collection System with Low Price

1 / 5

Point-of-Care Blood Collection System  User-Friendly Blood Sample Collection System with Low Price

Certification:	CE, GMP, ISO
Condition:	New
Customized:	Customized

Send Inquiry

Product Description

📋 Basic Information

Model NO.

Customized -1

Fill Range

≤49ml

Filling Principle

Auger Filling

Machine Type

Liquid Filling Machine

Voltage

380V

Warranty

1 Year

Working Speed

15000-18000PCS/Hour

Drying Method

PTC Heating with High Pressure Fan

Power

380V/50Hz, 19kw

Compressed Air

0.6-0.8MPa

Space Occupation

6300*1200*2000 mm

Pipe Material

Pet

Applicable Tube Size

13*75/100mm; 16*100mm

Precision

High Precision

Transport Package

Wooden Case

🚀 Product Description

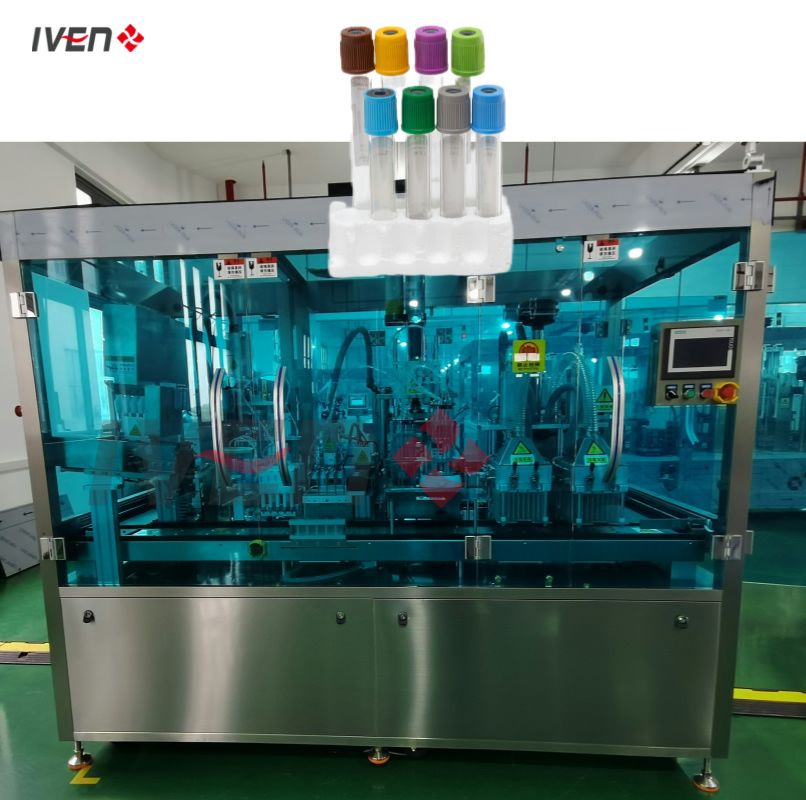

Point-Of-Care Blood Collection System - User-Friendly with Efficient Performance

High Automation: Fully automated assembly operation from tube loading to finished product output. Requires only one skilled operator.
Integrated Design: Optimized footprint with modular standardization for high efficiency and low maintenance.

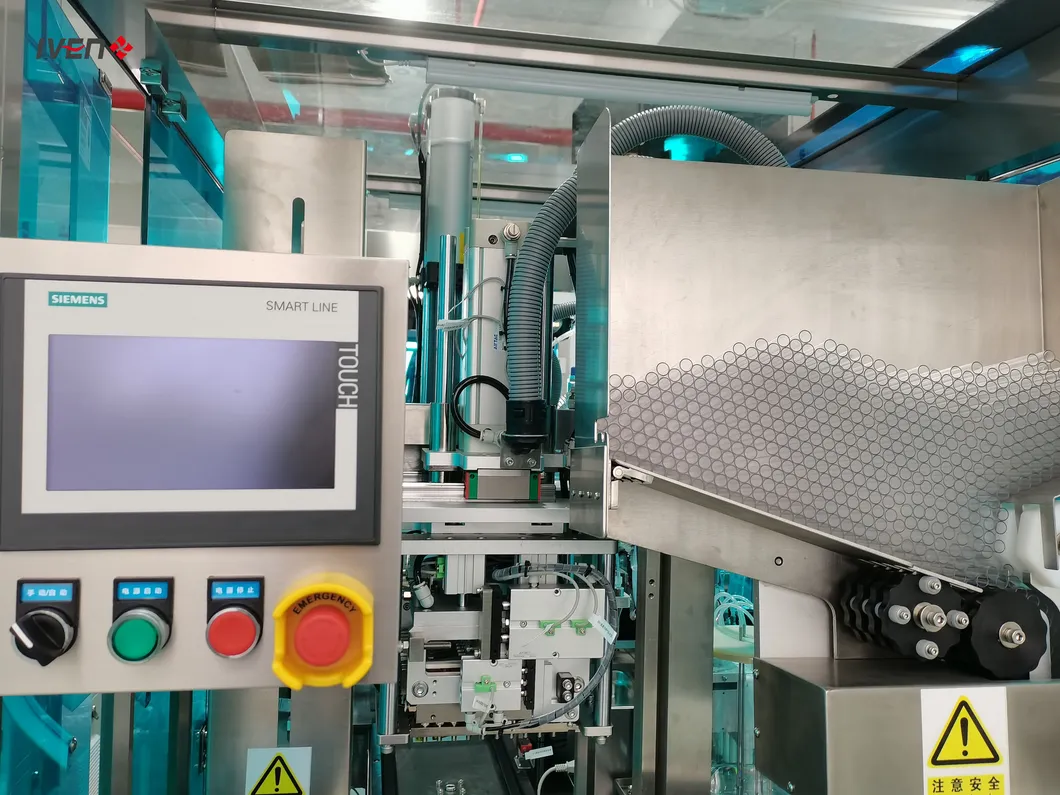

HMI Interface: User-friendly human-machine interface with multifunctional auxiliary operation prompts.

Precise Positioning: Mold frame features positioning pin holes for accurate lifting and workstation alignment.
Online QC Sampling: Trigger sampling via HMI in automatic mode for inspection without halting flow.
Durable Construction: SUS304 material, tempered glass doors, and steel structure frame for high rigidity and shock resistance.

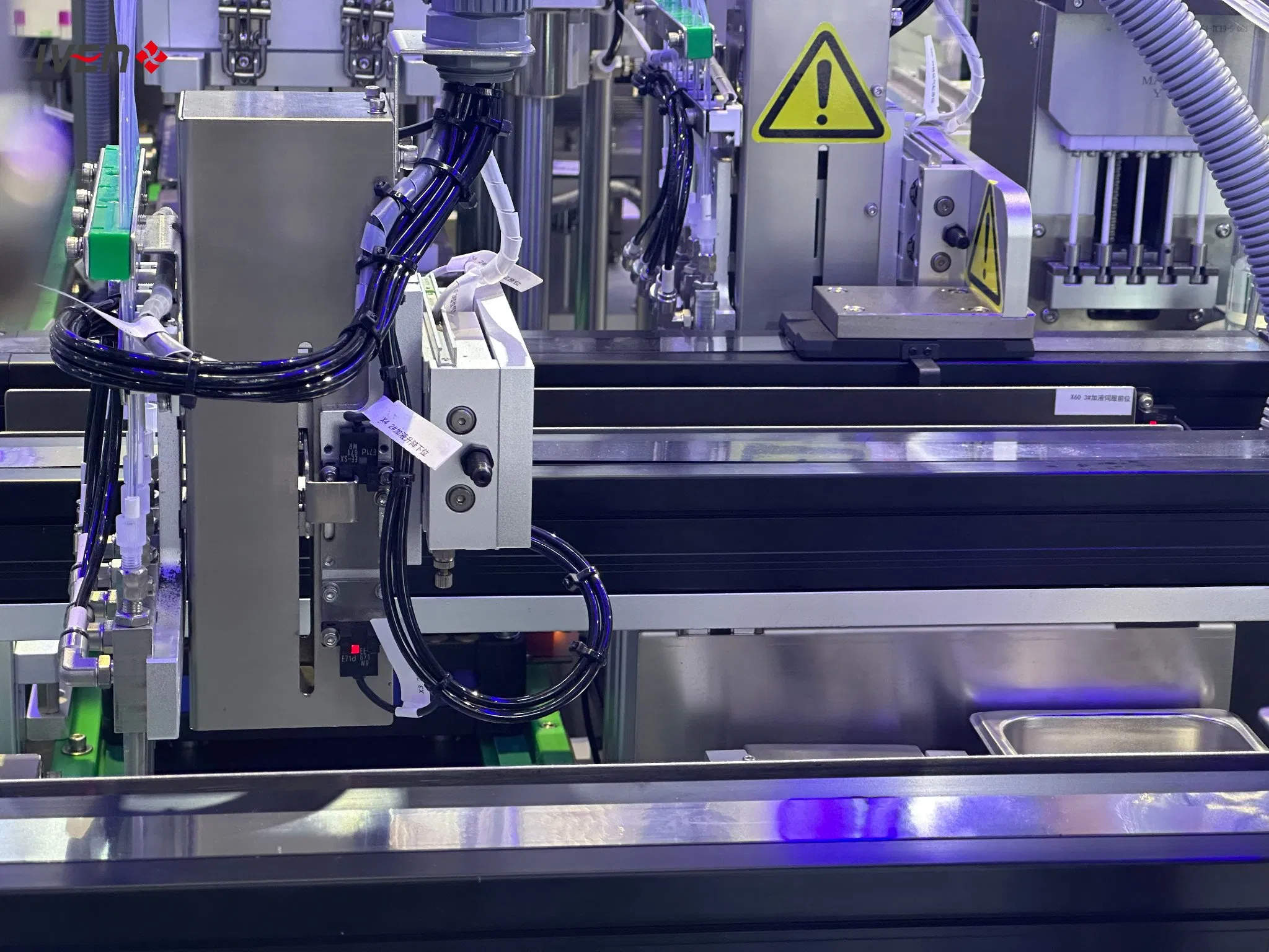

📷 Detailed Photos & Process Flow

Process Description

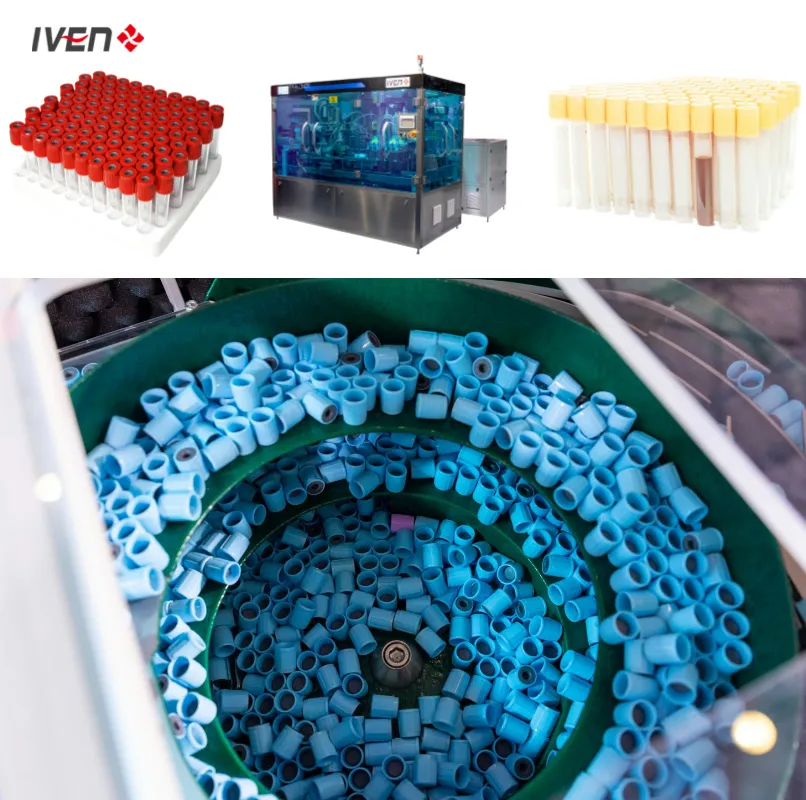

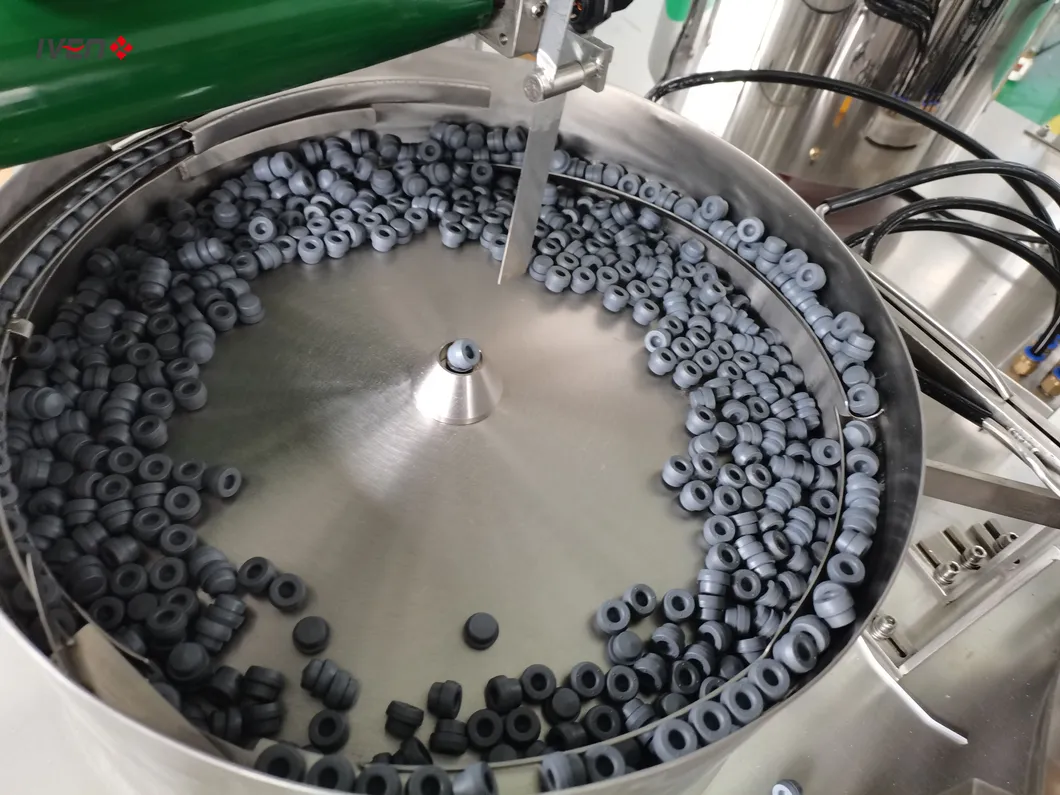

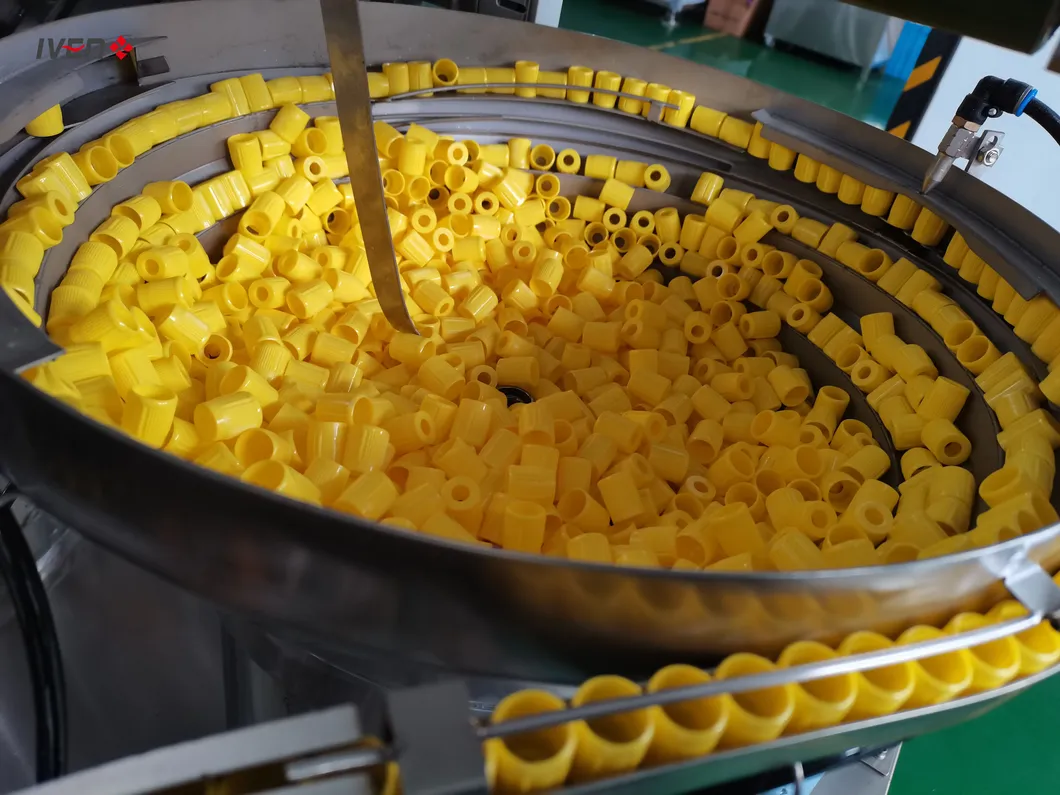

Preparation: Test tubes are placed in the collection hopper, cap plugs in the bin, and foam trays in the box. Reagents are set at dispensing stations.

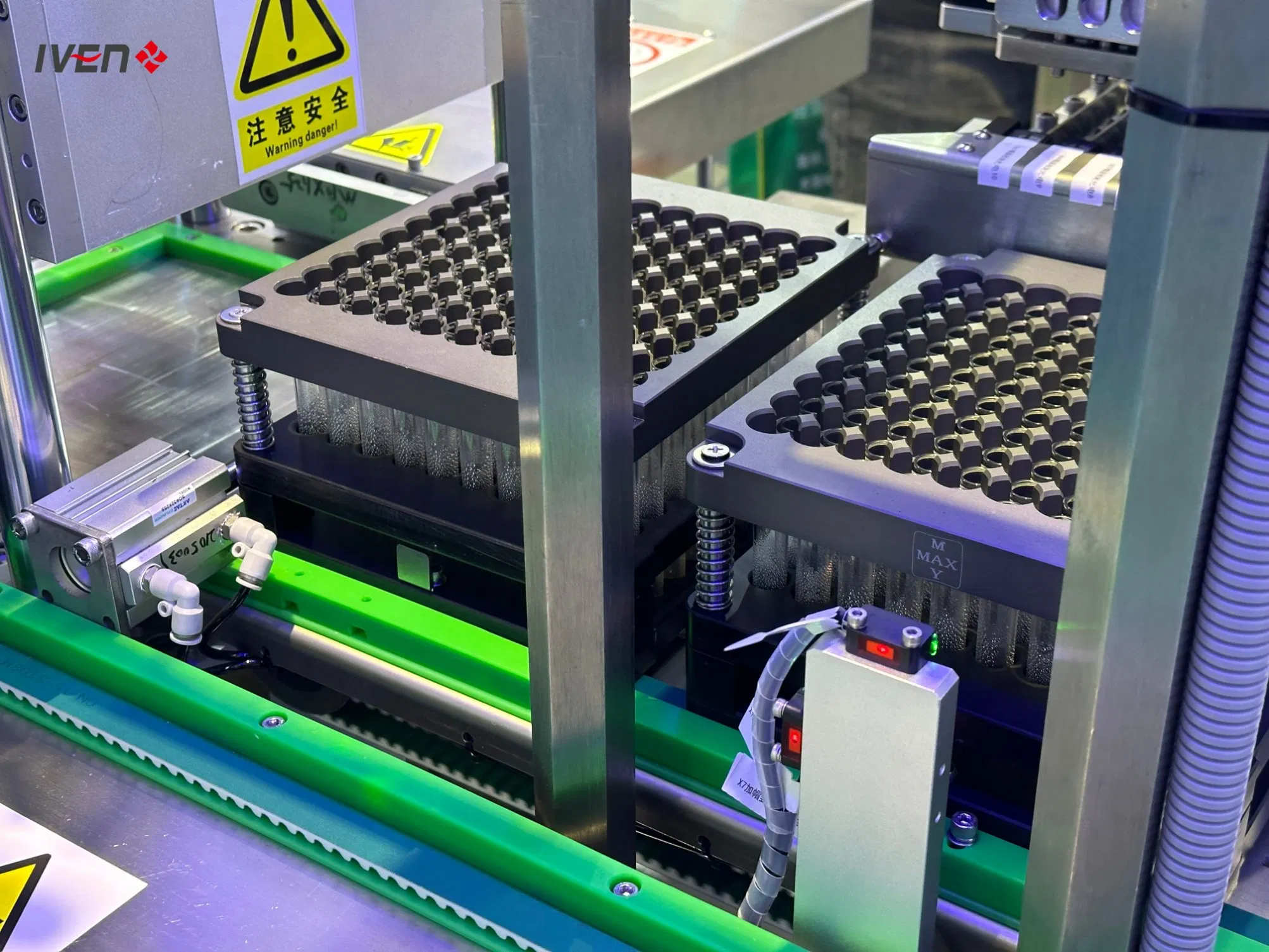

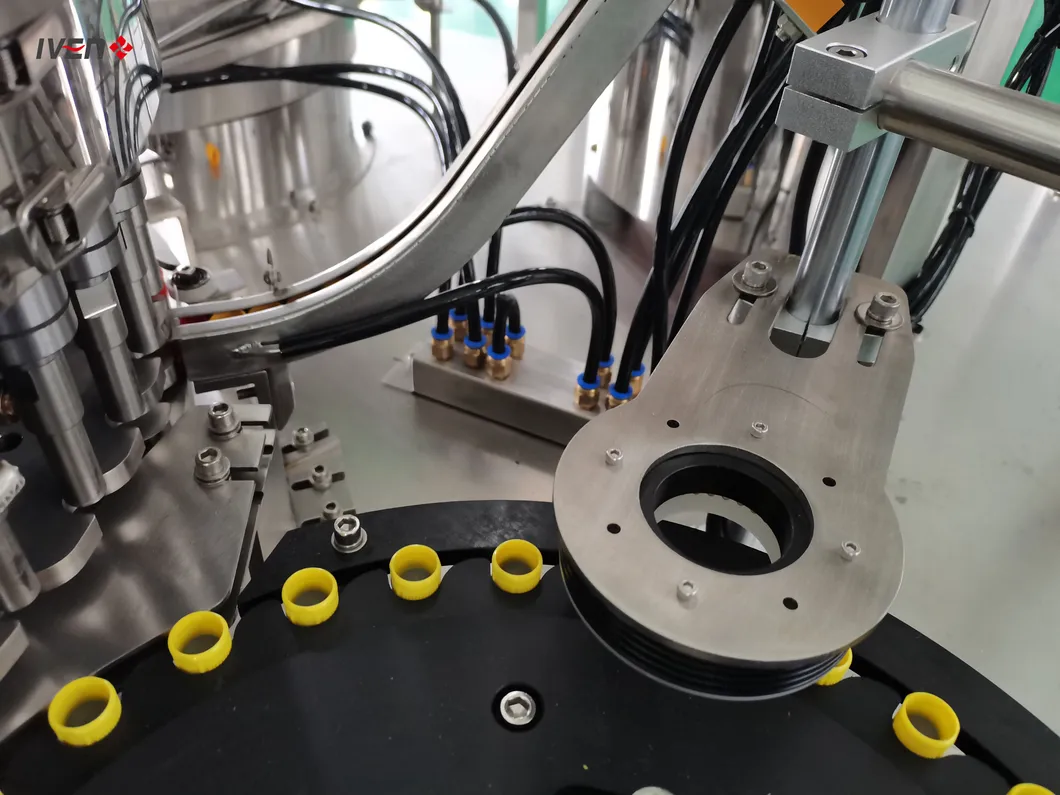

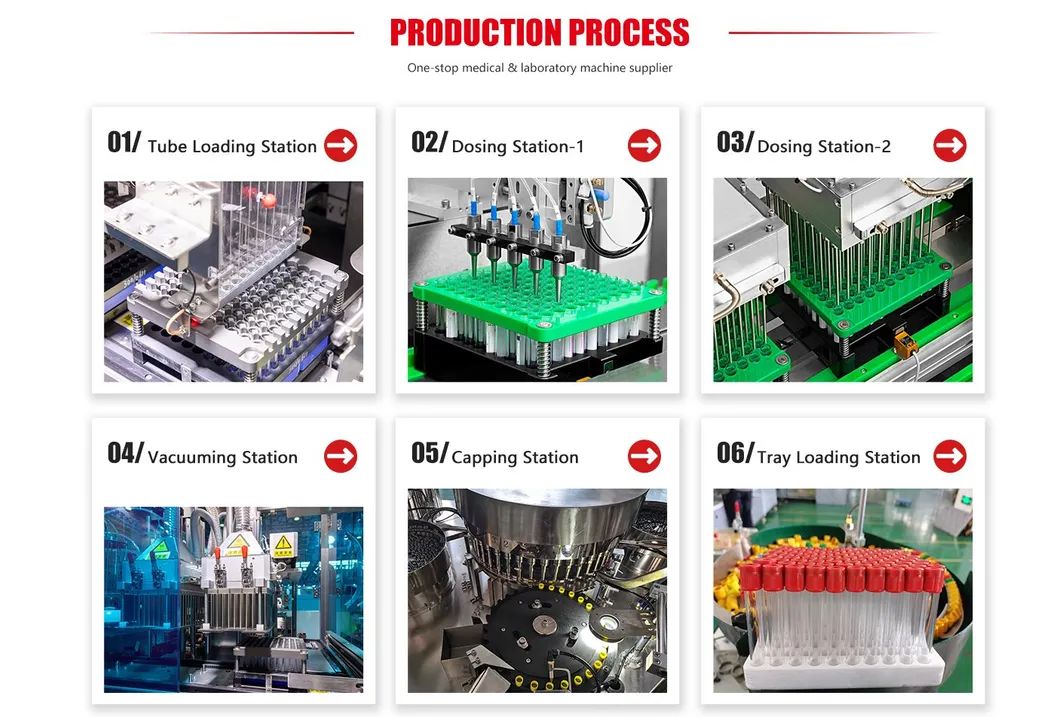

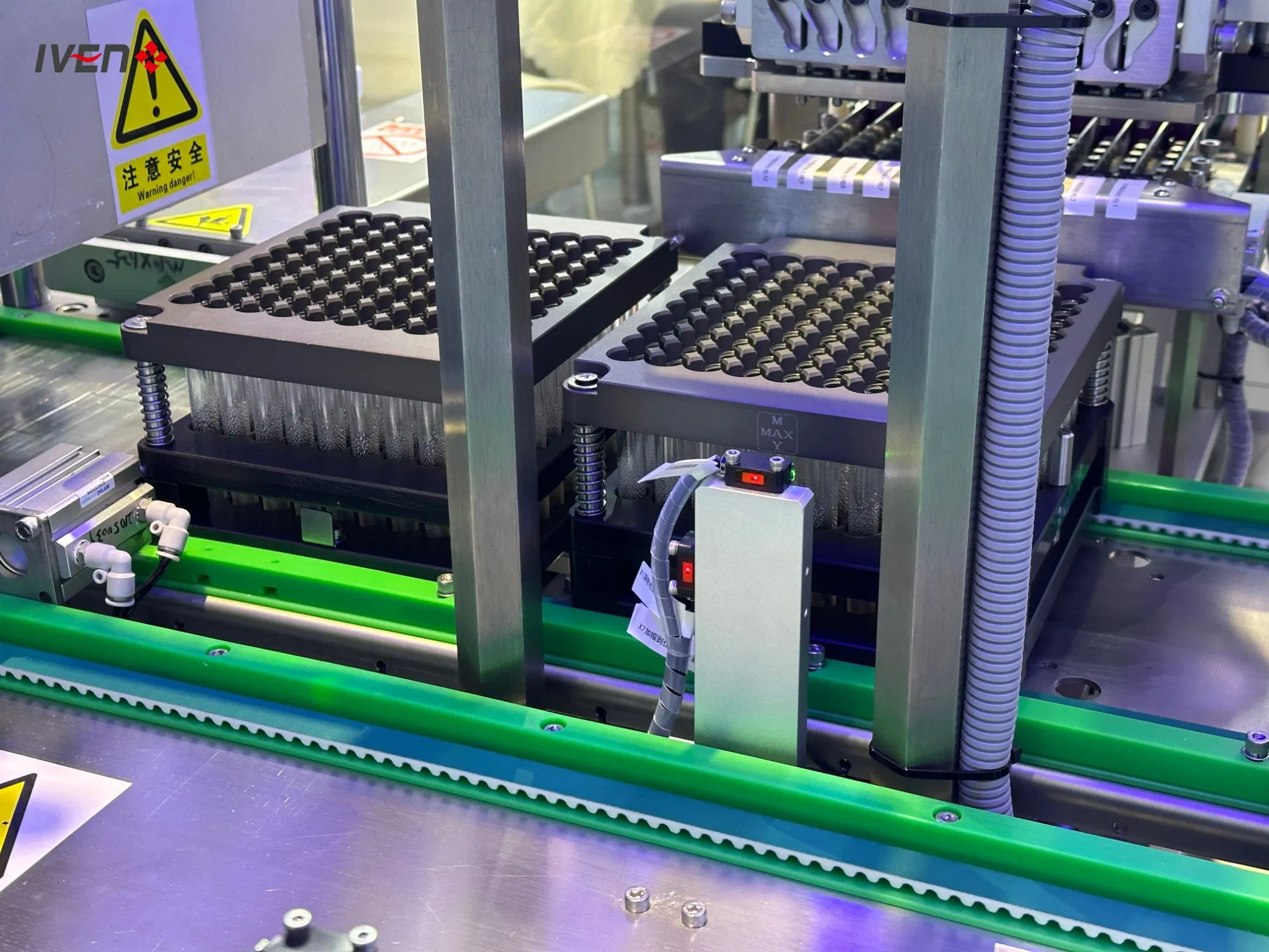

Workflow: Flexible tube loading → Inverted tube detection → Liquid dosing and spraying (3 sets) → Drying (2 sets) → Capping → Vacuuming → Staggered loading tray.

⚙️ Technical Parameters

Name	Parameters
Applicable test tube specifications	Ø 13 × 75/100mm
Production capacity	~10000 pieces/hour (Max 15000-18000 based on configuration)
Liquid filling method and accuracy	Ceramic injection pumps (5 nozzles) ≤± 3% (base 200 µL) / Glass pump ≤± 5% (base 20 µL)
Cap plug specifications	Upper press in or lower press in (Customizable)
Vacuum degree	≤± 3% (100 tubes measurement base)
Power Supply	380V/50HZ
Air Consumption	0.6-0.8Mpa, <500L/min
Dimensions	2400 * 1200 * 2000 mm (+300mm alarm light)

🏢 About Us

❓ Frequently Asked Questions

What is the production capacity of this blood collection tube machine?

The system features a high-speed production capacity ranging from 15,000 to 18,000 pieces per hour, depending on the specific tube size and configuration.

Which tube sizes are compatible with this equipment?

The machine is designed to handle standard tube sizes including 13*75mm, 13*100mm, and 16*100mm. It can be further customized for specific requirements.

How many operators are needed to run the production line?

Thanks to its high degree of automation, the entire production line typically requires only one skilled operator to monitor the system and manage material input/output.

What is the accuracy level of the liquid filling system?

The system utilizes high-precision ceramic or glass injection pumps, achieving a precision level of ≤± 3% to ≤± 6% depending on the dosing volume (e.g., 20µL to 200µL).

What materials are used in the construction of the machine?

The machine frame and sheets are primarily constructed from SUS304 stainless steel with nano treatment, and it features tempered glass doors for durability and hygiene.

Does the machine include a drying system?

Yes, the machine includes two sets of drying stations utilizing PTC heating combined with high-pressure fans to ensure reagents are properly dried before capping.
