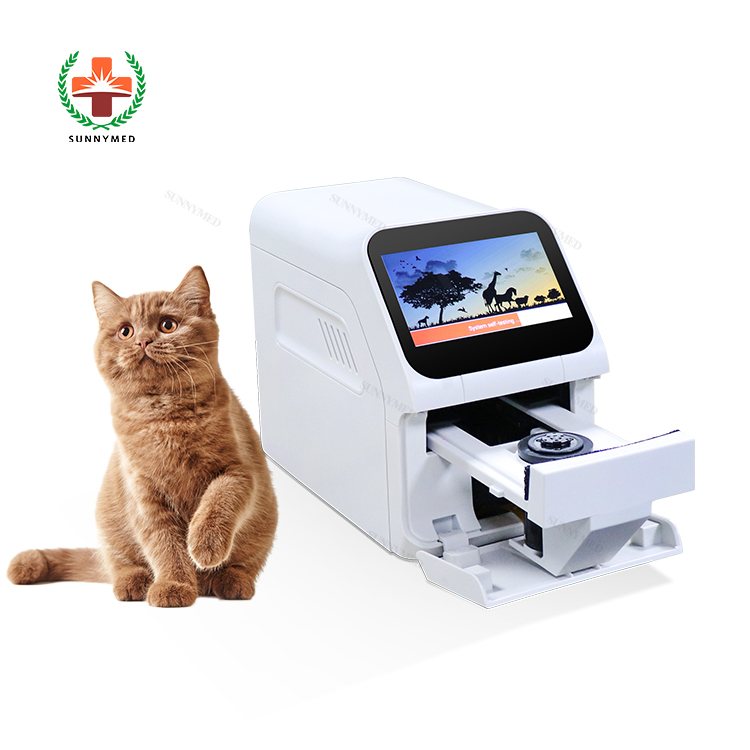

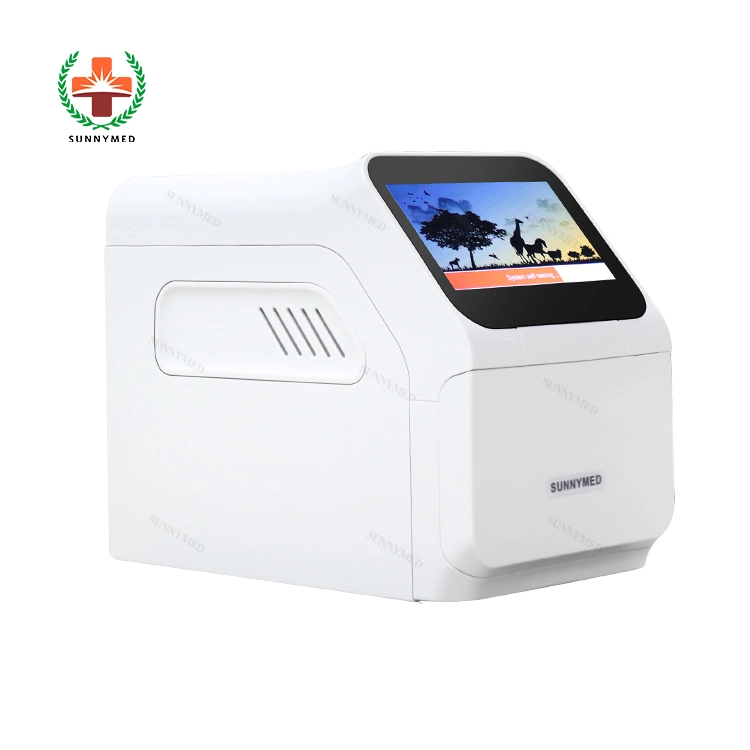

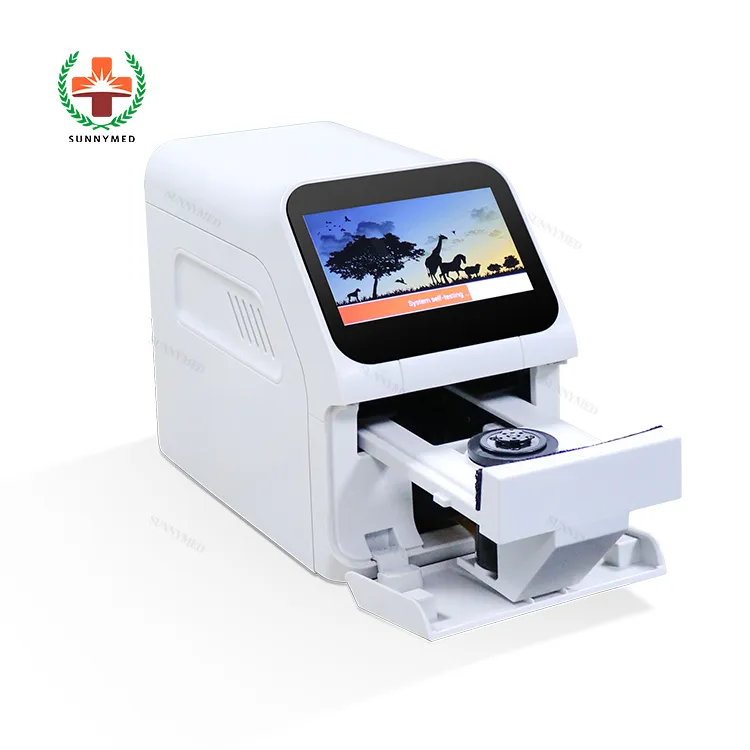

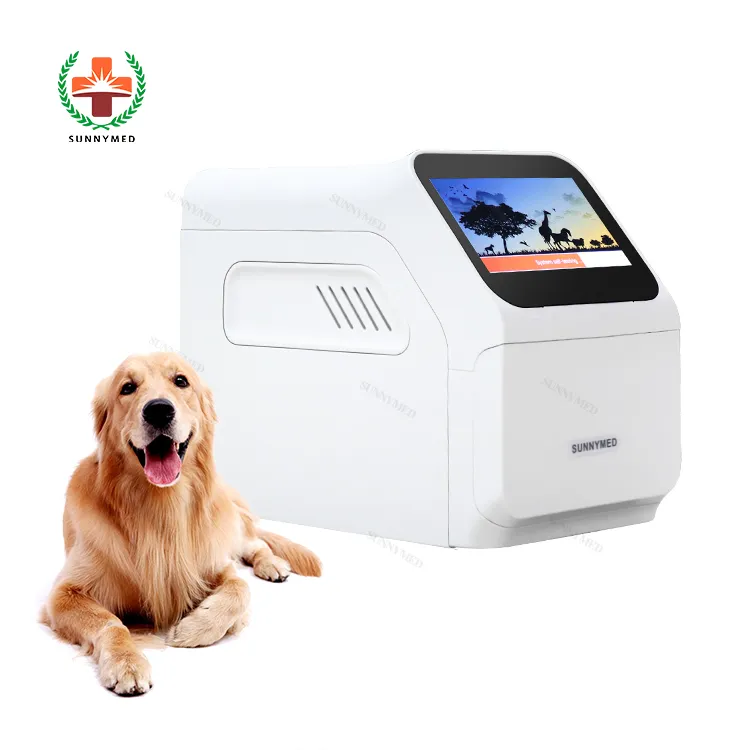

Point of Care Chemistry Analyzer
| System Parameters | |
|---|---|
| Sample Type | Whole blood(lithium-heparinized), Plasma(lithium-heparinized), Serum |
| Sample Size | 100μl |
| Time to Results | About 10 minutes |
| Parameters | Up to 17 parameters in one test, 32 parameters configured into 9 profiles |

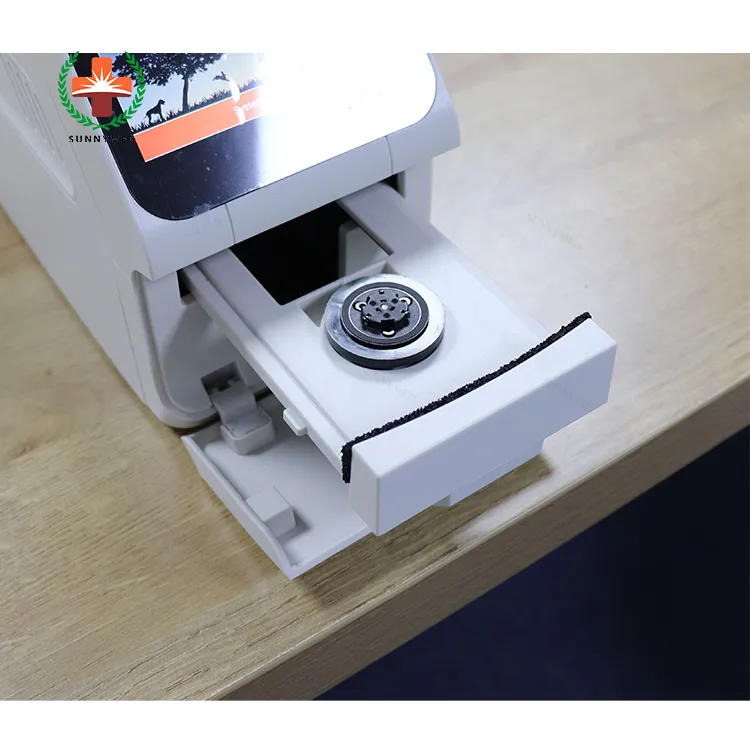

| Reagent Disc | Disposable, prepackaged with self-contained lyophilized reagent |
| Calibration | Automatic self-calibration by scanning QR Code on the aluminum foil pouch |
| Quality Control | Built-in Realtime Quality Control(RQC) system |

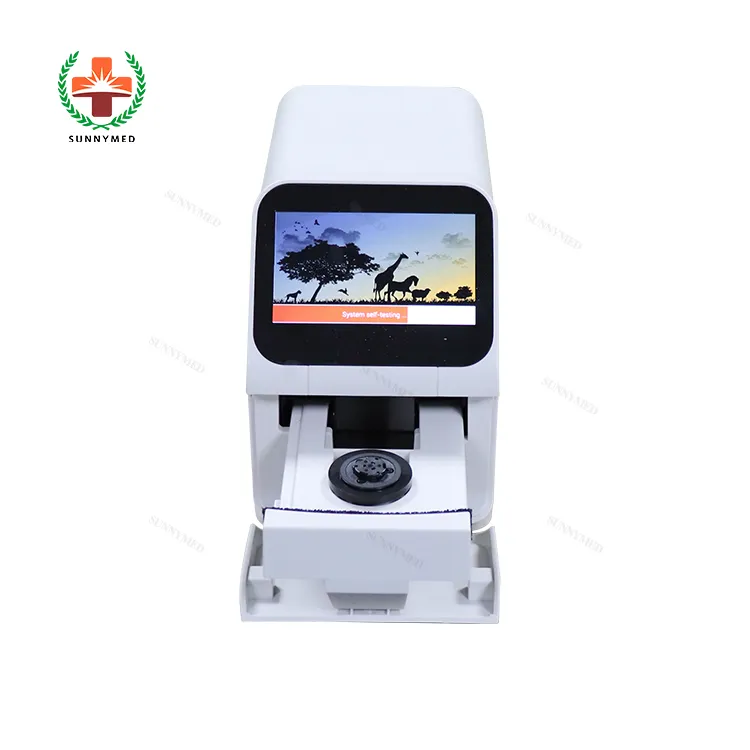

| User Interface | Full-color touch screen |

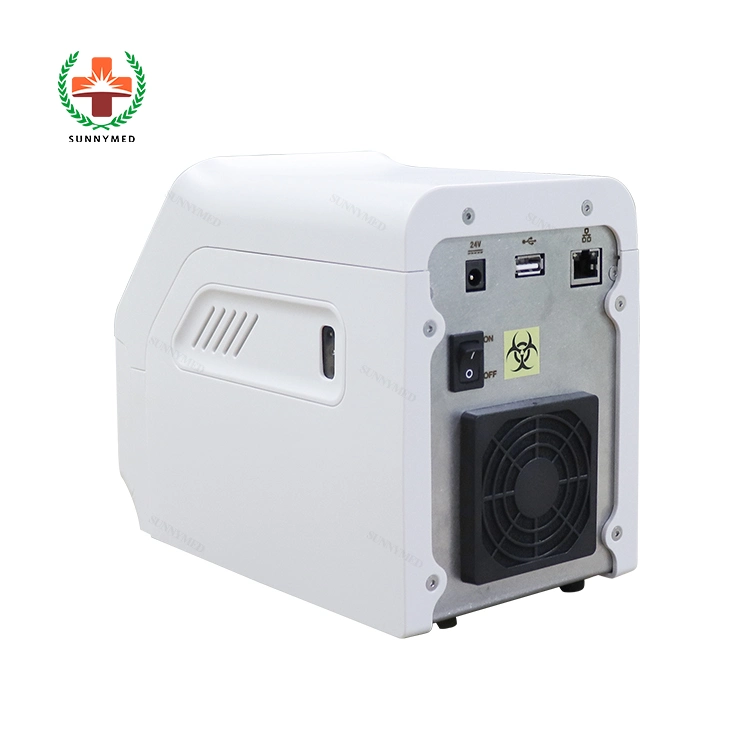

| Connection Interfaces | WLAN, USB port, Ethernet interface, compatible with HIS |
| Reaction Temperature | 37ºC±0.1ºC |
| Data Capacity | More than 50,000 sets of patient and quality control data |
| Dimensions | 21(L)*12.5(W)*17.5(H)cm |
| Weight | 2.3kg |
| Profile Name | Parameters Included |
|---|---|
| Health Checking Profile | ALB, ALP, ALT, AMY, BUN, Ca2+, CRE, GLOB*, GLU, PHOS, TBIL, TP, CHOL, CK |
| Liver Profile | ALB, ALP, ALT, GGT, TBIL, DBIL, IBIL*, TP, GLOB*, AST |
| Kidney Profile | ALB, BUN, CRE, PHOS, tCO2, Ca2+, K+ |
| Preanesthetic Panel | ALP, ALT, BUN, CRE, GLU, TP |
| Preanesthetic Panel Plus | ALP, ALT, BUN, CRE, GLU, TP, AST, CK, LDH |
| Liver & Kidney Profile | ALB, ALT, CRE, BUN, GGT, TBIL, GLU, TP, GLOB*, AST |
| Electrolytes | CL-, K+, Na+, tCO2, Ca2+, Mg2+ ,P |
| Critical Care Panel | ALT, BUN, CL-, CRE, GLU, K+, Na+, tCO2 |
| Large Animal Diagnostic | ALB ALP AST BUN Ca2+ CK GGT GLO* Mg2+ P TP |
