Wuhan Factory Hydraulic Drive Self-Propelled Container X-ray Scanning System MRI Scanner

Customization:	Available
After-sales Service:	Remote Support
Warranty:	1year

Send Inquiry

Product Description

Basic Specifications

Model NO.

Iwildt an-48003200hms

Certification

CE, ISO

Form

Flatbed

Application

Security Check

Type

Industrial High-Definition X-ray Detector

Ray Energy

6mev

Channel Size

5.0m (W) X 5.0m (H)

External Dim.

7.5m x 7.5m x 6.2m

Product Introduction

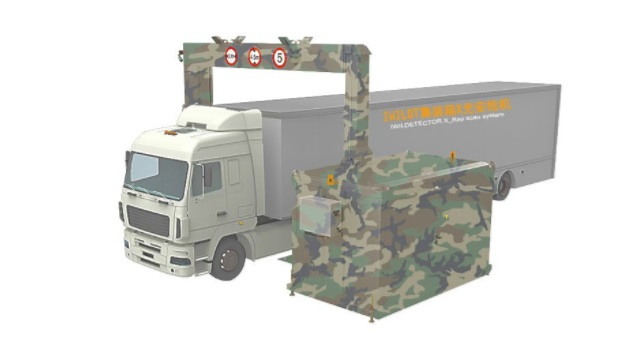

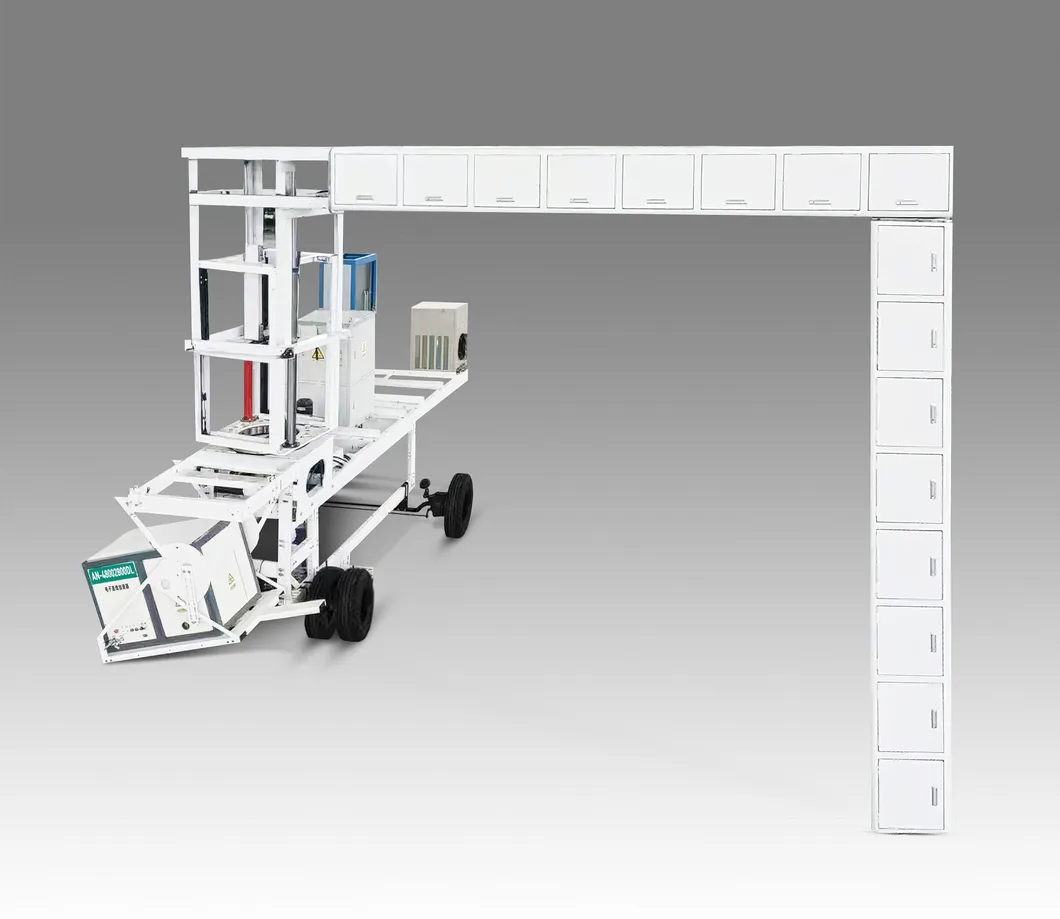

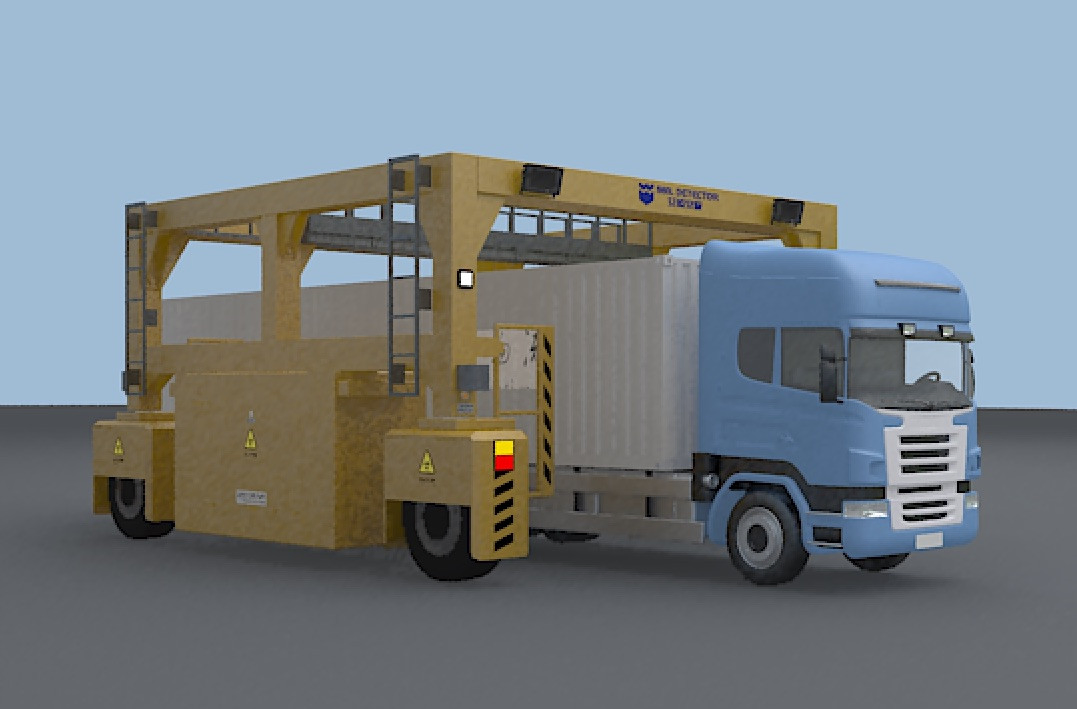

The AN-48003200HMS is a hydraulic drive self-propelled container X-ray scanning system designed for high-security inspection at customs ports. Featuring a self-propelled chassis driven by an electric hydraulic pump and three servo electric steering gears, this gantry-type system provides unparalleled scanning flexibility.

Utilizing a multi-energy 6MeV electron accelerator, the system achieves a steel plate penetration of up to 300 mm. In active mode, it scans up to 80 trucks per hour, while passive mode allows for 100 trucks per hour.

Technical Parameters

⚡ X-Ray Source

Ray energy: 6MeV side illumination type
Penetration: Maximum 300 mm thick steel plate
Protection: 100 mm thick lead tank shielding
Collimator: Electric shutter device with ultra-narrow slit beam

🔍 Detection System

Detection crystal: YSO with CMOS photoelectric conversion
Pixel Arrangement: L-shaped line array (4096 pixels)
Data Link: 5G WiFi or cable optical fiber communication

⚙️ Equipment Performance

Scanning Speed: 0.8m/s (Pass rate: 80-100 containers/hour)
Chassis: Hydraulic motor with servo electric actuators
Battery: Blade type modular lithium battery (195ah)
Waterproof Grade: IP45 for outdoor complex environments

Why Choose This System?

National high-tech manufacturing standards
Professional technical support and overall security solutions
High-quality pre-sale, sale, and after-sales service systems

Frequently Asked Questions

What is the maximum penetration power of the X-ray system?

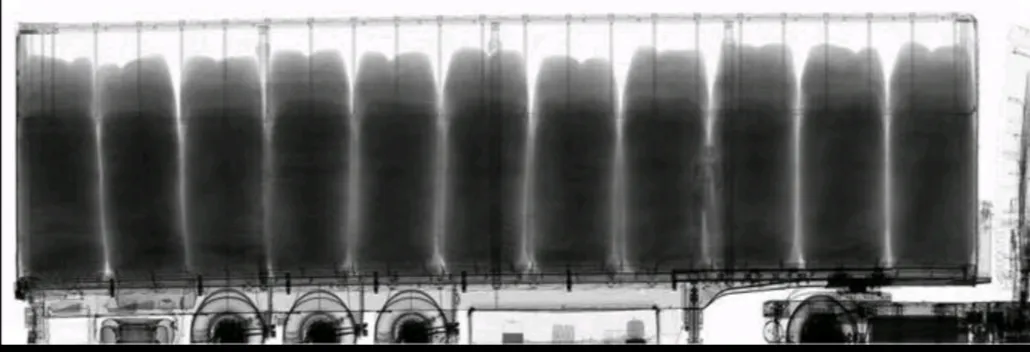

The system utilizes a 6MeV electron accelerator which can penetrate up to 300 mm of thick steel plate, allowing for clear imaging of cargo inside heavy containers.

How many containers can the system scan per hour?

In active scanning mode, it can process 80 container trucks per hour. In passive scanning mode, the efficiency increases to 100 container trucks per hour.

Is the equipment suitable for outdoor use in harsh weather?

Yes, it features an IP45 waterproof grade and an operating temperature range of -20°C to +43°C (with options for up to +50°C), making it ideal for port and border environments.

What kind of data transmission does the system support?

The system supports dual-link data transmission via 5G WiFi and cable optical fiber, ensuring high-speed and stable image data transfer.

How is radiation safety managed for the operators?

The X-ray source is shielded by a 100mm thick lead tank. Additionally, the scanning process allows drivers and passengers to stay away from the radiation source to meet international safety standards.

What is the warranty and after-sales support period?

The equipment comes with a 12-month free warranty including parts and services. We also provide technical support for up to 5 years after the warranty period.
