Product Description

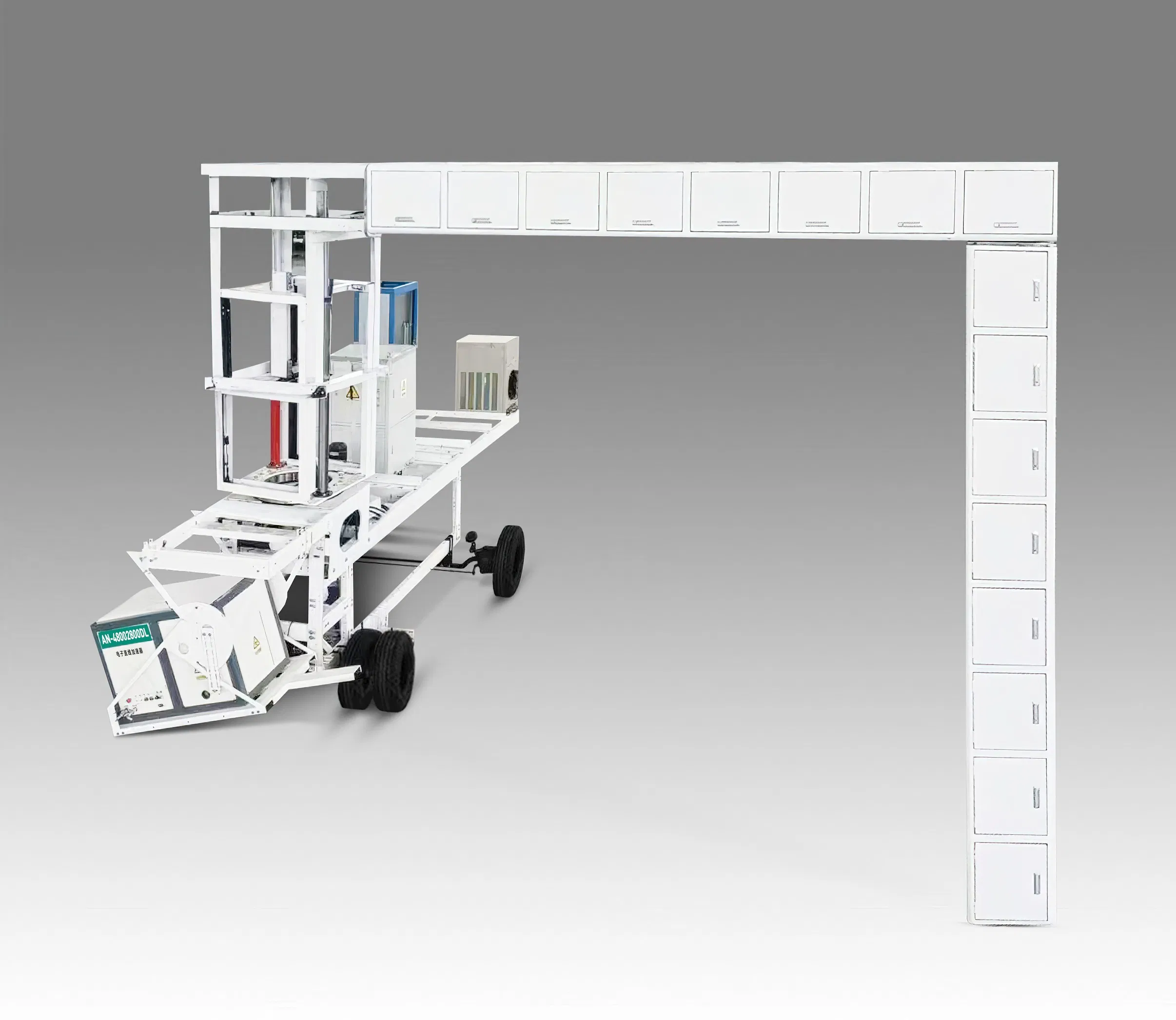

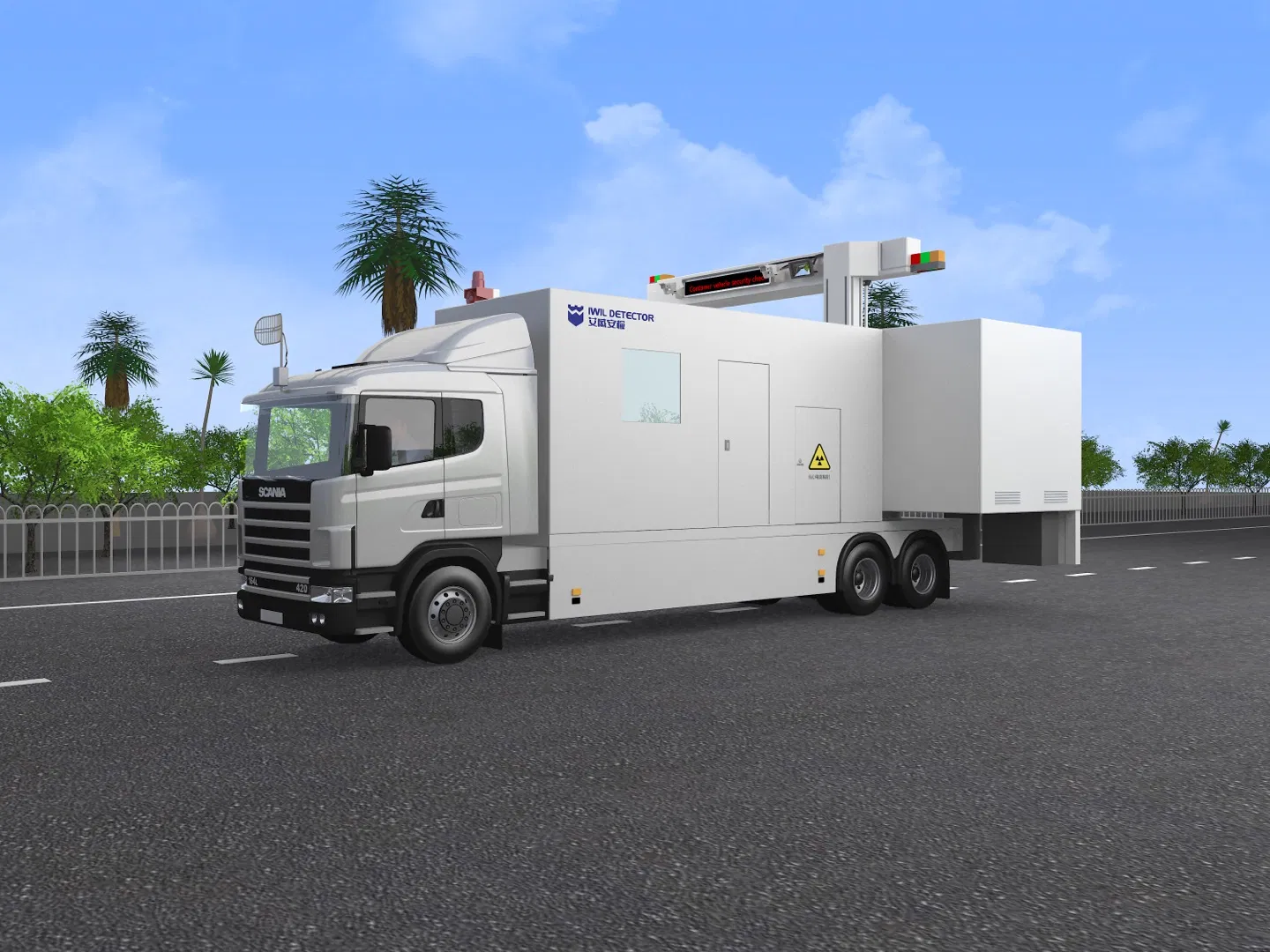

AN-48002800 X-ray Security Inspection System

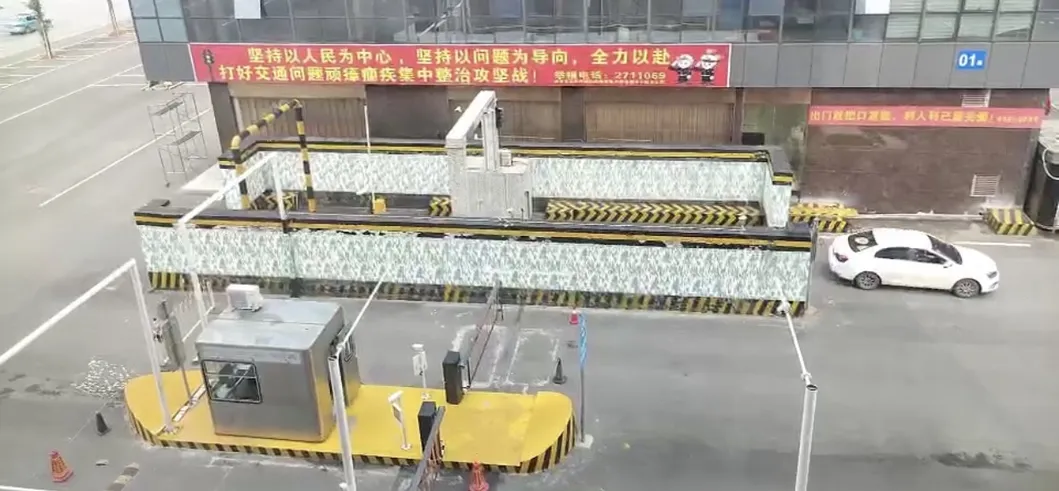

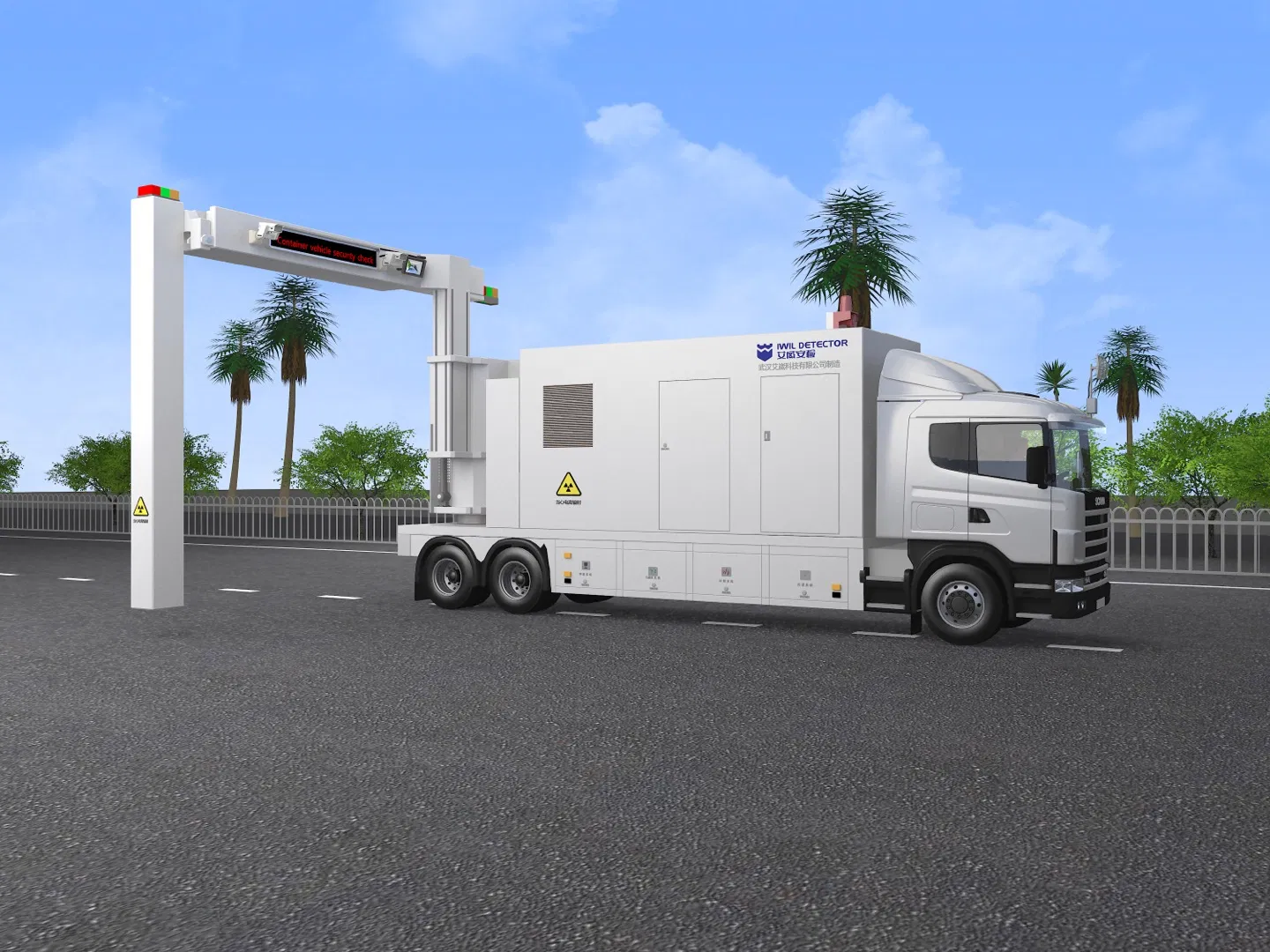

L ENERGY X-RAY SERIES - High-Definition Border Freight Car Inspection

The AN-48002800 is an accurate and efficient large-scale equipment designed for border freight vehicles. Utilizing advanced X-ray digital imaging technology, it detects dangerous goods such as weapons, explosives, and contraband, ensuring safety and smooth customs clearance.

Basic Specifications

Model NO.

Iwildt an-48002800hms

Certification

CE, ISO

Application

Security Check

Type

Industrial High-Definition X-ray Detector

Channel Size

2.8m (W) X 4.8m (H)

Ray Energy

420kv

Penetration

100 mm Steel Plate

Scanning Rate

60 Vehicles / Hour

Technical Parameters

X-Ray Source

Ray energy: 420kv
Direction: Side illumination
Cooling: Oil immersed air conditioning
Protection: 10 mm thick lead tank
Scattering angle: 100 degrees

Detection System

Crystal: CdWO4
Photoelectric conversion: CMOS
Pixels: 1536 (L-shaped line array)
Dimension: 2.4m(L) x 5.5m(W) x 5.1m(H)
Weight: 800kg

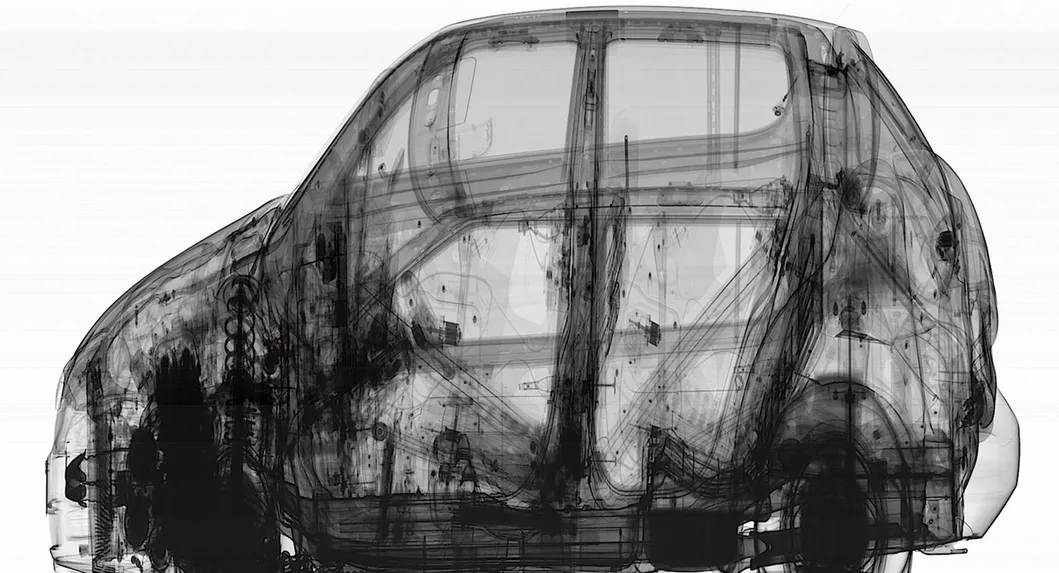

Image Processing

Workstation: i7 / 8g / 4tb / 24 inch LCD
Format: JPG (Scanning time named)
Functions: Edge enhancement, inversion, organic removal
Storage: 10000 images standard
License plate recognition: Integrated

Equipment Performance

⚡

Throughput: Scans 60 large trucks per hour with 5-10km/h speed.

🛡️

Safety: Radiation dose less than 1usv/time, complying with WHO/ICRP standards.

🔍

Precision: Resolves steel wire < 1.5mm and penetrates 100mm steel plate.

🌧️

Durability: IP45 waterproof grade, operates from -20°C to +43°C.

Professional Capability

Service & Support

Pre-sales Consulting: Tailored reports, process plan analysis, and function customization based on specific user needs.

After-sales Commitment: 12 months free warranty, free on-site training (theoretical and practical), and 10-hour rapid response for technical support. Spare parts are provided at cost after the warranty period.

Frequently Asked Questions

Is the system safe for drivers and passengers?

The system features a vehicle head avoidance function. Drivers and passengers drive off the vehicle before the security scanning mode begins to ensure zero exposure.

What is the maximum penetration capability of the X-ray?

The system utilizes multi-energy source cascade mode, achieving a maximum penetration of 100mm through steel plates.

How many vehicles can be inspected per hour?

In standard mode, the system can scan approximately 60 large trucks per hour, significantly speeding up customs clearance.

Can the system dimensions be customized?

Yes, the width and height of the detection frame can be customized to meet specific user requirements and site constraints.

What kind of maintenance is required for the system?

We provide comprehensive on-site training for maintenance personnel. The equipment uses a modular design for easy parts replacement and high reliability.

What international standards does this equipment comply with?

The system is designed in full accordance with WHO, ICRP 103-2007, and regulations from the China, EU, and US authorities.
