Product Description

Basic Specifications

Model NO.XMR020

CertificationCE, ISO13485

Magnet TypePermanent Magnet

Field Strength0.22T

Magnet ShapeH Shape

Magnet Gap19cm

Bore Depth56cm

OriginChina

Product Description

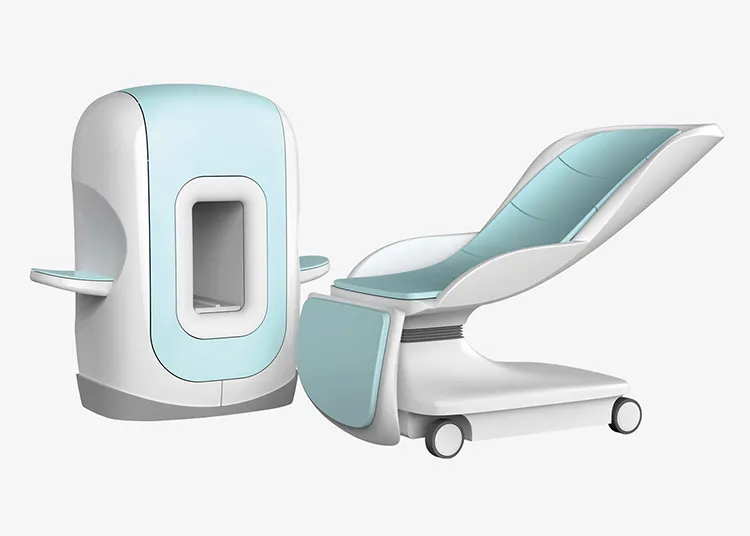

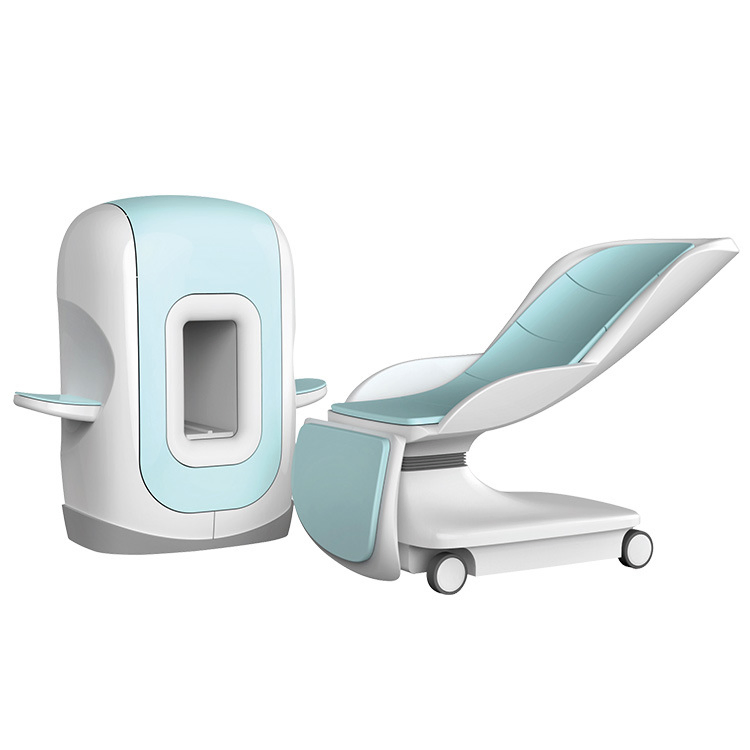

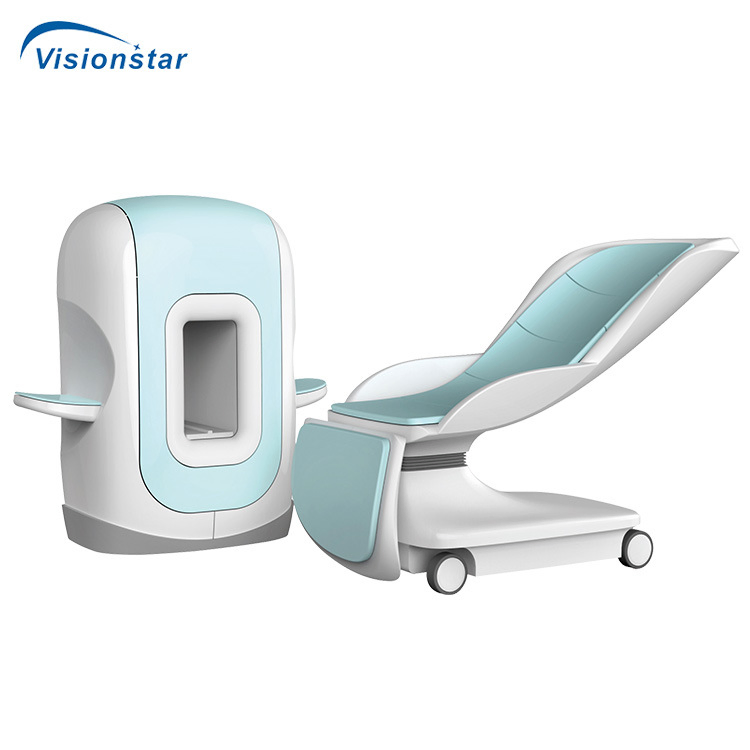

XMR020 Permanent Extremity MRI Scanner

Designed for diagnosing soft tissue and bone injuries of arms or legs (Ankle, ACL, Wrist, Meniscus, etc.).

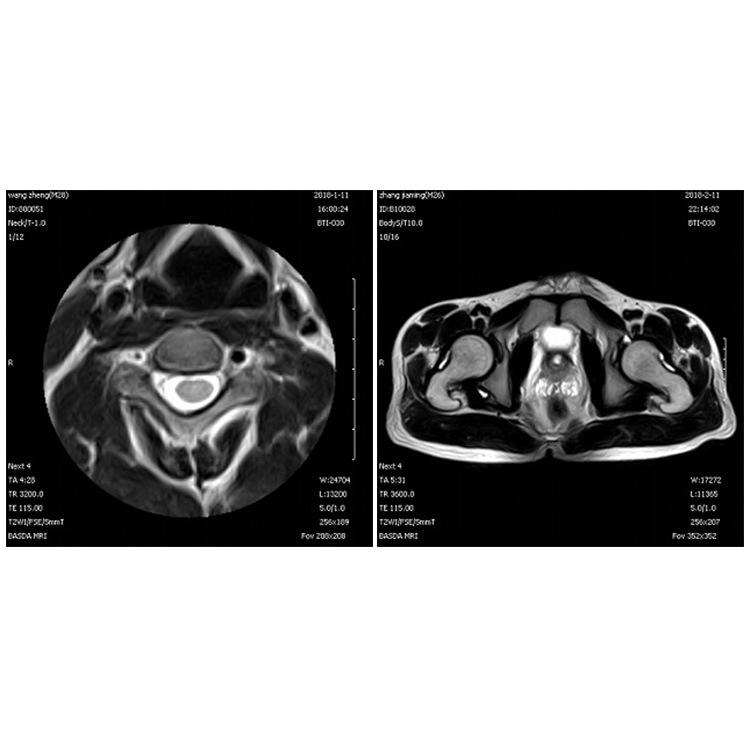

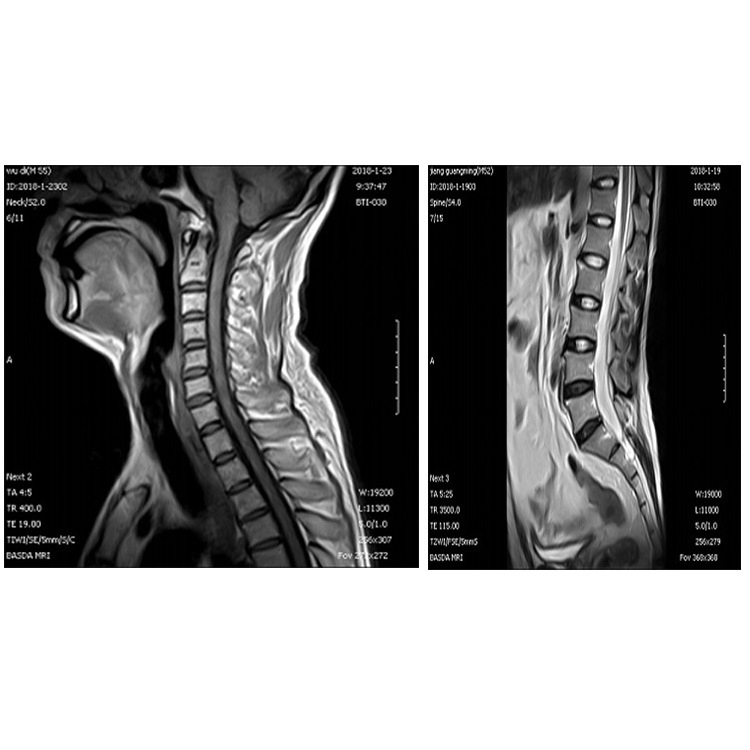

Comprehensive scanning sequences and advanced imaging techniques.

Quieter and more comfortable than full-body MRI scanners.

Compact size and light weight for easy installation.

Specialized in high-precision limb joint diagnosis.

Technical Parameters

No.	Item	Specification
1. Magnet System
1.1	Magnet Type	Permanent magnet with automatic constant temperature
1.2	Field strength	0.22T
1.4	Homogeneity	≤4.5ppm (16cm DSV)
2. Gradient System
2.1	Gradient field strength	18mT/m (Single Axis)
2.2	Gradient slew rate	54mT/m/ms
3. RF System
3.1	Spectrometer	Fully digital
3.8	Coil type	Phase array
4. Patient Interface
4.1	Max. patient weight	135Kg
4.5	Table movement	Up-down, In-out, Rotation
5. Computer System
5.3	OS	Windows 7
5.10	DICOM 3.0	Supported (Yes)

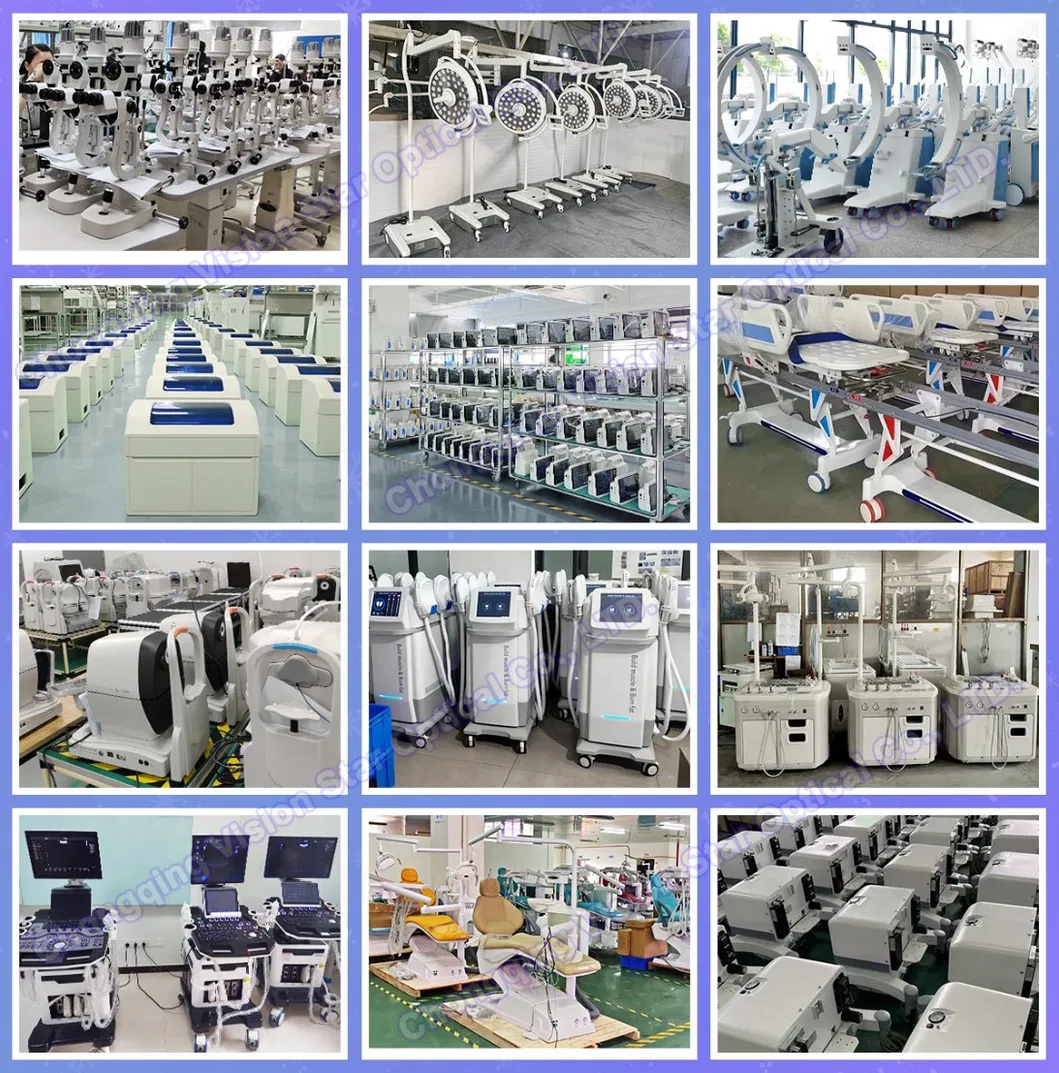

Professional Manufacturing

Frequently Asked Questions

Q1: What is an extremity MRI scanner used for? It is specifically designed to diagnose injuries in the limbs, such as arms, legs, wrists, ankles, and knees, focusing on soft tissue and bone structures.

Q2: Is the XMR020 quieter than standard MRI machines? Yes, due to its specialized design and permanent magnet system, it is significantly quieter and more comfortable for patients compared to full-body scanners.

Q3: What are the installation requirements? The XMR020 features a compact size and light weight, making it much easier to install in clinics or specialized departments than traditional large MRI systems.

Q4: Does the system support data sharing? Yes, the system is fully DICOM 3.0 compliant, allowing for seamless integration with hospital PACS systems and easy data sharing.

Q5: What type of magnet does it use? It uses a 0.22T permanent magnet equipped with an automatic constant temperature system to ensure stable imaging quality.

Q6: What is the maximum patient weight the table can handle? The patient table is designed to support a maximum weight of up to 135kg.
