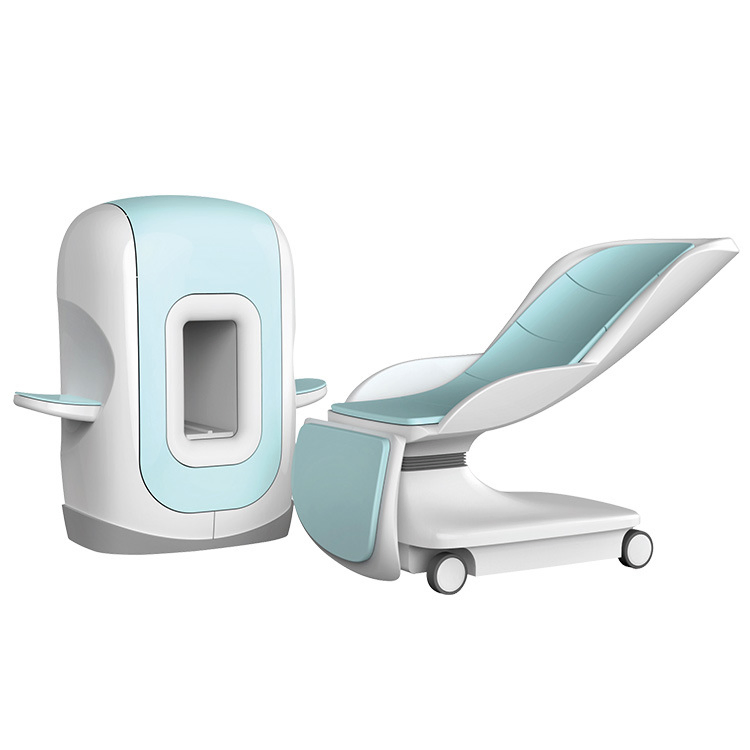

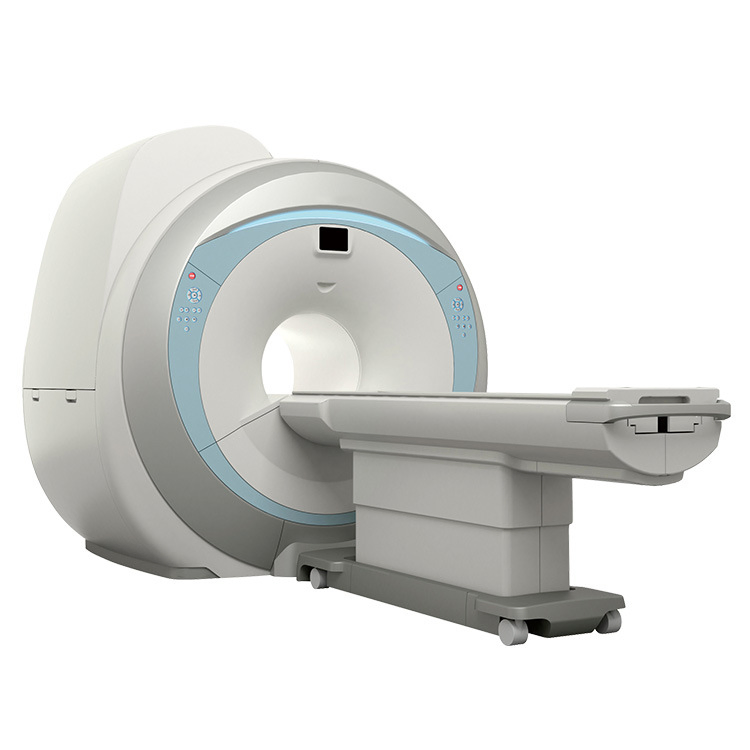

XMR030 0.30T Permanent Magnet MRI Scanner offers advanced diagnostic capabilities with breakthrough design focus on patient comfort and clinical precision.
• Magnet design uses breakthrough anti-eddy current technology.
• The gradient coil using self-shielded active anti-eddy current technology.
• Implementation of precision eddy current compensation algorithm.

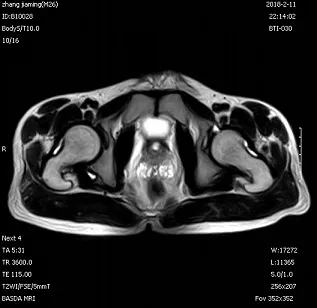

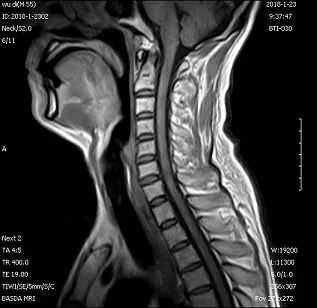

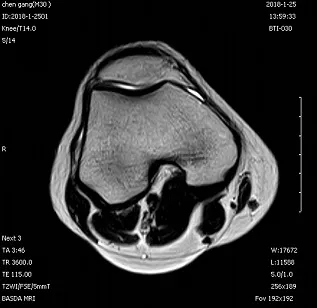

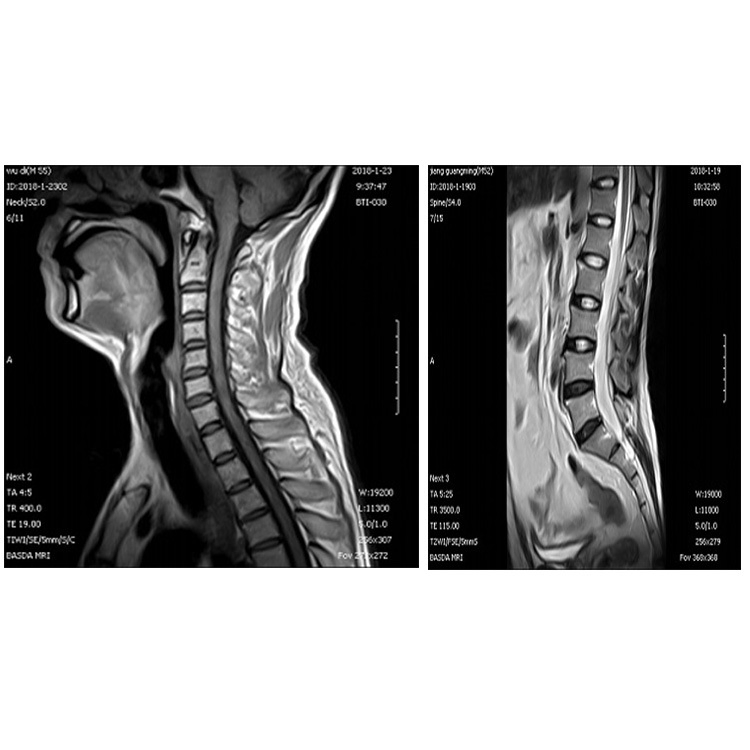

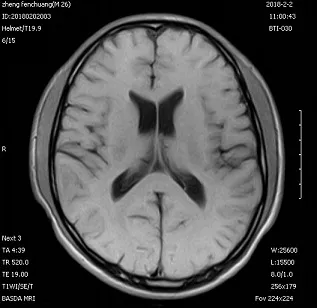

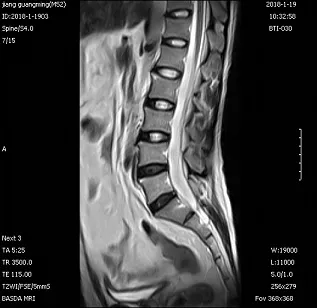

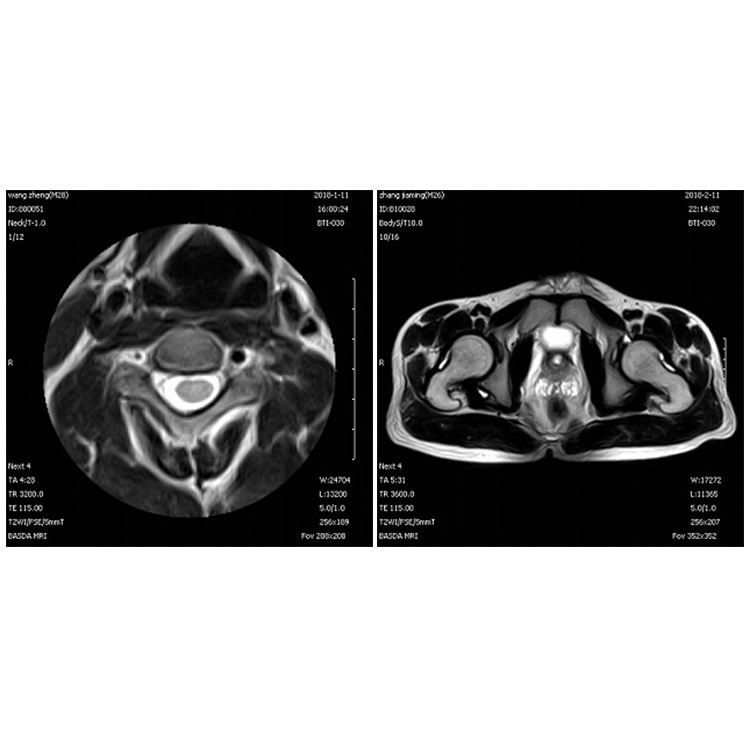

• Guaranteed best clinical images through ultra-fast sequences and high slew rate.

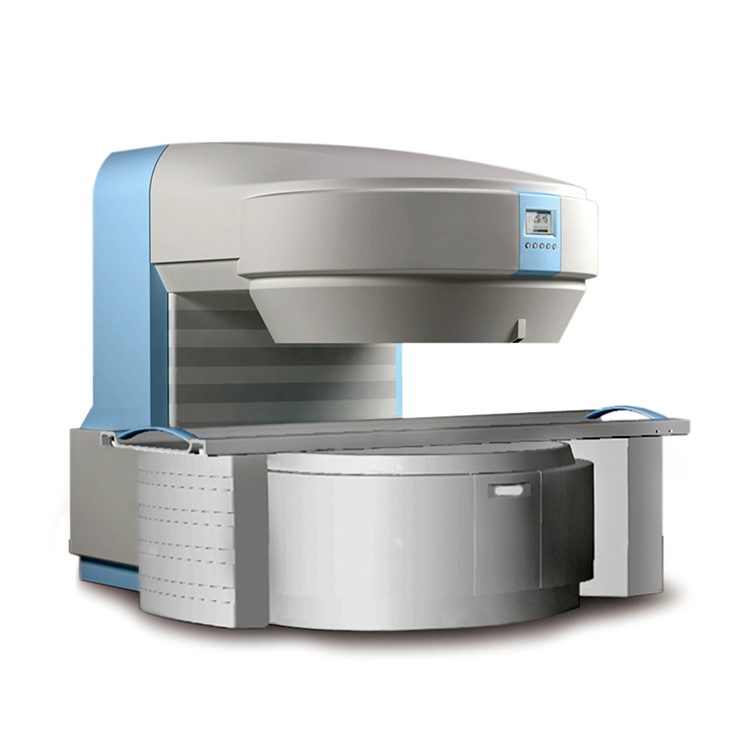

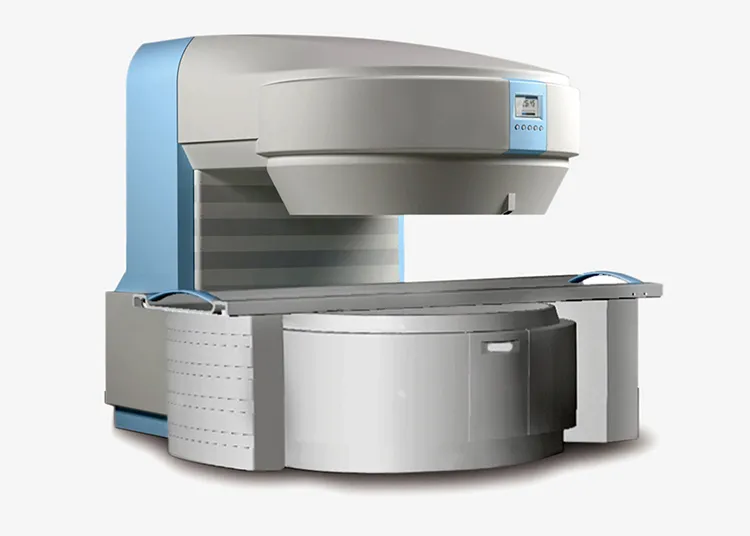

• Affinity C-shape magnets creating maximum openness.
• Ideal for obese patients and minimizing claustrophobia.
• Providing significant space for MR intervention surgery.
Gradient System: Provides higher resolution pictures with intensity of 25mT/m, ensuring faster imaging speed and thinner slices.
4D Shimming: Advanced active shimming algorithm for real-time automatic uniformity maintenance. Magnetic field uniformity is maintained at <2.5ppm in 40cm DSV Vrms.
| Item | Specification |
|---|---|
| Magnet Type | Permanent magnet with automatic constant temperature system |
| Field Strength | 0.3T |
| Magnet vertical gap | 40cm |
| Gradient slew rate | 75mT/m/ms |
| RF Channels | 4 Channels |
| Max. Patient Weight | 200Kg |
| OS | Windows 7 (BASDA System) |
| Max Matrix | 1024*1024 |
| RF shielding room | 1 Set |
| Permanent Magnet 0.3T | 1 Set |
| Spectrometer & Preamplifier | 1 Set |
| Gradient amplifier & Coil | 1 Set |
| Imaging monitor (24") | 1 Set |
| Phased Array Coils (Head, Neck, Body, Knee) | Complete Set |
