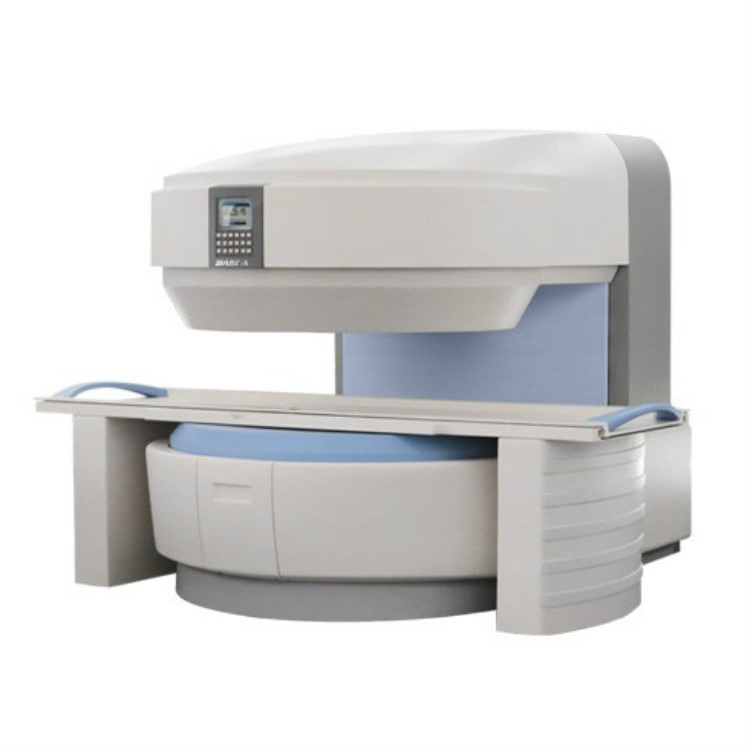

Medical Equipment 0.42T MRI System MRI Machine
| No. | Technical Item | Specification Detail |
|---|---|---|
| 1 | Magnet System | |
| 1.1 | Magnet Type | Permanent magnet with automatic constant temperature system |
| 1.2 | Field strength | 0.42T |
| 1.3 | Magnet shape | C-shape |
| 1.4 | Homogeneity (40cm, DSV, VRMS) | 2ppm |
| 1.6 | Magnet vertical gap | 40cm |
| 2 | Gradient System | |
| 2.1 | Gradient field strength (Single Axis) | 31mT/m |
| 2.2 | Gradient slew rate (Single Axis) | 107mT/m/ms |
| 2.3 | Rise time | 0.29ms |
| 3 | RF System | |
| 3.1 | Spectrometer | Fully digital |
| 3.4 | Transmitter amplifier peak power | 6kW |
| 3.8 | Coil type | Phase array |
| 4 | Patient System | |
| 4.1 | Max. patient weight | 210Kg |
| 4.4 | Position accurate | 1mm |
| 5 | Computer System | |
| 5.1 | Host computer | Dual core Industrial computer |
| 5.6 | Monitor | 24" Color LCD |
| 5.10 | Connectivity | DICOM 3.0 / Ethernet |
