📋 Basic Info.
Application
Radius and Tibia
Mode
Double Emission and Double Receiving
Reproducibility
Less Than 0.1%
Date Analysis
Intelligent Real –time Data Analysis System
Production Capacity
2000units/Month
🛠️ Technical Features
- Using the full dry technology, makes diagnostic more convenient.
- The probe adopt the Technology of the United States DuPont, makes the probe to receive higher sensitivity and better reception.
- The better ultrasonic frequency on the measuring position, with better penetrability, more effective signal.
- Use the ultrasonic axial conduction technology, double emission and double receiving, it can provide more effective data.
- With innovative algorithm, effectively remove clutter and jamming signal, to get the valid data.
- With a special correction system, to correct the system error effectively, get more accurate measurement results.
- Multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals.
- Multi race clinical database including European, American, Asian, Chinese, and WHO international compatibility (Ages 0-100).
- English menu operation system.
- Passed EMC test, CE certificate, and ISO Certificate.
📊 Performance Parameters
- Measurement parts: 1/3 of radius and middle of the Tibia
- Measurement mode: double emission and double receiving
- Analysis Data: T- Score, Z-Score, Age percent[%], Adult percent[%], BQI, PAB, EOA, RRF.
- Accuracy & Reproducibility: ≤0.1%
- Measurement time: one period < 10 seconds
- Probe frequency: 1.20MHz with United States DuPont technology.
- Navigation: Display Axial, Horizontal, and Direction Angles for real-time correction.
- Crystal Indication: Displays working condition for four crystals and signal strength.
- Daily Calibration: Automatic calibrating after power on.
- Age Range: 0-100 years (Children, Teenagers, Adults, Elderly).
- Monitor: Original 22' HD color LED Monitor.
- Protection: Main unit IPX0, Probe IPX7 waterproof level.
- Safety Standards: GB9706.1-2007, GB9706.9-2008, GB9706.15-200, YY077-2010.
- Power: AC220V±10%, 50Hz±1Hz; Input power ≤200VA.
❓ Frequently Asked Questions
Q1: Which body parts can the HP-UBD700 measure?
The device is designed to measure the 1/3 of the radius and the middle of the tibia.
Q2: Is the measurement process comfortable for patients?
Yes, it uses full dry technology and ultrasonic axial conduction, making the diagnostic process convenient and non-invasive.
Q3: How long does it take to get a result?
A single measurement period is very efficient, taking less than 10 seconds.
Q4: Can this device be used for pediatric patients?
Yes, the system includes databases for all ages, from infants (0 years) to the elderly (100 years), with automatic database selection.
Q5: What is the accuracy of the bone density measurement?
The equipment offers high precision with measurement accuracy and reproducibility both less than or equal to 0.1%.
Q6: Does the system include its own computer and monitor?

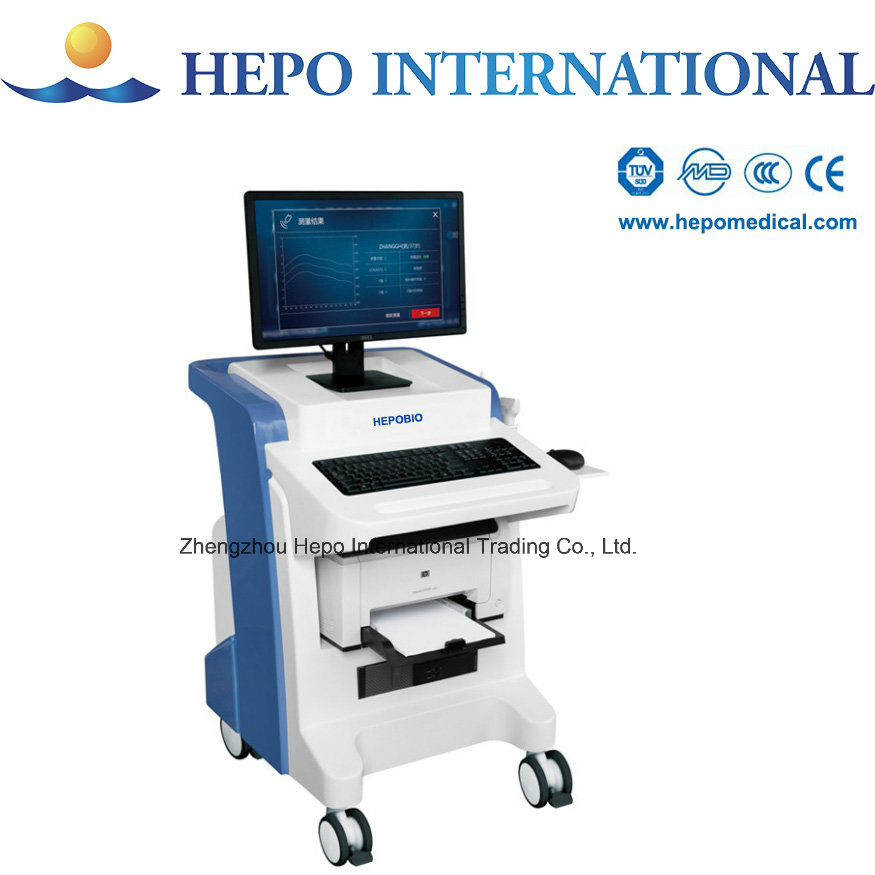

Yes, it comes configured with a high-performance CPU, 22-inch HD color LED monitor, and a luxury trolley for easy movement.
