Automatic High Effective Ultrasound Bone Densitometer/Portable Ultrasound Bone Densitometer
Automatic High Effective Ultrasound Bone Densitometer/Portable Ultrasound Bone Densitometer
Automatic High Effective Ultrasound Bone Densitometer/Portable Ultrasound Bone Densitometer
Automatic High Effective Ultrasound Bone Densitometer/Portable Ultrasound Bone Densitometer
Automatic High Effective Ultrasound Bone Densitometer/Portable Ultrasound Bone Densitometer
1 / 5
Automatic High Effective Ultrasound Bone Densitometer/Portable Ultrasound Bone Densitometer
Automatic High Effective Ultrasound Bone Densitometer/Portable Ultrasound Bone Densitometer
Automatic High Effective Ultrasound Bone Densitometer/Portable Ultrasound Bone Densitometer
Automatic High Effective Ultrasound Bone Densitometer/Portable Ultrasound Bone Densitometer
Automatic High Effective Ultrasound Bone Densitometer/Portable Ultrasound Bone Densitometer

Automatic High Effective Ultrasound Bone Densitometer/Portable Ultrasound Bone Densitometer

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: Ultrasound Scanner
Send Inquiry

Product Description

JRBMD-A3 Automatic High Effective Portable Ultrasound Bone Densitometer

Basic Specifications

Model NO. JRBMD-A3
Certification CE, EEC, MSDS, ISO13485
Net Weight 6 Kgs (Main unit < 4kgs)
Dimensions 42cm × 34cm × 44cm
HS Code 9018129900
Capacity 2000 units / Month

Key Technical Features

◈
Full dry technology makes diagnostic more convenient without messy gels.
◈
DuPont Technology probe for higher sensitivity and signal reception.
◈
Ultrasonic axial conduction technology with double emission and receiving.
◈
Innovative algorithm effectively removes clutter and jamming signals.
◈
Correction system to ensure accurate measurement results.
◈
Multi-race database: European, American, Asian, Chinese, and WHO compatibility.

Performance Parameters

  • Measurement Parts: Radius and Tibia
  • Measurement Mode: Double emission and double receiving
  • Parameters: Speed of sound (SOS)
  • Analysis Data: T-Score, Z-Score, BQI, PAB, EOA, RRF
  • Accuracy & Reproducibility: ≤ 0.25%
  • Measurement Time: < 25 seconds
  • Probe Frequency: 1.20MHz
  • Monitor: 10.4' color HD LED monitor
  • Age Range: 0 - 100 years old

Product Gallery

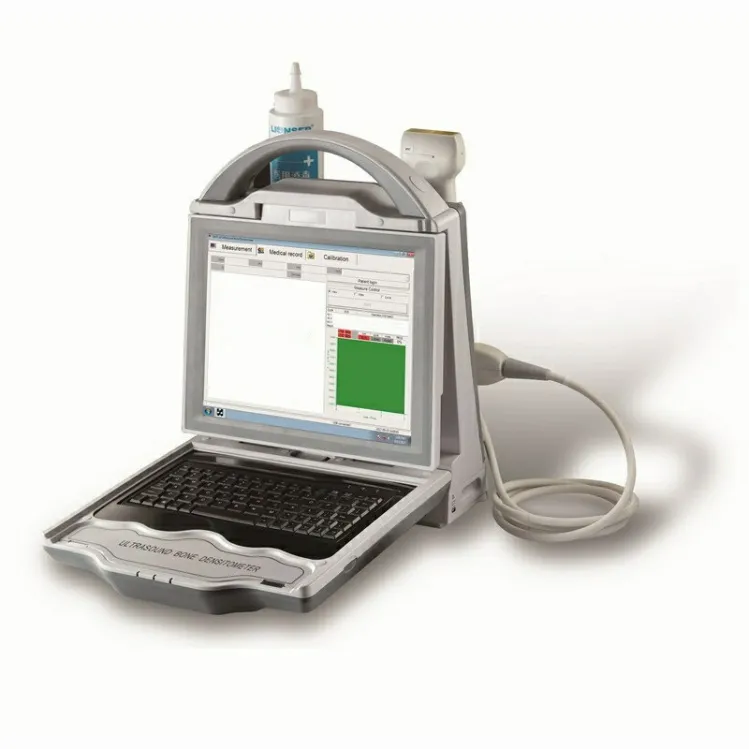

Bone Densitometer Main Unit

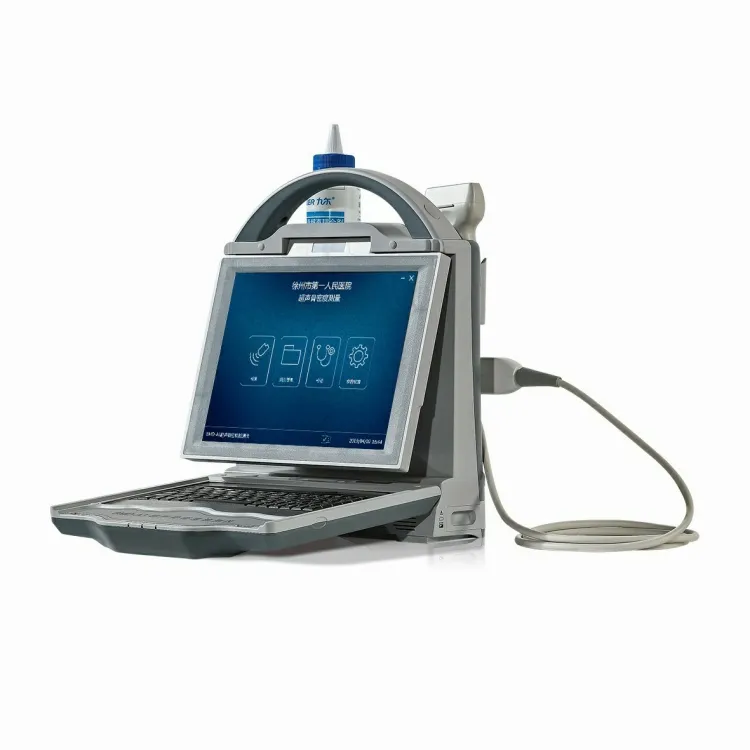

Ultrasound Bone Densitometer Detail
Portable Densitometer Setup
Probe and Analysis System

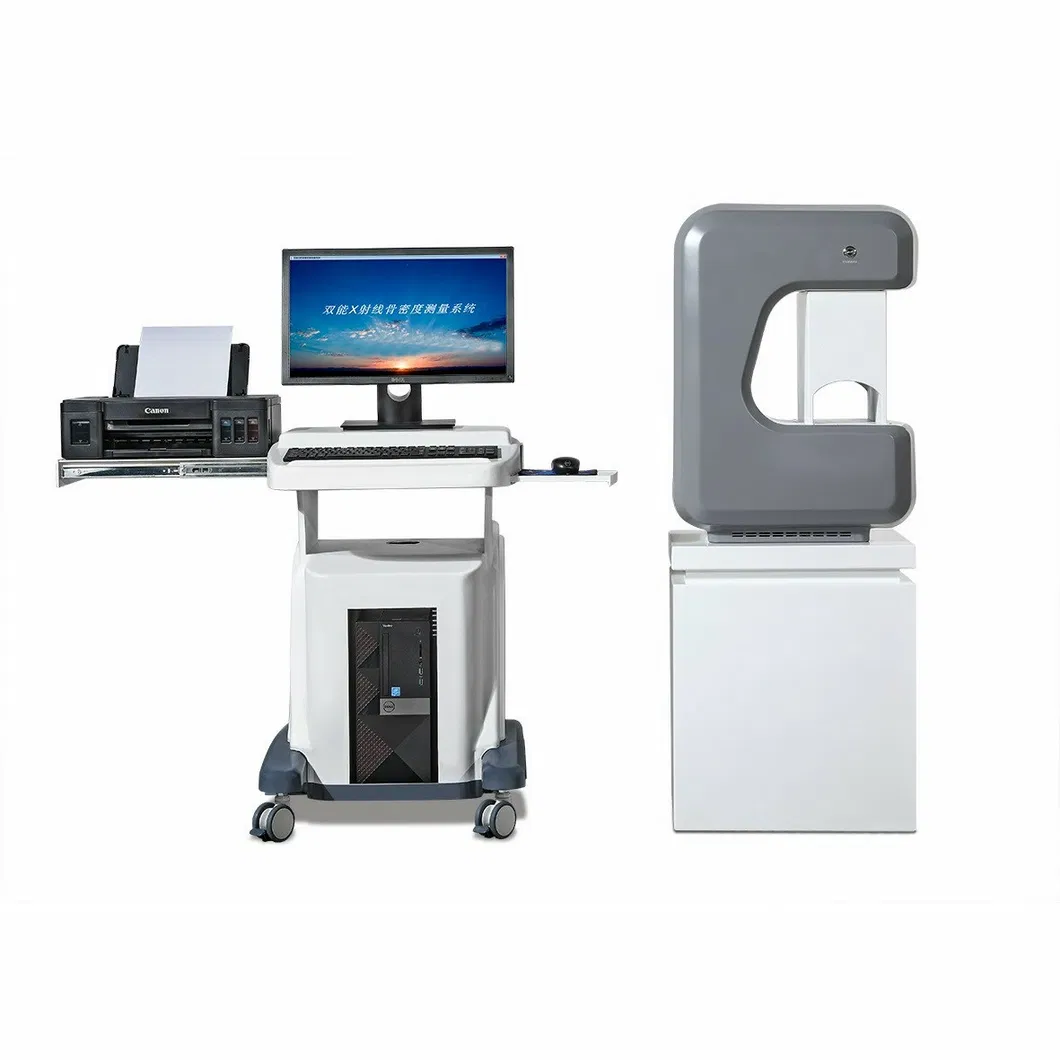

Bone Health Report

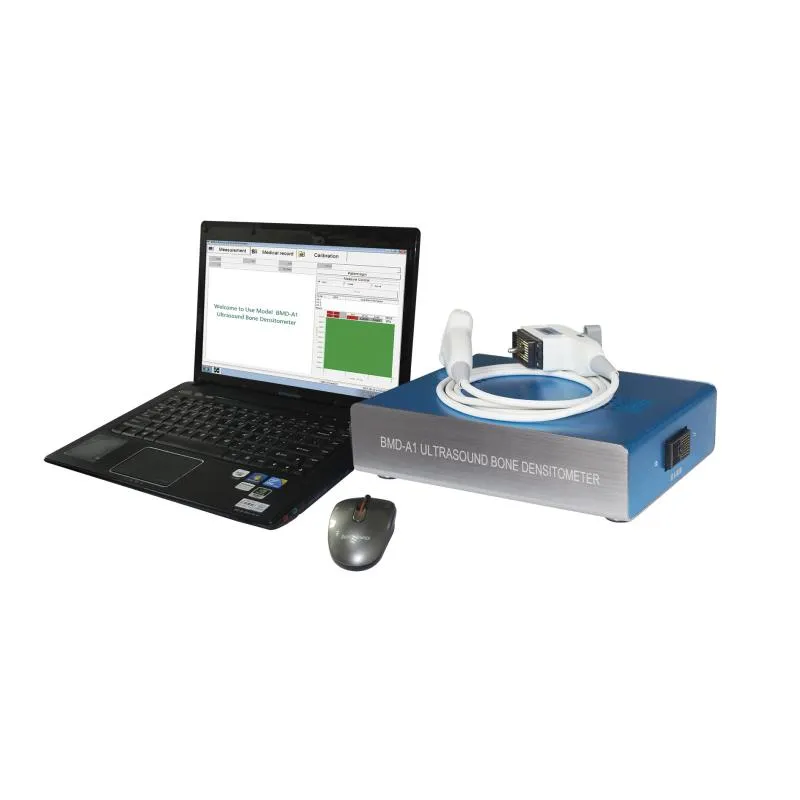

Clinical Bone Analysis

System Configuration

  • Ultrasound Bone Densitometer Main Unit
  • 1.20MHz High Sensitivity Probe
  • Embedded Industrial Control Computer
  • JRBMD-A5 Intelligent Analysis System
  • Calibrating Module (Perspex sample)
  • Disinfectant Coupling Agent
  • Optional: External Printer
  • 10.4' HD LED Monitor

Frequently Asked Questions

Q1: Which age groups can be measured by the JRBMD-A3?
The system is designed for all ages, from infants (0 years) to the elderly (100 years), with specialized databases for children, teenagers, adults, and seniors.
Q2: What are the primary measurement sites?
The device primarily measures the Radius (wrist) and Tibia (shin bone) using advanced ultrasonic axial conduction technology.
Q3: How accurate is the JRBMD-A3 bone densitometer?
The device offers high precision with measurement accuracy and reproducibility levels of ≤0.25%.

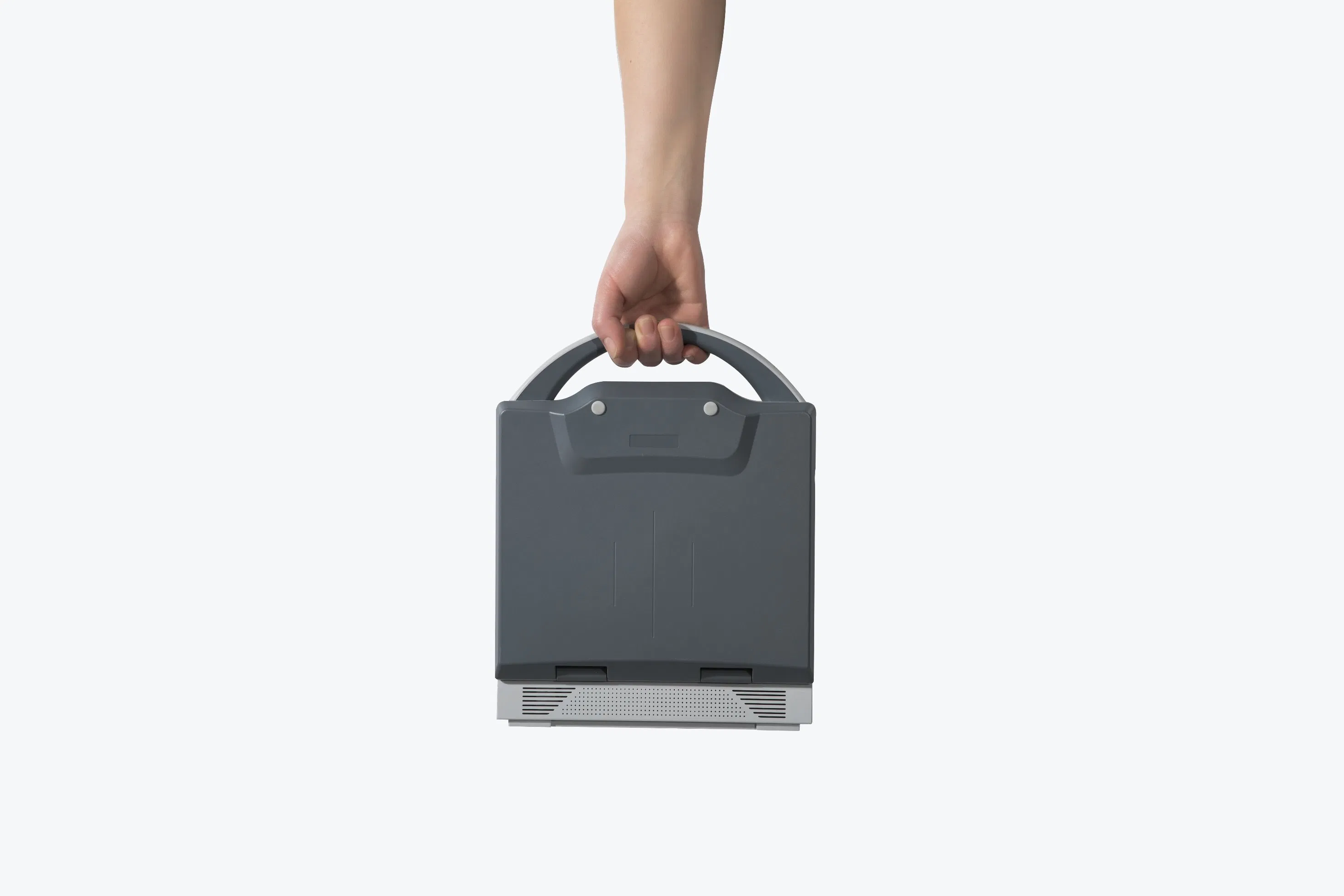

Q4: Is the system easy to transport for mobile clinics?
Yes, the main unit weighs less than 4kg and it is designed as a portable model, making it ideal for various clinical environments.
Q5: What data does the clinical report provide?
The comprehensive color report includes T-Score, Z-Score, BQI (Bone Quality Index), PAB (Physiological Age of Bone), and RRF (Relative Fracture Risk).
Q6: Does the device require daily calibration?
The system features an automatic calibration function that activates upon power-on, ensuring consistent and reliable results every day.
