Innovative Bladder Volume Test Scanner for Health Care Applications

Customization: Available
Customized: Non-Customized
Certification: CE, ISO13485

Product Description

Basic Information
Model NO.
BVT02
Scale
Small
Type
Health Care Intercom System
Medical
for Human
Using
Rehabilitation Care
Use Range
Urology, Special Care, Home Health
Transport Package
Standard Export Package
Specification
750g
Origin
China
Production Capacity
5000
Product Description

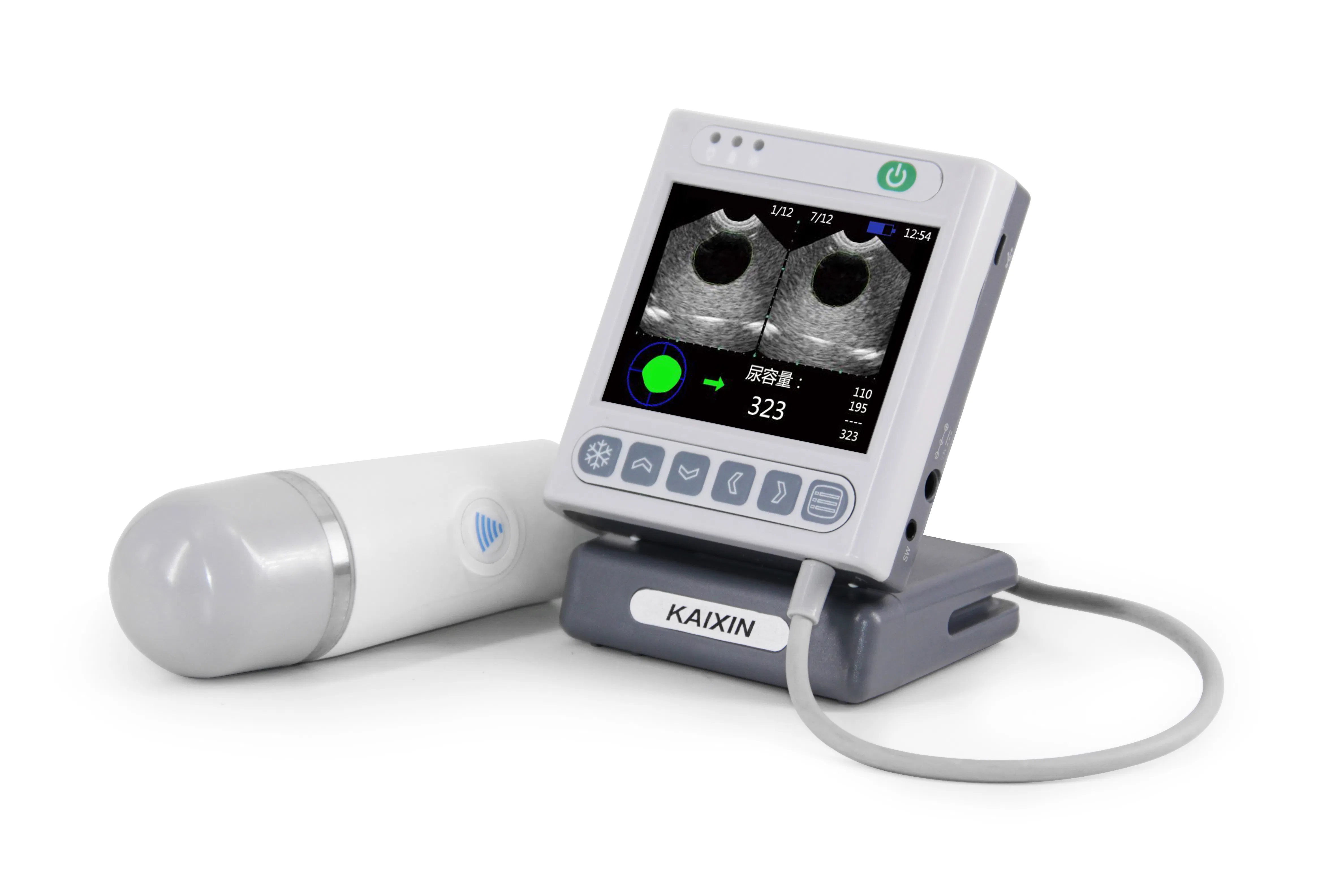

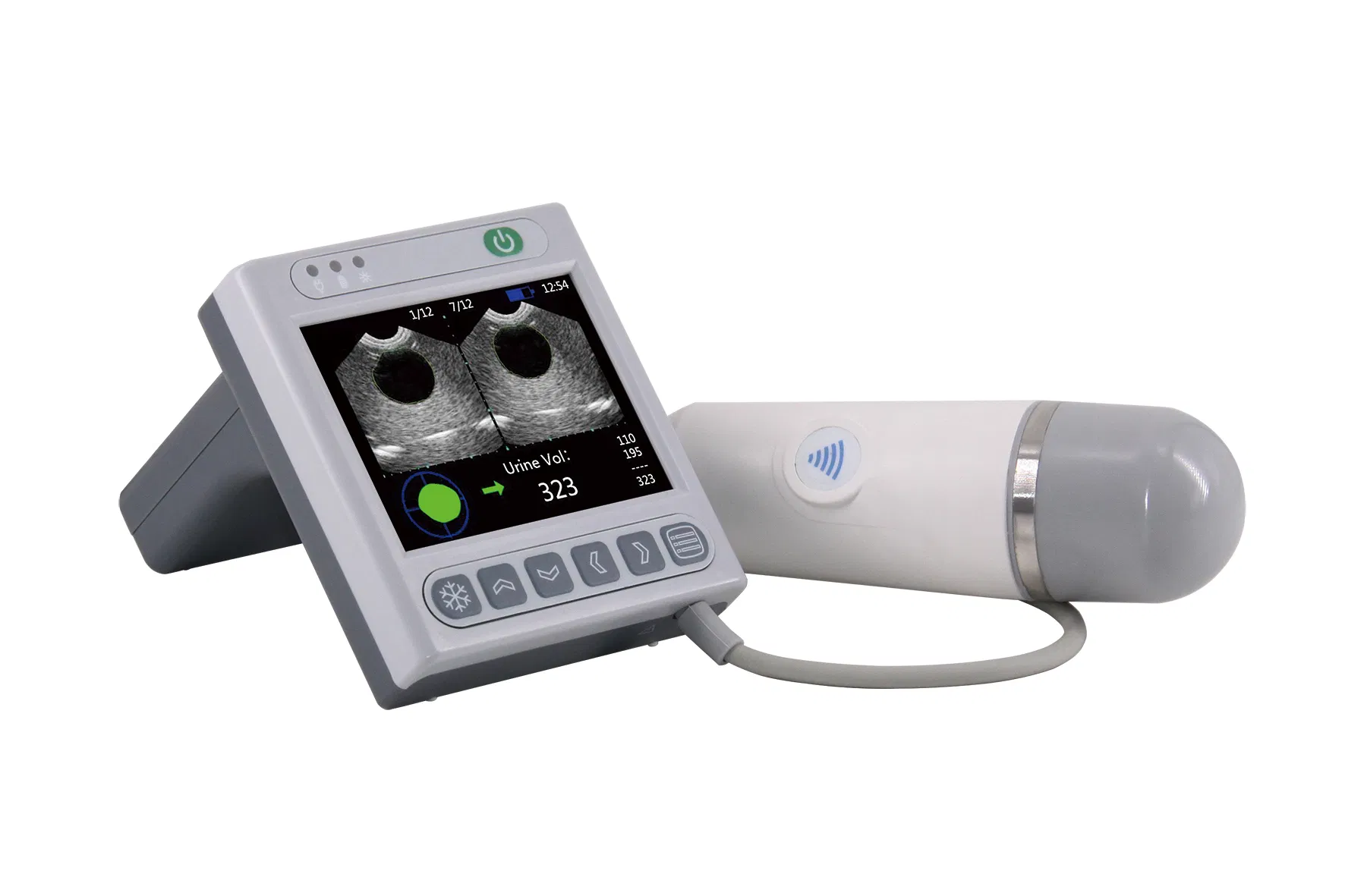

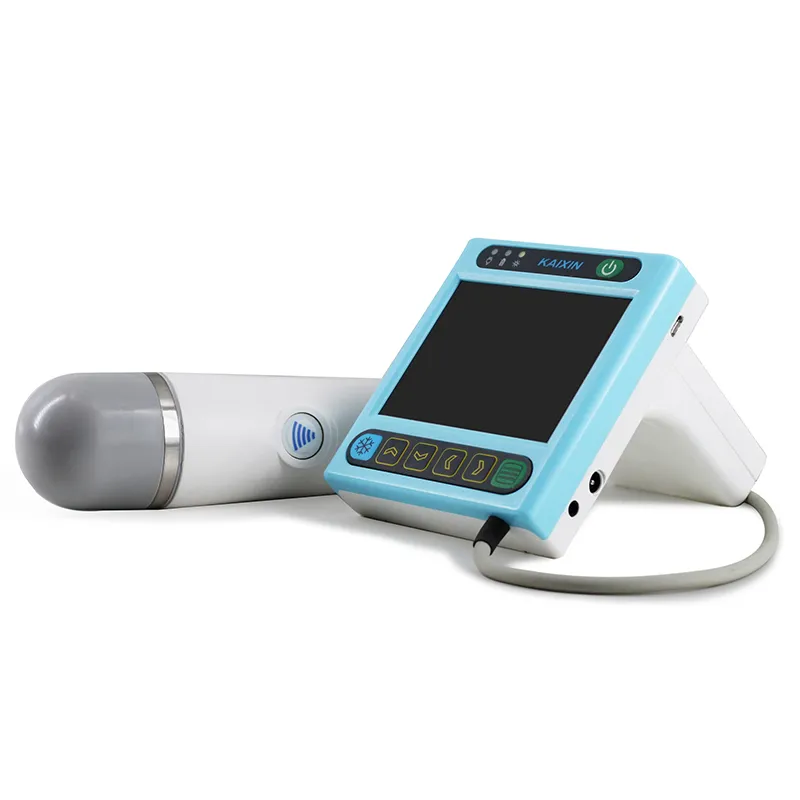

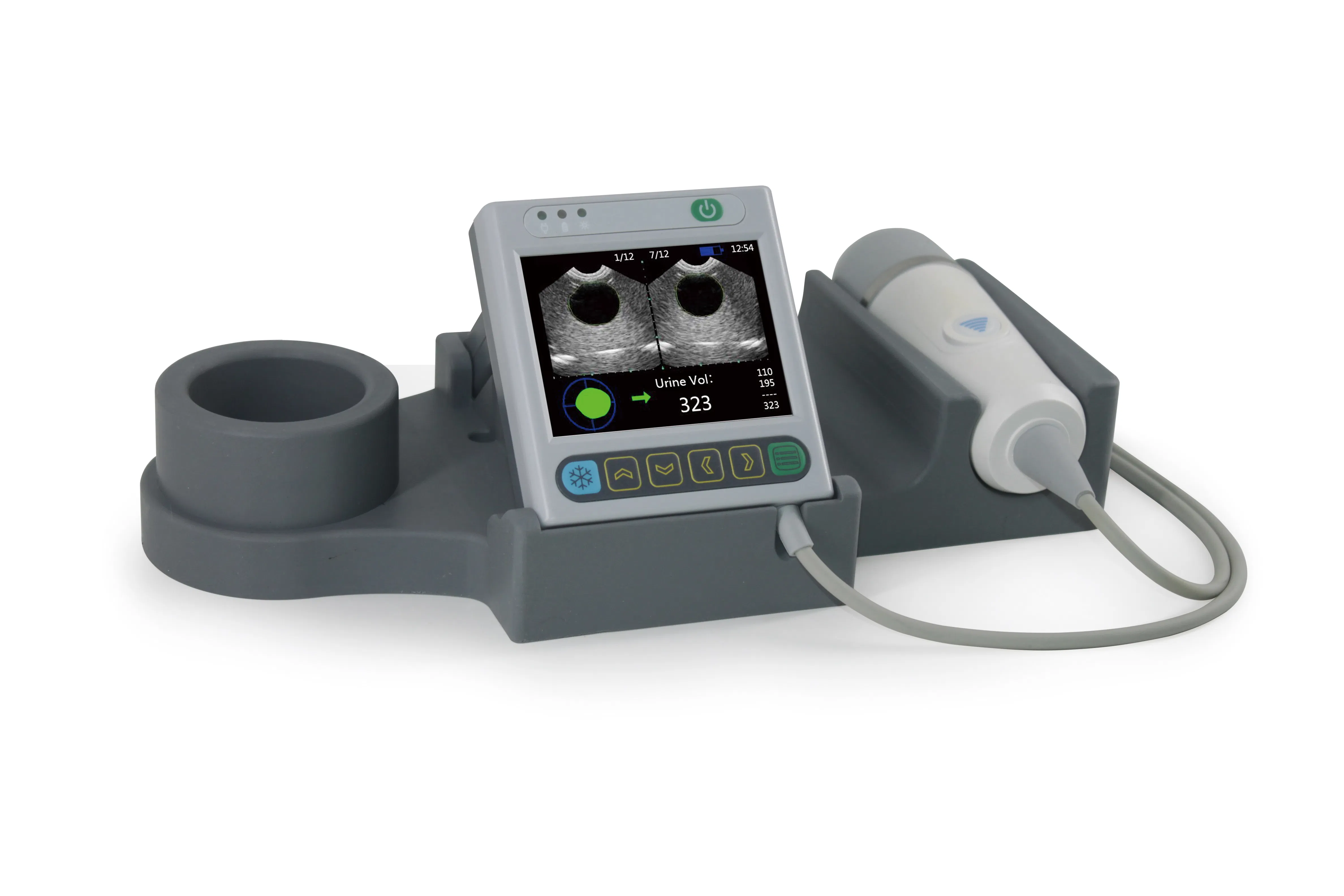

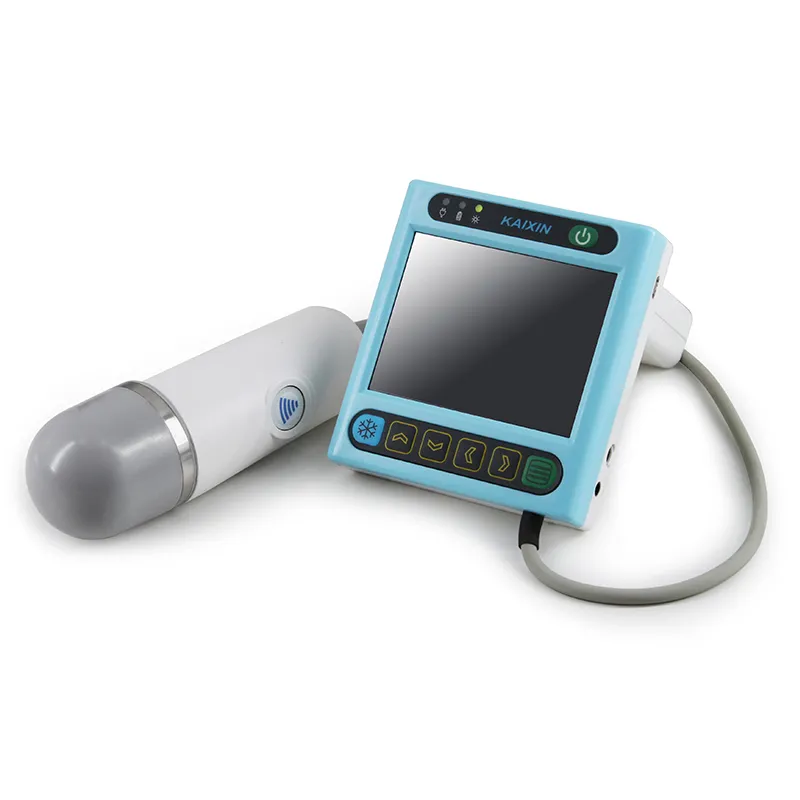

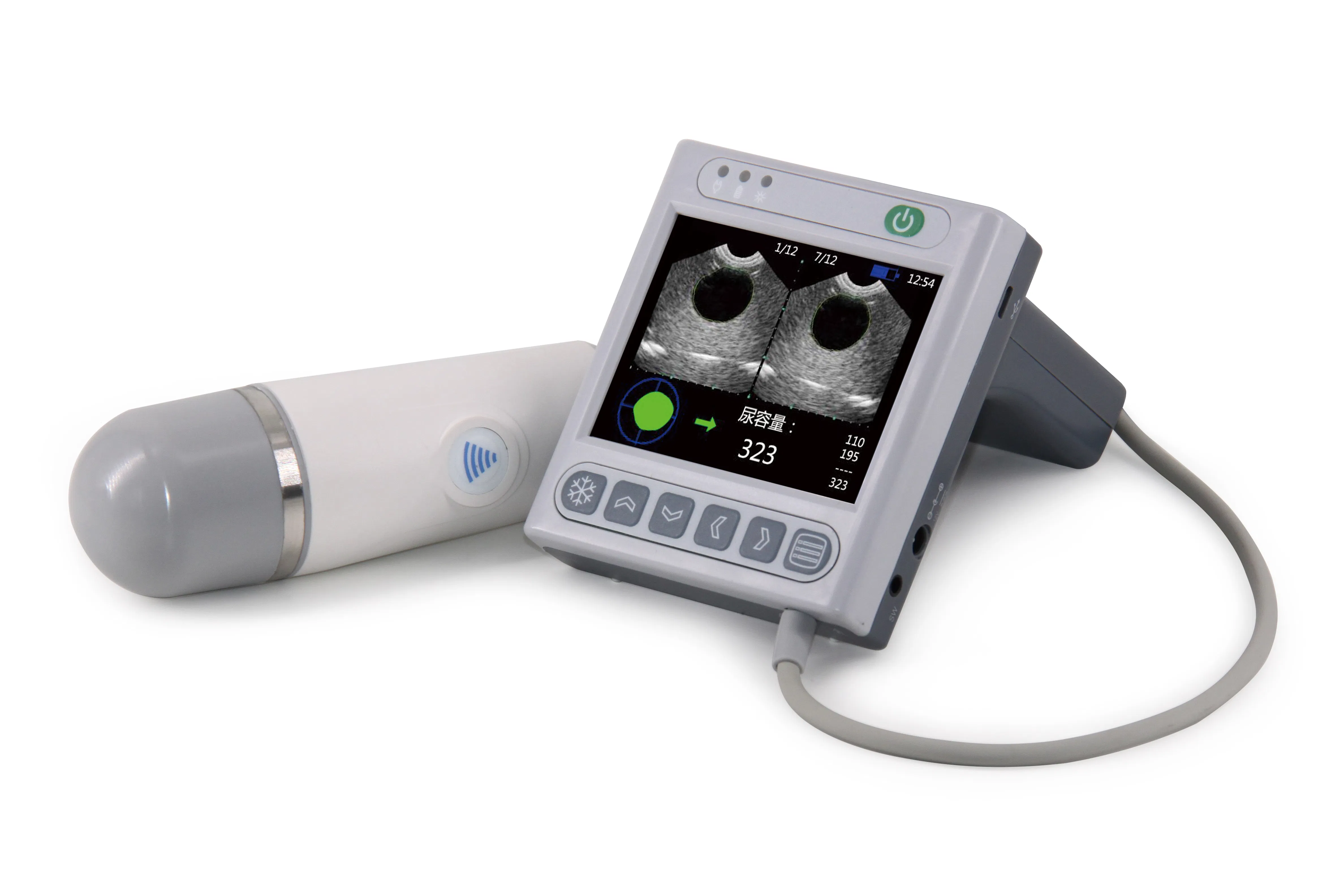

🛡️ BVT02 Bladder Scanner (With Internal Printer)
What is the BVT02
BVT02 is a state-of-the-art 3D ultrasound medical device designed to swiftly and precisely measure bladder volume along with post-void residual volume.
Why Use BVT02
The BVT02 provides essential management for paraplegics by offering precise bladder assessments. This critical aspect of daily care cannot be underestimated. Both patients and healthcare providers often struggle to assess bladder volume using experience alone, leading to potential overfill risks. Such risks can lead to upper urinary tract deterioration, a danger that frequently arises. Frequent catheterization can heighten the risk of infections within the iatrogenic urinary system. Repeated catheter insertions can increase patient discomfort, cause psychological distress, and potentially damage the urinary tract, highlighting the need for a better solution.
核心特点 | Key Features
01 Sleek, compact structure for effortless portability and operation.
02 3.5-inch color LCD screen with intuitive navigation.
03 Intelligent lightweight design (Main unit weighs only 750g).
04 Multi-language system: English, Chinese, French, Russian, Spanish, Portuguese.
05 Real-time image scanning for precise 3D data positioning.
06 Rapid acquisition: Data capture in under 4 seconds.
07 Advanced algorithms for irregular bladder shapes.
08 Energy-efficient power conservation features.
09 Ergonomic hand-held probe with integrated scanning switch.
10 Various patient modes to accommodate diverse needs.
11 Image comparison feature for enhanced accuracy.
12 Capacity alarm alerts for threshold safety.
13 Customizable automatic scan start times.
14 Standard and Lite versions available.
15 Detailed review with up to 12 image measurements.
16 Amplified bladder projection for easy observation.
17 Simultaneous display of four measurements for validation.
18 Long-lasting battery life exceeding 9 hours.
Applications
  • Medical service
  • Urology
  • Obstetrics-gynecology
  • Geriatrics
  • Pediatrics
  • Rehabilitation
  • Surgical
  • Special care
  • Home health
Standard Configuration
1Main Unit: 1pc
2Probe: 1 pc
3Power Adopter: 1pc
4Touch Pen: 1pc
5Battery: 1 pc
Frequently Asked Questions
Q1: What is the primary use of the BVT02 Bladder Scanner? A: It is used to non-invasively measure bladder volume and post-void residual (PVR) volume using 3D ultrasound technology.
Q2: How long does the battery last on a full charge? A: The BVT02 features a long-lasting battery that supports over 9 hours of continuous operation.
Q3: Is the device portable enough for home health care? A: Yes, the main unit weighs only 750g and is designed with a sleek, compact structure for easy portability.
Q4: How fast can it perform a scan? A: The device captures 3D data in under 4 seconds, which significantly reduces measurement errors caused by probe movement.
Q5: Which languages does the operating system support? A: It supports multiple languages including English, Chinese, French, Russian, Spanish, and Portuguese.
Q6: Does it offer different display modes for different user types? A: Yes, it comes in Standard (12 image review) and Lite (large singular measurement) versions to suit different professional requirements.
