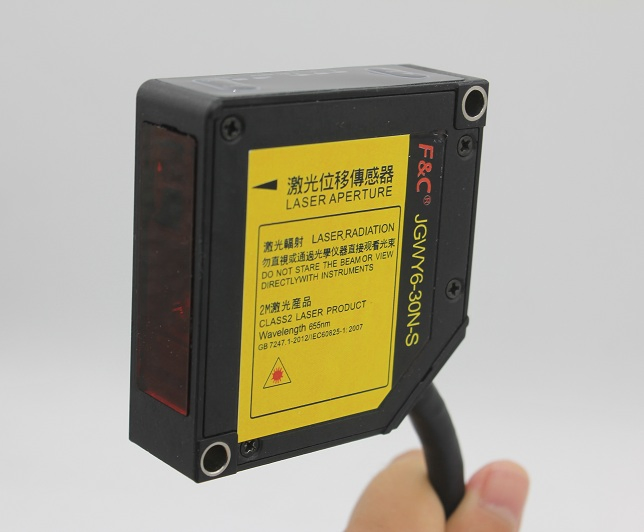

Laser Displacement Sensor for Automation Industrial with Multi-Sensor Fusion
Laser Displacement Sensor for Automation Industrial with Multi-Sensor Fusion
Laser Displacement Sensor for Automation Industrial with Multi-Sensor Fusion
Laser Displacement Sensor for Automation Industrial with Multi-Sensor Fusion
Laser Displacement Sensor for Automation Industrial with Multi-Sensor Fusion
1 / 5

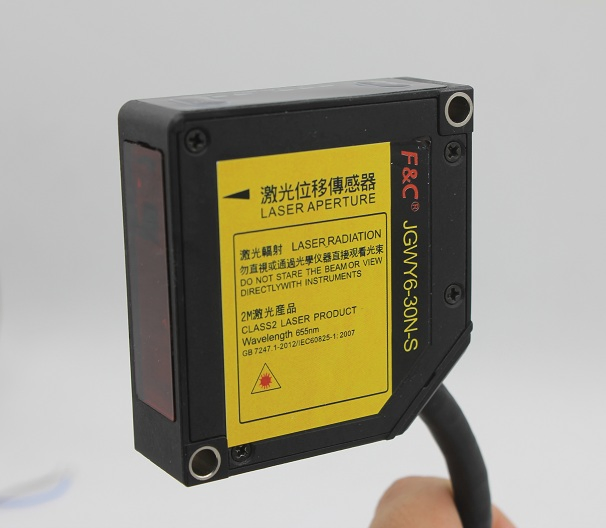

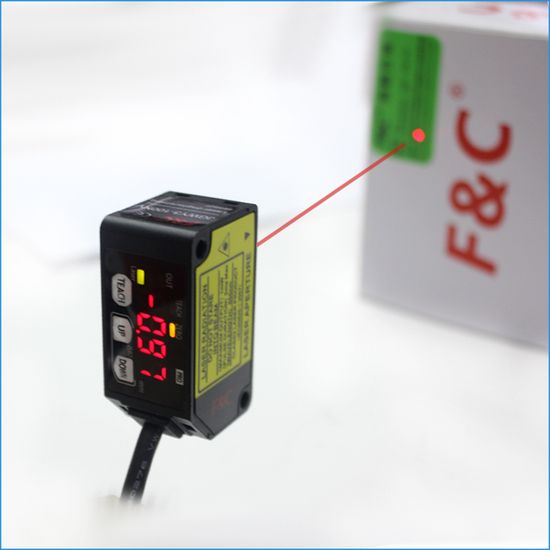

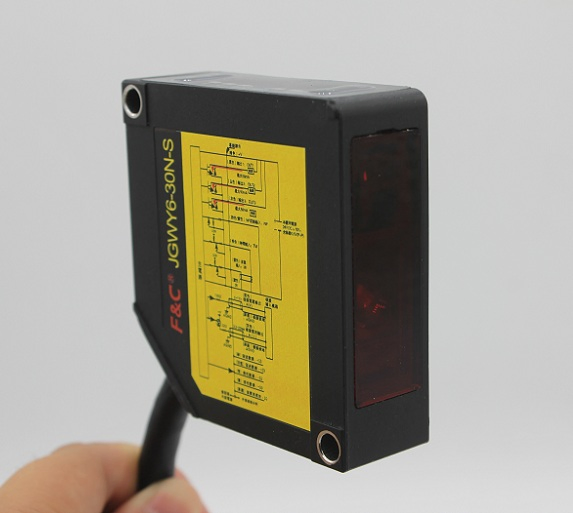

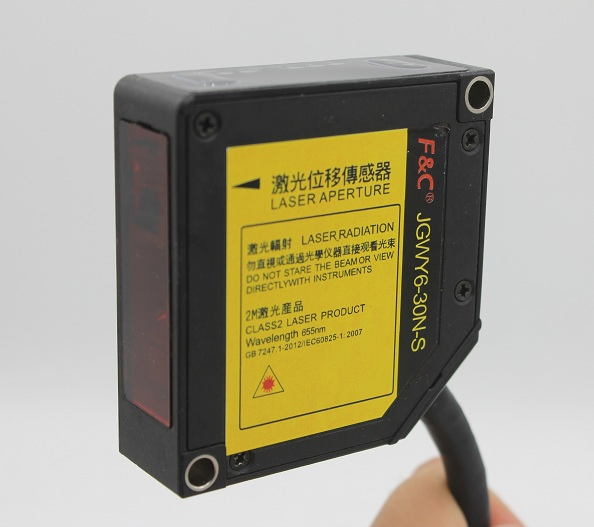

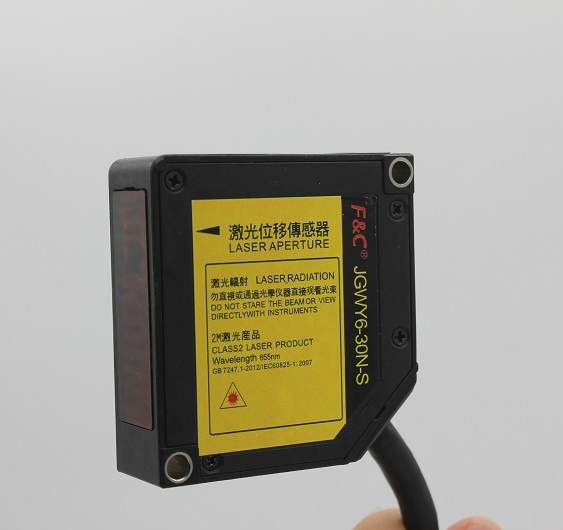

Laser Displacement Sensor for Automation Industrial with Multi-Sensor Fusion
Laser Displacement Sensor for Automation Industrial with Multi-Sensor Fusion
Laser Displacement Sensor for Automation Industrial with Multi-Sensor Fusion
Laser Displacement Sensor for Automation Industrial with Multi-Sensor Fusion
Laser Displacement Sensor for Automation Industrial with Multi-Sensor Fusion

Laser Displacement Sensor for Automation Industrial with Multi-Sensor Fusion

Customization: Available
Type: Light Sensor Switch, Position Sensor
Principle: Optical Sensor
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
JGWY6 series
Application
Detecting Hidden Dangers
Size
30mm-250mm
Certification
ISO, RoHS, CE
Voltage Supply
12-24 VDC
Material
ABS+PC
Detection Distance
30-250mm
Waterproof
IP67
Response Time
200μs / 500μs / 1ms / 2ms
Light Source
650nm Red Modulated Light
Output
PNP.No
Production Capacity
50,000 Pieces Per Month

Laser Displacement Sensor JGWY6 Series

Laser displacement sensors utilize laser technology to measure precise geometric quantities such as displacement, thickness, vibration, distance, and diameter. They operate based on principles like laser triangulation for high-precision short-range measurements or laser echo analysis for long-range detection.

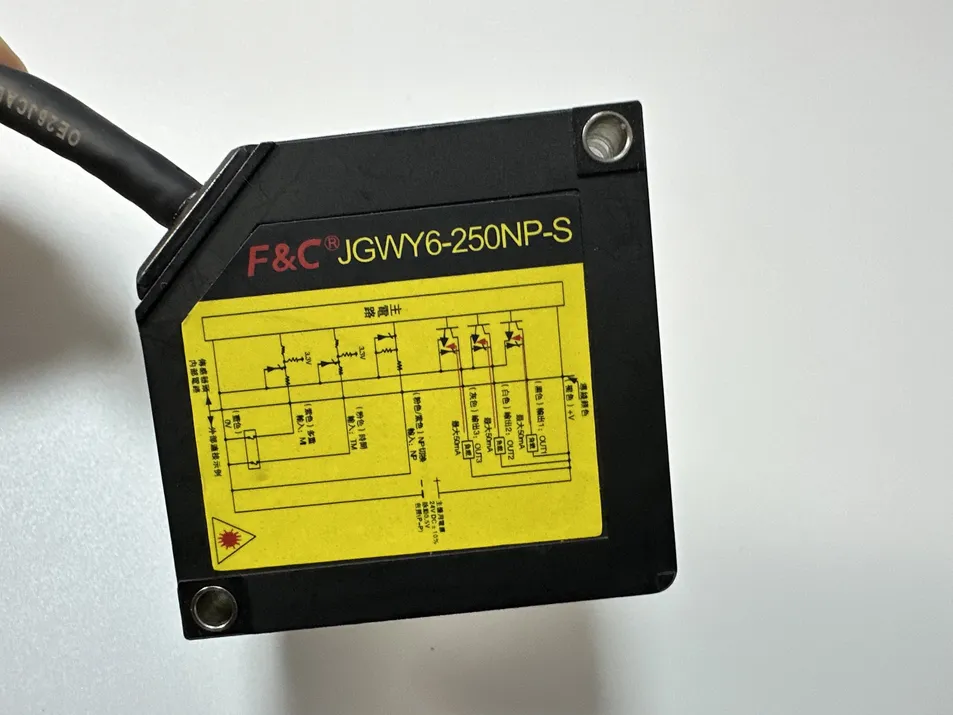

Laser displacement sensor principles
🎥 Operation Video

Technical Principles

Laser Triangulation

Principle: A laser beam projects onto the object surface, and the receiver captures the reflected light spot. Distance is calculated using triangular geometry. High precision resolution up to 0.01μm. Ideal for semiconductor and precision applications.

Laser Time-of-Flight (ToF)

Principle: Measures the time difference between laser pulse emission and return. Suitable for long-range detection up to 250m with ±1mm accuracy, ideal for warehouse monitoring.

Core Technical Components

Optical System: Semiconductor laser diodes (650nm to 1550nm) and CMOS/CCD arrays for signal capture. High-quality optical lenses filter stray light.

Signal Processing: High-speed ADC with sampling rates >1MHz combined with advanced noise filtering and edge detection algorithms.

Calibration: Features zero-point calibration and built-in temperature compensation to ensure stability (drift <0.02% FS/°C).

Product Perspectives

Right Elevation

Right Elevation

Left Elevation

Left Elevation

Front Elevation

Front Elevation

🚀 Application Scenarios
Industrial Robot Welding: Real-time path correction (±0.1mm accuracy).
Electronics Screen Testing: Micrometer-level deformation detection.
Medical Surgical Navigation: Implant positioning accuracy.
Energy Blade Monitoring: High-frequency vibration analysis (>50kHz).

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available. Our engineering team provides tailored designs to meet specific project requirements.

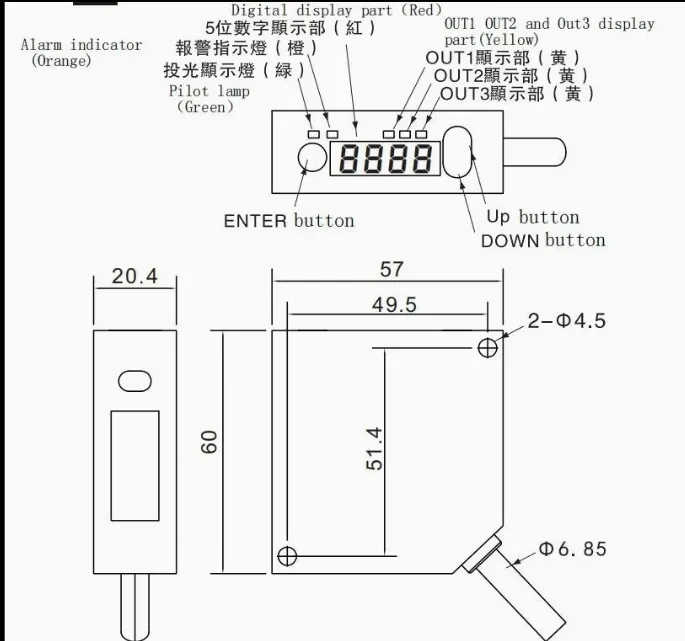

CAD Dimensions
🛡️ Quality Assurance
  • 3-Year Warranty: Standard coverage for all units.
  • Full Traceability: Advanced ID tracking from raw material to final delivery.
  • Certifications: ISO 9001, ISO 14001, CE, and RoHS compliant.
  • IP67 Protection: Dust-tight and waterproof design.
Quality Control

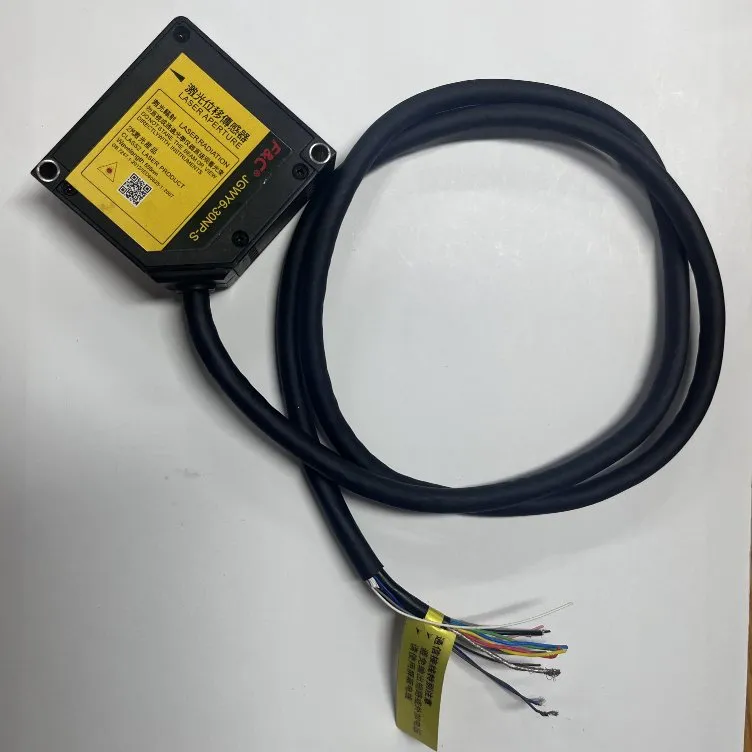

Sensor Testing

Frequently Asked Questions

Can I request a sample for testing?
Yes, we provide test samples and can cover the shipping costs for standard evaluations.
Can I request a customized cable length?
Absolutely! While 2M is our standard, we can customize the length to meet your specific installation requirements.
What is the standard lead time for orders?
Standard models in stock can be delivered the same day. Customized units typically require 7-15 days.
How long is the warranty period for the laser sensors?
All our JGWY6 series laser sensors come with a standard 3-year warranty and 24/7 technical support.
What is the IP rating for these sensors?
The sensors are rated IP67, making them dust-tight and protected against water immersion up to 1 meter.
What industries are these displacement sensors used in?
They are widely used in automotive welding, semiconductor thickness monitoring, battery production, and medical device positioning.
