Navigating Optical Medical Equipment for Surgical Instruments and Devices in Global B2B Procurement

Customization:	Available
Type:	Optical Tracking System
Kind:	Dentistry, Neurosurgery, Ent

Basic Information

Model NO.

Optical Tracking System7

Certification

CE

LCD Display

With LCD Display

Accuracy

0.08mm(RMS)/ 0.12mm(RMS)

Sample Rate

96Hz/ 300 Hz

HW Interface

USB 3.0, Ethernet, WiFi

Feature

Real-Time Tracking

Origin

China

Product Description

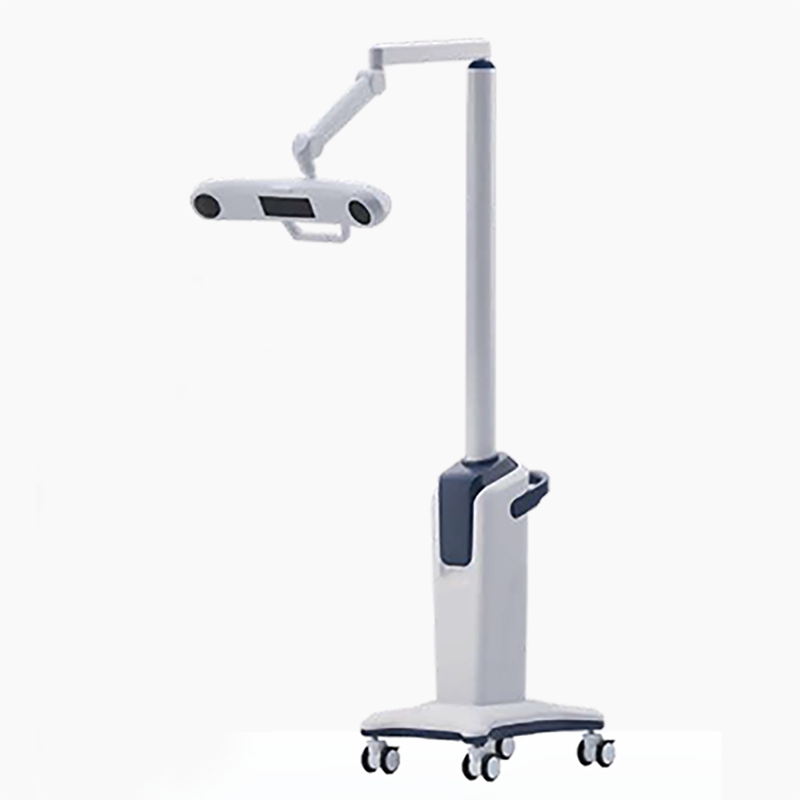

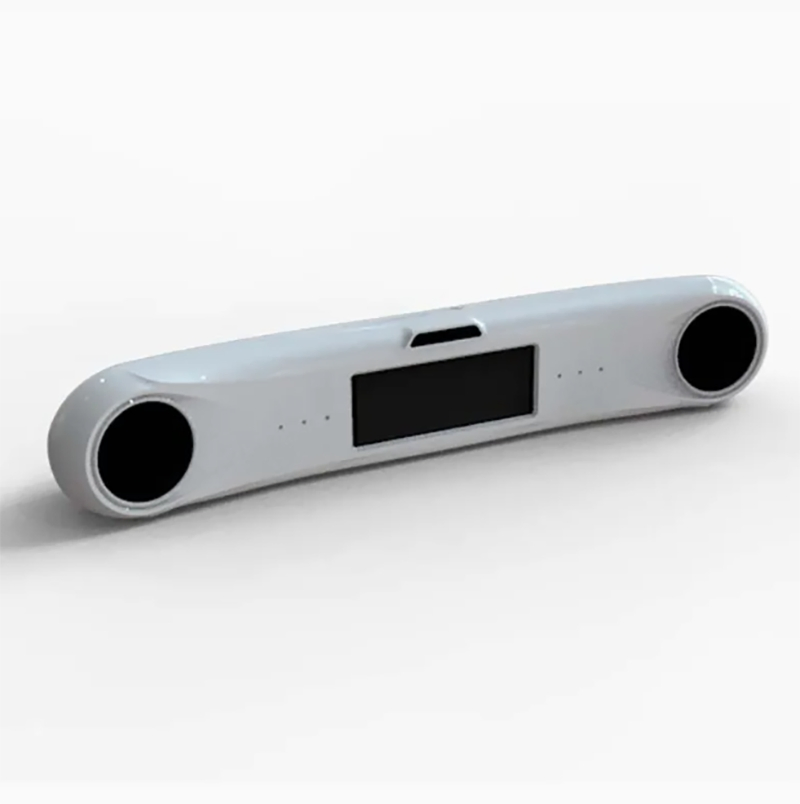

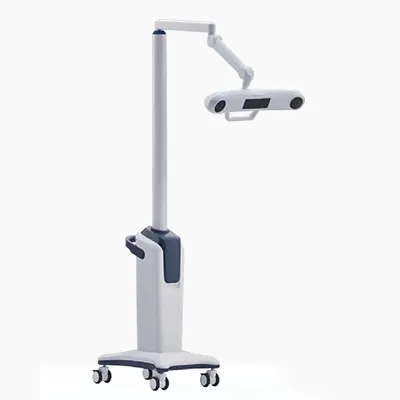

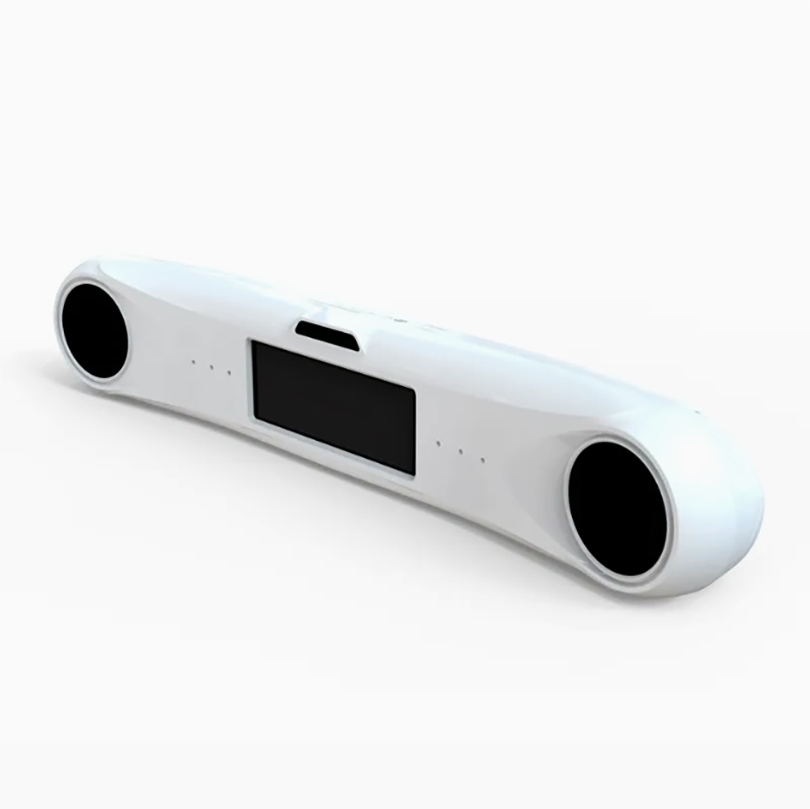

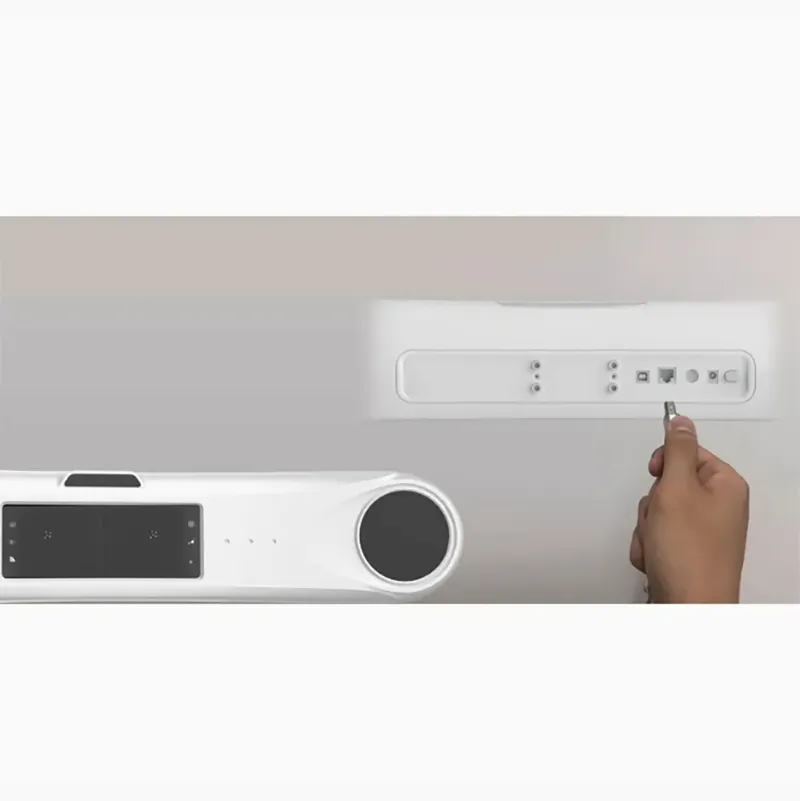

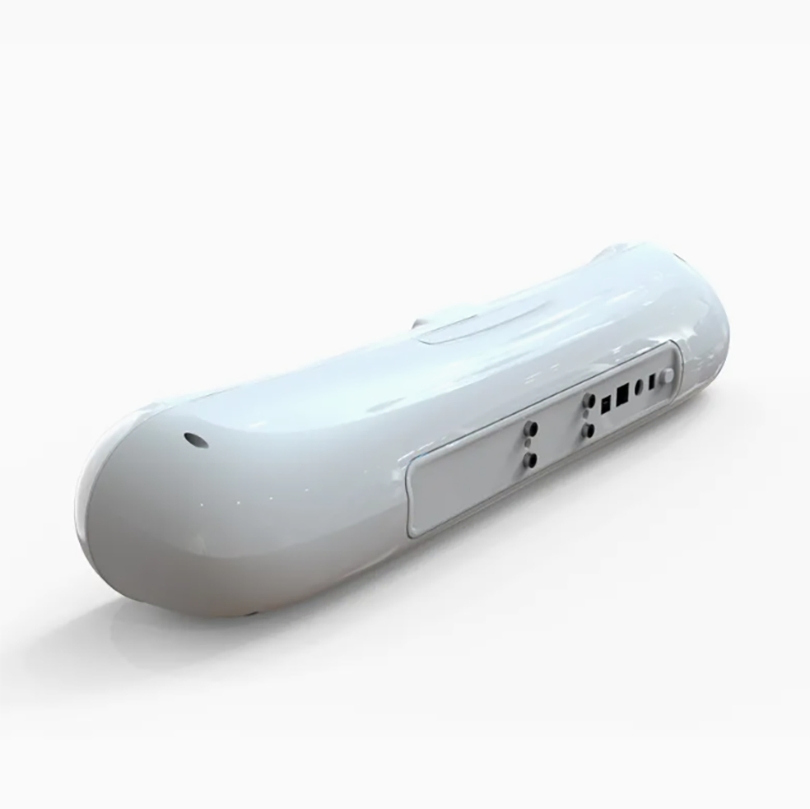

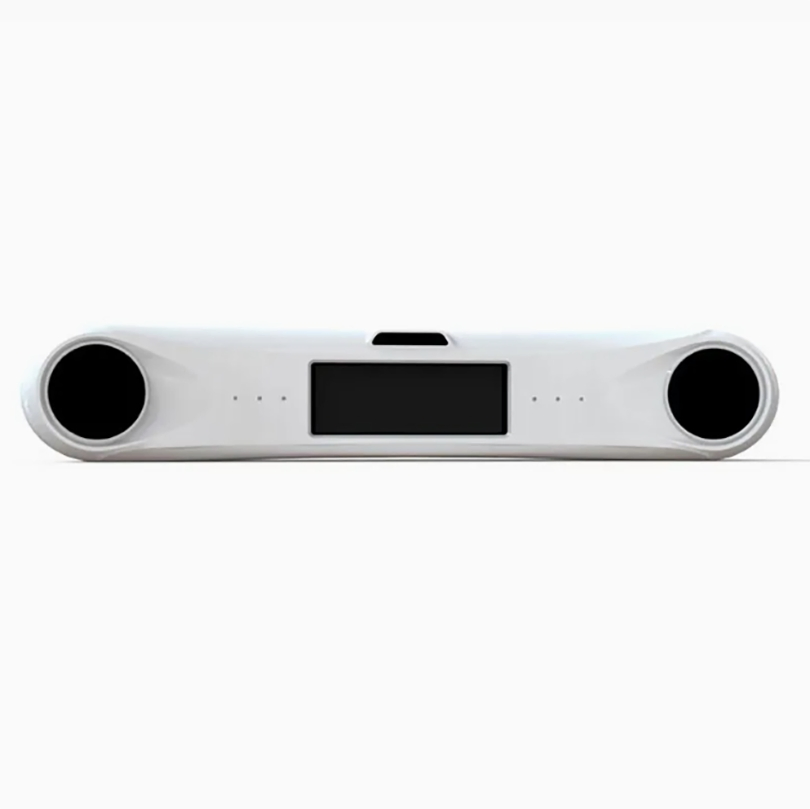

Optical Tracking System OP-M632

●

FPGA-Powered Performance: Integrates innovative algorithms to enhance synchronization, stability, and accuracy—critical for precision-critical procedures.

●

Compact Design: Fits seamlessly into space-constrained ORs, ideal for dentistry, neurosurgery, and ENT.

●

Real-Time Tracking: Delivers sub-millimeter precision to guide instruments, prostheses, and robotic arms with unmatched reliability.

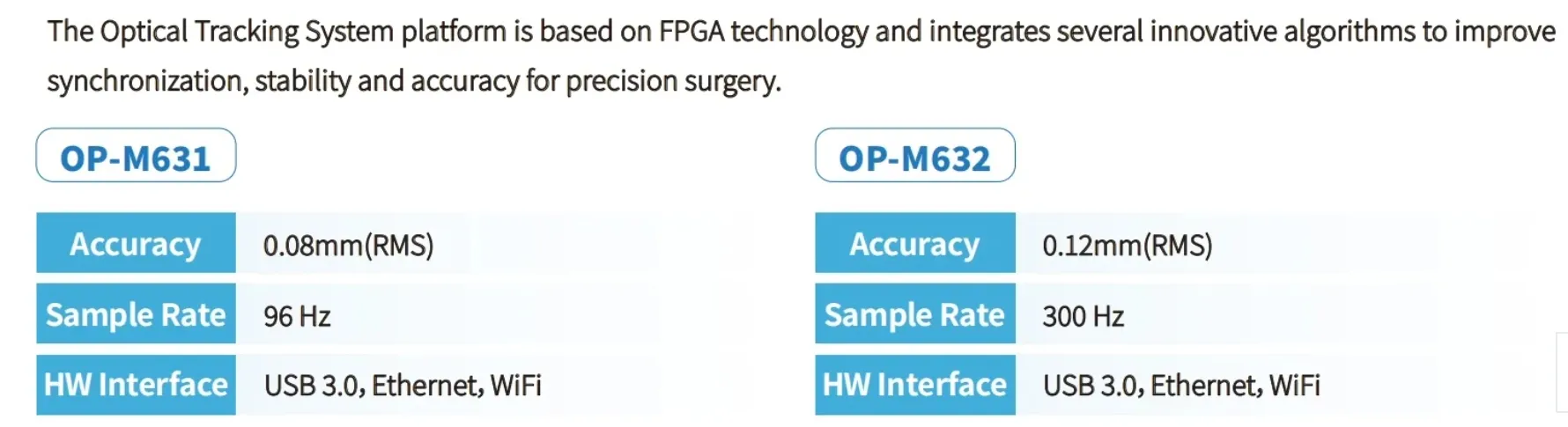

Specifications

Feature	OP-M631	OP-M632
Accuracy	0.08 mm (RMS)	0.12 mm (RMS)
Sample Rate	96 Hz	300 Hz
HW Interfaces	USB 3.0, Ethernet, Wi-Fi	USB 3.0, Ethernet, Wi-Fi
Application	High-precision Orthopedics	Neurosurgery, Joint Replacement
Data Types	Color images, binocular images, 3D coordinates of marker points, 6D pose of tools
Marker Points	Active/passive; Max 200 points tracked simultaneously
Dimensions	608.5mm × 122.5mm × 108.5mm

Profile

Our company is a high-tech, innovative healthcare provider equipped with robust AI computing power and big data platforms. We are dedicated to providing AI-driven digital healthcare services and intelligent solutions for global healthcare sectors.

Our expertise covers clinical care, rehabilitation, and In Vitro Diagnostics (IVD) fields, with a focus on delivering cutting-edge intelligent solutions. These span surgical procedures, neurosurgical brain-computer interfaces, AI-powered rehabilitation robots, AI-enhanced pathological auxiliary diagnosis, and life sciences.

Frequently Asked Questions

1. What is the Minimum Order Quantity (MOQ)?

Typically, the MOQ is 1 unit for instruments. For consumables, the MOQ depends on the specific items requested.

2. What qualifications or certifications do your products have?

Our products hold CE and FDA certifications. Our manufacturing facilities are ISO 9001 and ISO 13485 certified to ensure the highest quality standards.

3. What are your standard payment terms?

Our standard terms are 100% prepaid via T/T after proforma invoice confirmation. We also accept L/C and other negotiable terms depending on order volume.

4. What is the warranty policy for the tracking system?

We provide a comprehensive one-year warranty for our instruments, covering manufacturing defects and technical support.

5. What is the expected shelf life of the equipment?

Instruments typically have a 5-year operational shelf life. For specific reagents or consumables, the shelf life varies by product.

6. Do you offer OEM services?

Yes, we provide OEM services. Please provide your branding requirements and technical specifications for a detailed quote.
