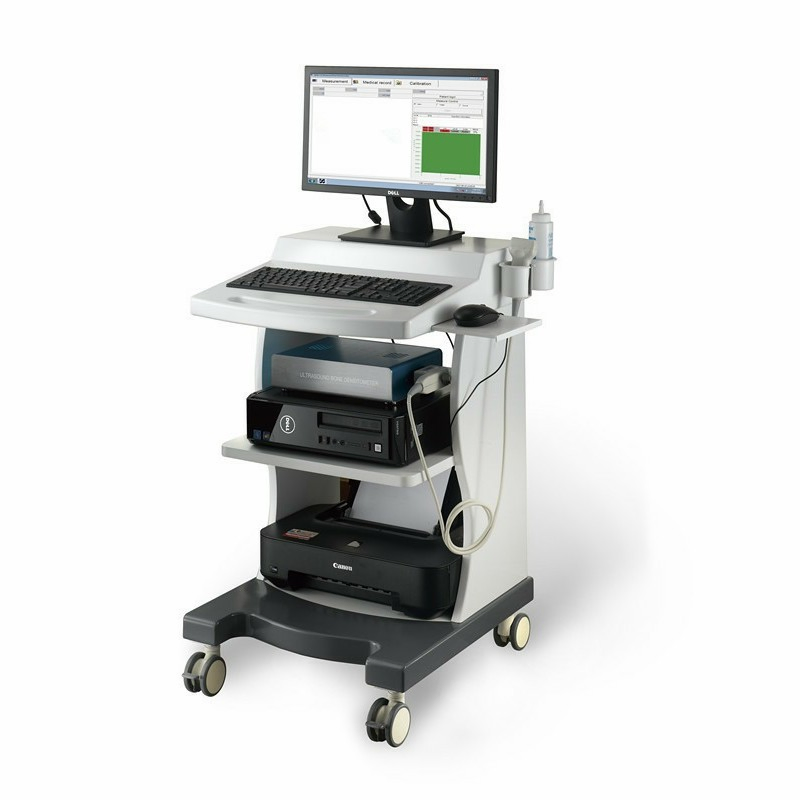

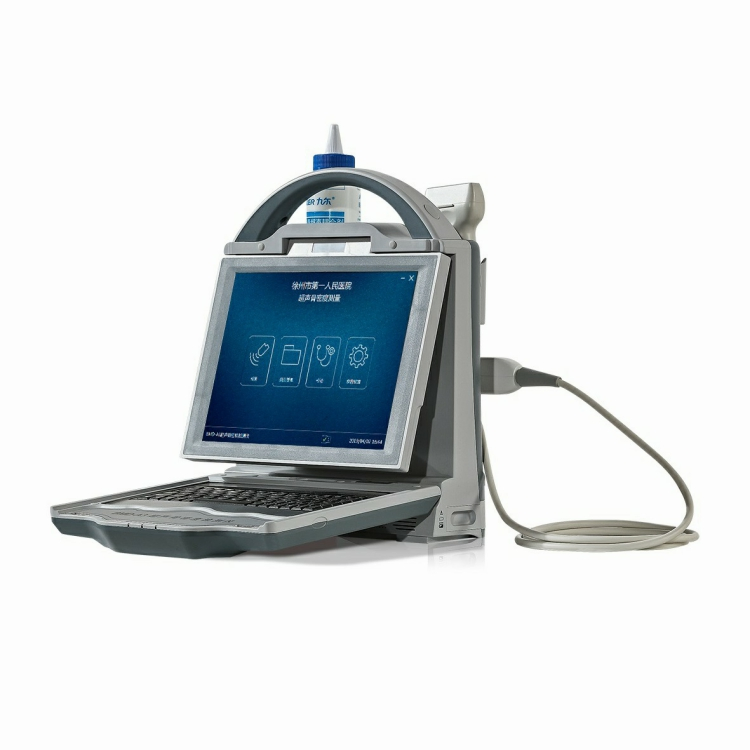

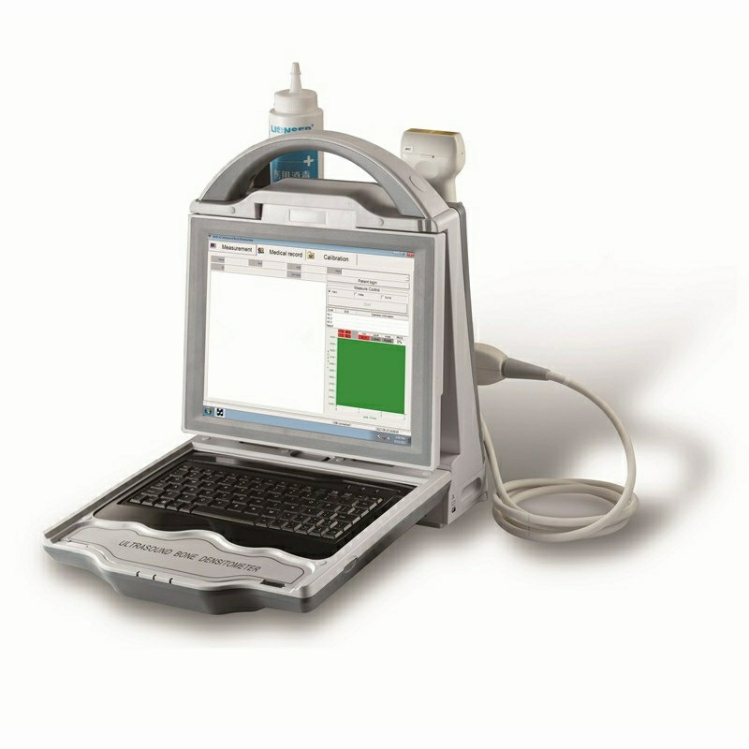

JRBMD-A3 Automatic High Effective Portable Ultrasound Bone Densitometer
A professional-grade diagnostic solution utilizing full dry technology for high-efficiency bone density assessment.
🛡️
Full dry technology makes diagnosis more convenient and hygienic.
🔬
Probes utilize DuPont technology for higher sensitivity and signal reception.
⚡
Ultrasonic axial conduction technology with double emission and double receiving for effective data.
🤖
Innovative algorithms effectively remove clutter and jamming signals to extract valid data.
📐
Special correction system minimizes system error for accurate measurement results.
🌍
Multi-race clinical database compatibility: European, American, Asian, Chinese, and WHO standards.
💻
Equipped with an English menu and passed the EMC test.
01Measurement Parts: Radius and Tibia
02Parameters: Speed of Sound (SOS), T-Score, Z-Score, Age%, Adult%, BQI, PAB, EOA, RRF.
03Accuracy & Reproducibility: ≤0.25%
04Measurement Time: <25 seconds
05Probe Frequency: 1.20MHz
06Navigation: Displays Axial, Horizontal, and Direction angles between probe and bone in real-time.
07Monitor: 10.4' color HD LED monitor.
08Fluid Protection: Main unit IPX0, Probe IPX7 (Waterproof).
09Computing: Dual-core CPU, 4G Memory, Electronic Hard Disk.
✅ Ultrasound Bone Densitometer Main Unit
✅ 1.20MHz Specialized Probe
✅ Embedded Industrial Control Computer
✅ Intelligent Analysis System
✅ Calibrating Module (Perspex sample)
✅ Disinfectant Coupling Agent
Frequently Asked Questions
What technology does the JRBMD-A3 use?
It uses full dry ultrasound technology along with axial conduction, featuring double emission and double receiving for highly accurate bone quality index (BQI) assessment.
Which age groups can be tested with this device?
The device is suitable for all ages, ranging from 0 to 100 years old, with specialized databases for children, teenagers, adults, and the elderly.
Is the measurement process fast?
Yes, a standard measurement typically takes less than 25 seconds, making it ideal for high-volume clinical environments.
Is the probe waterproof?
The probe features an IPX7 waterproof level, ensuring durability and ease of disinfection after use.
What parts of the body are measured?
The equipment is designed to measure the radius (wrist) and the tibia (shin bone) for comprehensive bone density analysis.
Does it provide a diagnostic report?
Yes, it generates a comprehensive color report in multiple sizes (A4, 16K, B5), including T-score, Z-score, and relative fracture risk analysis.
